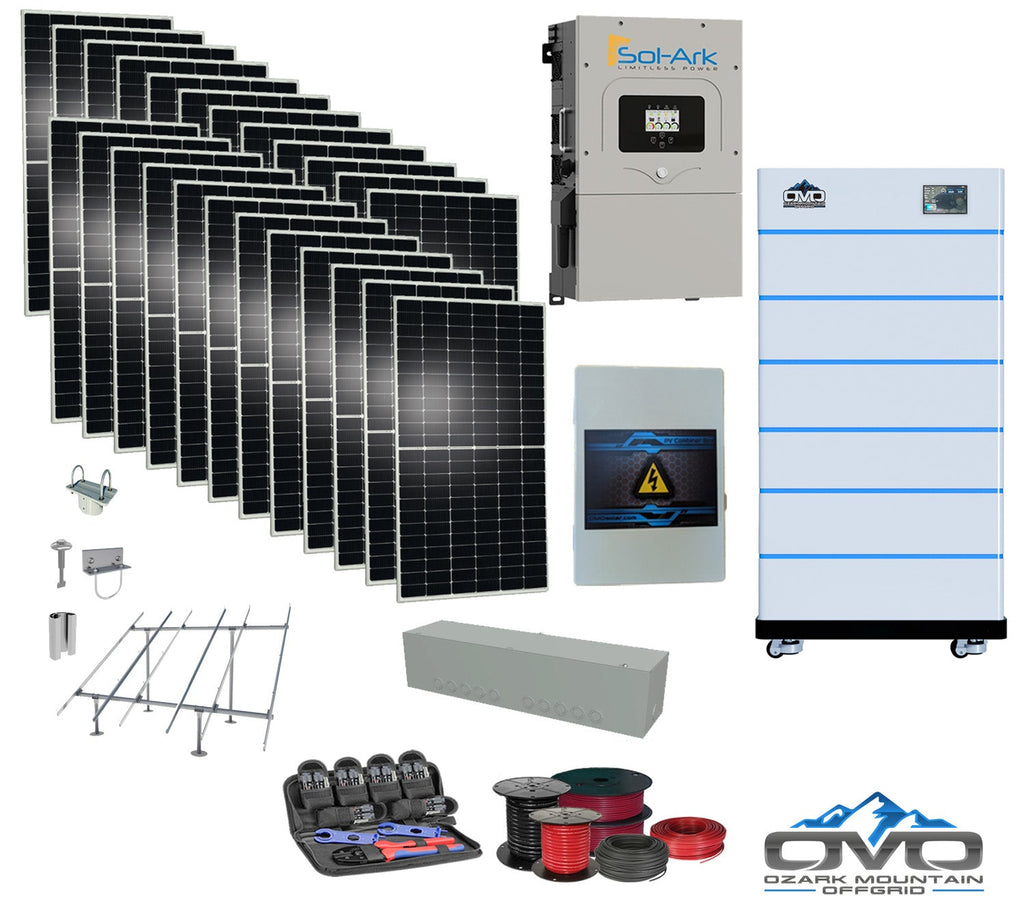

15K Sol-Ark Inverter Pure Sine Split Phase 110/220V Inverter + 30.72KW Lithium OMO Stack Battery + 13.2KW Solar with Mounting Rails and Wiring
This Package is a great starter package for a Complete Offgrid Home. This Lithium Battery bank will give you 30720 Watts of usable Energy. The Solar Array will produce around 59400Watts per day based on 4.5 hours sun. This size of system generally works great for Mid sized homes, and etc that use around 1700 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.
24x 550W Bifacial Mono Solar Panels (13200 Watt Array)

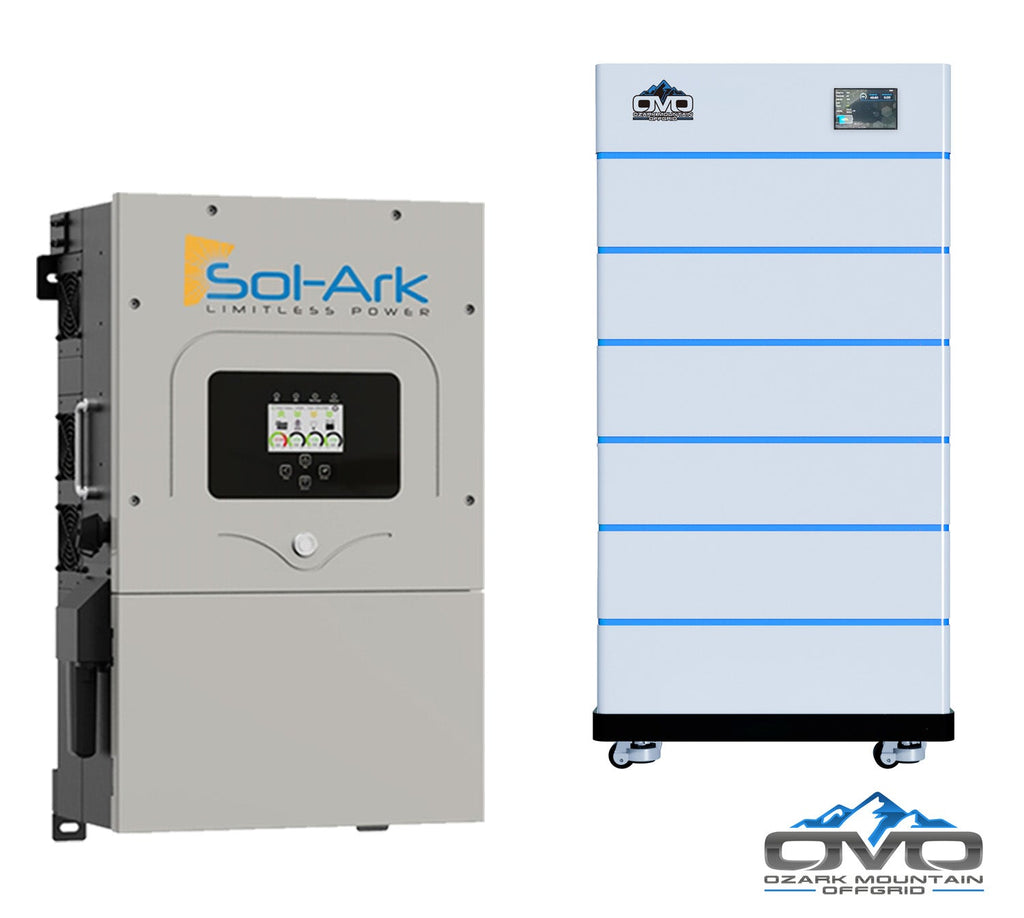

1x Sol-Ark 15K-2P-N Split-Phase Inverter - Grid Tied Compatible or Generator Input Compatible

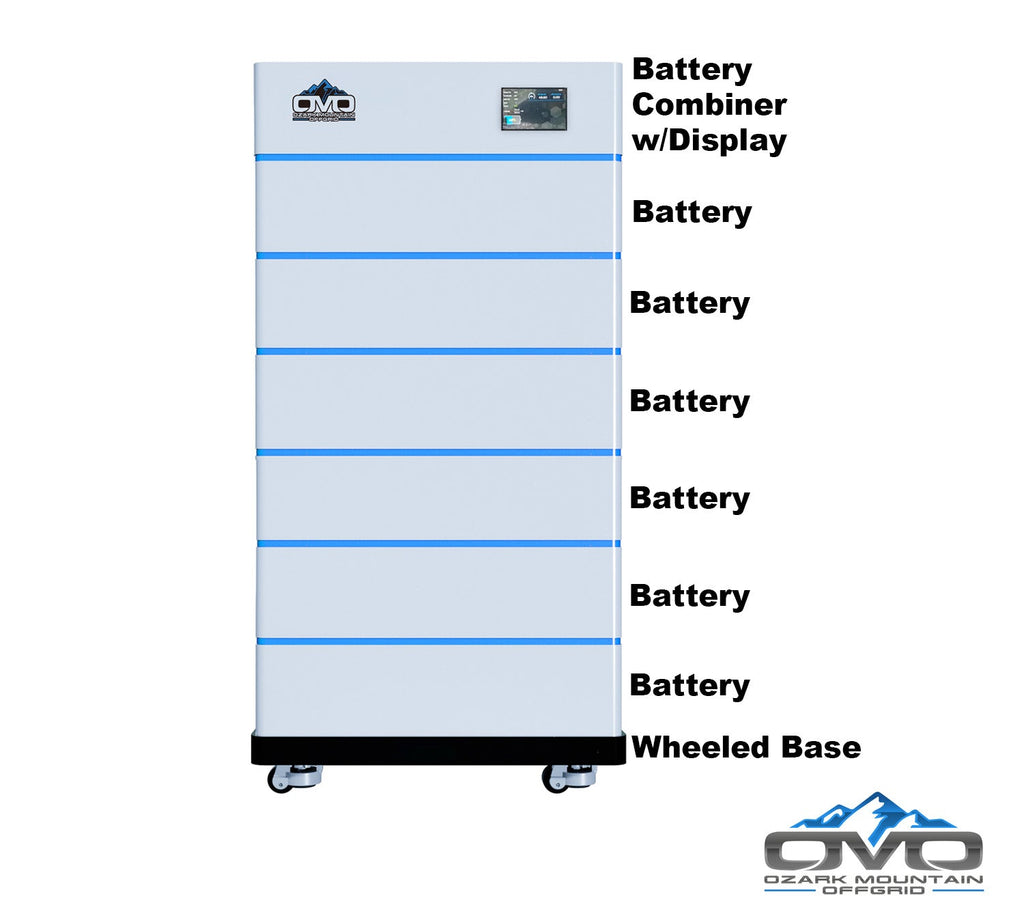

1x OMO Stackable Combiner with LCD Readout
6x OMO 51.2V 5.12KW Stackable Heated Batteries w/Bluetooth
1x OMO Wheeled Base Unit
1x Complete Set of Iron Ridge GROUND MOUNT Rails / Top Caps / Rail Connectors / Fasteners and Bolts
1x Solar PV Combiner Box
1x 500' Spool 10AWG MC4 Solar Array Cabling
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
1x 20' Spool 2/0 AC Main Line
1x Wire Gutter Boxes
1x AC Combiner Box Kit (2x or more Sol-ark Combination kit)
1x MC4 Crimper Tool Set
1x Installation Manual
Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else.
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty.
Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid Output rating - 9KW Continuous (16Kw Surge 10sec)
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty
Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
This package is suitable for a Small Home / Off-Grid Cabin / RV / Garage / Polebarn
Will Run most common household appliances
Well
Washing Machine
Fans
TV's
Lights
Refrigerator
Freezer
Cell Phones / PCs / Tablets
Smaller AC Systems
Is this the right Solar System for me?
According to the US Energy Information Administration, the average power usage in the USA per home is around 877KW per Month. Take this number into consideration when looking at our DIY Solar kits. All of our kits are expandable so you can add to your array at any time.
How to Figure how much power this system will make:
Based in the Midwest we average around 4.5 hours of Peak Sun Energy per day. It will be less in the northeast area of the US and more in the SW area of the US. This is how the Solar Production for Daily and Monthly Totals is calculated.
Is this Easy to Install?
A Homeowner with basic wiring knowledge would be able to install this DIY kit. If you do not have basic wiring knowledge, you should contact a local electrician to make your connections.Typically the most challenging part of any Solar Install is the Racking for ground mount or roof mount situations. This is what tends to take the most amount of labor to get setup. If you have any questions on installing this kit, contact us for more info and guidance.
