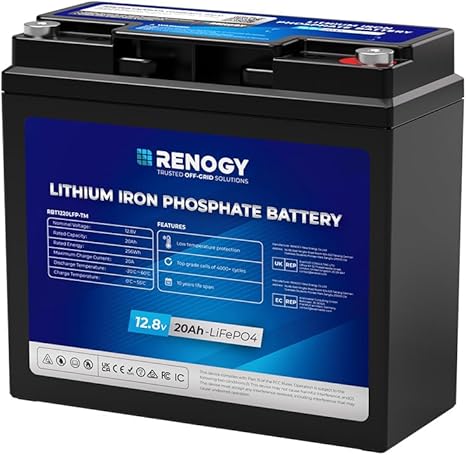

12V 20Ah Trolling Motor Lithium Iron Phosphate Battery
Power your adventures with the Renogy 12V 20Ah LiFePO4 Battery, a compact energy solution that punches above its weight. Designed as a 50% lighter drop-in replacement for lead-acid batteries, it delivers 37% longer runtime, making it perfect for powering fish finders, trolling motors, e-scooters, ham radios, and other outdoor gear. Its advanced Battery Management System (BMS) offers 20+ built-in protections, including a low-temperature cut-off, ensuring safe and reliable performance in any climate. The battery’s IP65-rated water and dust resistance makes it a rugged companion for boats, kayaks, RVs, and off-grid setups. Plus, it retains 60% more power over 3 months compared to traditional batteries, offering long-term efficiency with zero maintenance.
Whether you're casting a line or cruising new trails, the Renogy 20Ah LiFePO4 battery keeps you powered up wherever you go!
Highlights:

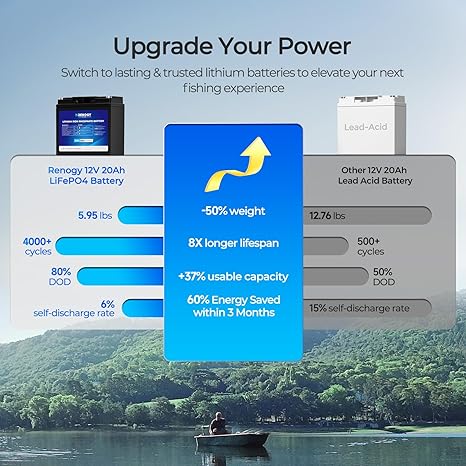

• A 50% lighter drop-in replacement for 20Ah lead-acid batteries
• 37% longer runtime for fish finders, scooters, ham radios, and more

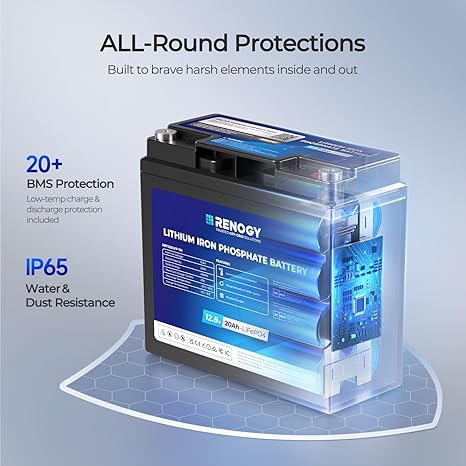

• 20+ Built-in BMS protection with low-temp cut-off for added safety
• Save 60% of power over 3 months than lead-acid batteries
• IP65 water & dust resistance for harsh outdoor environments
SPECIFICATIONS:
Electrical Specifications
Rated Capacity: 20Ah (0.5C, 25℃)
Voltage: 12V
Energy: 256Wh
Cycle Life (0.5C, 25℃): 4000 Cycles (80% DOD)
Charging Parameters
Voltage Range: 10V to 14.8V
Maximum Continuous Charge Current: 20A
Discharging Parameters
Maximum Continuous Discharge Current: 20A
Peak Discharge Current: 75A@5s
Temperature Parameters
Operation Temperature Range: Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity: 10% to 95%
Mechanical Specifications
Dimension (L x W x H): 7.13 x 3.03 x 6.61 in / 181 x 77 x 168 mm
Weight: 5.95 lbs / 2.7 kg
Terminal Bolt Size: M6 x 1.25 x 10 mm
Protection Rating: IP65
Warranty
5-year material warranty: Yes
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA: Yes
WHAT’S IN THE BOX:
1 x RENOGY 12.8V 20Ah Deep Cycle Lithium Iron Phosphate Battery
2 x Terminal Bolt (M6*1.25*10 mm)
1 x User Manual
