Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
VRR, ALLM, QMS, QFT, SBTM support
HDR/10/10+, Dolby Vision, and HLG pass-through
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X
Audio pass-through from HDMI
8K to 4K or 8K/4K to 1080P auto downscaling on both outputs
Automatic HDR to SDR Conversion on both outputs

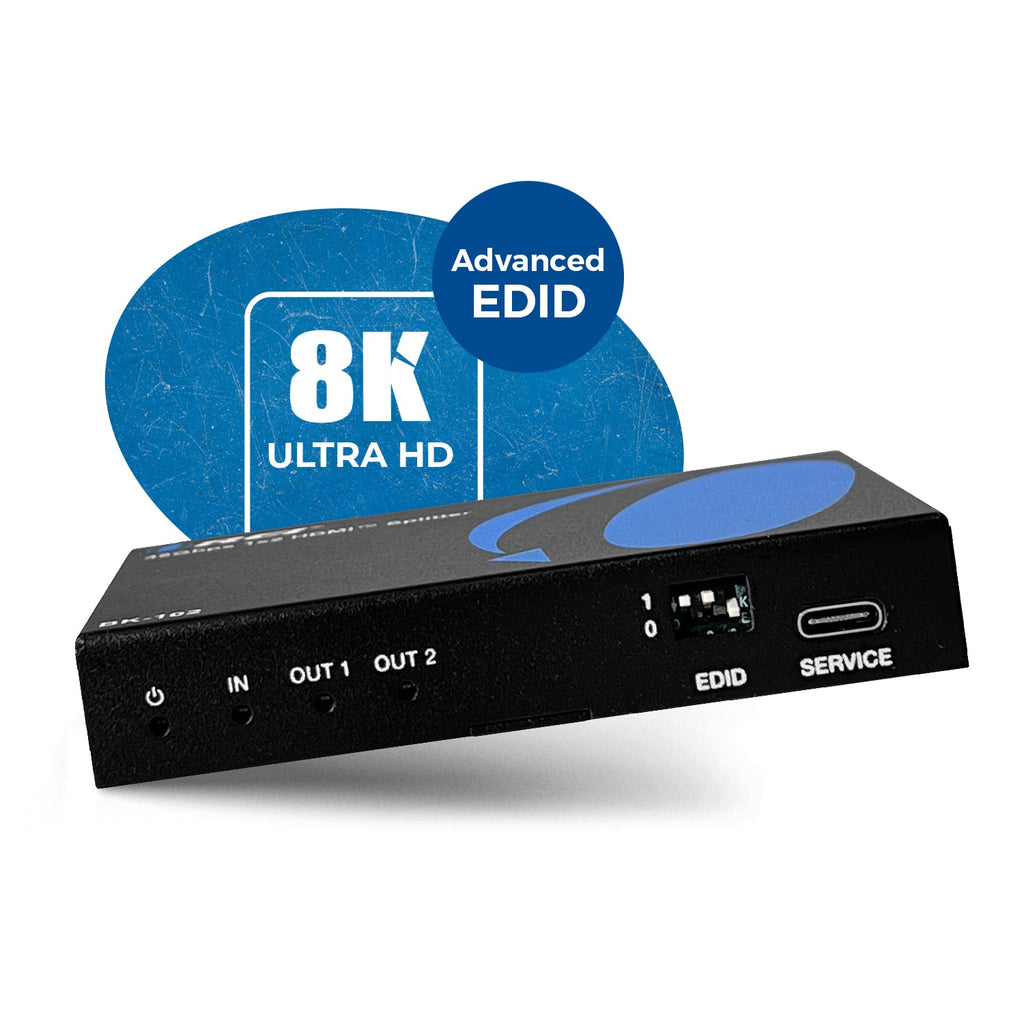

Advanced EDID management

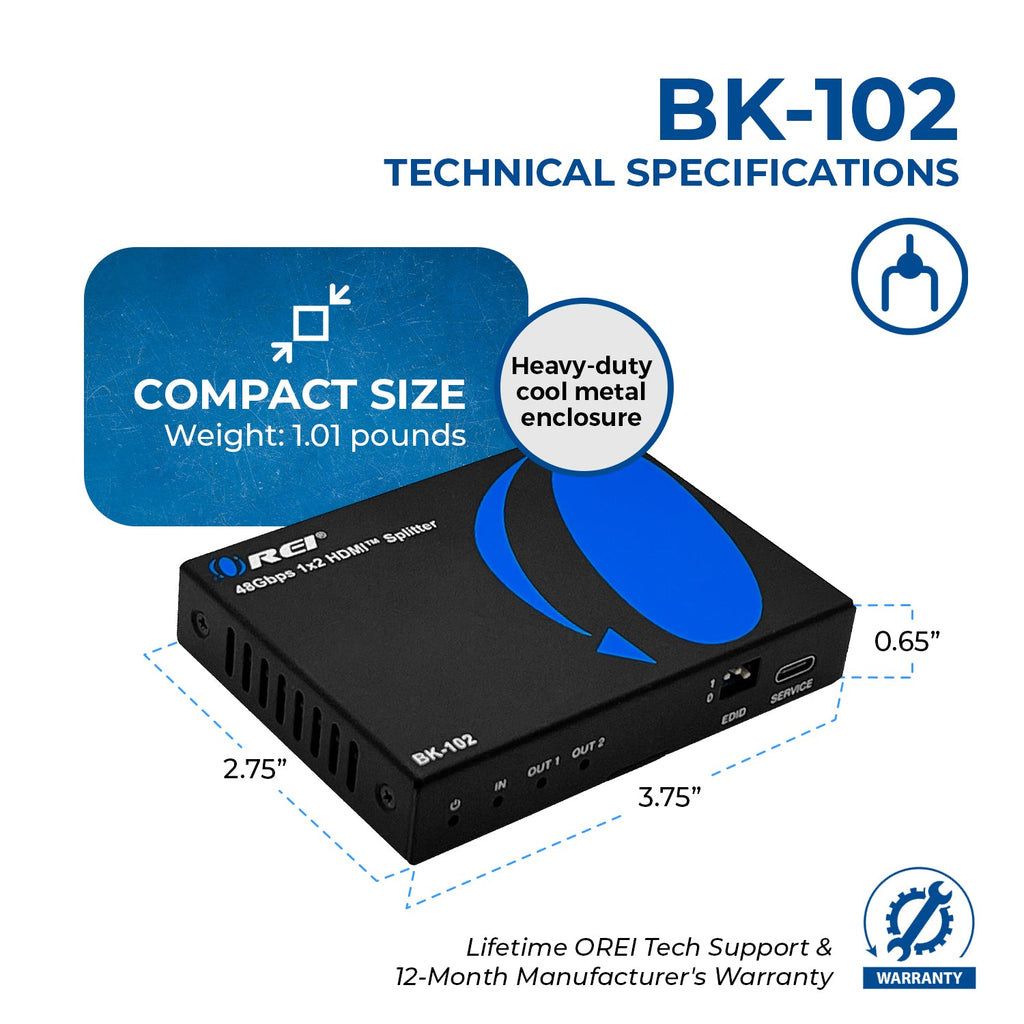

Compact design for easy and flexible installation

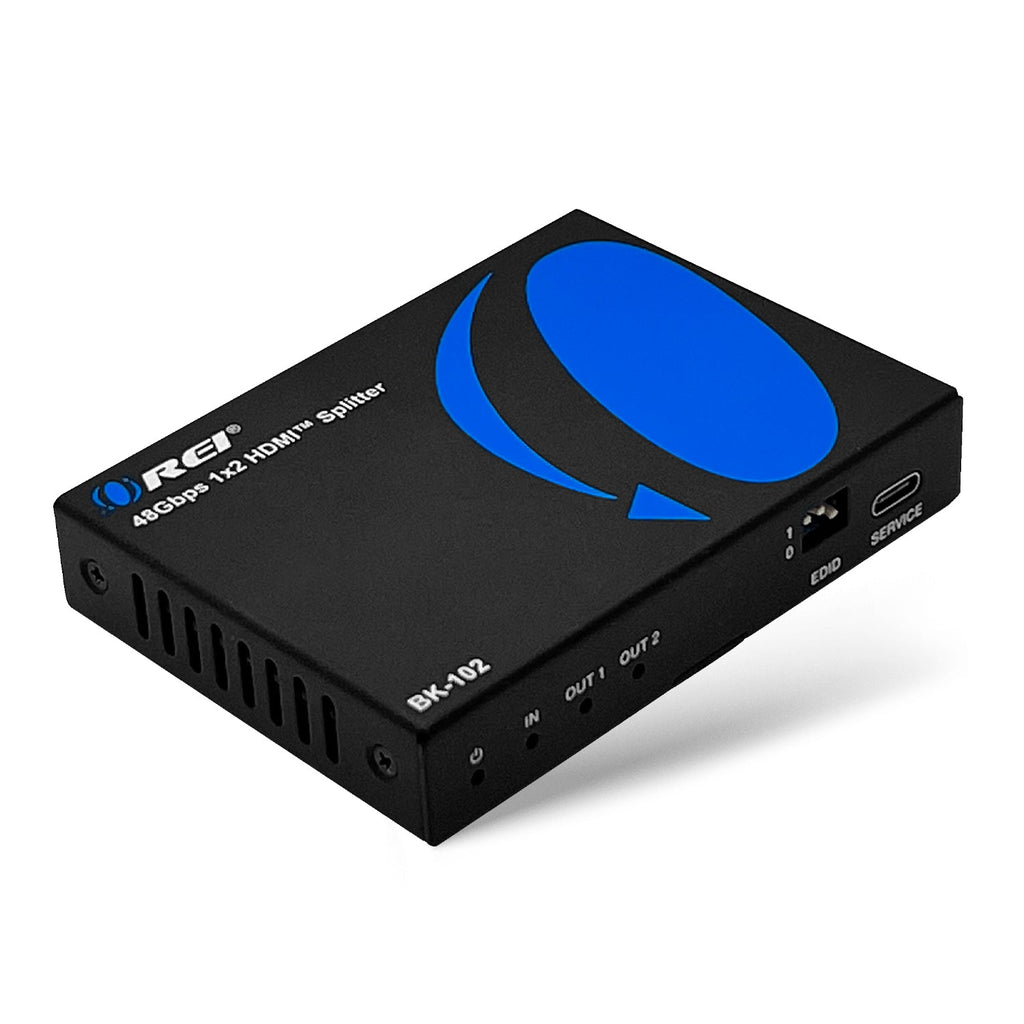

The BK-102 Splitter is a powerful device designed to split a single HDMI signal into two separate HDMI outputs simultaneously, with video resolutions up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4. It features video bandwidth up to 48Gbps and complies with HDMI 2.1 and HDCP 2.3. HDR/10/10+, Dolby Vision, and HLG pass through. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for both outputs. Compact design and plug & play setup.
[shortdes]
1 in 2 out 8K HDMI splitter With Downscaling & EDID Management
Resolutions up to 8K@60Hz 4:2:0
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]
CONTROL:
1× SERVICE [USB-C, Update port]

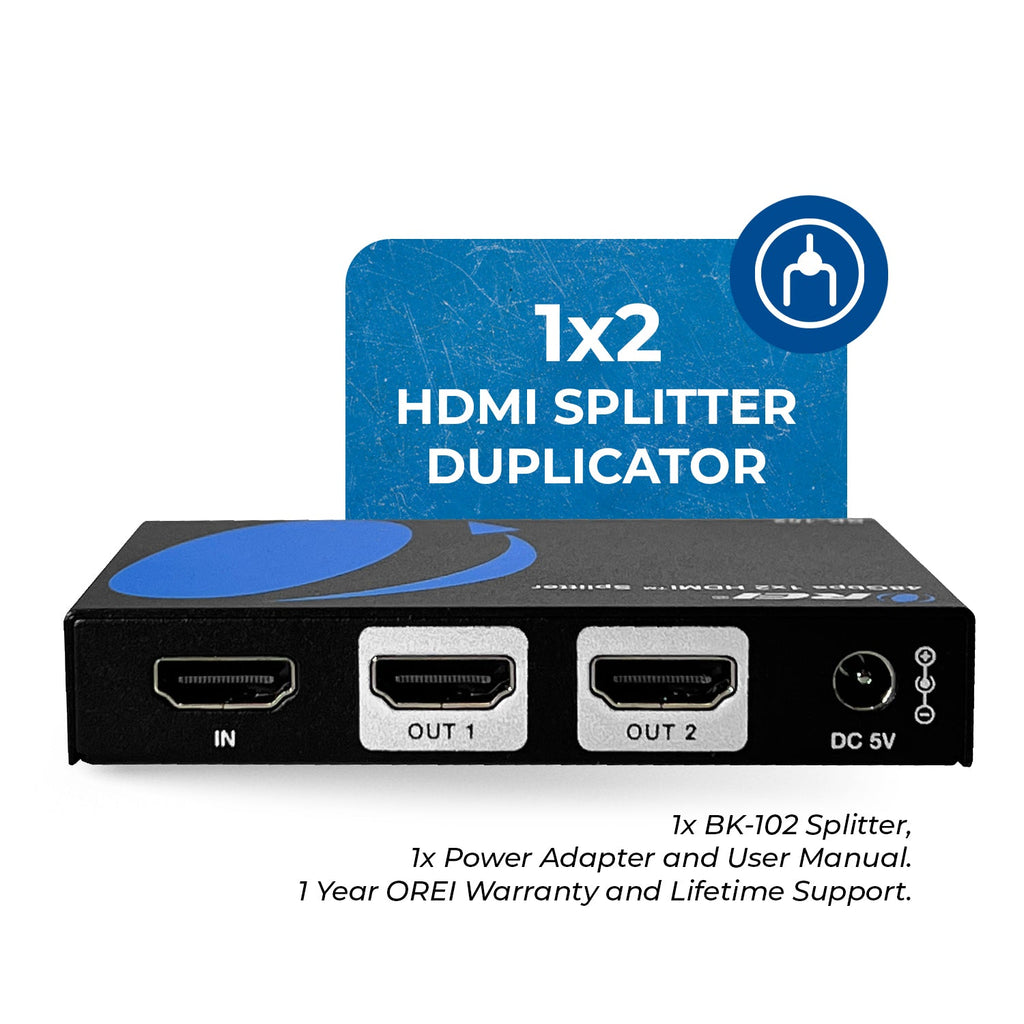

PACKAGE CONTENTS
1x BK-102 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1:
We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
6.6 Feet
4K@60Hz:
26 Feet
VIDEO OUTPUT
Video Bandwidth:
48Gbps FRL & 18 Gbps TMDS
Video Resolutions:
Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, 2K@120Hz, 2K@60Hz
Our splitters will not work with capture cards due to the HDCP encryption on the output

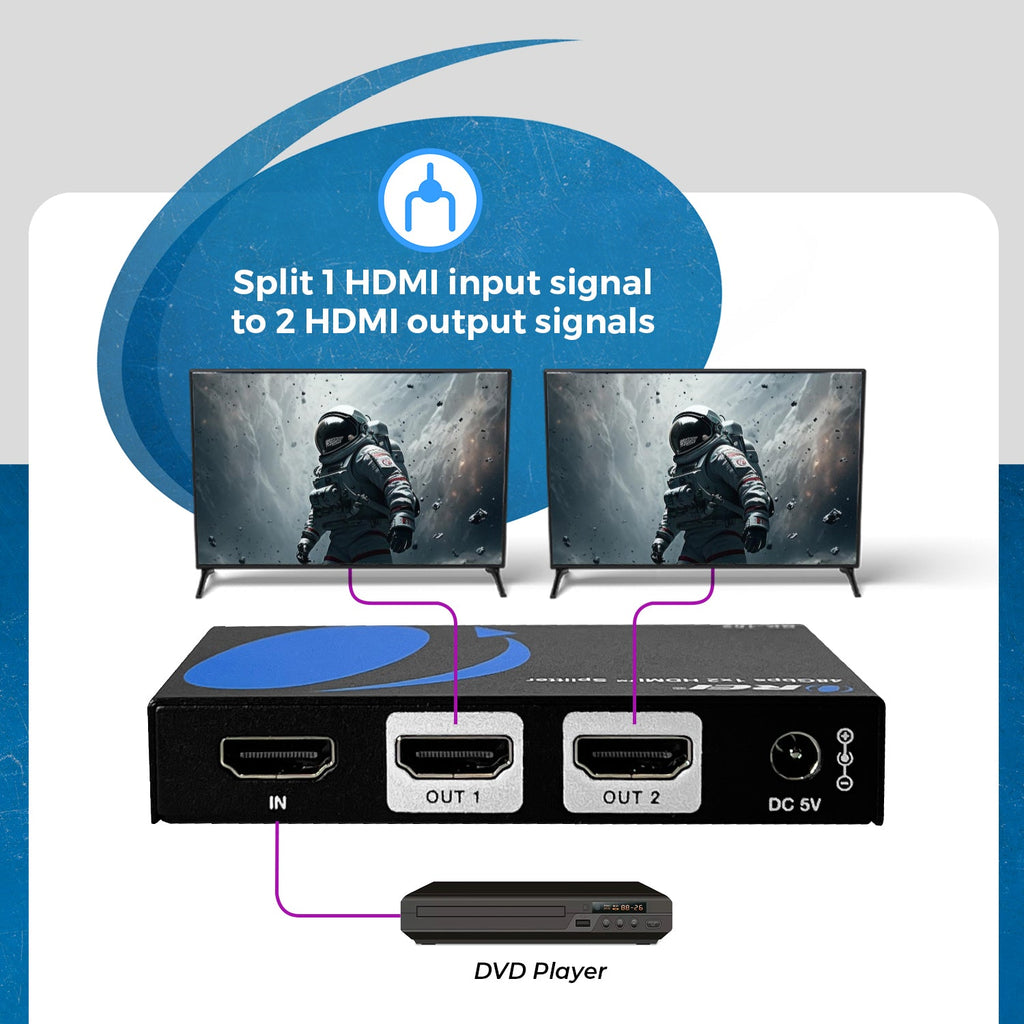

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI BK-102 supports video resolutions up to 8K@60Hz (4:2:0 12bit) and 4K@120Hz (4:4:4 12bit).
Yes, the OREI BK-102 supports HDR/10/10+, Dolby Vision, and HLG pass-through.
Yes, the OREI BK-102 features auto downscaling from 8K to 4K and from 8K/4K to 1080P on both outputs.
The OREI BK-102 supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X audio pass-through.
Yes, the OREI BK-102 supports VRR, ALLM, QMS, QFT, and SBTM.
