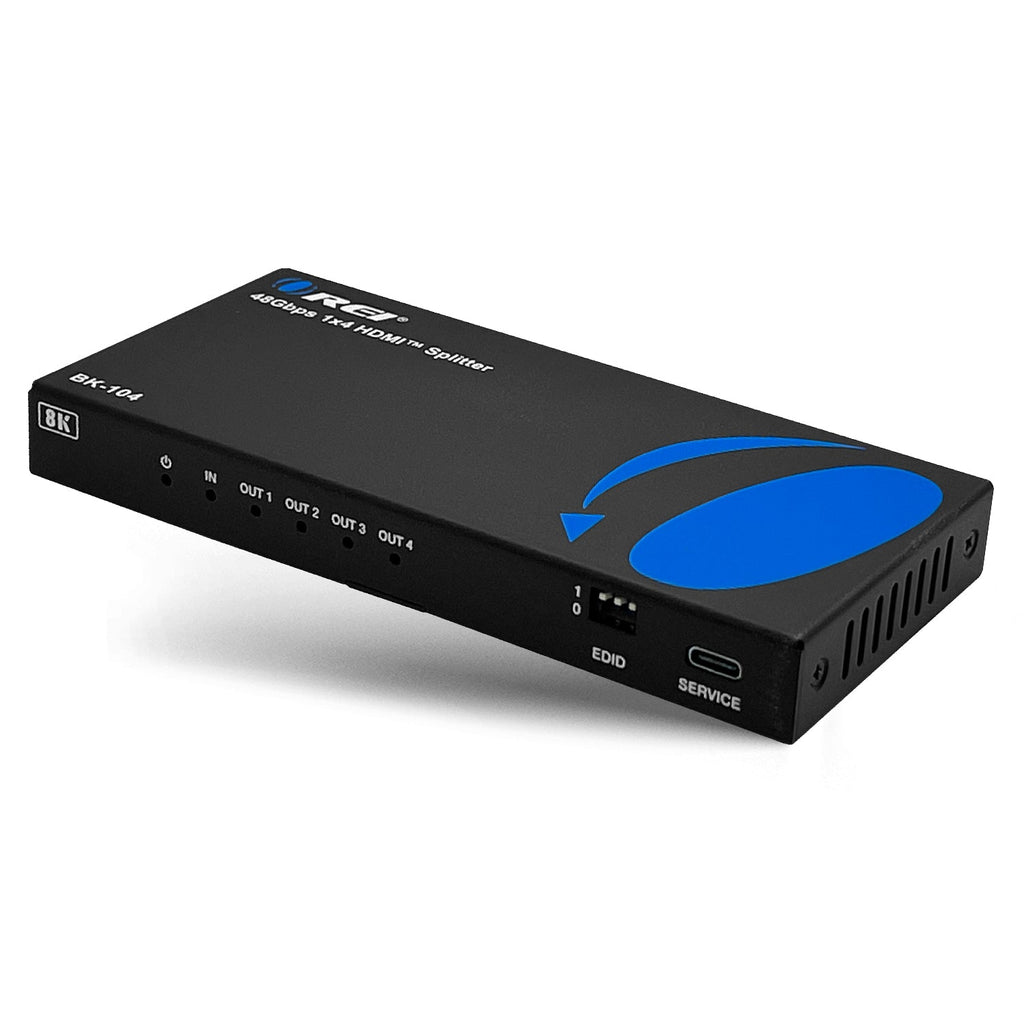

OREI BK-104 :8K 1x4 HDMI Splitter With Downscaling & EDID management, HDR, HLG & Dolby Vision Support
Key Features:
HDMI 2.1 and HDCP 2.3 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz
4:4:4 12bit
VRR, ALLM, QMS, QFT, SBTM support
HDR/10/10+, Dolby Vision, and HLG pass-through
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X
Audio pass-through from HDMI
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
Automatic HDR to SDR Conversion on all outputs
Advanced EDID management

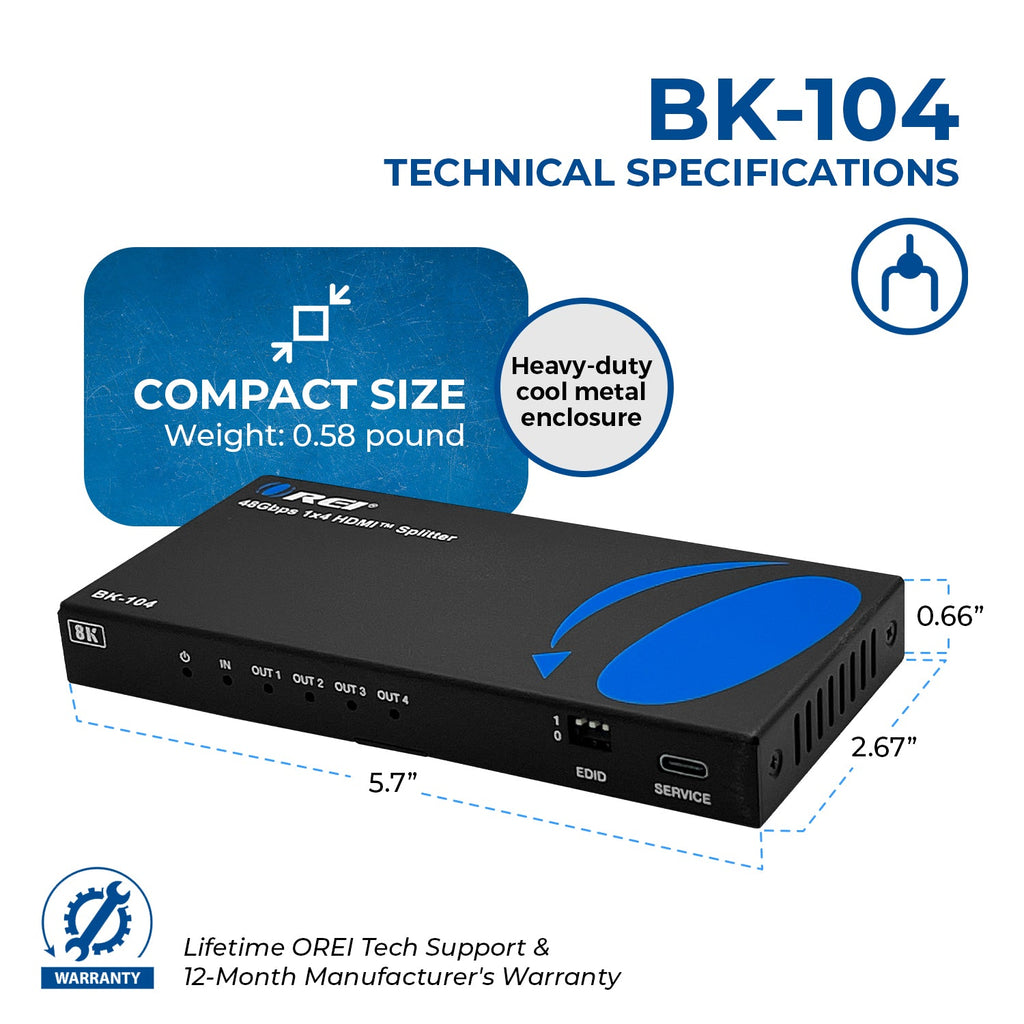

Compact design for easy and flexible installation

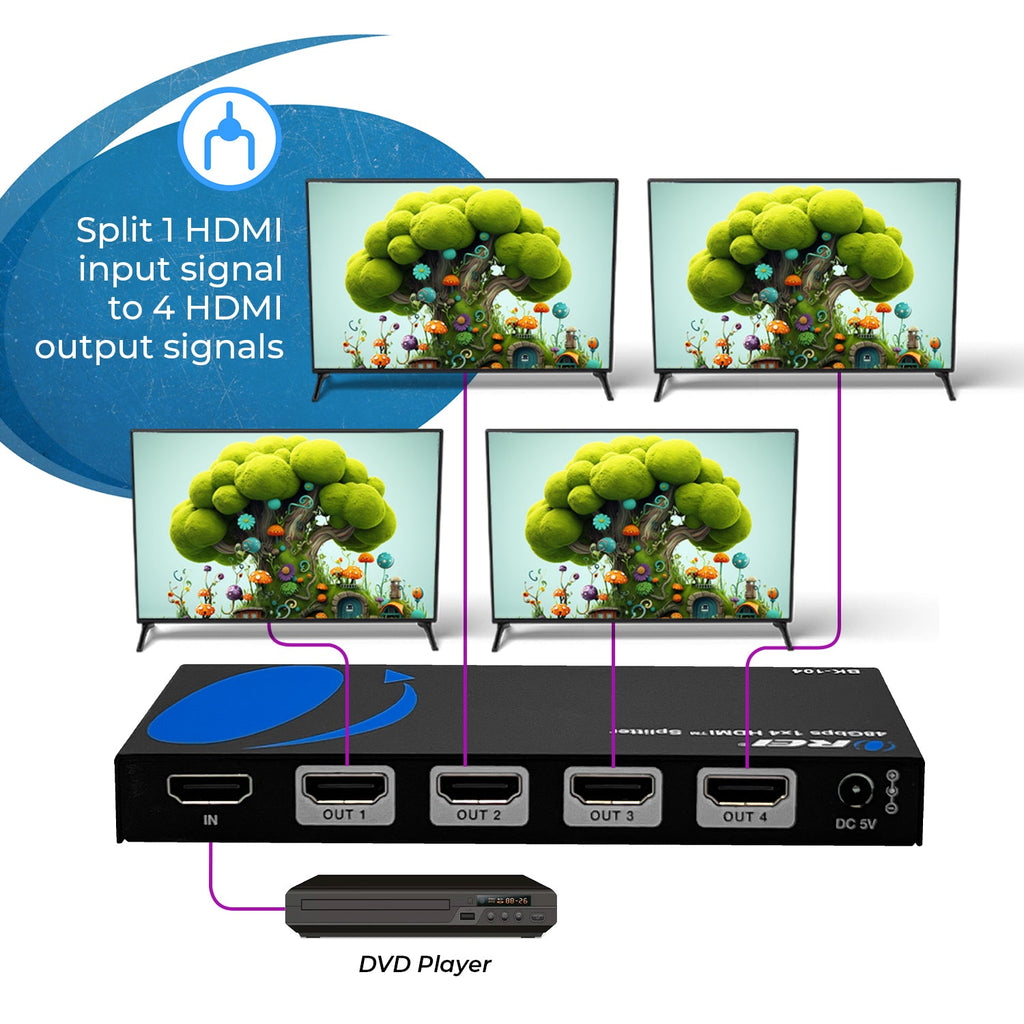

The BK-104 Splitter is a powerful device designed to split a single HDMI signal into four separate HDMI outputs simultaneously, with video resolutions up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4. It features video bandwidth up to 48Gbps and complies with HDMI 2.1 and HDCP 2.3. HDR/10/10+, Dolby Vision, and HLG pass through. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. Compact design and plug & play setup.
[shortdes]
1 in 4 out 8K HDMI splitter With Downscaling
Resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]

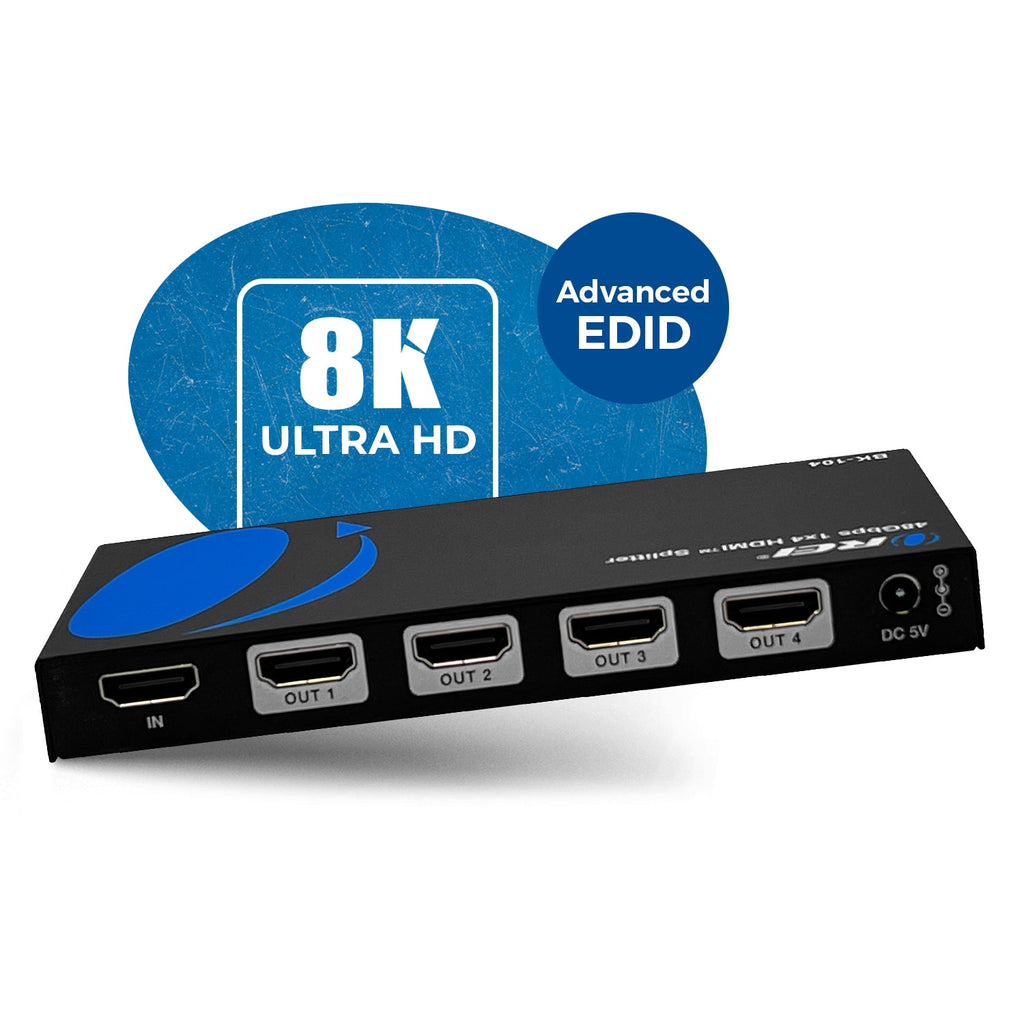

CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
CONTROL:
1× SERVICE [USB-C, Update port]

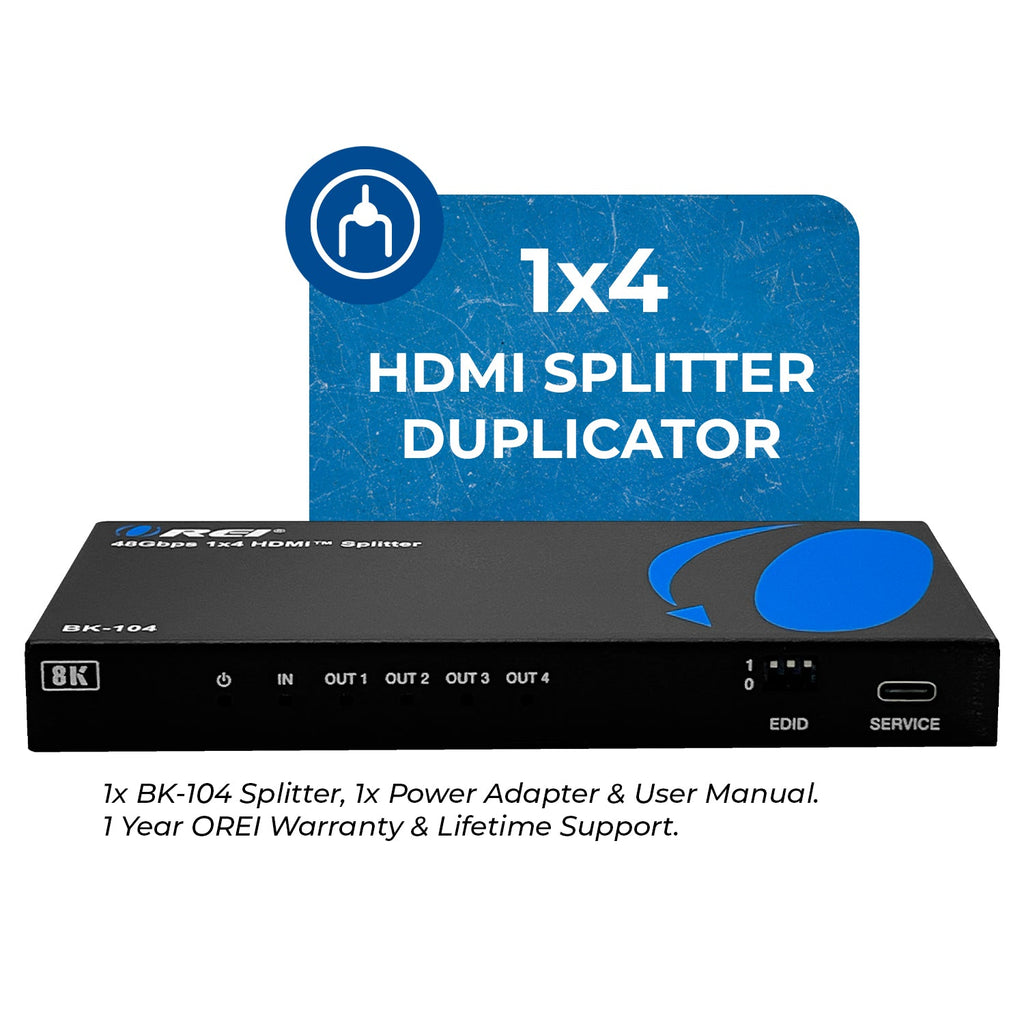

PACKAGE CONTENTS
1x BK-104 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1:
We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
6.6 Feet
4K@60Hz:
26 Feet
VIDEO OUTPUT
Video Bandwidth:
48Gbps
Video Resolutions:
Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, 4K@60Hz, 2k@120Hz, 2K@60Hz
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The OREI BK-104 supports video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit.
Yes, it supports HDR/10/10+, Dolby Vision, and HLG pass-through.
Yes, it features auto downscaling from 8K to 4K or 8K/4K to 1080P on all outputs.
It supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X audio pass-through from HDMI.
The OREI BK-104 is compliant with HDMI 2.1 and HDCP 2.3.
