2* Mango Power E+ 2* E Extra Battery + mPanel Pro

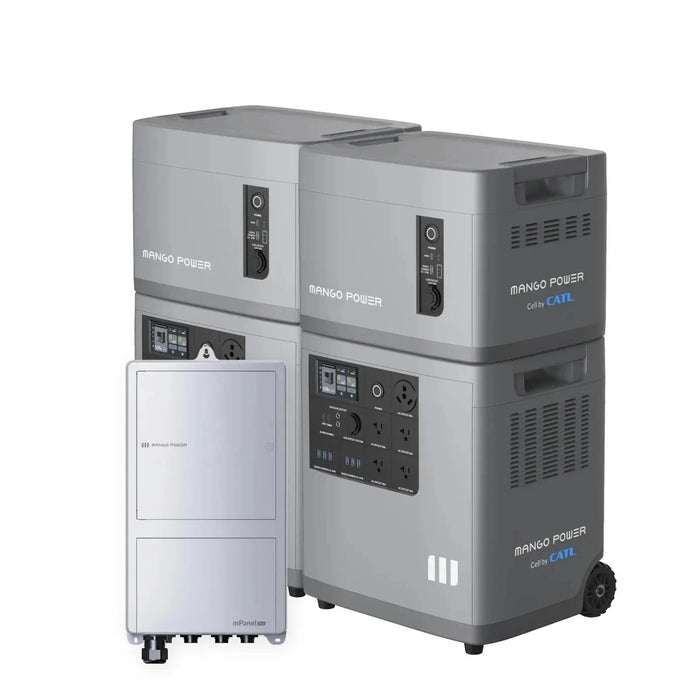

2× Mango Power E + 2× E Extra Battery + mPanel Pro is a complete whole-home backup energy solution designed to provide reliable, uninterrupted power for homes during outages. This configuration includes two Mango Power E portable power stations, two E Extra Batteries, and the mPanel Pro smart transfer panel, delivering a combined 14.1kWh battery capacity and 6,000W continuous AC output with 120V/240V split-phase power. It is ideal for powering essential household circuits, large appliances, and critical equipment while maintaining seamless operation during power interruptions.

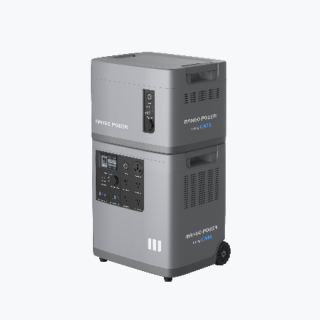

Each Mango Power E is paired with an Extra Battery to double its capacity from 3.53kWh to 7.06kWh. When the two expanded systems are connected through the mPanel Pro, they can automatically supply backup power to selected home circuits, allowing refrigerators, lighting, internet equipment, HVAC systems, well pumps, and other essential appliances to continue operating when the utility grid goes down.
The system uses durable CATL LiFePO₄ battery cells rated for up to 6,000 charge cycles, supports ultra-fast AC charging, accepts up to 2,000W solar input per main unit, and can be monitored and managed remotely through the Mango Power mobile app via Wi-Fi and Bluetooth.
Highlights:
- 3.5-14kWh Capacity / 3-6kW AC Output

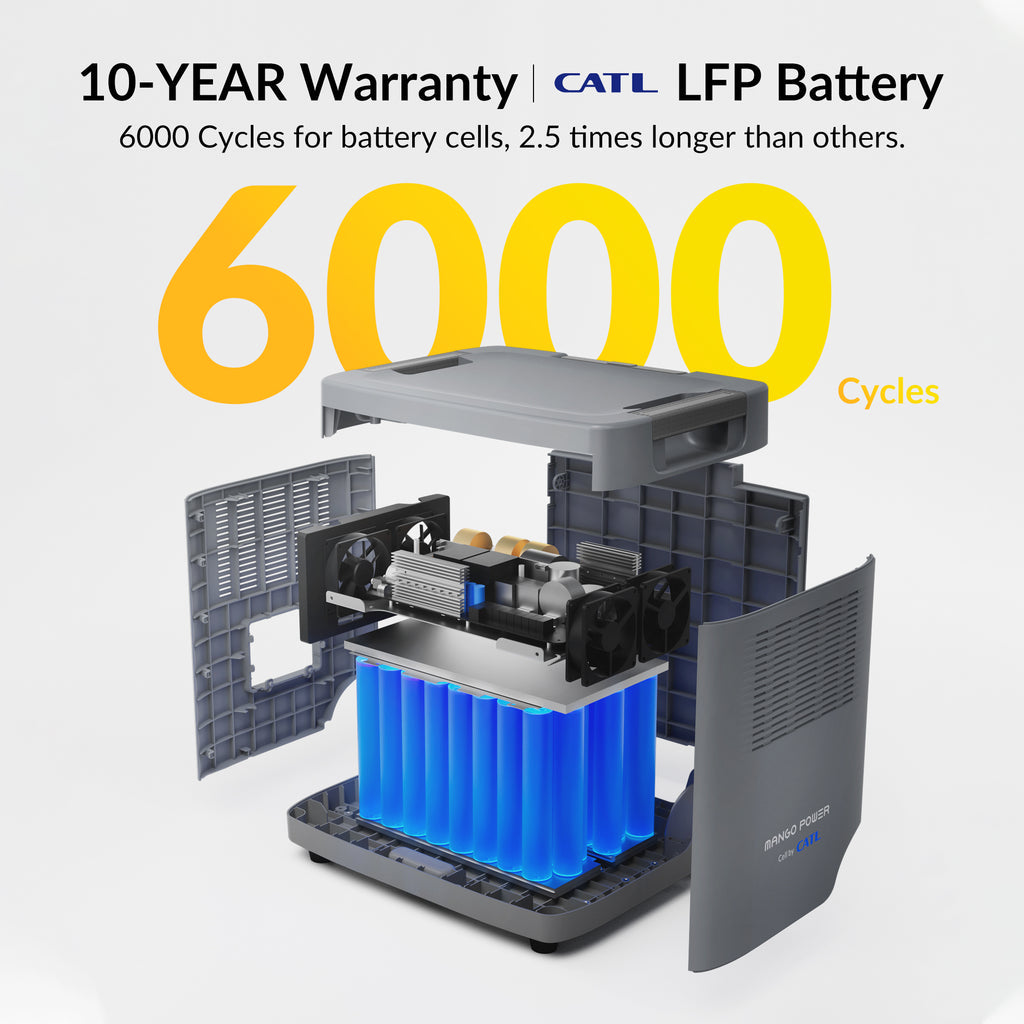

- CATL LFP Battery with 10-Year Warranty
- 6,000 Cycles / Over 20 Years Lifespan

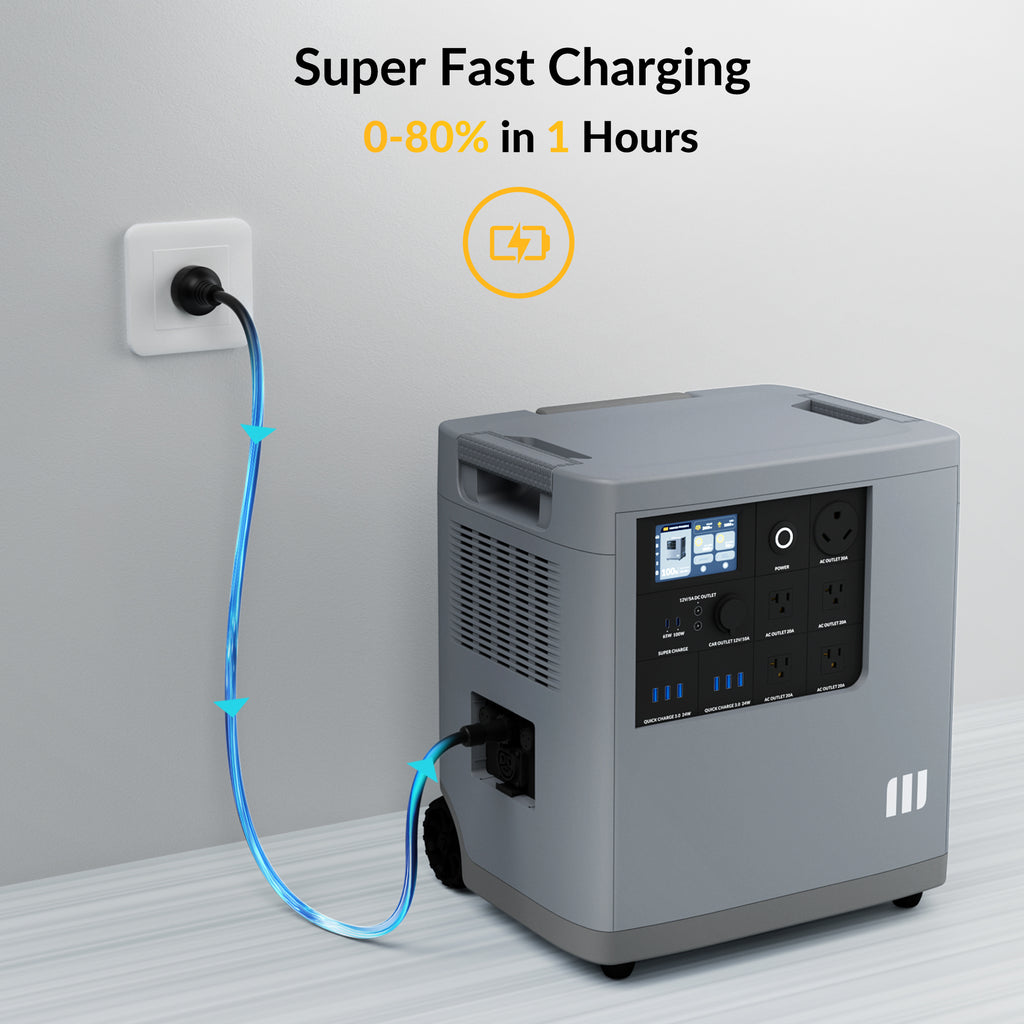

- Fast Charge: 1.5 Hours to Full Charge
Specifications:

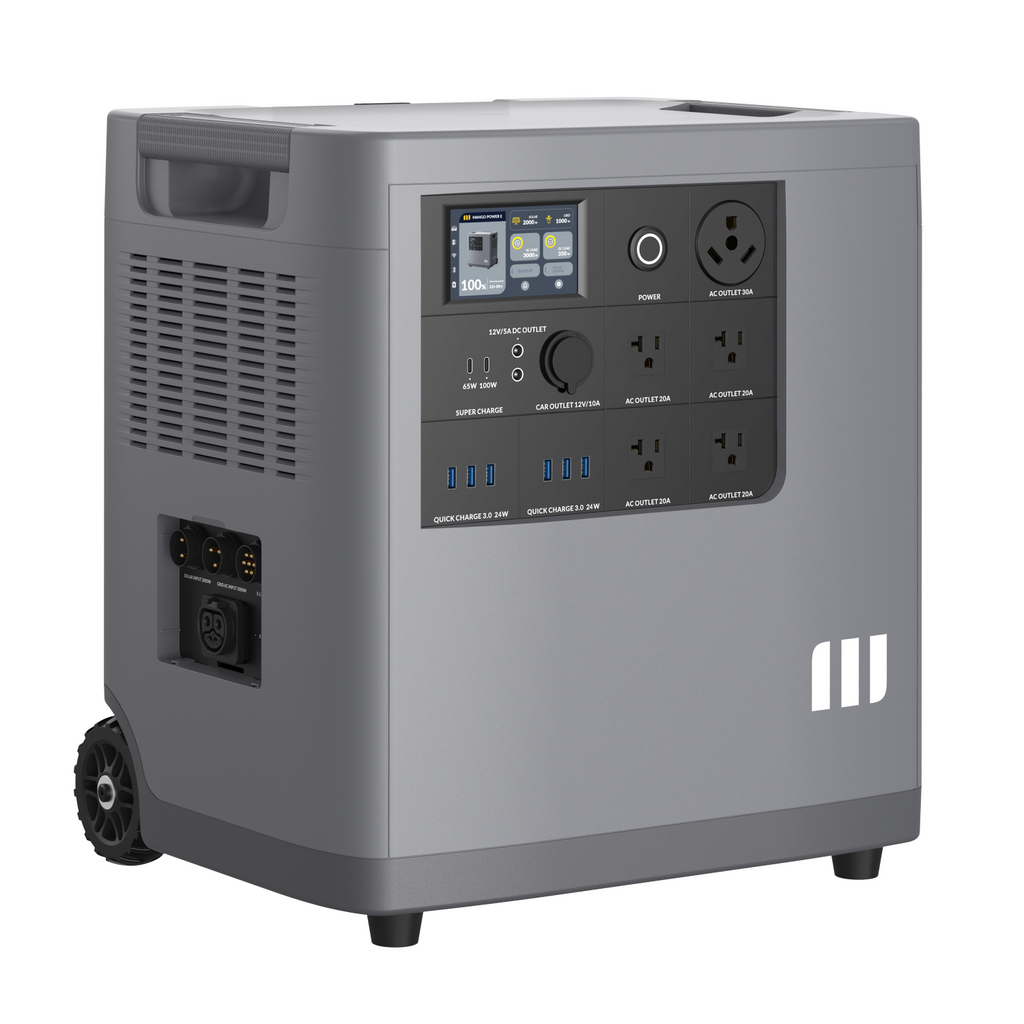

MANGO POWER E

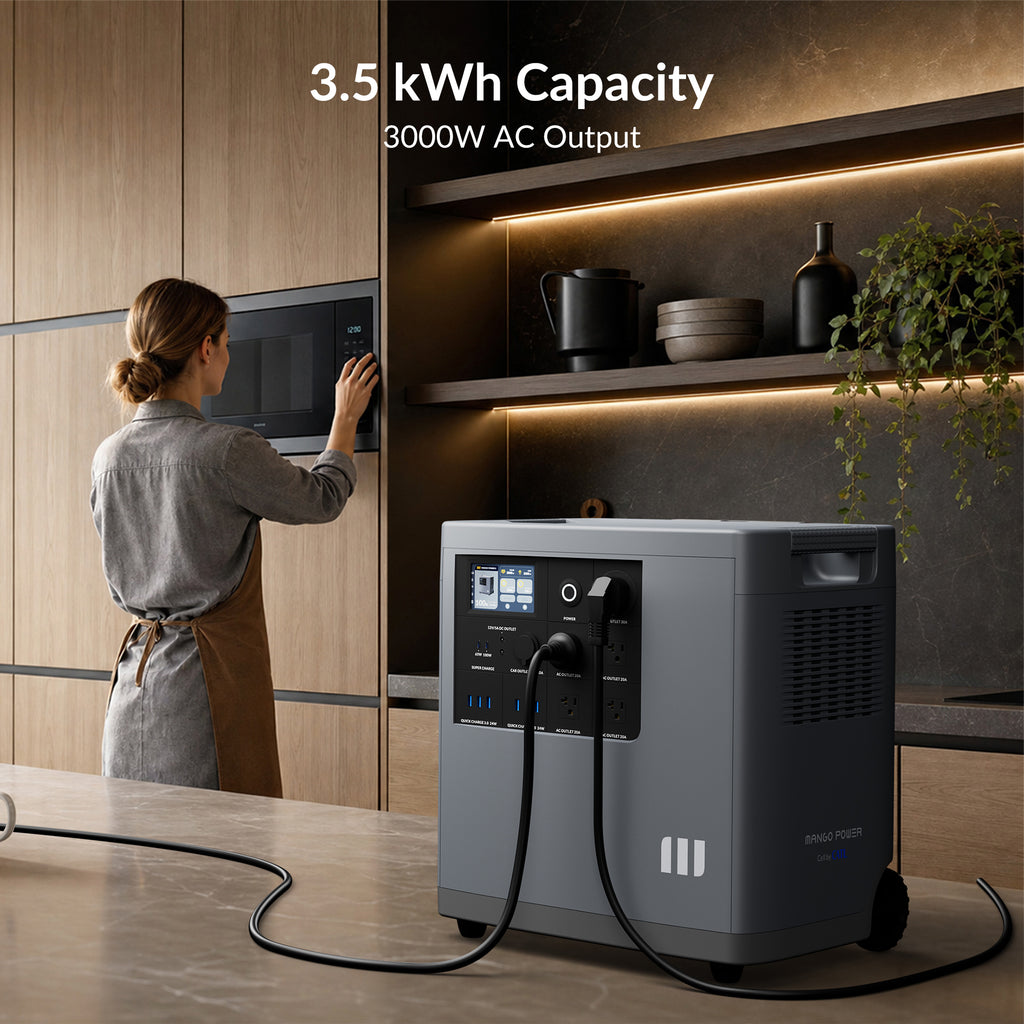

Capacity: 3533Wh
Solar Charging Input: Max 2000W (60V-150V)
AC Output: 4 x 20A, 3000W total
EV Charging Spot: Adapter needed
USB-A Output: 6 x QC 3.0 24W
Generator: Support
USB-C Output: 1 x PD 65W + 1 x PD 100W
Battery Chemistry: LFP
Car Power Output: 12V / 10A
Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)
DC5521 Output: 2x 12V / 5A
Connection: Wi-Fi. Bluetooth
AC RV Port: 30A
Net Weight: 100.1 lbs / 45.4kg
AC Charging Input: Max 3000W
Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

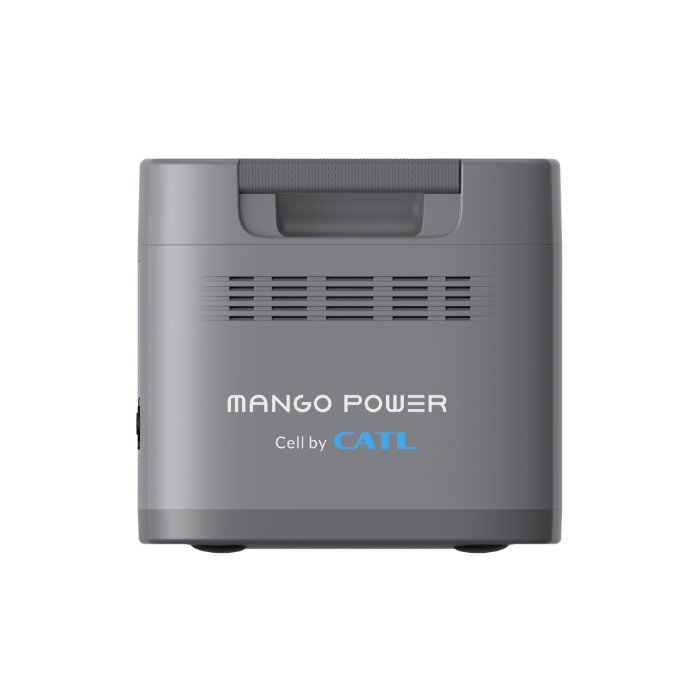

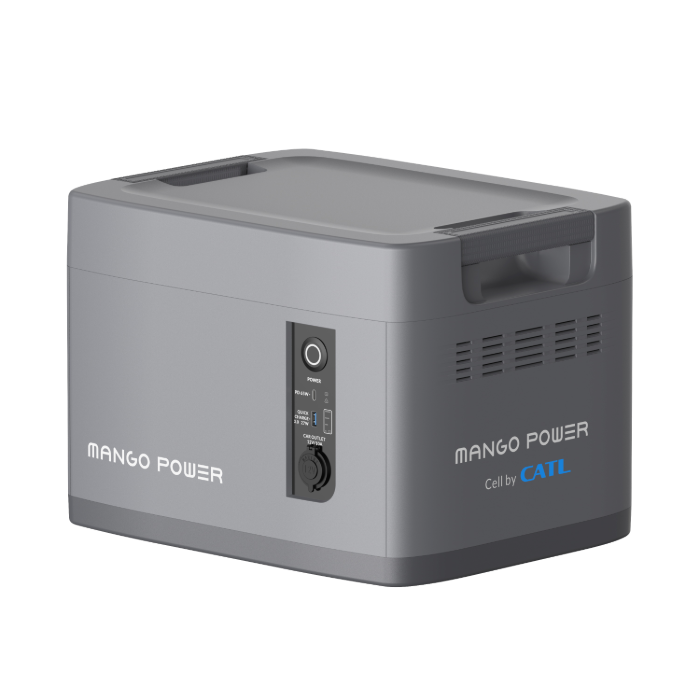

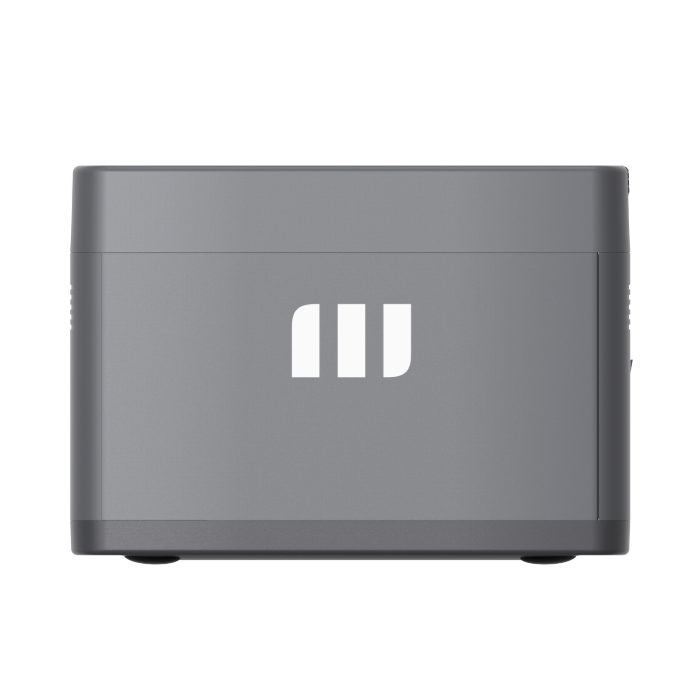

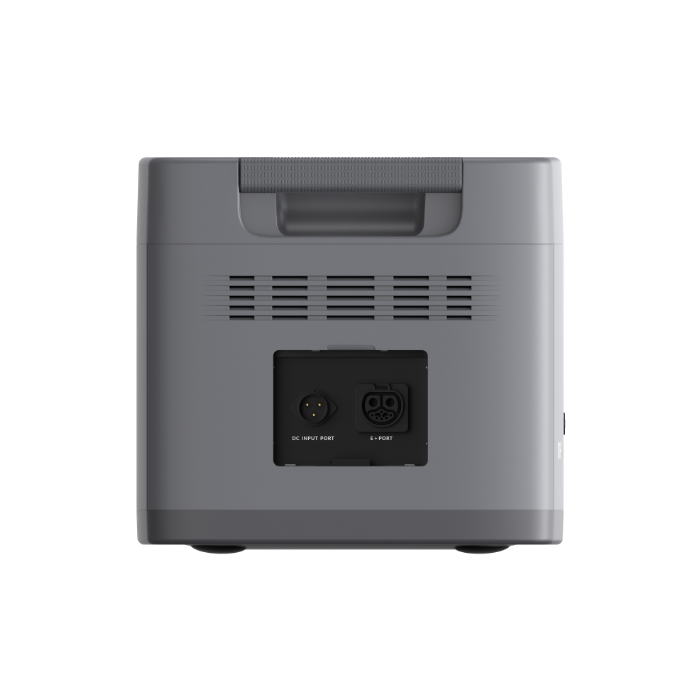

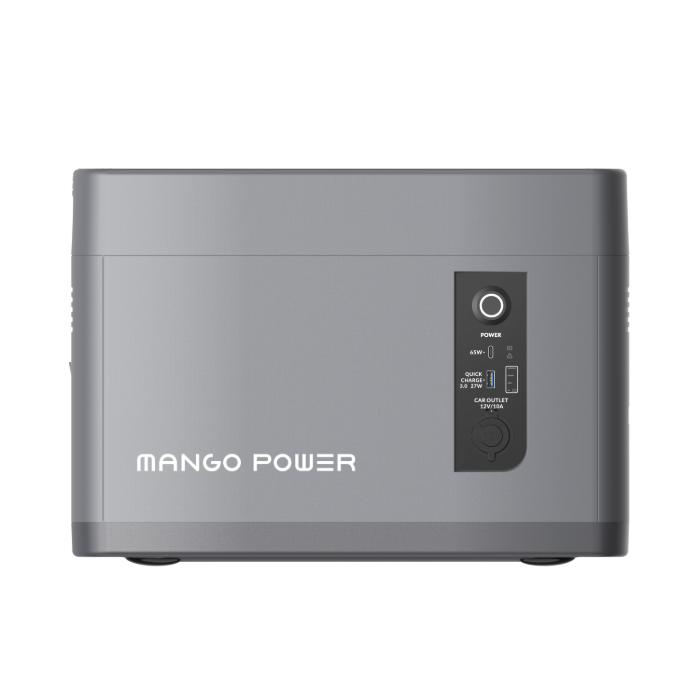

E Expansion Battery
Battery Capacity: 3,533Wh (3.53kWh)
Battery Chemistry: CATL LiFePO₄ (LFP)
Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)
Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh
Compatibility: Mango Power E Portable Power Station
Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection
Connection Method: Direct plug-and-play connection using the included E+ Connection Cable
Installation: Stackable design that attaches directly beneath the Mango Power E
Operating Temperature: Designed for the same operating environment as the Mango Power E system
Warranty: 10-year CATL battery cell warranty

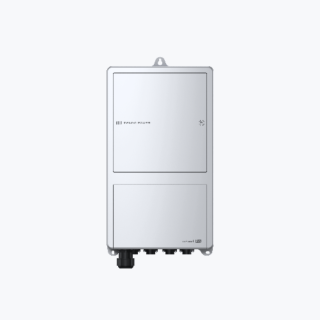

mPANEL PRO
Function: Smart transfer panel for home backup power
Compatible Devices: Mango Power E, Mango Power Union, Power Home, Power Move
Dimensions: 554 × 280 × 108 mm (21.8 × 11.0 × 4.3 in)
Mains Input Voltage: 120V / 240V AC
Maximum Mains Input Current: 50A
Output Ports: 2 × 30A outputs to compatible Mango Power units
Backup Input Ports: 2 × 30A backup input ports
Load Output Ports: 4 × 15A dedicated backup circuits
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Transfer Method: Manual rotary switches for fast switching between grid and backup power
Supported Circuits: Up to 4 essential household circuits
Installation: Wall-mounted near the home's electrical panel
Application: Home backup, emergency power, and portable power integration
What's in the Box:
2 x Mango Power E
1 x AC Charging Cable
1 x Solar Input Cable
1 x Quick Guide
1 x Warranty Card
1 x Mango Power E Battery
1 x E+ Connection Cable
1 x User Manual
1 x Warranty Card
1 x mPanel Pro
1 x User Manual
1 x Warranty Card
