Acopower 100W mono200Ah/1.5kW(2x100Ah) Li200Ah M400w
Embark on a journey of energy independence with our Lithium Battery Mono Solar Power Complete System, meticulously crafted for RVs, boats, and off-grid living. This state-of-the-art kit features a robust 400W MPPT Controller, ensuring a peak conversion efficiency of 98% and a high tracking efficiency of 99%. The heart of the system lies in the Li200Ah 1.5kW Lithium Battery, offering unmatched charging/discharging efficiency with over 3000 deep cycles.
Wide Application
Tailored for 12V off-grid setups, the 1500 Watt Pure Sine Wave Inverter powers household appliances with ease, making it ideal for RVs, boats, cabins, and remote locations.
Efficient MPPT Controller
The 400W MPPT Controller facilitates a 4-stage battery charging process, ensuring rapid, efficient, and safe charging. Solar charging between 200W-800W yields 960-3840 Watt Hours per day, dependent on sunlight availability.
High-Capacity Li-Battery Packs
Three 100Ah lithium batteries, totaling 3840Wh, deliver superior performance. The built-in Battery Management System (BMS) safeguards against damage, providing double protection.
Installation Ready
The comprehensive kit includes all essential tools, simplifying the DIY setup process. From the MPPT controller to the inverter, everything you need is at your fingertips.
Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

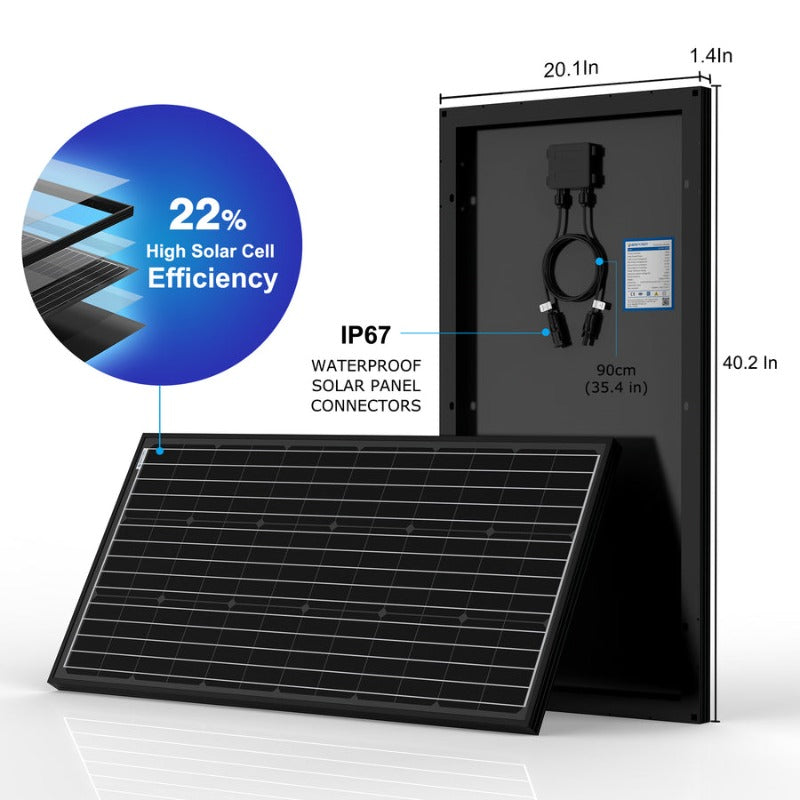

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

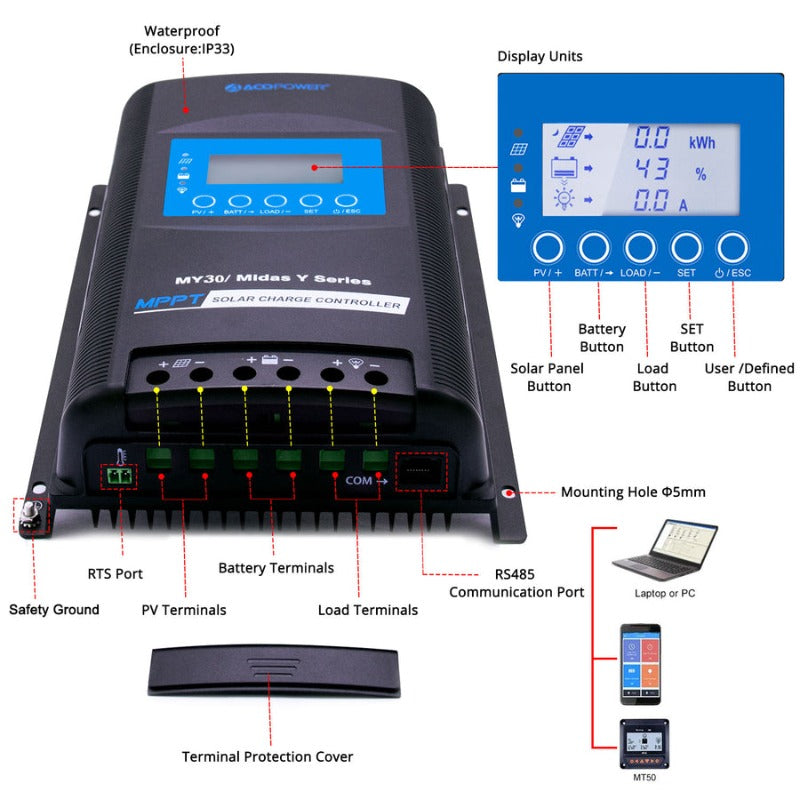

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
What's in the Box:
2 x Battery
4 x Solar Panel
1 x Inverter
1 x Charge Controller
1 x Monitor
1 x Switch
1 x Fuse
4 x Sets z Brackets
2 x Pairs Battery Cable
