Acopower 100W mono200Ah/1.5kW(2x100Ah) Li200Ah M500w
Experience the freedom of off-grid living with our Lithium Battery Mono Solar Power Complete System. This comprehensive kit is designed to cater to a myriad of power needs, making it perfect for RVs, cabins, homes, boats, and remote locations. Boasting a robust 1500 Watt Pure Sine Wave Inverter and advanced MPPT Controller, it harnesses solar energy with efficiency. The high-capacity Li-Battery Packs redefine endurance, offering over 3000 deep cycles. Installation is a breeze with our all-inclusive kit, ensuring you have everything you need for a seamless transition to sustainable power. Embrace energy autonomy and make every location your power oasis.
Wide Application
This kit is tailor-made for an off-grid 12-volt Lithium battery 12V Solar Panel system. With a 1500 Watt Pure Sine Wave Inverter, it effortlessly powers household appliances, while the battery bank ensures a consistent energy supply. Ideal for RVs, cabins, homes, boats, and remote power needs.
MPPT Controller
The Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. Its 4-stage battery charging process ensures rapid, efficient, and safe battery charging. Solar charging between 200W-800W yields approximately 960-3840 Watt Hours (Wh) or 80-320 Amp Hours(AH) per day (Dependent on sunlight availability).
High Capacity Li-Battery Packs
With a whopping 3840Wh capacity from 3pcs 100Ah lithium batteries, this system outshines traditional lead-acid batteries. These lithium batteries offer higher charging/discharging efficiency and endure over 3000 deep cycles. The built-in BMS (battery management system) and 30A-60A MPPT solar charge controller ensure double protection.
Installation Ready
This kit is a one-stop solution for your solar charging system. It includes all the necessary tools for a DIY setup, making installation a breeze. Start harnessing the power of the sun with confidence and convenience.
Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

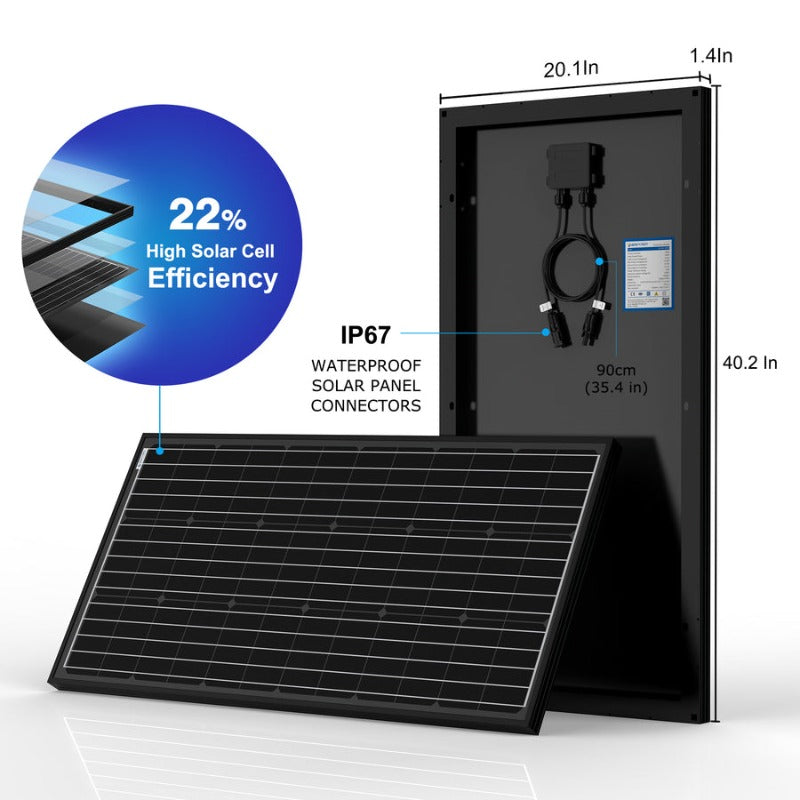

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

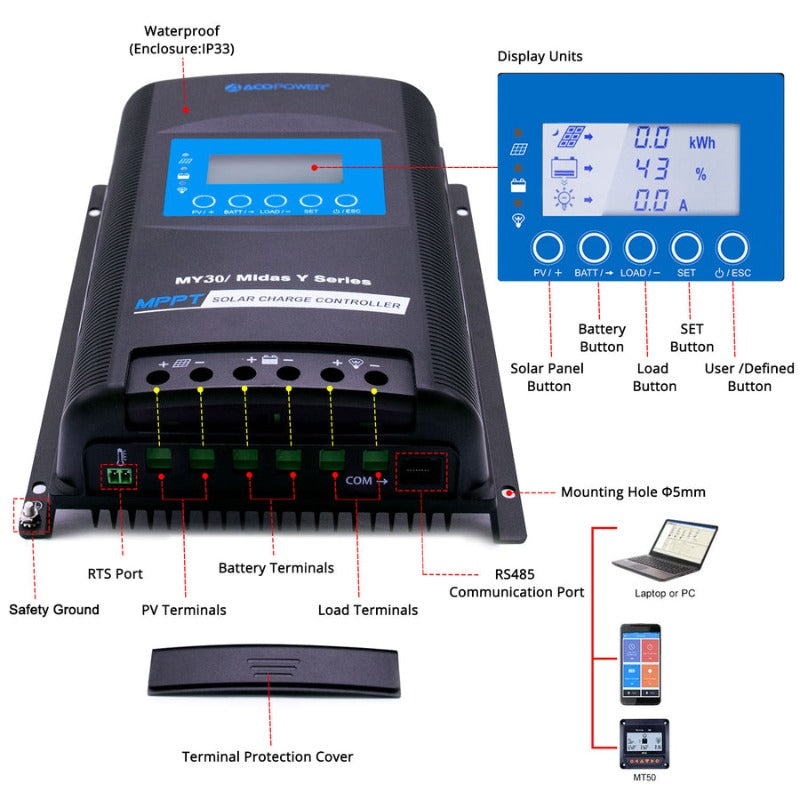

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
What's in the Box:
2 x Battery
5 x Solar Panel
1 x Inverter
1 x Charge Controller
1 x Monitor
1 x Switch
1 x Fuse
5 x Sets Z Brackets
2 x Pairs Battery Cable
