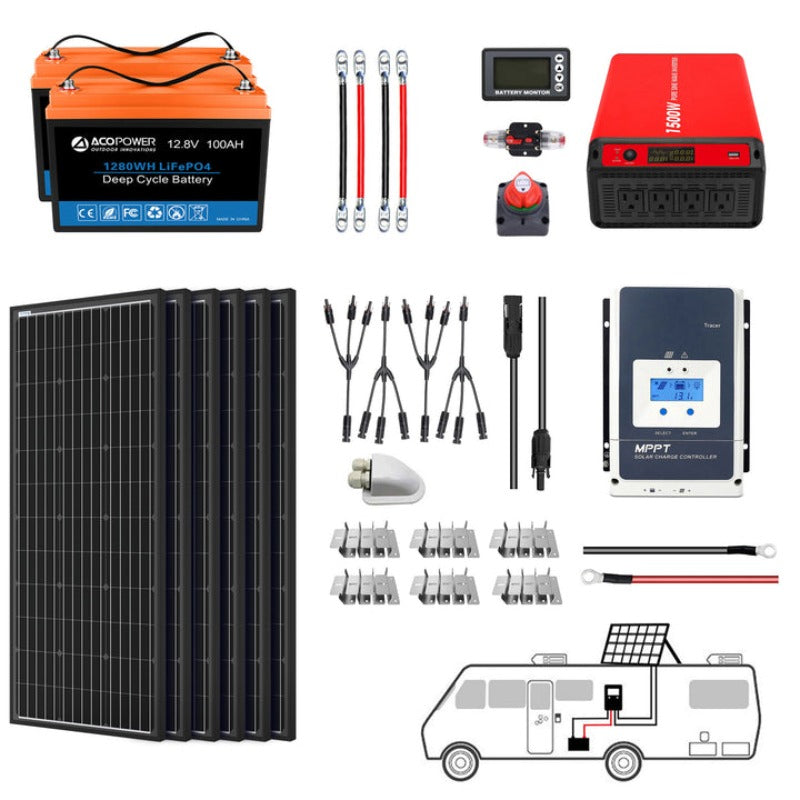

Introducing our comprehensive Off-Grid Solar Power Kit, meticulously designed for those seeking a reliable and efficient solution for their 12-volt Lithium battery 12V Solar Panel systems. With a powerful 1500 Watt Pure Sine Wave Inverter, an advanced MPPT Controller, and high-capacity lithium batteries, this kit is tailored for diverse applications, from RVs and cabins to homes, boats, and beyond. Experience the freedom of sustainable energy, backed by cutting-edge technology and a user-friendly design. Embrace the future of off-grid power with our all-in-one solar kit.
Wide Application for Off-Grid Power: Experience the versatility of our kit, tailor-made for off-grid 12-volt Lithium battery 12V Solar Panel systems. The 1500 Watt Pure Sine Wave Inverter delivers ample AC power (120VAV), capable of running household appliances. The robust battery bank ensures a steady supply of energy, making it perfect for RVs, cabins, homes, boats, and serving as a reliable backup and remote power solution.
Efficient MPPT Controller: Our kit features an MPPT (Maximum Power Point Tracking) Controller that achieves a peak conversion efficiency of 98% and an impressive tracking efficiency of 99%. The 4-stage battery charging process ensures rapid, efficient, and safe charging. Solar charging capabilities ranging from 200W to 800W provide approximately 960-3840 Watt Hours (Wh) or 80-320 Amp Hours (AH) of charge per day, dependent on sunlight availability.
High Capacity Lithium Batteries: Powered by three 100Ah lithium batteries, our kit boasts a substantial 3840Wh capacity. These lithium batteries offer superior charging/discharging efficiency and endure more than 3000 deep cycles, surpassing traditional lead-acid batteries. The built-in Battery Management System (BMS) ensures the lithium battery's safety, providing double protection against potential damage.
Installation Ready for DIY Enthusiasts: Empowering you to take control, our kit comes with everything you need to kickstart your solar charge system. It includes all the necessary tools and components, making installation a breeze for both beginners and experienced DIY enthusiasts. Get ready to harness the power of the sun with our comprehensive and user-friendly solar kit.
Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

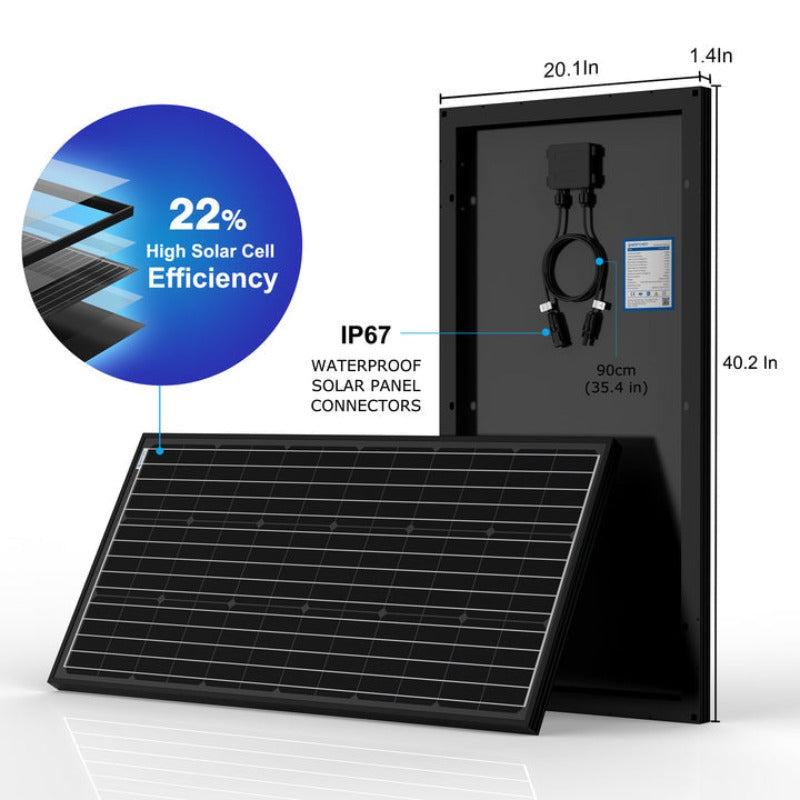

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

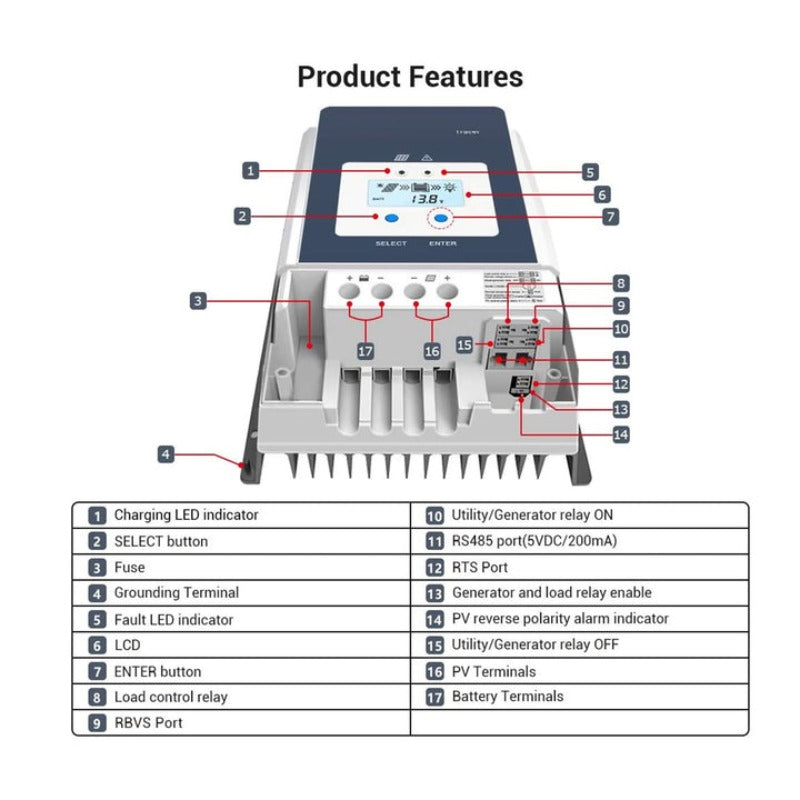

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
- Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
