Acopower 100W mono200Ah/1.5kW(2x100Ah) Li200Ah M800w
Step into the world of sustainable energy with our Lithium Battery Mono Solar Power Complete System. This comprehensive kit is designed to bring renewable energy solutions to your fingertips, providing everything you need for an efficient and reliable off-grid solar setup. From a high-capacity lithium battery pack to a precision MPPT controller and a powerful inverter, this kit ensures a seamless experience for harnessing solar energy in diverse applications. Whether it's for your RV, boat, cabin, or home, this all-in-one package is your key to unlocking a sustainable, eco-friendly power source. Embrace the future of energy with confidence and simplicity.
Wide Application: Perfect Kit for Off-Grid Power
This comprehensive kit is tailor-made for off-grid 12-volt Lithium battery 12V Solar Panel systems. The included 1500 Watt Pure Sine Wave Inverter delivers ample AC power (120VAC) to run household appliances, while the robust battery bank ensures an abundance of energy for moderate use. Ideal for a range of settings including RVs, cabins, homes, boats, and as a backup for remote power needs.
Advanced MPPT Controller: Peak Efficiency and Precision Tracking
The MPPT Controller in this kit boasts a peak conversion efficiency of 98%, coupled with a high tracking efficiency of 99%. Featuring a 4-stage battery charging process, it ensures rapid, efficient, and safe battery charging. Solar charging capacity ranging from 200W to 800W provides approximately 960-3840 Watt Hours (Wh) or 80-320 Amp Hours (AH) of charge per day, contingent on sunlight availability.
High Capacity Li-Battery Packs: Reliable Energy Storage
Equipped with three 100Ah lithium batteries, this kit offers a substantial 3840Wh of energy storage. Lithium batteries outshine traditional lead-acid counterparts with higher charging/discharging efficiency and an impressive lifespan, exceeding 3000 deep cycles. The built-in Battery Management System (BMS) and 30A-60A MPPT solar charge controller work in tandem to prevent damage and provide double protection for the lithium batteries.
Installation Ready: DIY-Friendly Design
This all-in-one kit is designed for a hassle-free installation experience. It includes all the necessary tools and components, empowering users to effortlessly set up their solar charge system. From the inverter to the batteries and the MPPT controller, everything is included, making it a convenient and accessible solution for renewable energy enthusiasts. Embrace solar power with confidence and ease.
Specifications:
Specification:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

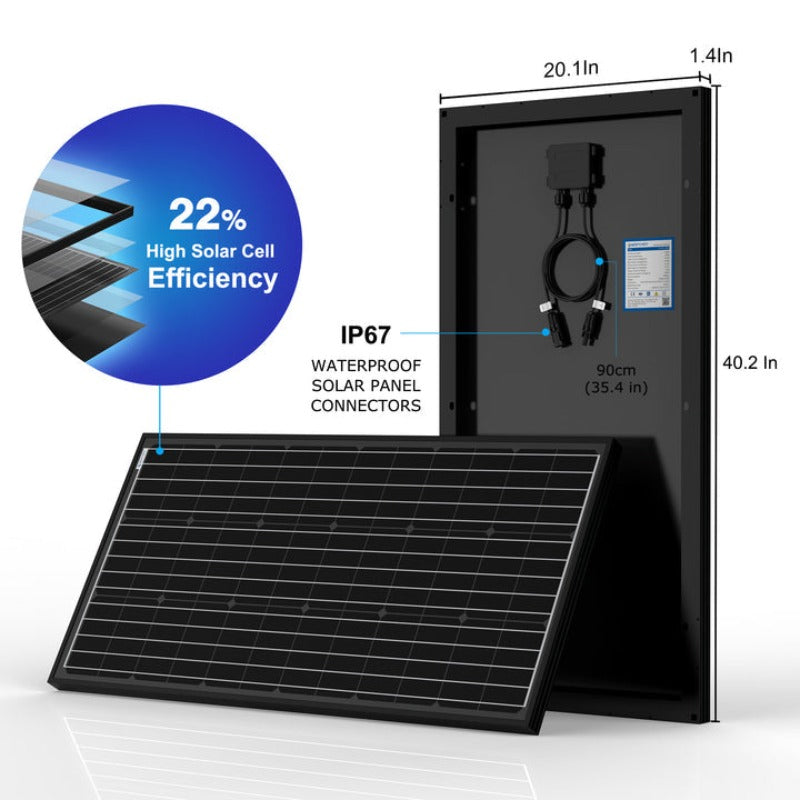

100W Mono Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22.5V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch
3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

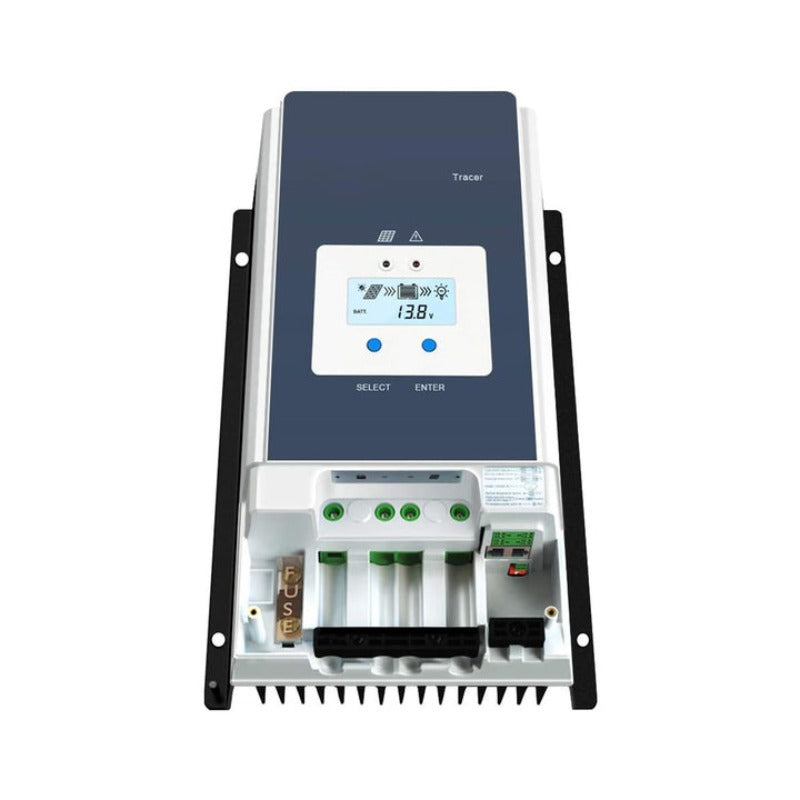

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 50A
- Rated charge current: 50A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
- Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W

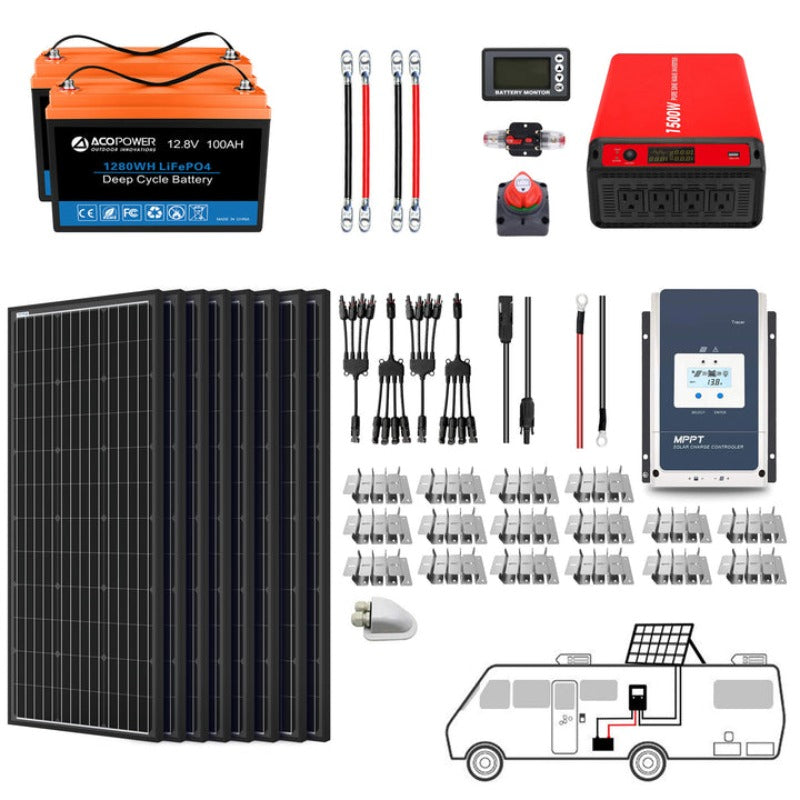

What's in the Box:
2 x Battery
8 x Solar Panel
1 x Inverter
1 x Charge Controller
1 x Monitor
1 x Switch
1 x Fuse
8 x Sets z Brackets
1 x Pairs Battery Cable
