Acopower 100W mono300Ah/1.5kW(3x100Ah) Li300Ah M300w
Enjoy an extended vacation or off-grid adventure with the Acopower 100W Mono300Ah/1.5kW (3x100Ah) Li300Ah M300w, your ultimate power solution for all your outdoor adventures and emergency situations!
Harnessing the power of the sun, this innovative solar panel system is designed to provide you with a reliable and sustainable source of energy no matter where you go. With its compact design and easy-to-use setup, you can take it anywhere – from camping trips and RVing to emergency power backup during blackouts.
The 3 x100W monocrystalline solar panel guarantees maximum efficiency, converting sunlight into energy with incredible precision. The three 100Ah lithium batteries can be connected together to provide a whopping 300Ah of capacity, ensuring you never run out of power when you need it the most. Plus, the intelligent built-in MPPT charge controller optimizes the charging process, maximizing energy conversion and prolonging battery life.
Whether you're a seasoned outdoor enthusiast, a van lifer, or simply someone who wants reliable backup power at home, the Acopower 100W Mono300Ah/1.5kW (3x100Ah) Li300Ah M300w is here to empower you.
- RV-Ready solar power out of the box
- Three 100Ah lithium batteries
- Three 100W Monocrystalline solar panels
- 30A MPPT Solar charge controller
- 1500W Power inverter

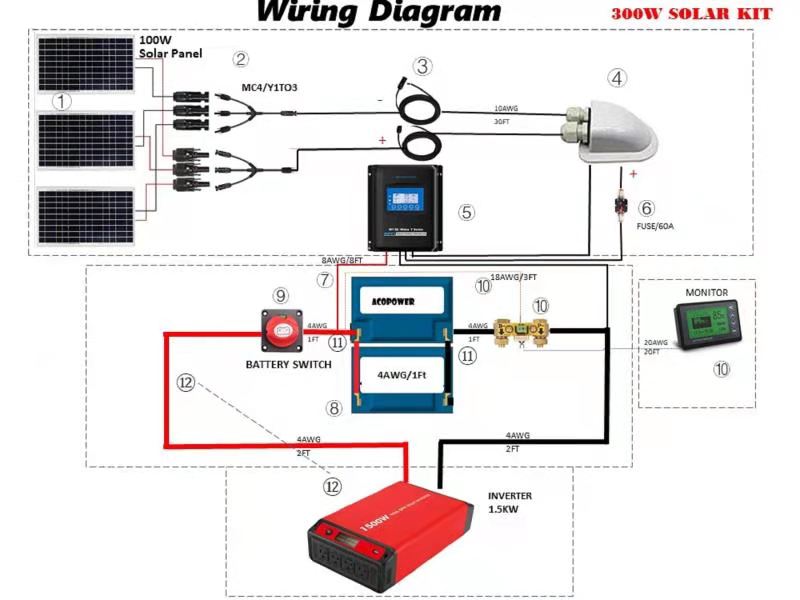

- All cables necessary for DIY system
- Mounting equipment
- Limited 5-Year Manufacturer Warranty
- Limited 25-Year Manufacturer Warranty (on 85% Output)
SPECIFICATIONS:

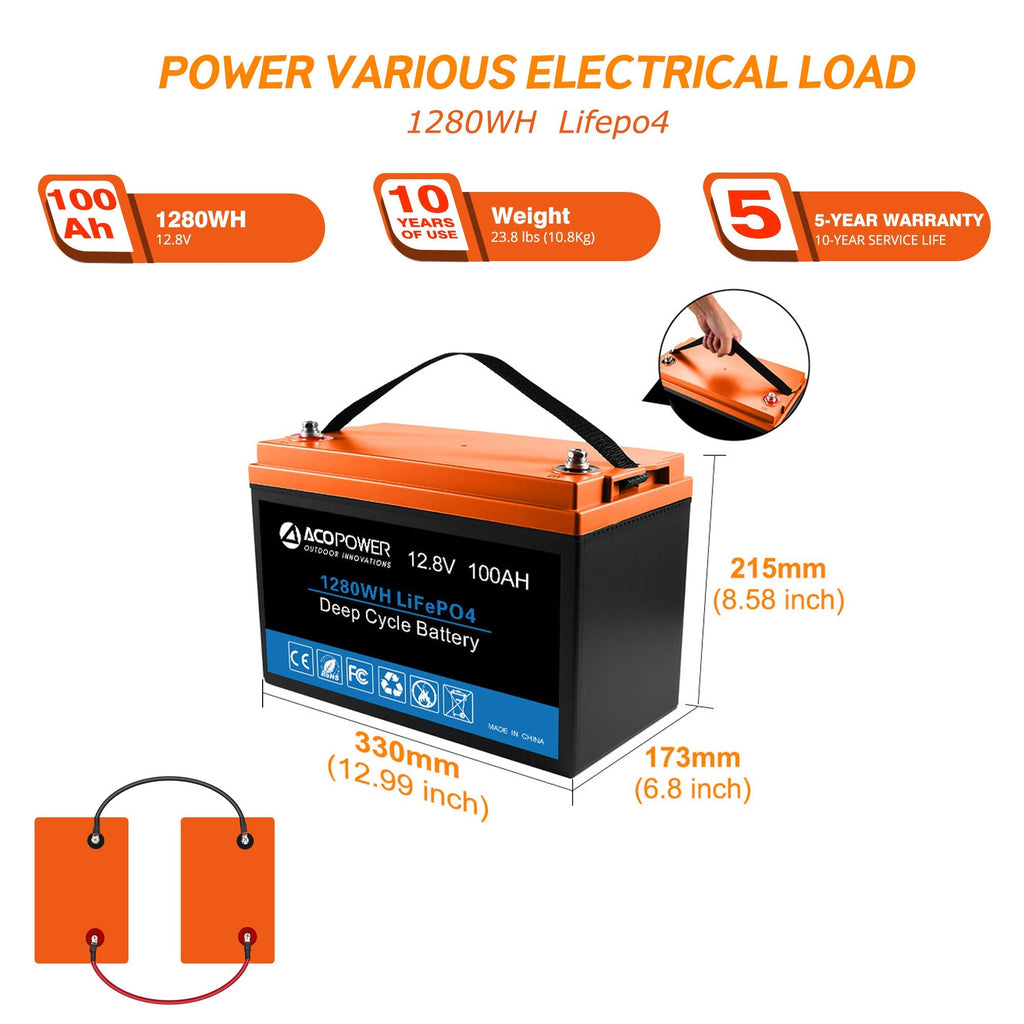

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch): 12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb
100W Mono Solar Panel
Peak Power (Pmax): 100W
Peak Circuit Voltage (Voc): 22.5V
Max Power Voltage (Vmp): 17.48V
Short Circuit Current (ISC): 6.14A
Max Power Current (Imp): 5.71A
Weight: 12.8 lb
Dimension: 40.2 x 20.1 x 1.4 Inch

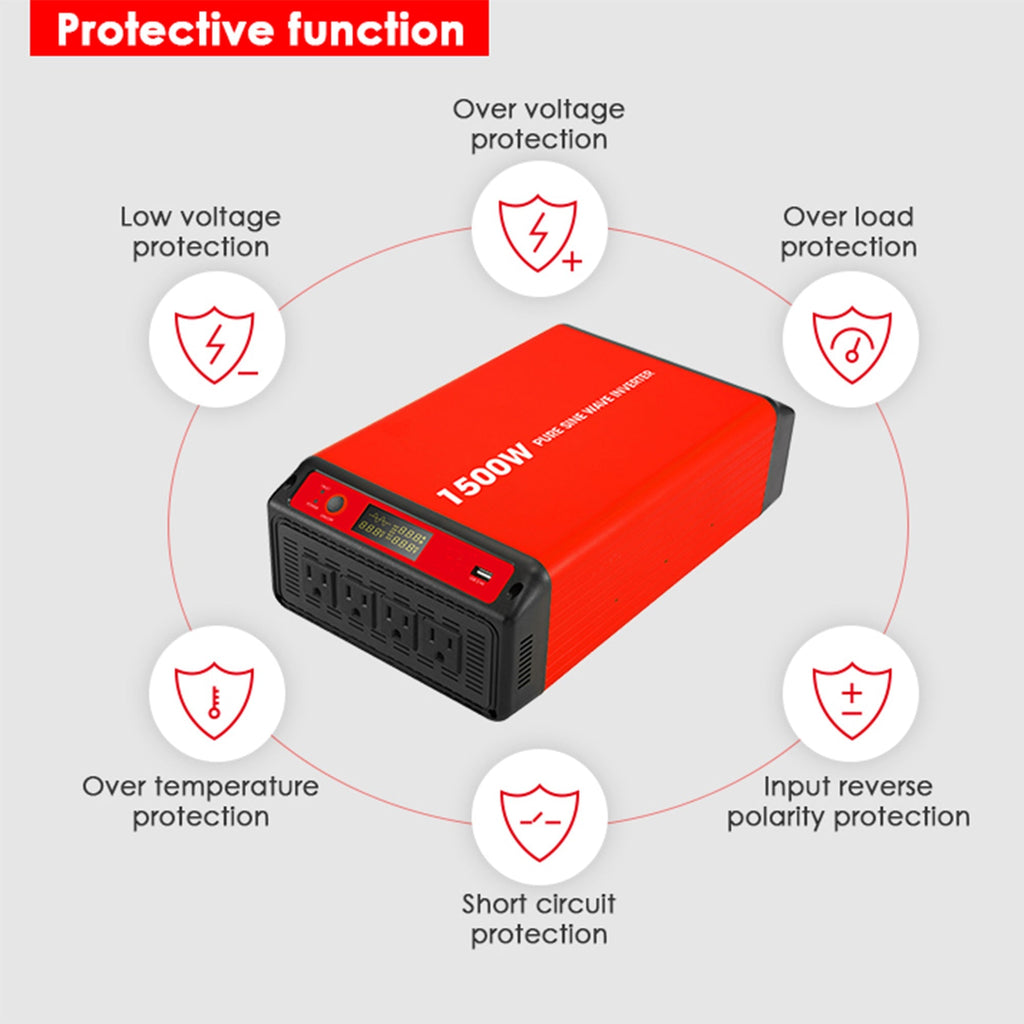

1500W Pure Sine Wave Inverter
Continuous output: 1500W
Surge Power: 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload protection, Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

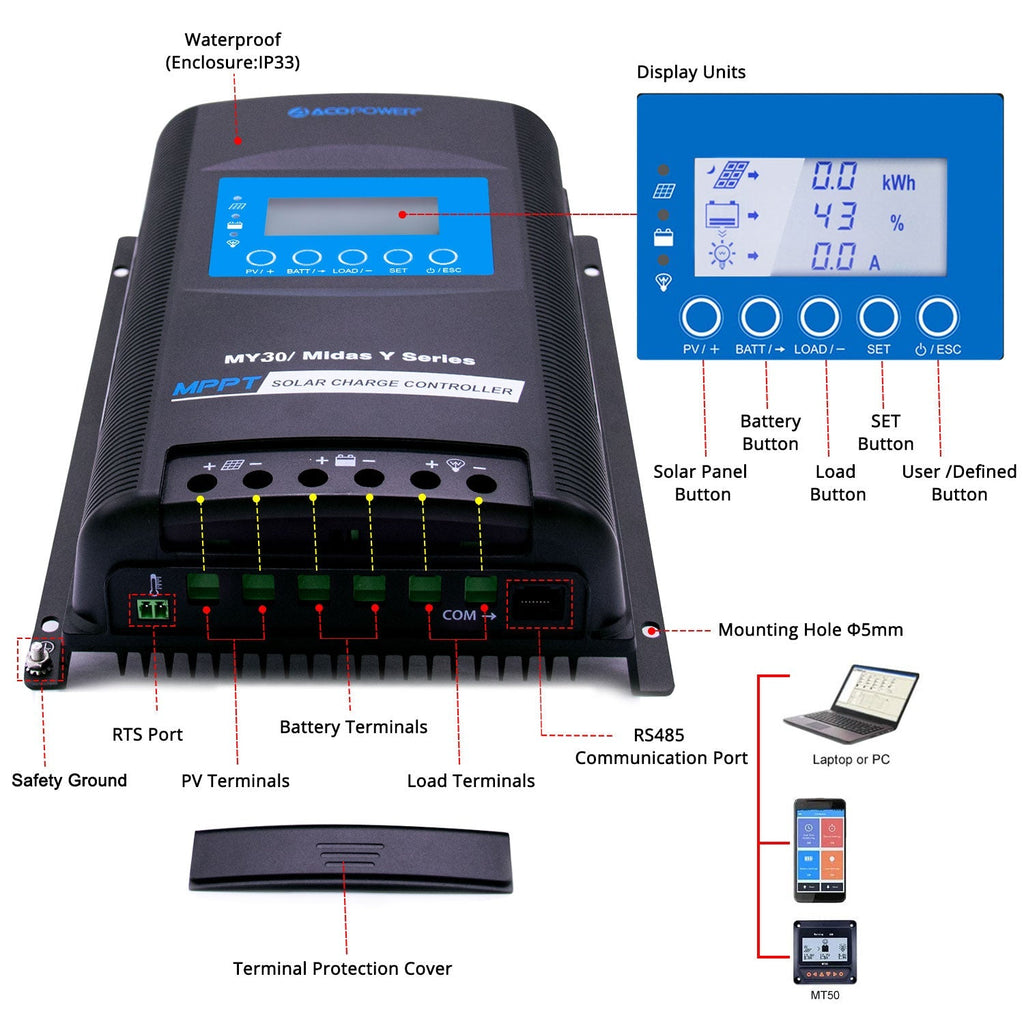

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W, 24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. Lead acid batteries and lithium batteries.
WHAT’S IN THE BOX:
3 x Acopower 100-Watt Monocrystalline Solar Panel, 12V
1 x 30A MPPT Solar Charge Controller
3 x 100Ah LiFePO4 Deep Cycle Lithium Battery
1 x 1500W Power Inverter
1 x Battery Monitor
1 x Battery Switch
1 x 10 AWG PV Cable (30')
3 x 4 AWG Battery Cable (1')
3 Sets x Z Bracket
1 x 8 AWG Tray Cable (8')
1 x Y Branch Solar Panel Connector
1 x Waterproof Cable Entry Gland Box
1 x 60A Fuse
