Acopower 100w mono pack 3x100w
The ACOPOWER 100W Monocrystalline Solar Panels offer high modules conversion efficiency, utilizing monocrystalline modules to ensure optimal performance. The advanced encapsulation material, featuring a multi-layered sheet, not only enhances cell performance but also extends the service life of the panels. The corrosion-resistant aluminum frame is designed for prolonged outdoor use, providing durability for decades. The panels are constructed with anti-reflective, high transparency, low iron-tempered glass, ensuring they remain efficient with no hot-spot heating.

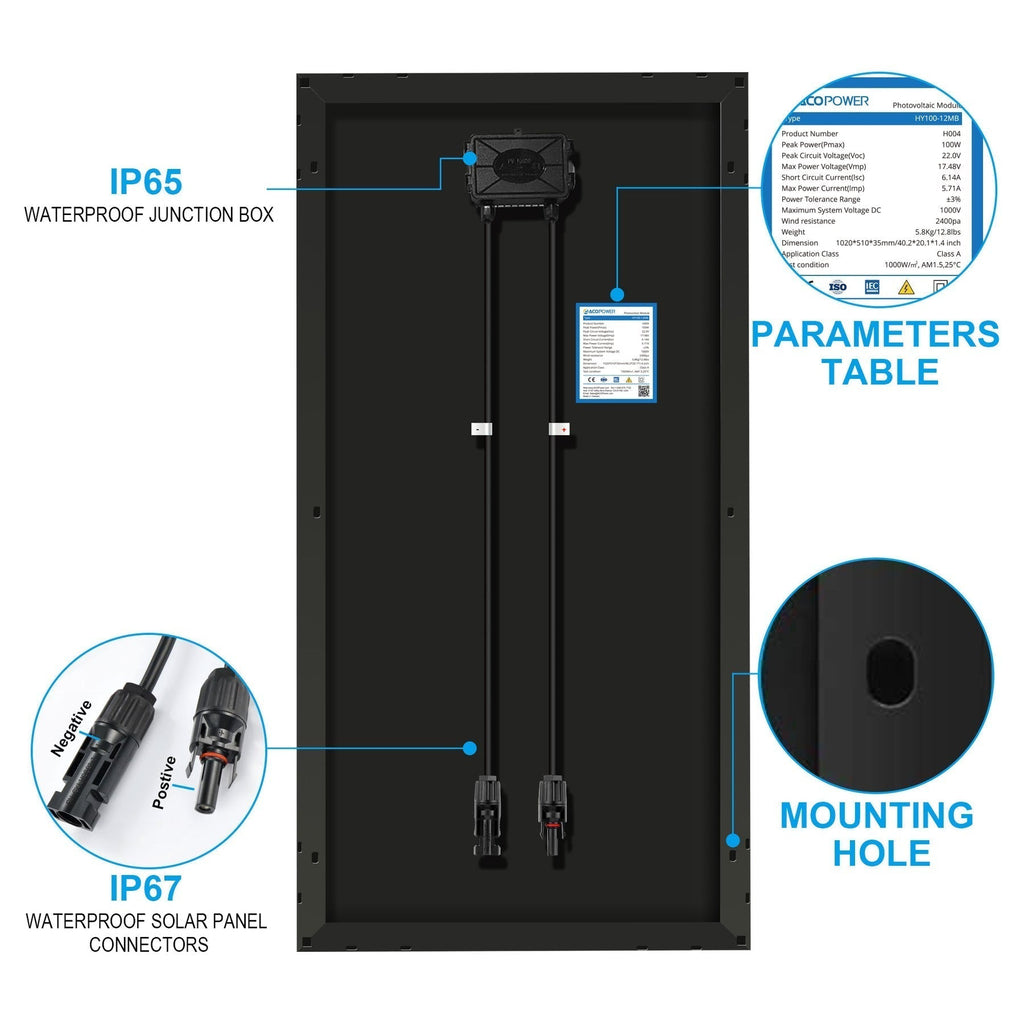

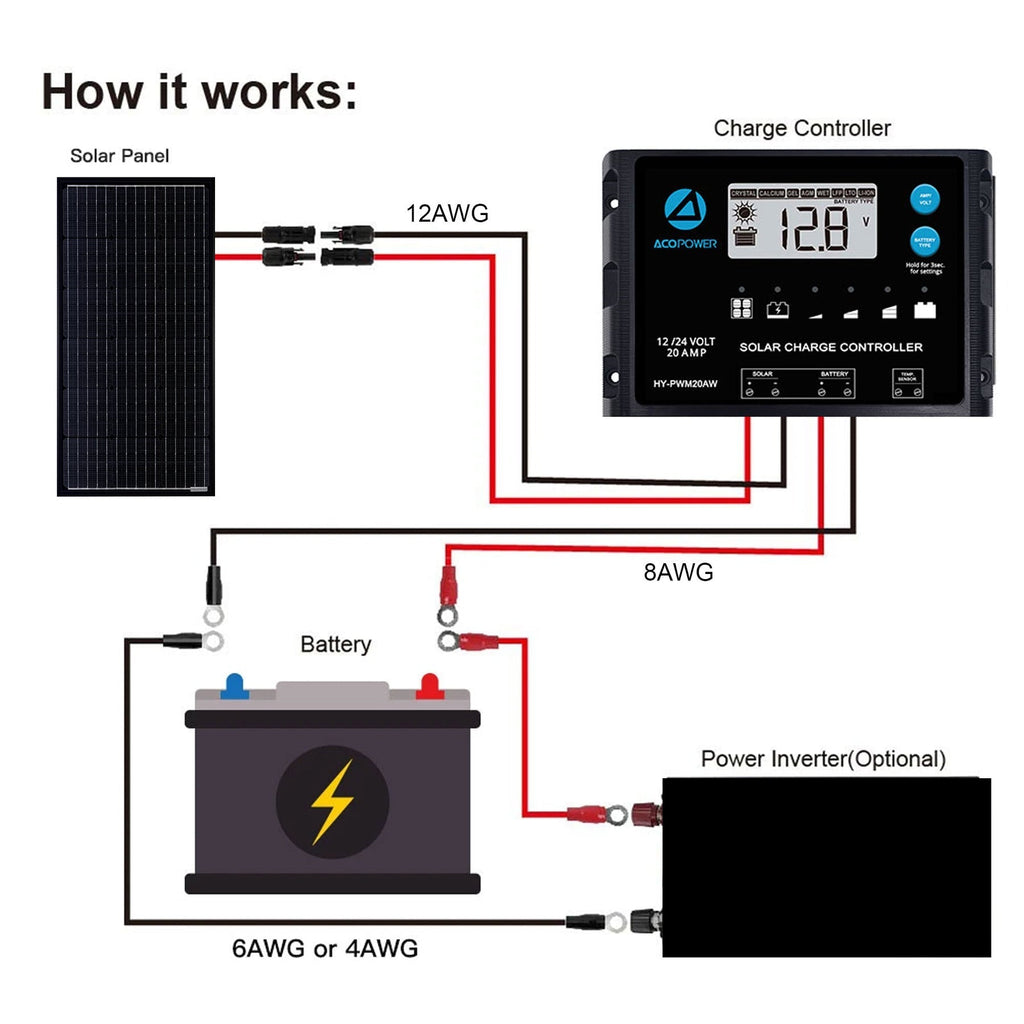

Installation is made easy with pre-drilled holes, and each solar panel includes a 12AWG cable with male/female quick connectors. This makes the panels a fundamental component for various off-grid solar systems, including 12V/24V/36V/48V setups in caravans, RVs, cars, boats, and greenhouses. The lightweight anodized aluminum frame enhances portability, while the reinforced safety features include anti-reflection coated glass, 3.2mm thick, and a waterproof IP-65 rated junction box, ensuring reliability and longevity in diverse environmental conditions.
Specifications:
- SKU: HY3x100-12MB
- ACOPower 100 Watt Monocrystalline Solar Panel
- IP65 Rated waterproof junction box
- Output Cables: 12 AWG (3.2ft long)
- Maximum Power at STC (Pmax): 100W
- Maximum Operating Voltage (Vmp): 17.48V
- Maximum Operating Current (Imp): 5.71A
- Open-Circuit Voltage (Voc): 22V
- Short-Circuit Current (Isc): 6.14A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Weight: 5.8 kg / 12.8 lbs
What's in the Box:
3 x Solar Panel
1 x Charge Controller
1 x Electrical Wiring
2 x Sets Mounting Equipment
Cable Entry Housing
Branch Connector
