Acopower 100W poly200Ah/1.5kW(2x100Ah) Li200Ah P500w
Versatile Application
This Solar RV kit, ranging from 500W, is perfect for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 1500-watt Pure Sine Wave Inverter delivers ample AC power (120VAV) to operate household appliances, while the battery bank ensures a consistent energy supply for moderate use. Designed to meet the energy needs of RVs, cabins, homes, and boats, and serve as a reliable backup in remote power scenarios.
Efficient MPPT Controller
The 40A MPPT Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. Featuring a 4-stage battery charging process, it ensures swift, efficient, and secure battery charging. Solar charging between 600W provides approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day, depending on sunlight availability.
High-Capacity Li-Battery Packs
Equipped with 2560Wh-3840Wh of 2 100Ah lithium batteries, these packs demonstrate higher charging/discharging efficiency and endure over 3000 deep cycles, surpassing lead-acid batteries. The built-in BMS (battery management system), coupled with the 60A MPPT solar charge controller, ensures double protection, preventing damage to the lithium battery.
Ready for Installation

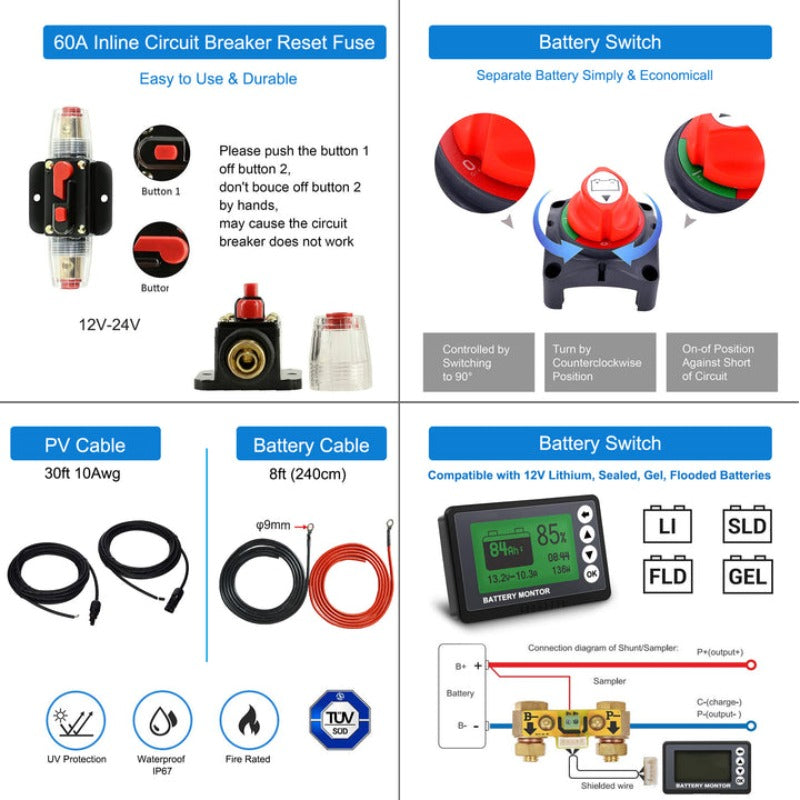

This all-inclusive kit provides everything you need to DIY your solar charge system. The kit includes 5pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

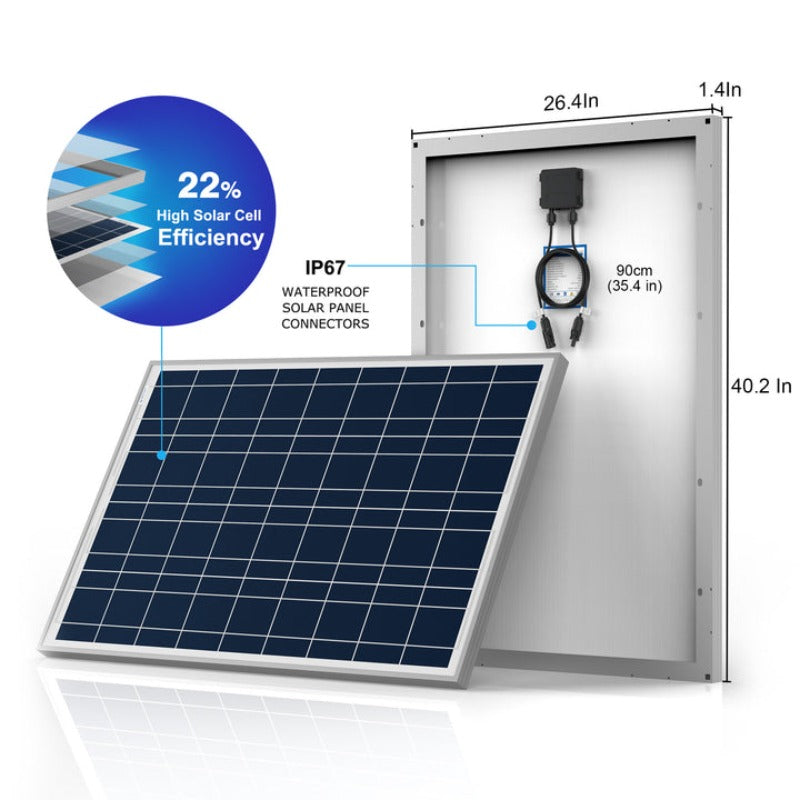

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A
1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

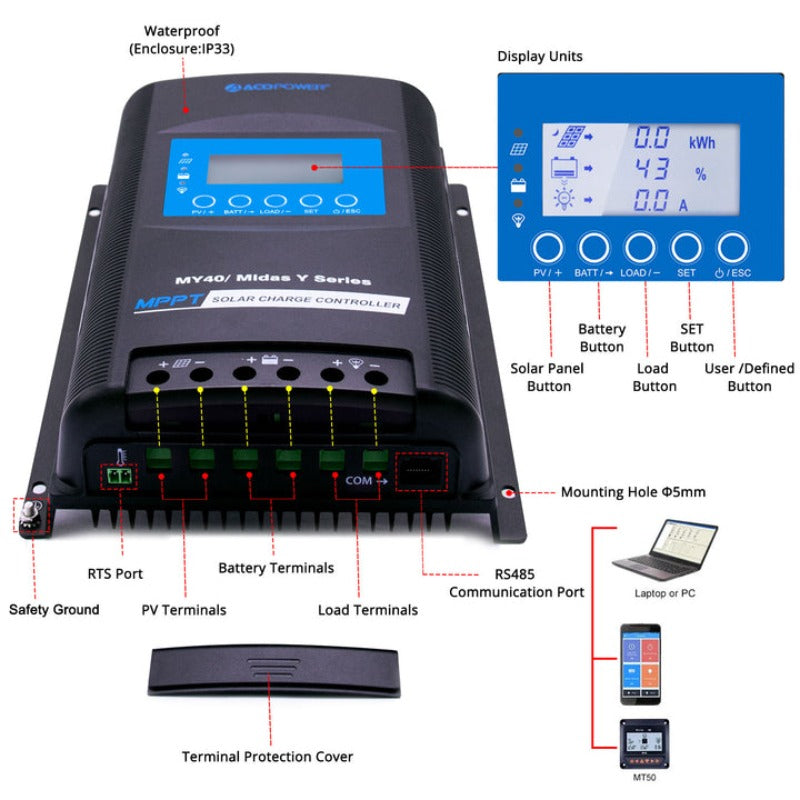

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

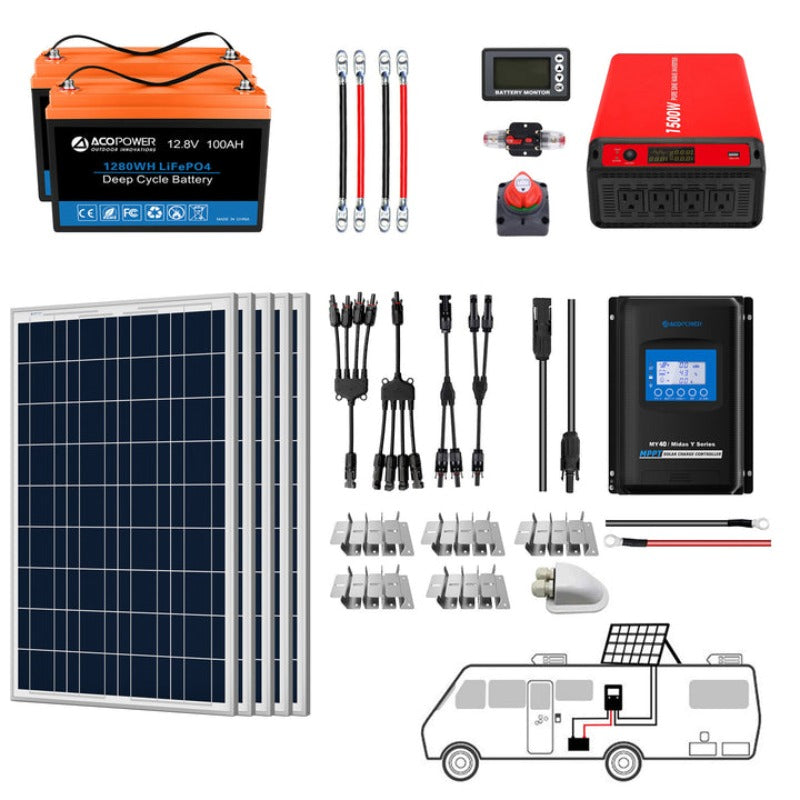

What's in the Box:
2 x Battery
5 x 100W Solar Panel
1 x 1.5K Inverter
1 x 40A Controller
1 x Monitor
1 x Switch
1 x 60A Fuse
5 x sets z Brackets
2 x Pairs Battery Cable
