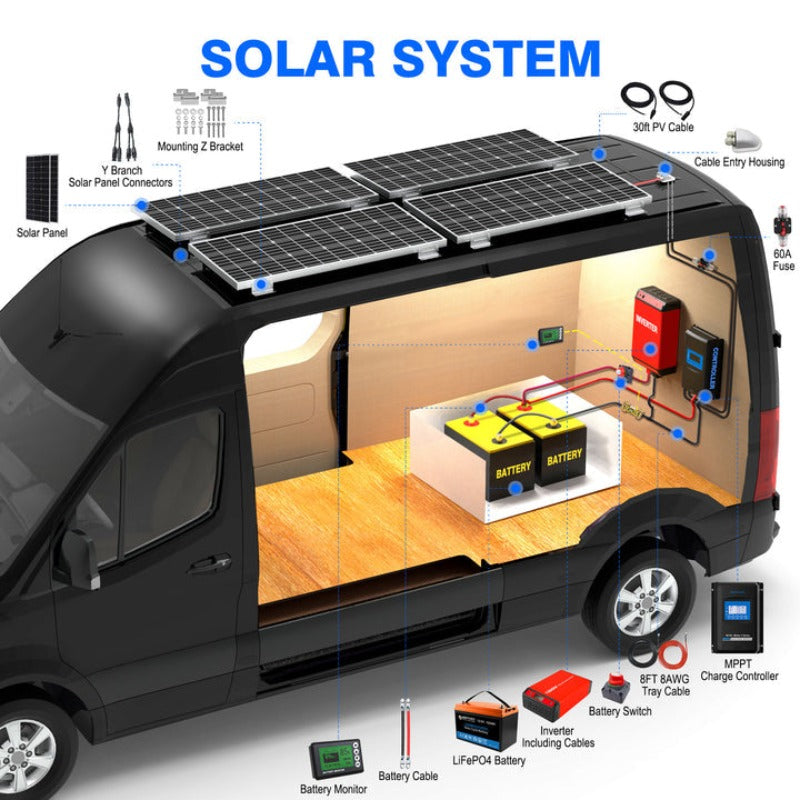

The Solar RV kit, ranging from 200W, is an ideal solution for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 1500 Watt Pure Sine Wave Inverter delivers abundant AC power (120VAV) to operate household appliances, ensuring a continuous energy supply for moderate use. Tailored for various settings such as RVs, cabins, homes, boats, and as a backup in remote power scenarios.
Efficient MPPT Controller
The 30A MPPT Charge controller stands out with a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. Featuring a 4-stage battery charging process, it ensures a swift, efficient, and secure battery charging experience. Solar charging between 600W provides approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day, dependent on sunlight availability.
High-Capacity Li-Battery Packs
Equipped with 2560Wh-3840Wh of 3pcs 100Ah lithium batteries, these packs exhibit superior charging/discharging efficiency and endure over 3000 deep cycles, surpassing lead-acid batteries. The built-in BMS (battery management system), coupled with the 30A MPPT solar charge controller, ensures double protection, preventing damage to the lithium battery.
Ready for Installation

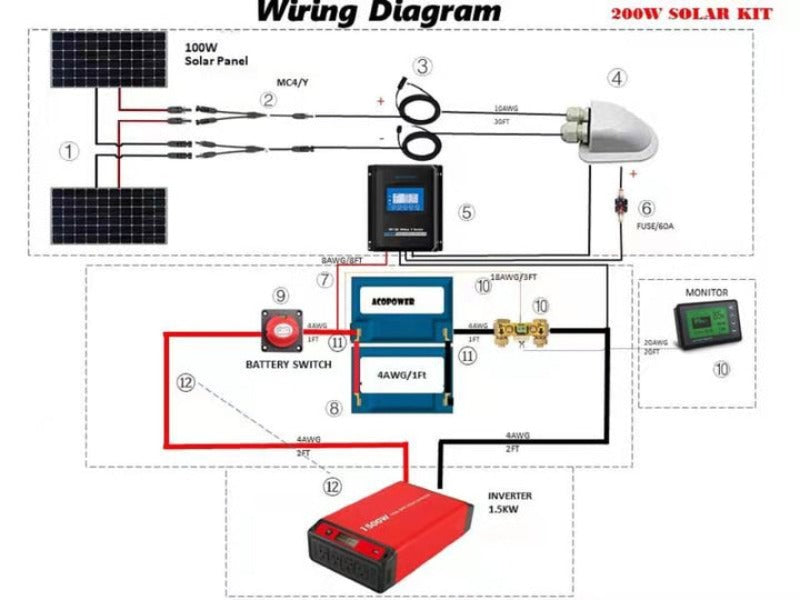

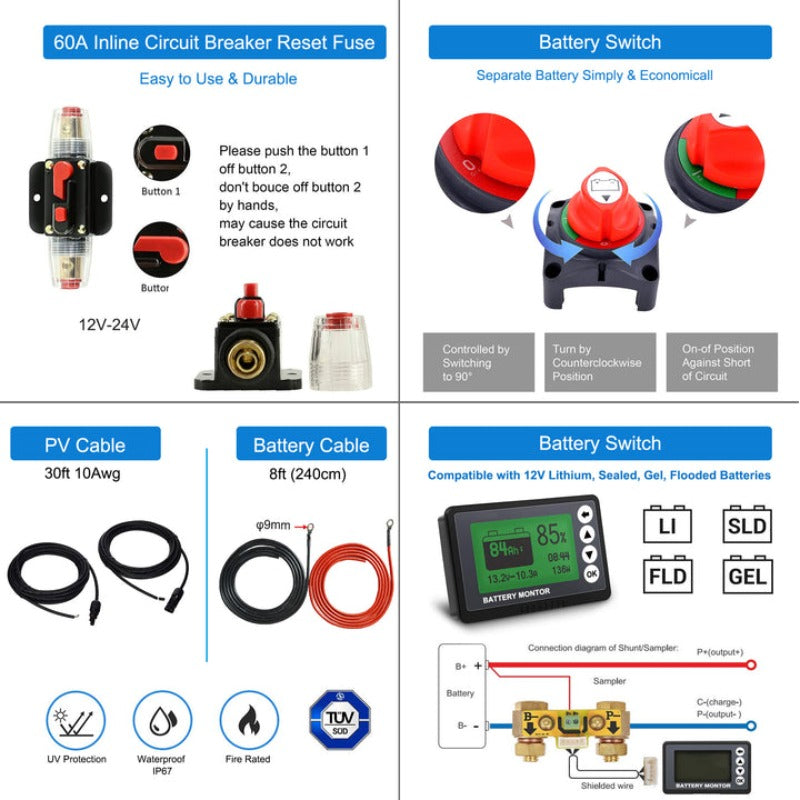

This comprehensive kit provides everything you need to DIY your solar charge system. The kit includes 2pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:

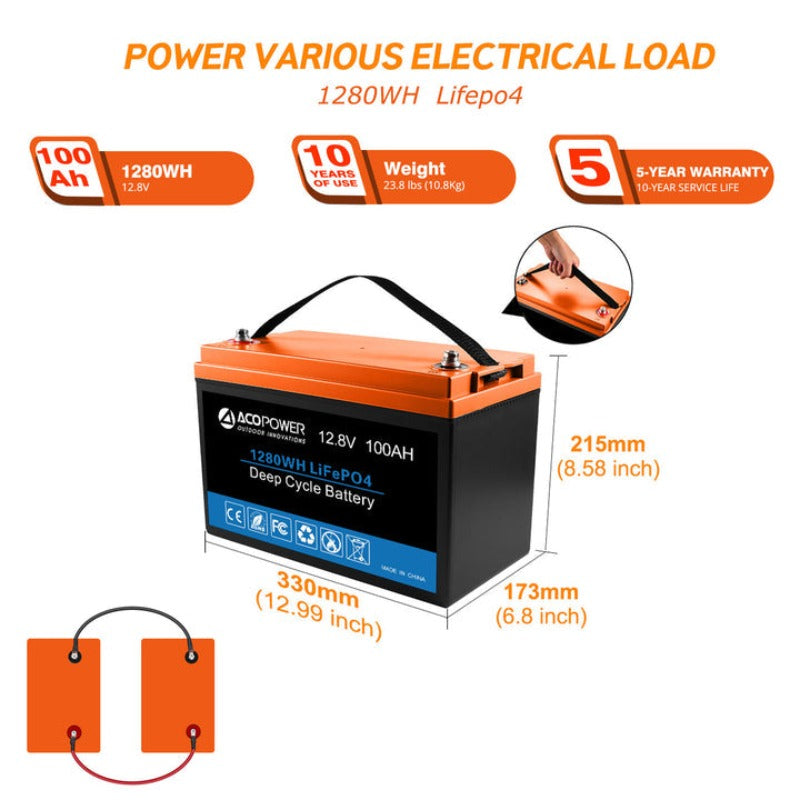

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

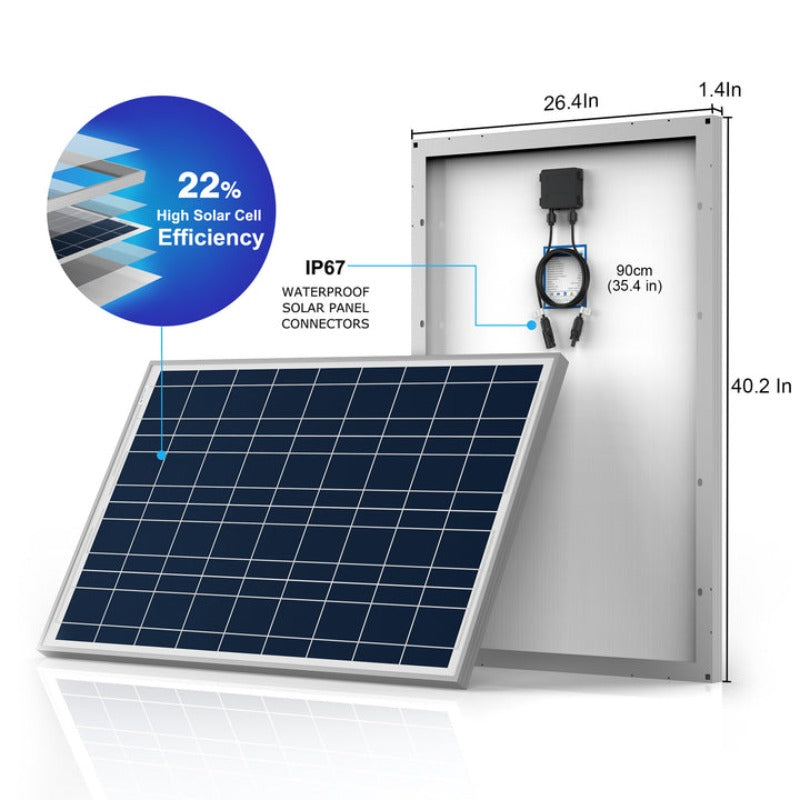

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

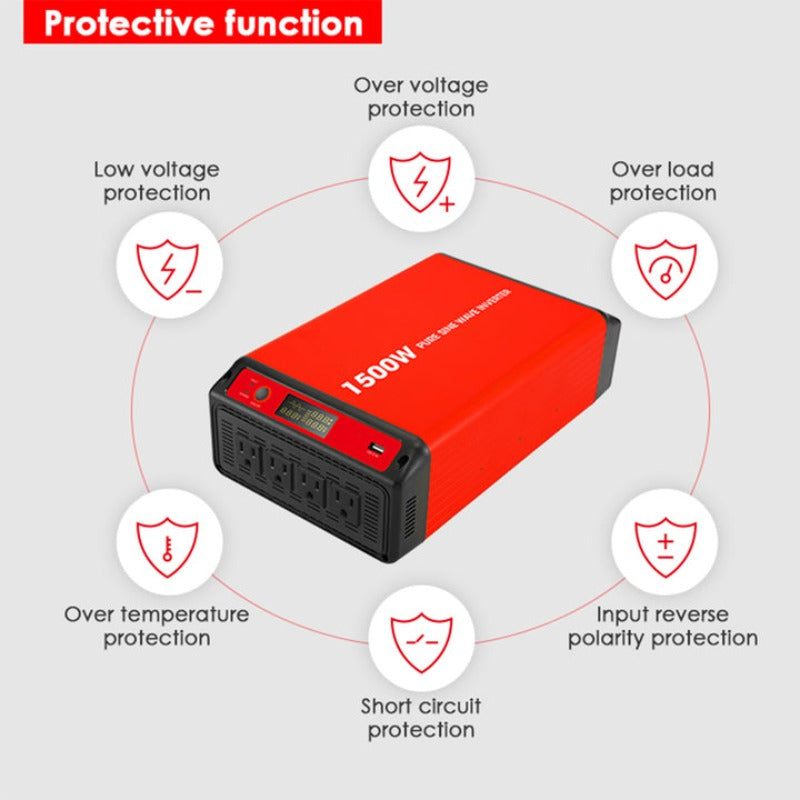

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

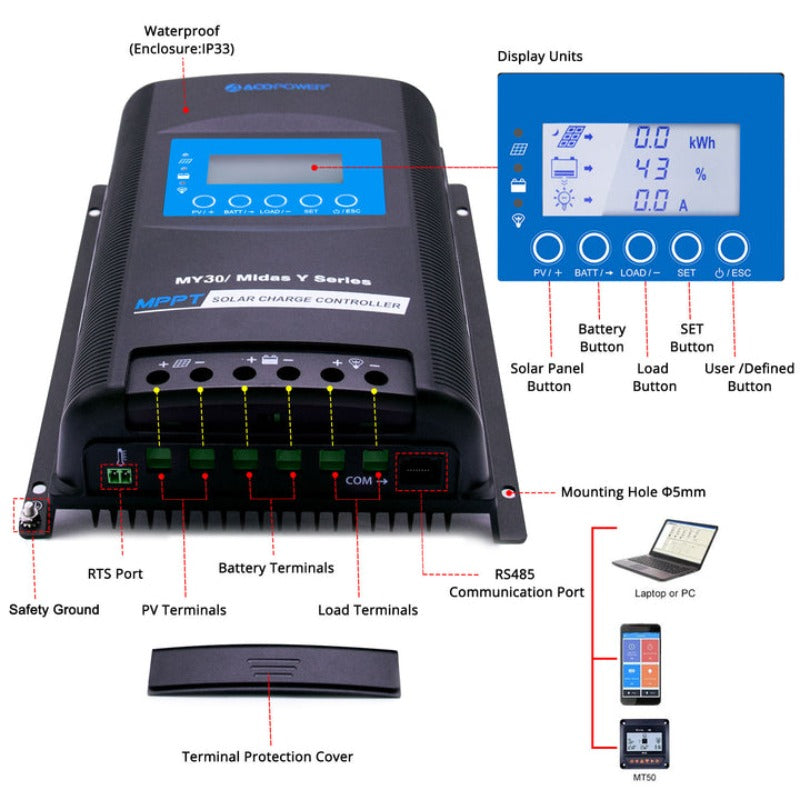

MPPT Solar Charge Controller 30A
- Rated charge current: 30A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/390W,24V/780W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

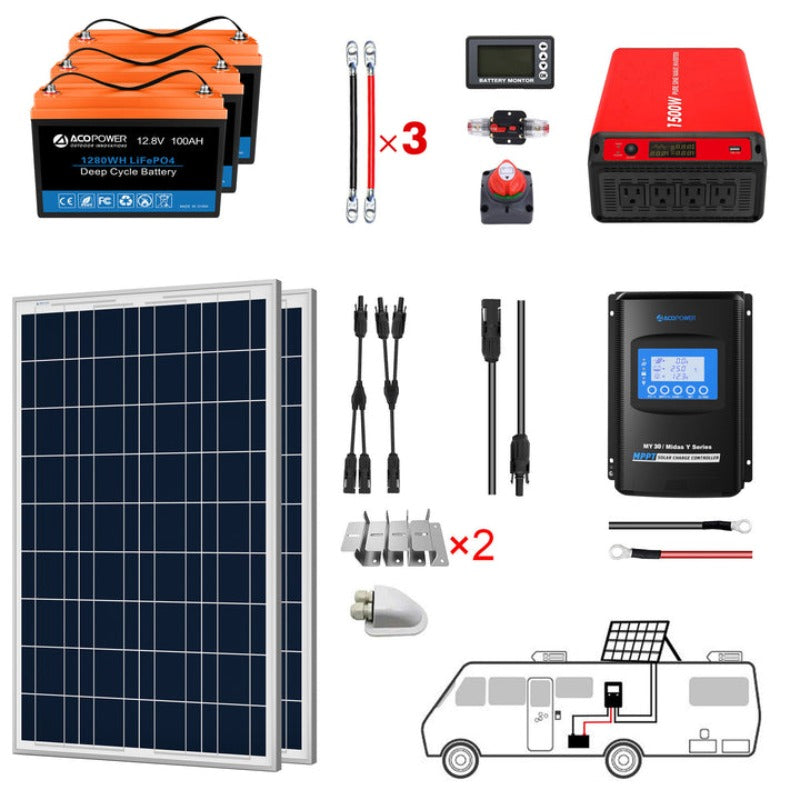

What's in the Box:
3 x Battery
2 x 100W Solar Panel
1 x 1.5K Inverter
1 x 30A Controller
1 x Monitor
1 x Switch
1 x 60A Fuse
2 x sets z Brackets
3 x Pairs Battery Cable
