Acopower 100W poly600Ah/3kW(3x200Ah) Li600Ah P800w
Versatile Application:
The 800W Solar RV kit is an ideal solution for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 1500-watt Pure Sine Wave Inverter delivers ample AC power (120VAV) to operate household appliances, and the battery bank ensures abundant energy for moderate use. Tailored for RVs, cabins, homes, boats, and for use as a backup or in remote locations.
Efficient MPPT Controller:
The 60A MPPT Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. With a 4-stage battery charging process, it ensures rapid, efficient, and safe battery charging. Solar charging between 800W yields approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day, contingent on sunlight availability.
High-Capacity Li-Battery Packs:
Equipped with 2560Wh-3840Wh of 3pcs 100Ah lithium batteries, these packs exhibit superior charging/discharging efficiency and endure over 3000 deep cycles, surpassing lead-acid batteries. The built-in BMS (battery management system) coupled with the 30A-60A MPPT solar charge controller ensures double protection, preventing damage to the lithium battery.
Ready for Installation:

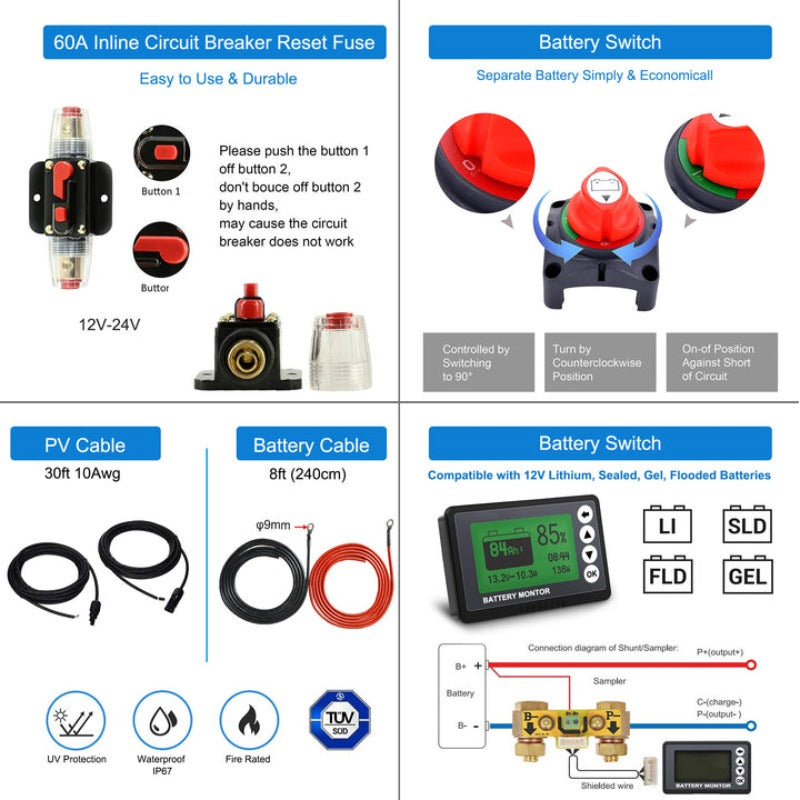

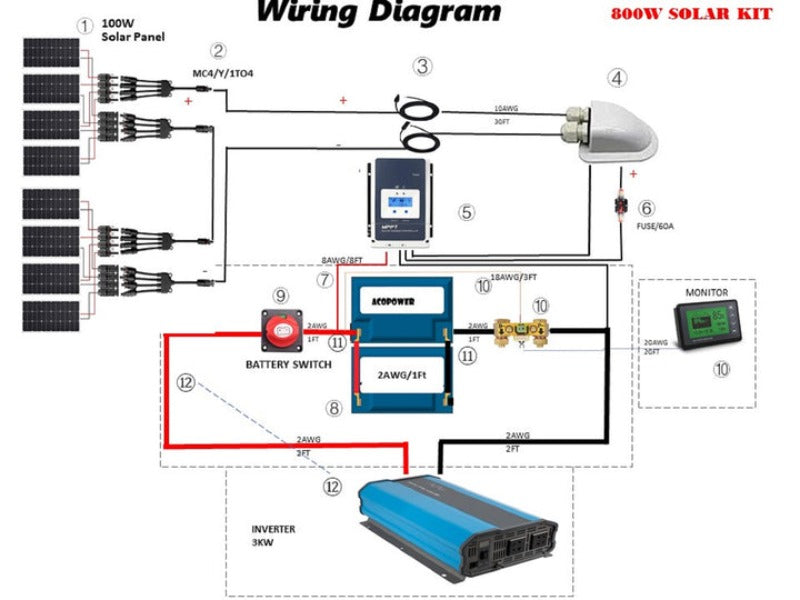

This all-inclusive kit has everything you need to DIY your solar charge system. The kit comprises 8pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications:

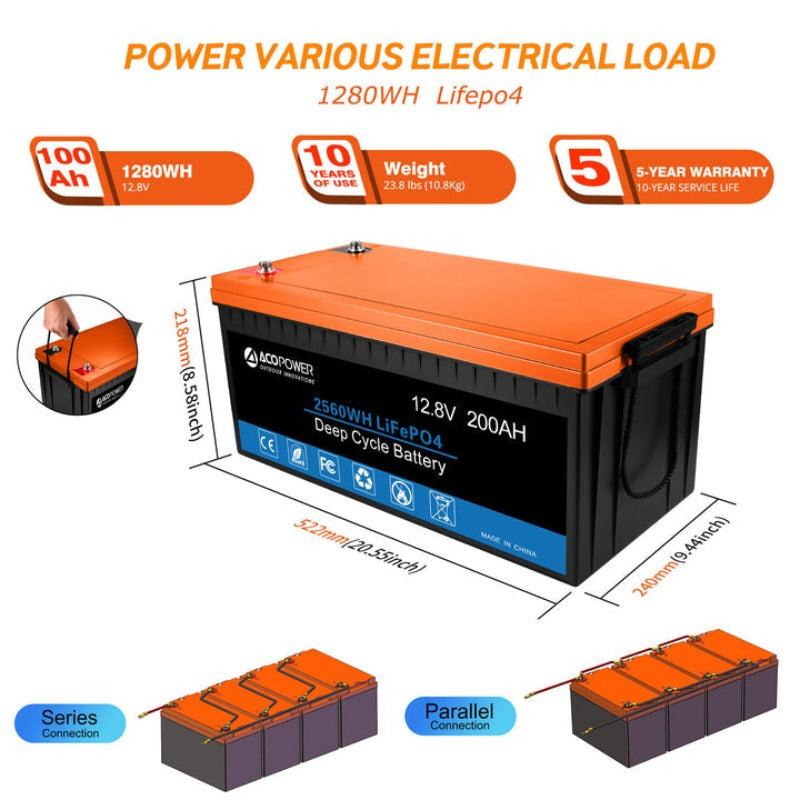

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

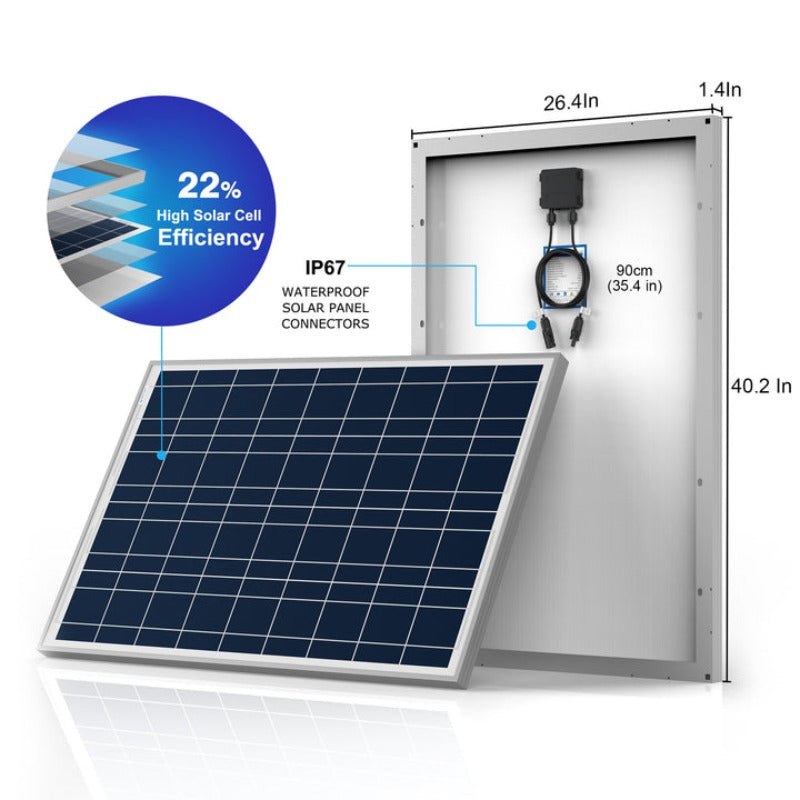

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

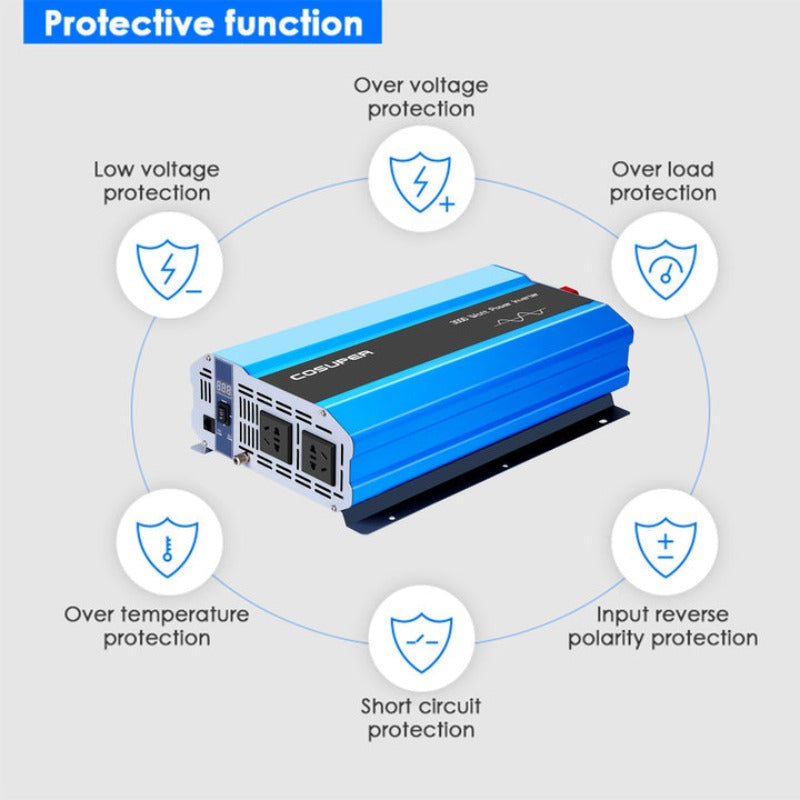

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

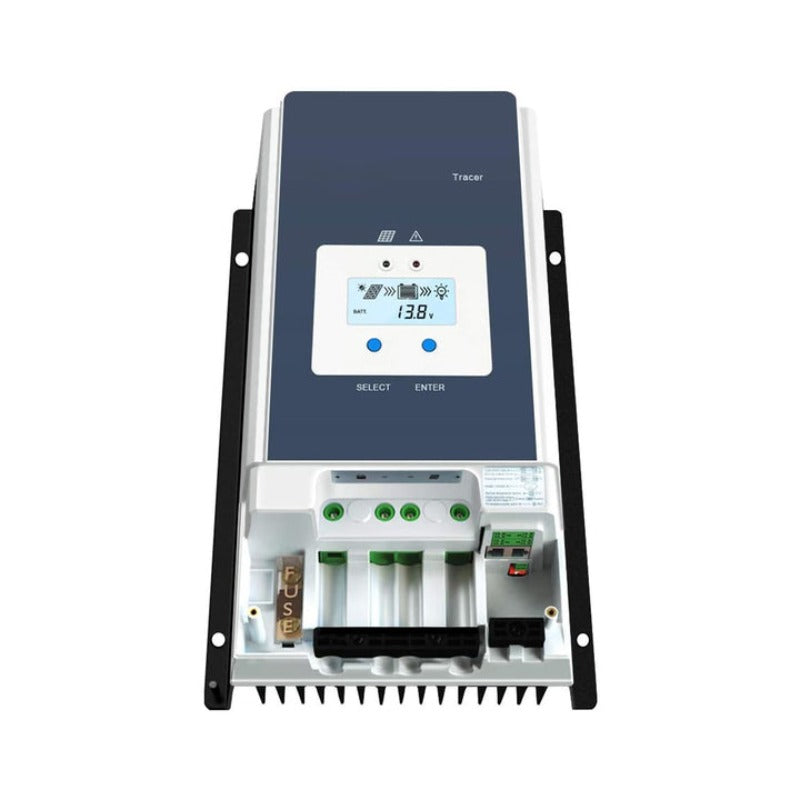

MPPT Solar Charge Controller 60A
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
-
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
-
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

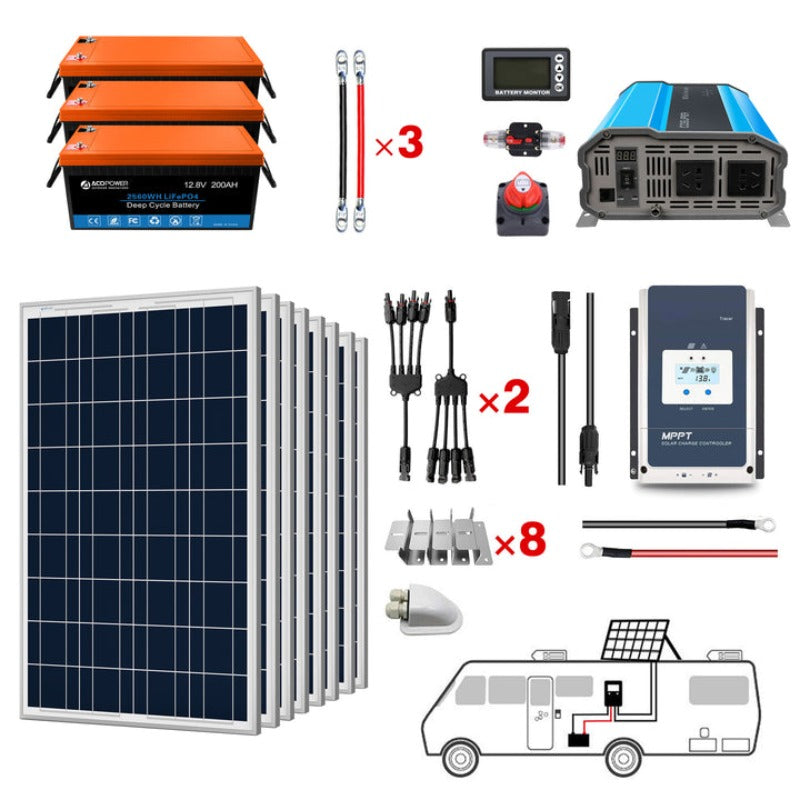

What's in the Box:
3 x Battery
8 x 100W Solar Panel
1 x 3K Inverter
1 x 60A Controller
1 x Monitor
1 x Switch
1 x 60A Fuse
8 x sets z Brackets
3 x Pairs Battery Cable
