ACOPOWER 200W 12V Poly Solar RV Kits, 20A PWM Charge Controller

Roll over image to zoom in Click on image to zoom

$10 OFF with code NEW10

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

ACOPOWER 200W 12V Poly Solar RV Kits, 20A PWM Charge Controller

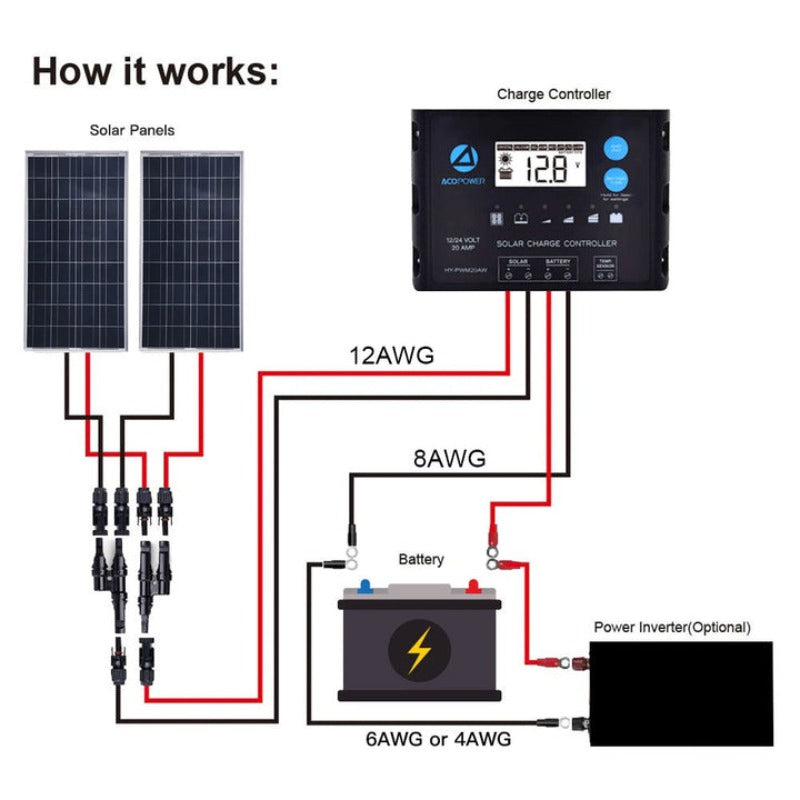

This cost-effective and user-friendly kit is designed for straightforward installation, equipped with 2 100W solar panels, a 20A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home, RV, van life, and various applications, this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles, the panel boasts a durable construction featuring tempered glass with an anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, this solar panel is ready to harness renewable energy efficiently.

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 20A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, catering to a range of power needs. With a negative-ground configuration, the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV, cabin, or off-grid system, the ACOPower 20A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
Height Efficiency
MPPT Technology
Green Solar System
Common Negative grounding design
Warranty
Multiple packages

Specifications:

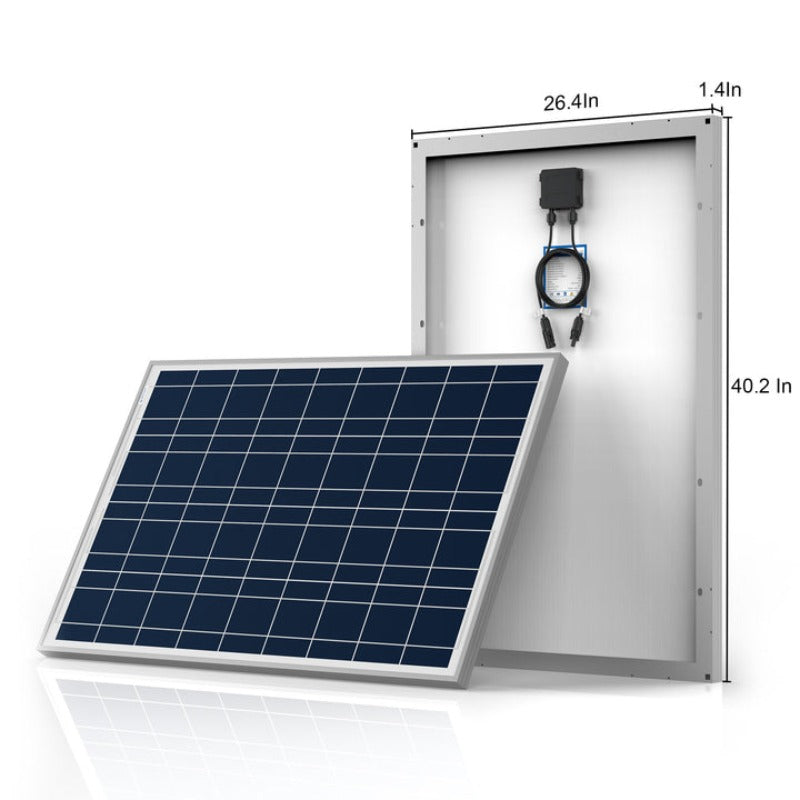

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40ºC to 85ºC
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

Acopwer 20 A MPPT Solar Charge Controller

Nominal system voltage: 12/24V
DC Auto Rated charge current: 20A
Battery input voltage range: 8V～32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/260W, 24V/520W
MPP voltage range: V(BAT+2V)～72V
Working environment temperature: -25℃～+50℃
Storage temperature range: -35℃～+80℃
Grounding: Common negative
Communication: RS485 (RJ45 interface)
Power Terminals: 6AWG(16mm2)
Enclosure: IP30
Dimensions: 220X154X52mm
Weight: 1.1kg

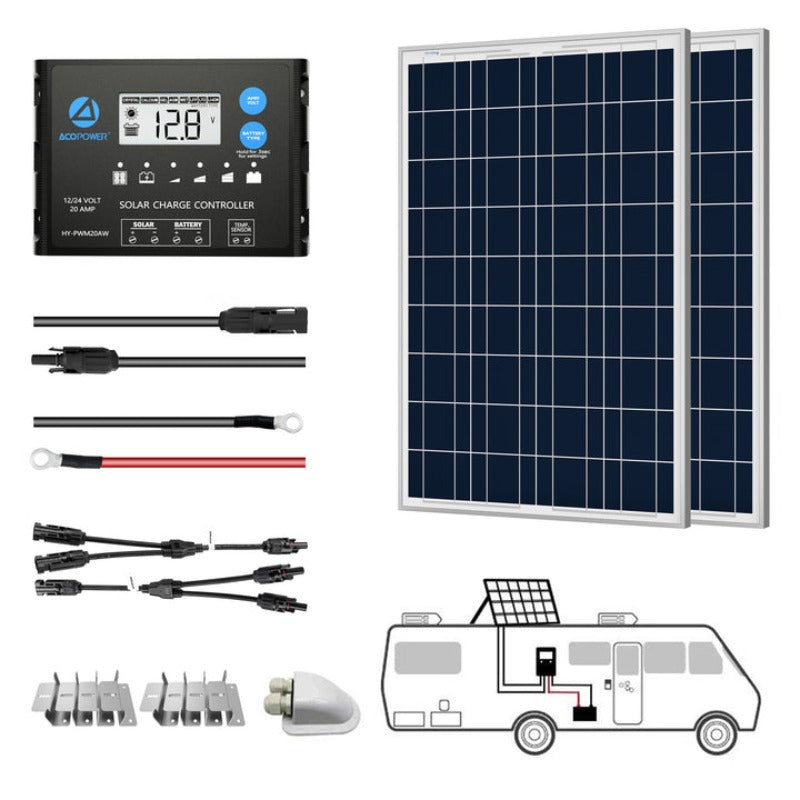

What's in the Box:

2 x 100W Polycrystalline Solar Panel

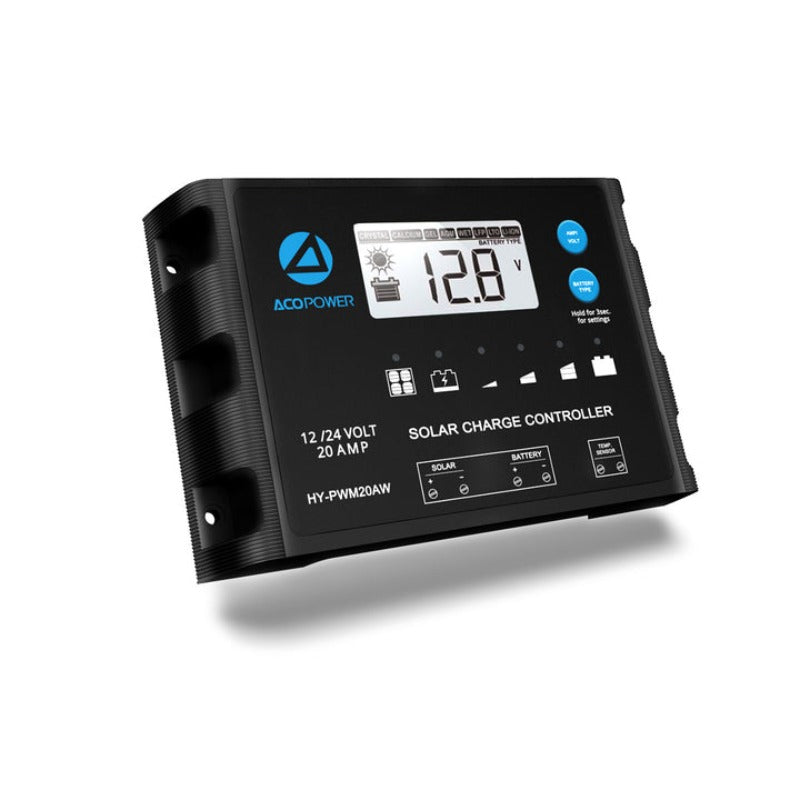

1 x 20A PWM Charge Controller

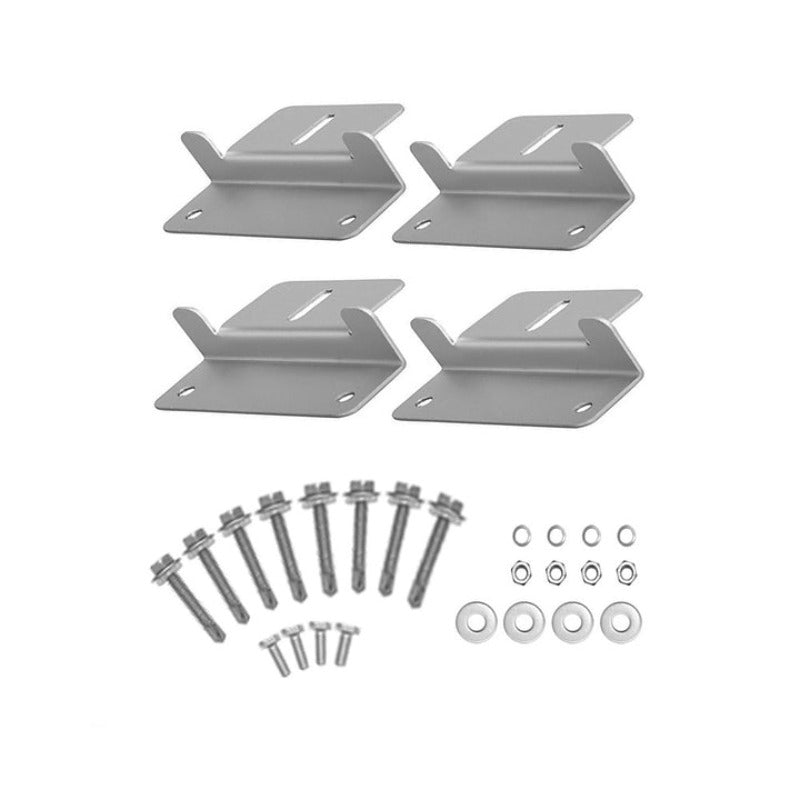

2 x Sets Mounting Z Bracket

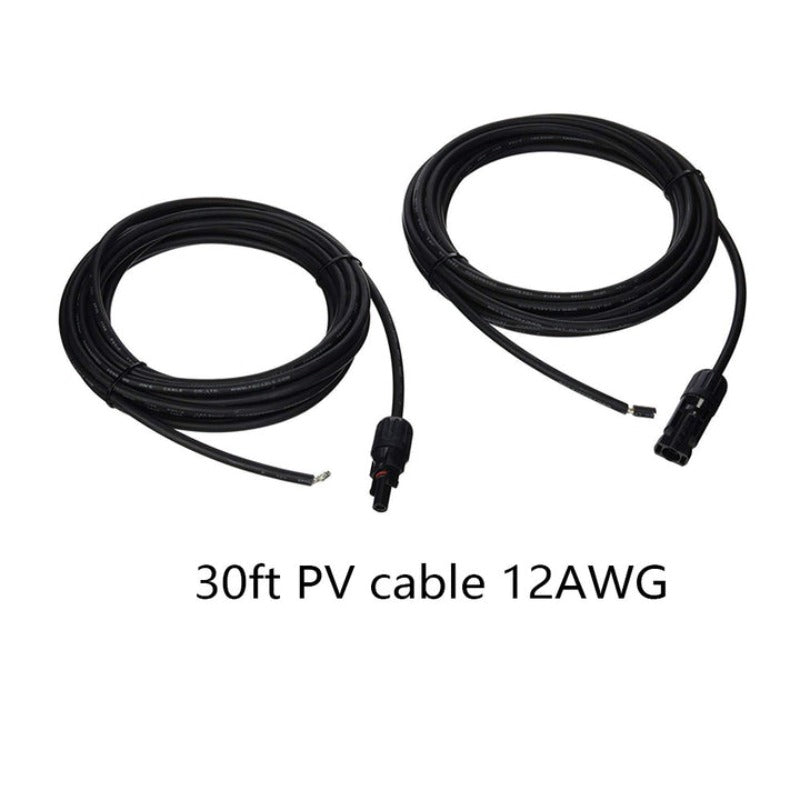

1 x 30ft 12AWG PV Cable

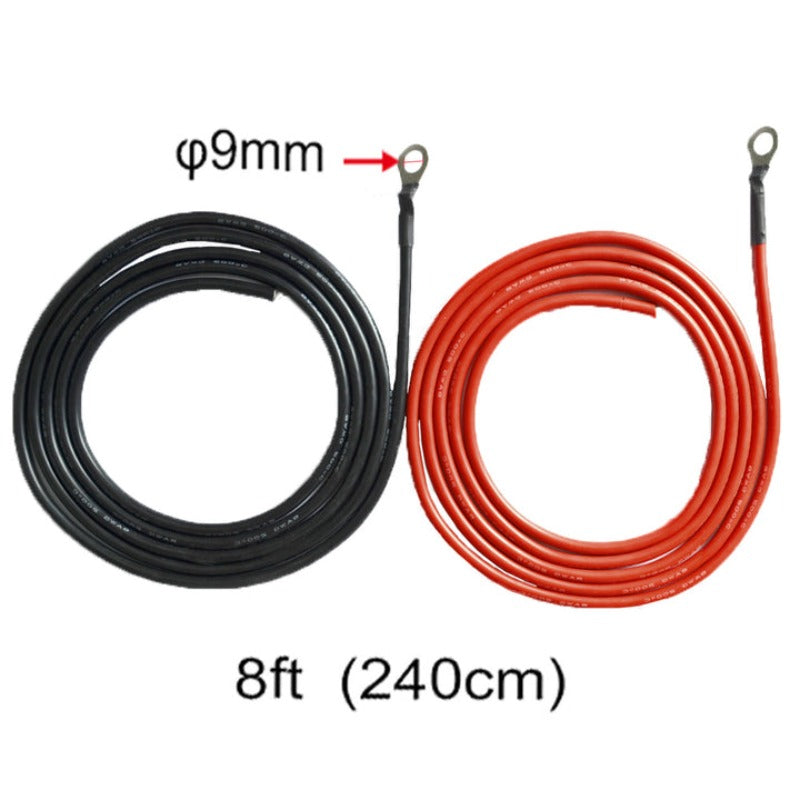

1 x 8FT 8AWG Tray Cable
1 x Cable Entry Housing
1 x Pair PV T/Y Connectors

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: ACOPOWER 200W 12V Poly Solar RV Kits, 20A PWM Charge Controller
Brand: Acopower
SKU: HY-SPKP-200W20A
Price: 299.0 USD
Availability: InStock

What battery capacity can the ACOPOWER 200W 12V kit charge?

The 200W system with 20A PWM controller is sized for 12V battery banks typically ranging 100–400Ah. Actual charging time depends on battery capacity and irradiance.

Does the ACOPOWER 200W kit include a battery?

No. This kit includes two 100W solar panels, a 20A PWM charge controller, wiring, and mounting hardware. You must supply a compatible 12V battery bank separately.

Can I expand the ACOPOWER 200W system with additional panels?

Yes. Additional 12V polycrystalline panels can be wired in parallel to the existing 20A PWM controller, up to the controller's 20A input limit. For larger expansions, upgrade to a higher-rated controller.

Is the ACOPOWER 200W kit suitable for year-round RV use?

The 200W output is best for supplemental charging in moderate to strong sunlight. Winter or heavily cloudy regions may require battery pre-charging or a secondary power source.
