ACOPOWER 500W 12V Poly Solar RV Kits, 40A MPPT Charge Controller

Roll over image to zoom in Click on image to zoom

$10 OFF with code NEW10

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

ACOPOWER 500W 12V Poly Solar RV Kits, 40A MPPT Charge Controller

This cost-effective and user-friendly kit is designed for straightforward installation, equipped with six100W solar panels, a 40A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home, RV, van life, and various applications, this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles, the panel boasts a durable construction featuring tempered glass with an anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, this solar panel is ready to harness renewable energy efficiently.

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 60A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, catering to a range of power needs. With a negative-ground configuration, the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV, cabin, or off-grid system, the ACOPower 40A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
Height Efficiency
MPPT Technology
Green Solar System
Common Negative grounding design
Warranty
Multiple packages

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40ºC to 85ºC

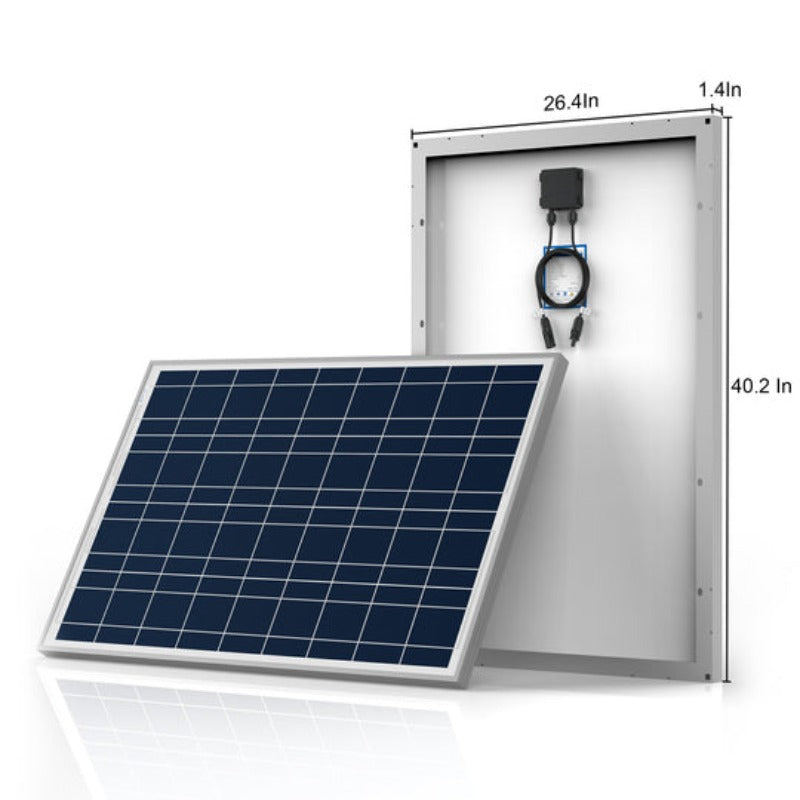

Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

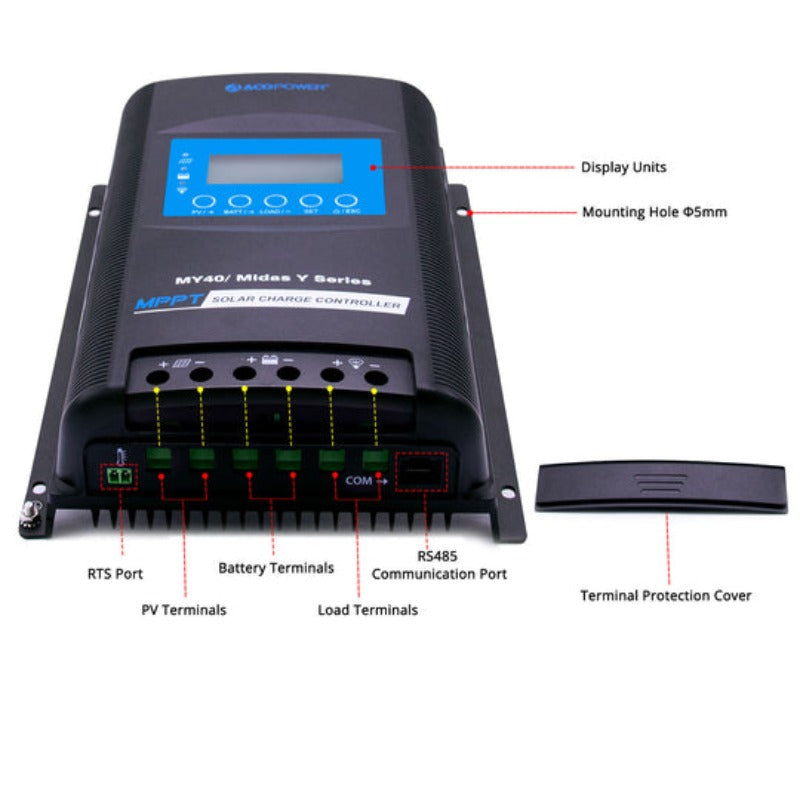

Acopower MIDAS 40 A MPPT Solar Charge Controller

Nominal System Voltage: 12/24VDC
Auto Grounding: Common negative
Rated Charge Current: 40A
Battery Input Voltage Range: 8V～32V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
Rated charge Power: 520W/12V 1040W/24V
MPPT Voltage Range: (Battery Voltage+2V) ~72V
RS485 Interface: 5VDC/200mA(RJ45)
Working temperature: -25℃～+50℃
Storage temperature: -20℃～+70℃
Terminals: Up to 6 AWG
Enclosure: IP33

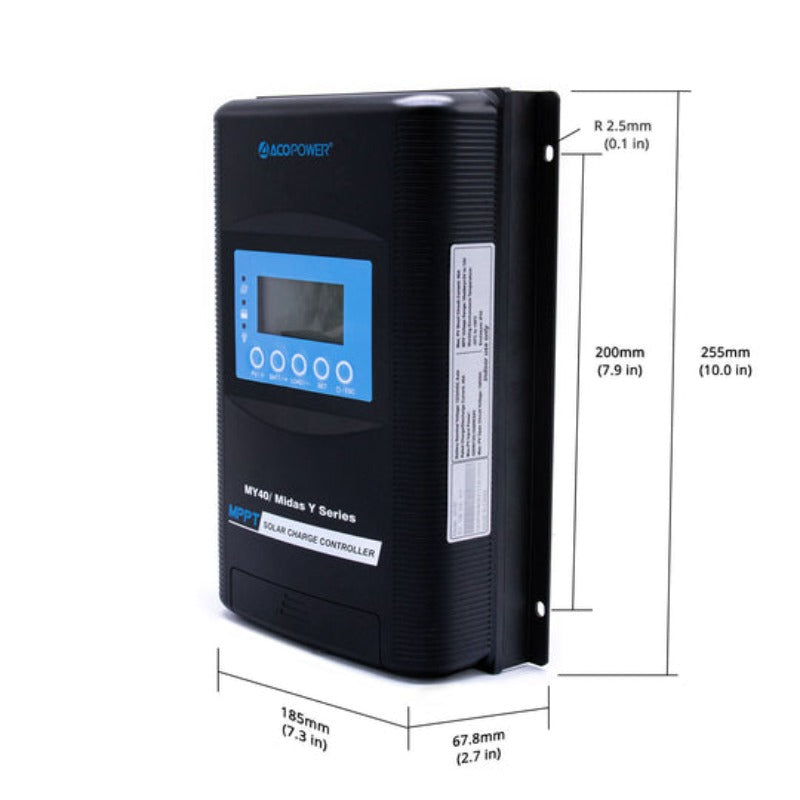

Dimension: 10x7.28x2.67 in / 255×185×67.8mm
Weight: 3.75lbs / 1.7kg

What's in the Box:

5 x  100W Poly Solar Panel
1 x   40A MPPT Charge Controller

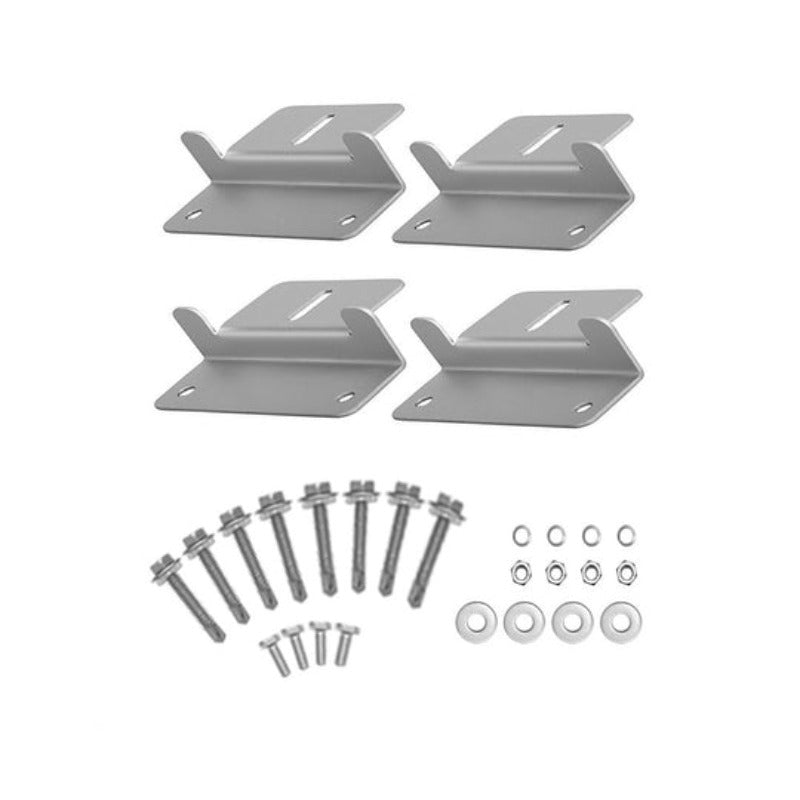

5 x  Sets Mounting Z Bracket
1 x  30ft 12AWG PV Cable

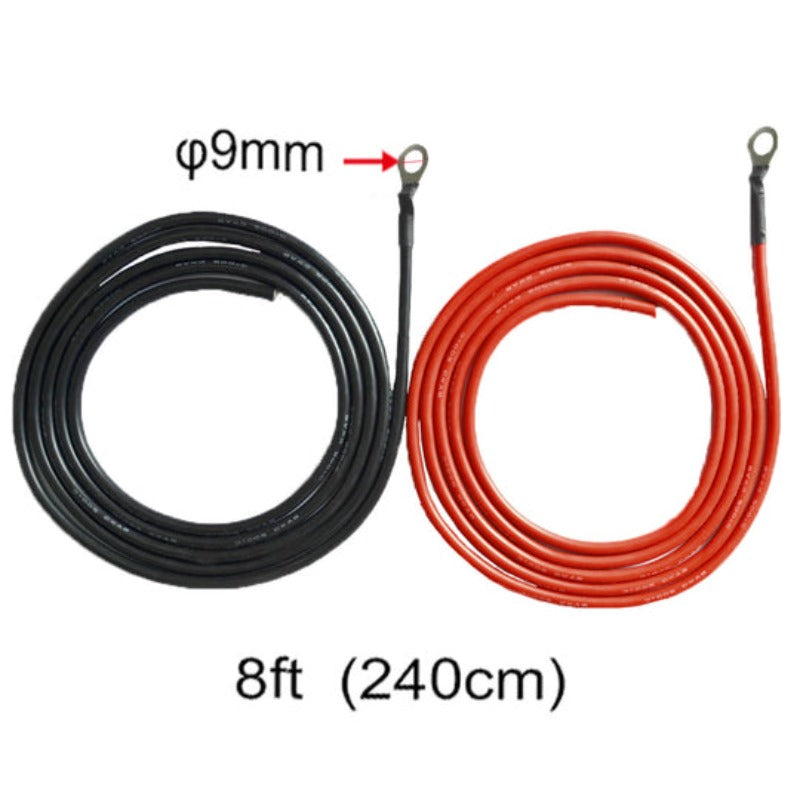

1 x   8FT 8AWG Tray Cable
1 x   Cable Entry Housing

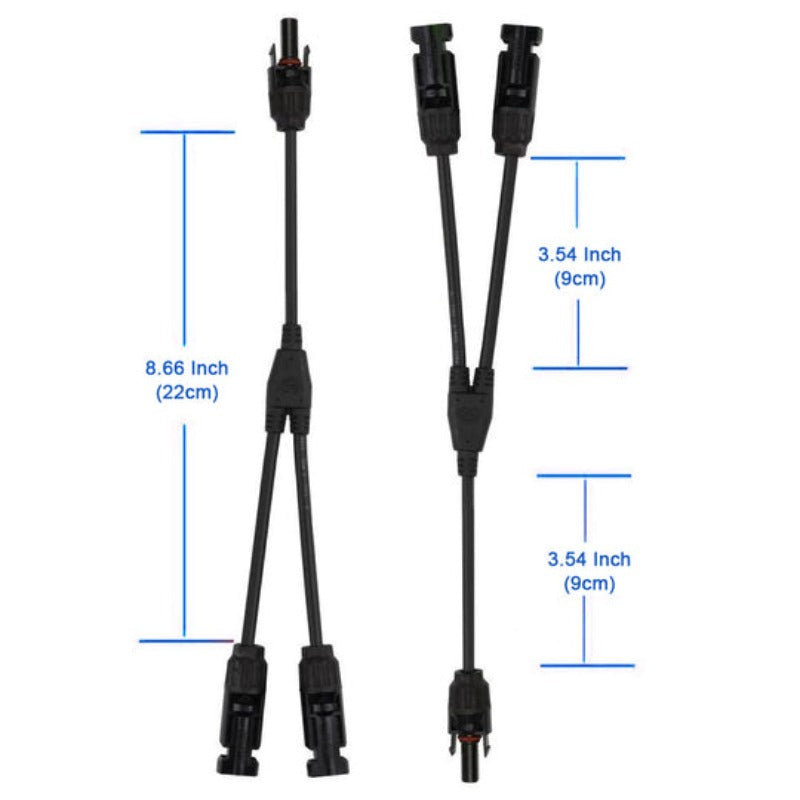

1  x  Pair PV T/Y Connectors

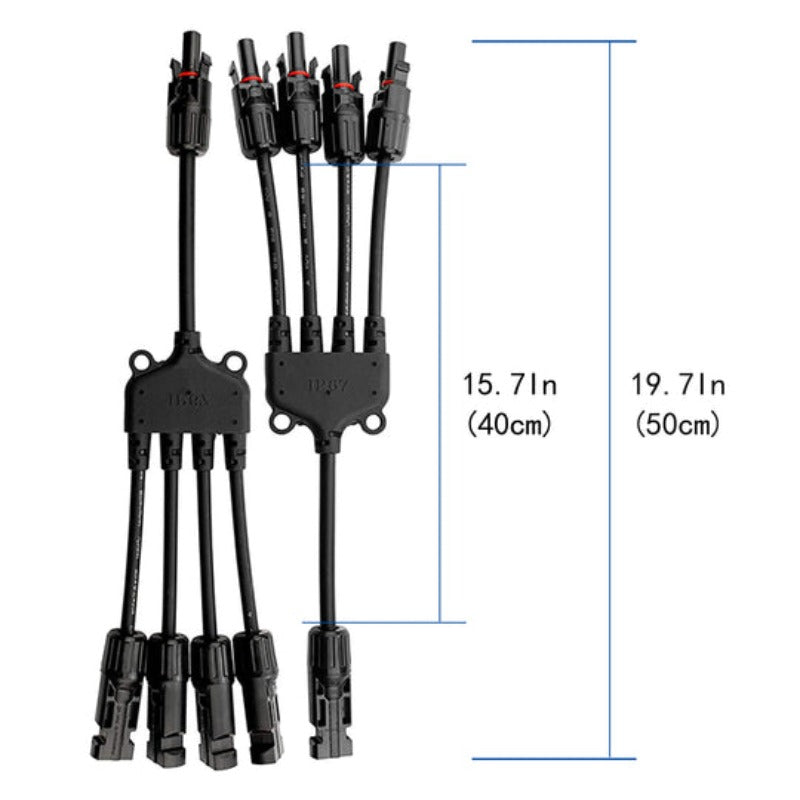

1 x  Pair 1Y4 Branch Connector

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: ACOPOWER 500W 12V Poly Solar RV Kits, 40A MPPT Charge Controller
Brand: Acopower
SKU: HY-SPKP-500W40A
Price: 643.51 USD
Availability: InStock

What is the total solar array output of the ACOPOWER 500W 12V kit?

The kit includes six 100W polycrystalline panels configured for 12V systems, delivering 500W peak power output under standard test conditions.

What charge controller model and capacity is included?

A 40A MPPT (Maximum Power Point Tracking) charge controller optimizes power harvest from the six 100W panels and manages charging to 12V battery banks.

Can the ACOPOWER 500W kit be expanded with additional panels or batteries?

The 40A MPPT controller supports modular expansion. Additional 100W panels can be wired in parallel, and any 12V battery bank (lead-acid or lithium) can be connected to the controller output.

What mounting options are provided with this RV solar kit?

Roof and surface-mount hardware is included for secure installation on RVs, boats, campers, and stationary structures.
