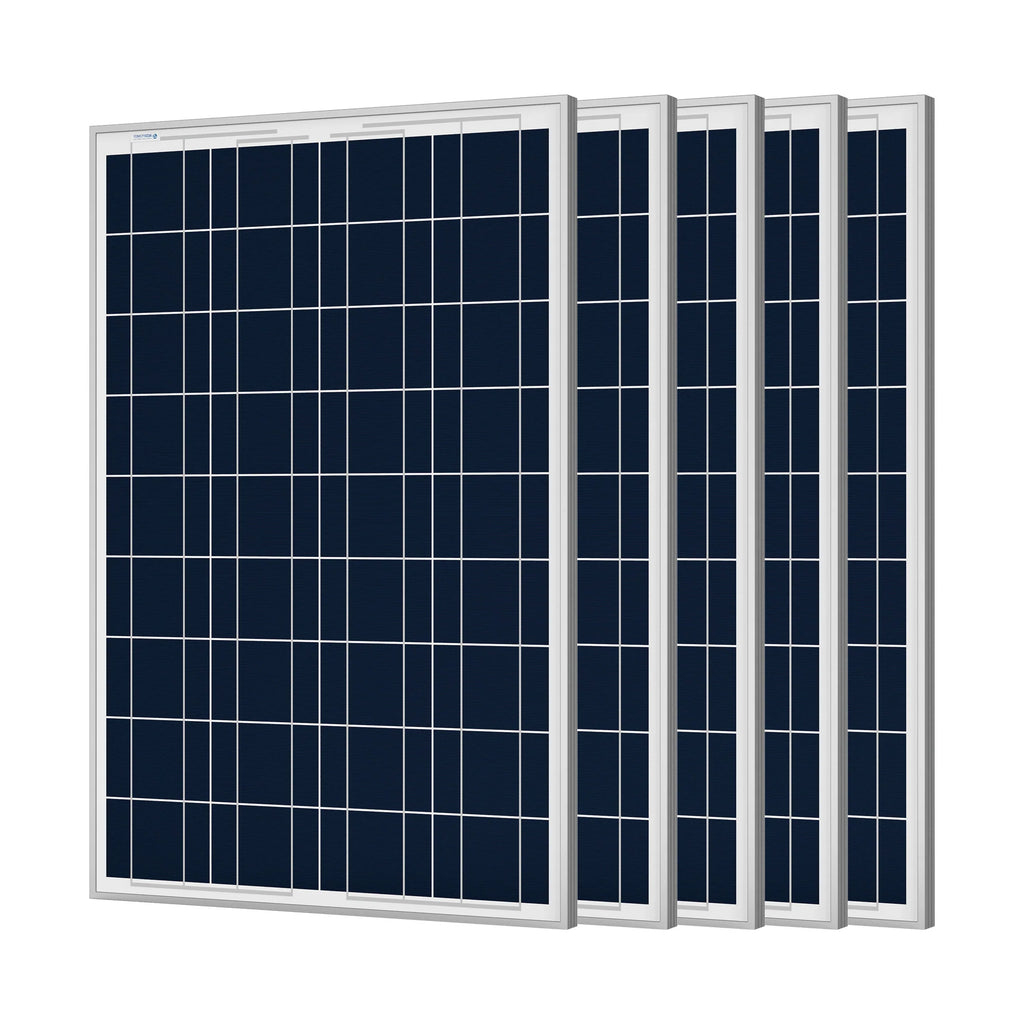

Acopower 100w Poly Pack 5x100w
Level up your energy game with the ACOPower 100W Polycrystalline Solar Panel, meticulously crafted for optimal performance in charging 12-volt batteries. Ideal for a spectrum of applications, from home use to RV adventures, this solar panel is your gateway to a sustainable and independent power source.
Crafted with precision, the panel features polycrystalline technology, ensuring efficient energy conversion even in varied lighting conditions. The rugged construction includes a tempered glass surface with an anti-reflective coating, bolstered by two layers of EVA film, a TPT backsheet, and a robust anodized aluminum frame. This design not only enhances durability but also enables the panel to withstand snow loads of up to 5400 Pa and wind pressures of 2400 Pa.
Installation is a breeze with pre-drilled holes that make securing the panel to structures or vehicles seamless. The junction box at the rear ensures water resistance with an IP65 rating, adding a layer of protection against the elements. For added convenience, a 3.2-foot, 16 AWG cable with male and female quick connectors is included, streamlining the connectivity process.
Bring reliability and sustainability to your power needs with the ACOPower 100W Polycrystalline Solar Panel, designed to empower your 12-volt battery charging experience. Harness the sun's energy efficiently and embark on a journey towards eco-friendly and cost-effective power solutions.
Features:
- The ACOPOWER 100 watt poly solar panel provides 100w of high module conversion efficiency solar charging power.
- Easy installation thanks to Pre-Drilled holes. Each solar panel comes with a 12AWG cable with male/female quick connectors.
- A must have component for Off-Grid Solar Panel Systems - 12V/24V/36V/48V - Caravan, RVS, Cars, Boats, Off-Grid Solar Systems. Optimum operating current (Imp) of 5.72A
- Lightweight anodized aluminum frame, reinforced safety and anti-reflection coated glass is 3.2mm thick and a waterproof IP-65 rated junction box which ensures long panel life.
- Capable of withstanding high winds (2400pa) and snow loads (5400pa)
Specifications:
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 40.1x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs
What's in the Box:
- 5 x 100W Solar Panel
- 12AWG cable with male/female quick connectors
- 1 x User Manual
Built-In Components
- ACOPower 100 Watt Polycrystalline Solar Panel
- IP65 Rated waterproof junction box
- Output Cables: 12 AWG (3.2ft long)
