Acopower 110w flex Kit 550w 50A

The Acopower 110w flex Kit 550w 50A is a versatile and efficient solar panel kit that provides 110 watts of power. With a maximum output of 550 watts and a 50A charge controller, this kit is capable of charging various devices and batteries. The flexible design of the solar panel allows for easy installation on curved surfaces, making it ideal for RVs, boats, and other outdoor applications.

At the heart of the system is the 110-watt flex solar panel and the 50A MPPT solar charge controller, which is responsible for regulating and optimizing the charging process to ensure maximum efficiency and battery life. To complete the system, the Acopower 110w flex Kit also includes a pair of 10-foot solar cables with MC4 connectors, allowing for easy and secure connections between the panels and the charge controller.

Whether you are a seasoned solar enthusiast or a beginner looking to venture into renewable energy, the Acopower 110w flex Kit 550w 50A offers a comprehensive and high-quality solution for all your solar power needs.

• Made from monocrystalline PV cells
• Lightweight and portable
• Flexed to create a smooth curve of up to 27 degrees
• Can be used on a bus roof, RV, boat, caravan, cabin, tent, golf cart etc.
• Powerful and durable
• Multi-function LCD displays system information
• Unique frameless design
• Features 4 metal reinforced mounting holes at each corner to be screwed on any object
• Panel can also be taped or attached to an object via grommets or zip ties
• 50 MPPT Charge controller
• 12 Volt Flexible Mono Solar Panel
• 5 x 110W Solar Panel
• Ultra-fast tracking speed
• Accurately recognizing and tracking of multiple power point
• User programmable for battery types, load control etc.
• Common negative grounding design

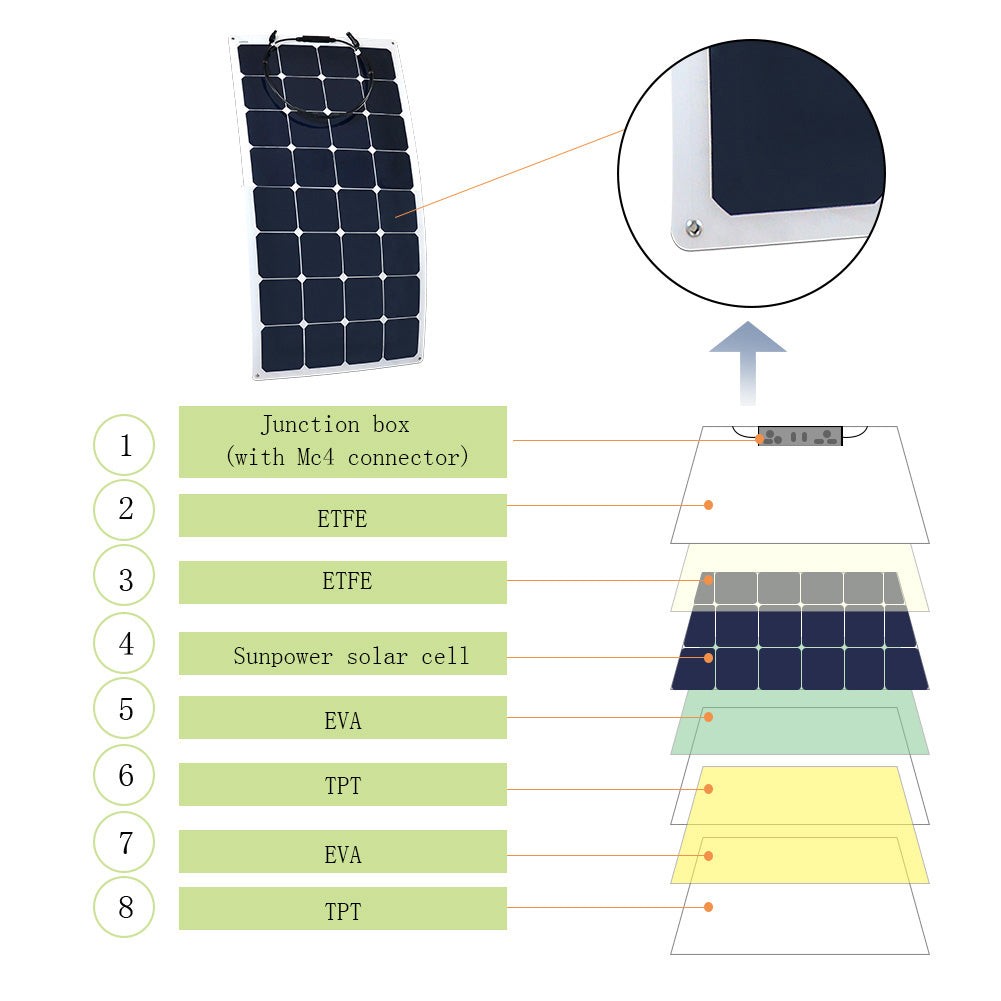

• ETFE Design
• 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components

SPECIFICATIONS:

Solar Panel: 5 x 110W

Voltage: 12V

Peak Power: 110W

Peak Circuit Voltage: 20.8V

Maximum Power Voltage: 17.6V

Short Circuit Current: 6.9A

Max Power Current: 6.25A

Power Tolerance: ±5%

Maximum System Voltage DC: 1000V

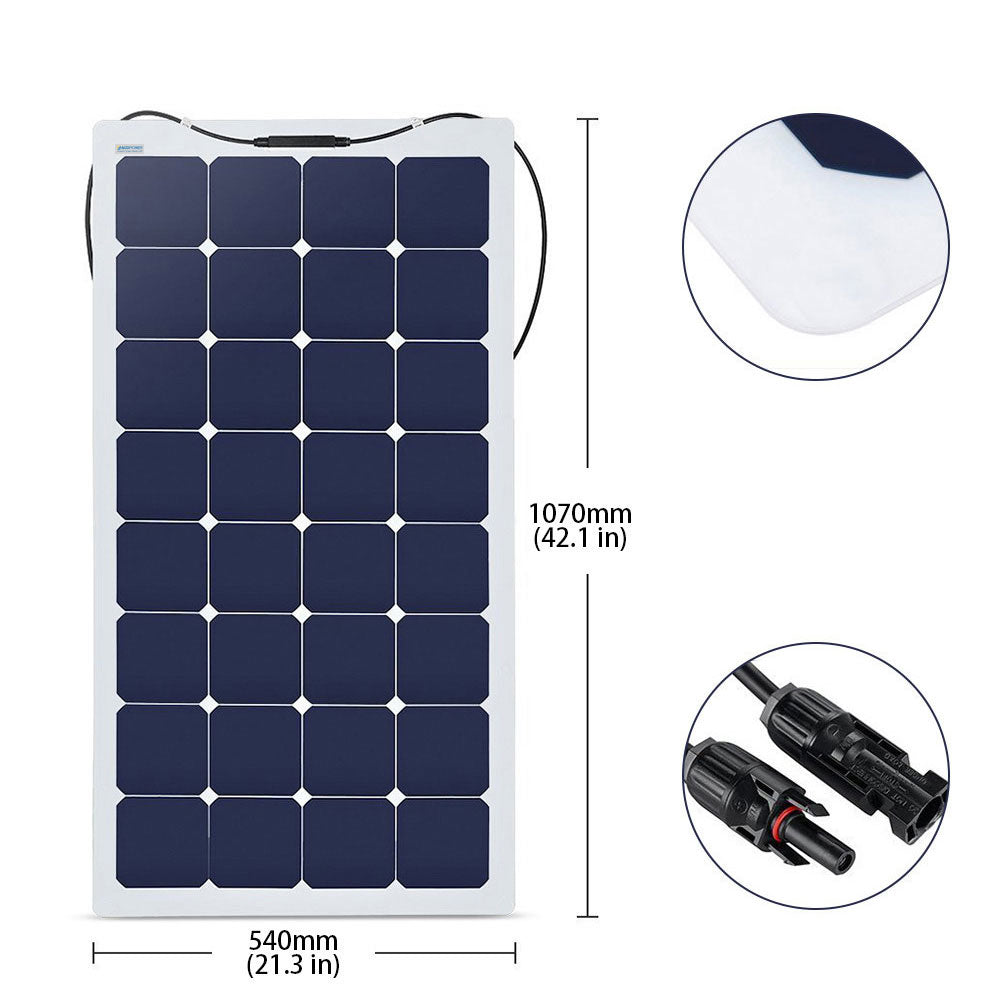

Dimension: 44.68*21.26*0.12 Inch

Weight: 4.85 LB

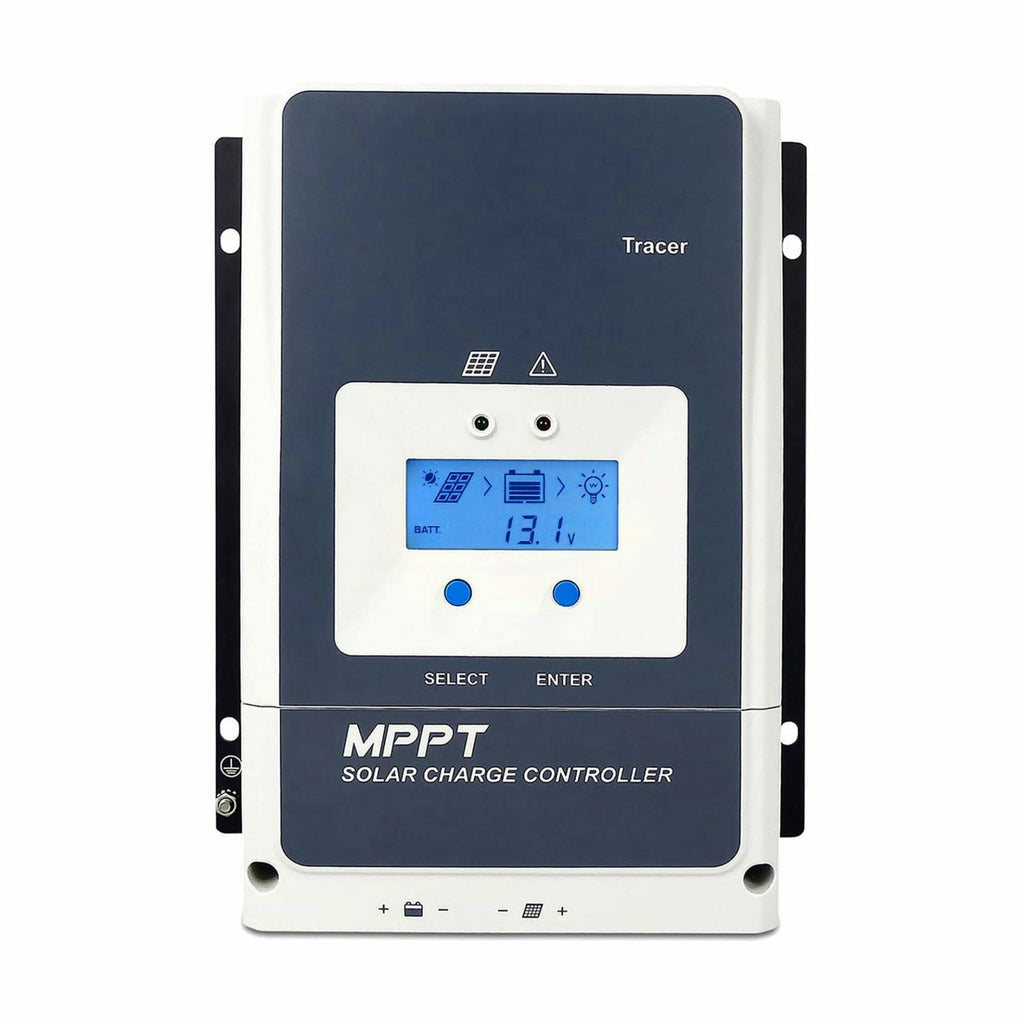

MPPT Charge Controller: 50A

Rated Charge Current: 50A

Nominal System Voltage: 12v/24v/36v/48v

Max. PV Open Circuit Voltage: 150V/138V

MPP Voltage Range: V(BAT)+2V～108V

Max. PV Input Power: 624W/12V, 1250W/24V, 1875W/36V, 2500W/48V

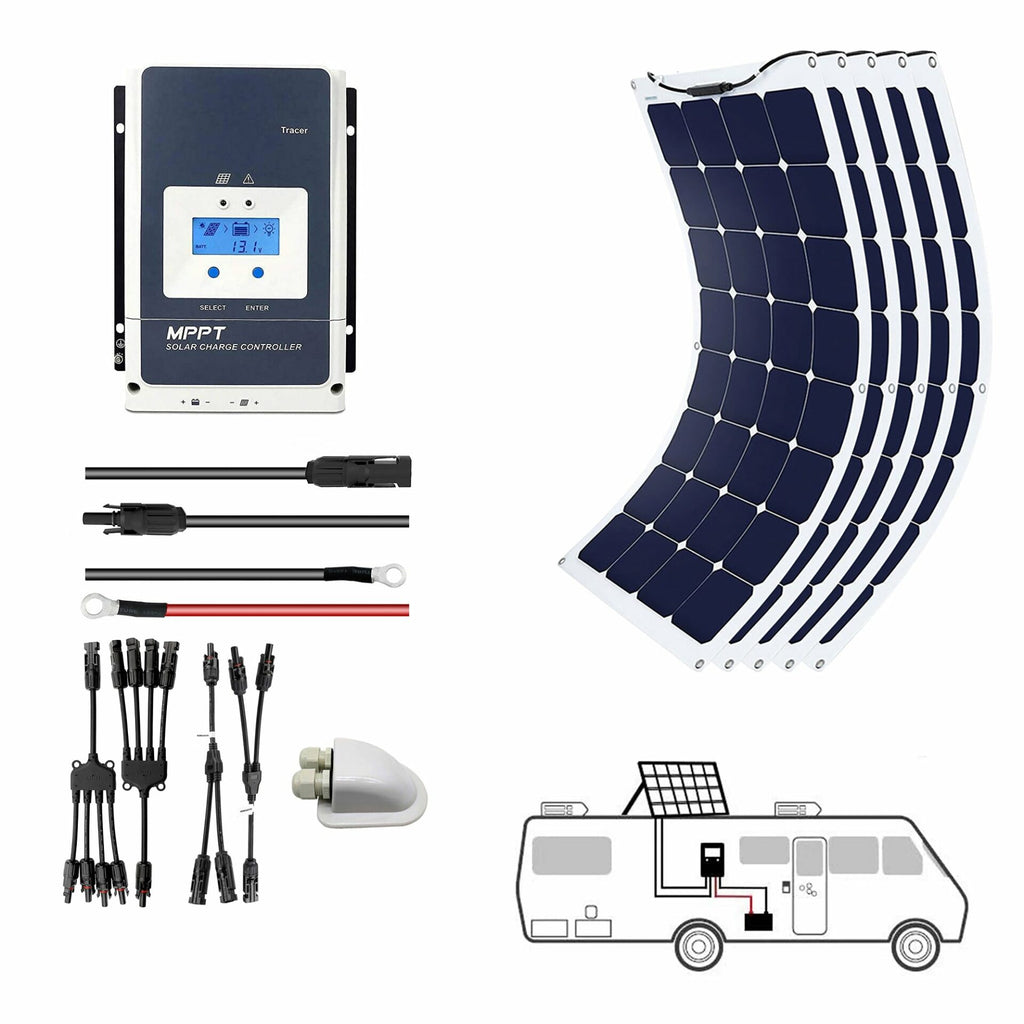

WHAT’S IN THE BOX:

5 x 110W 12V Flexible Solar Panel

1 x 50A MPPT Charge Controller

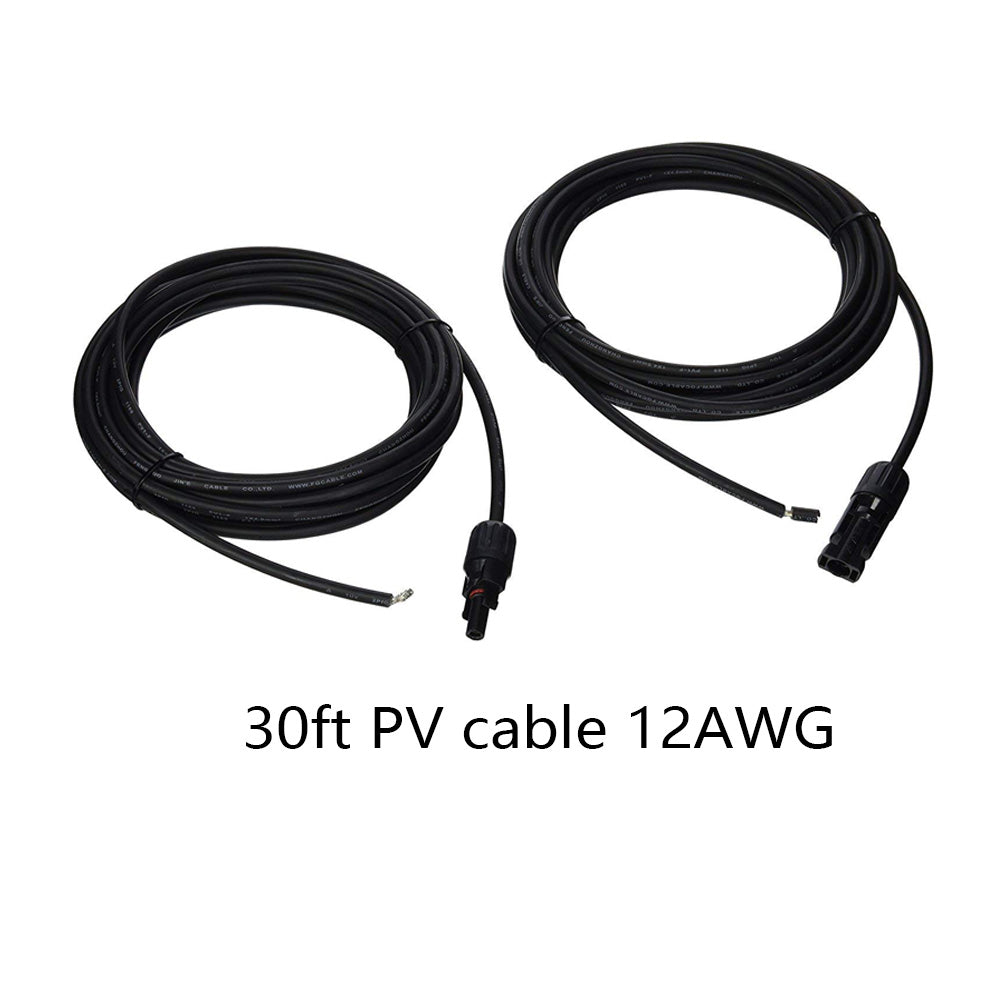

1 x 30ft 10AWG PV Cable

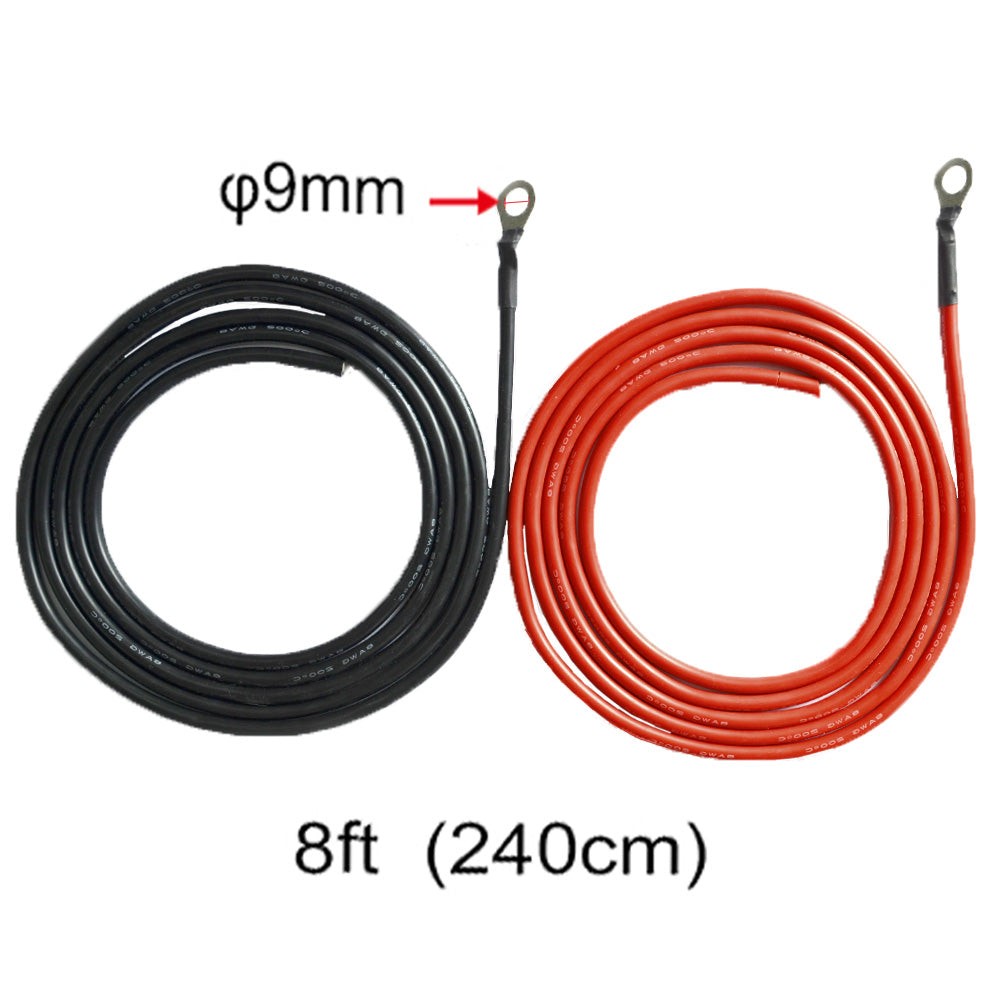

1 x 8FT 8AWG Tray Cable

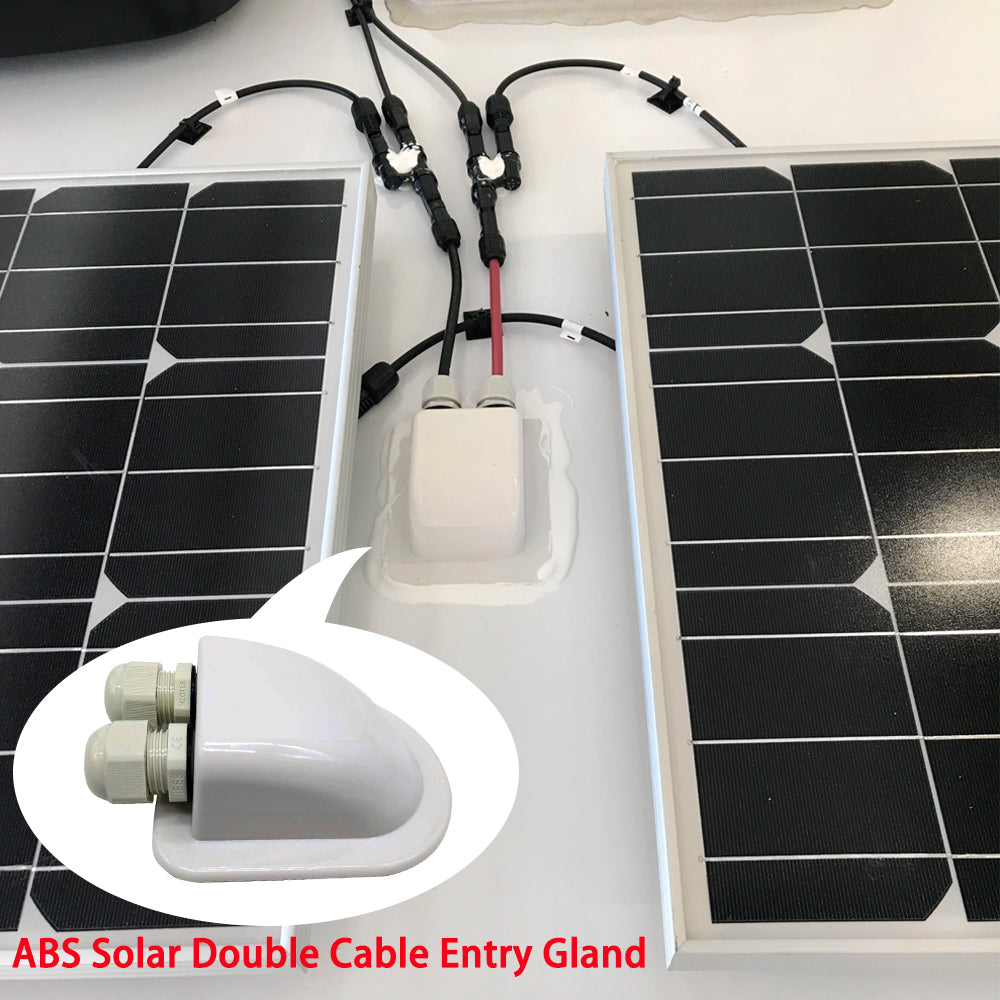

1 x Cable Entry Housing

5 Sets x Z Mounting Brackets

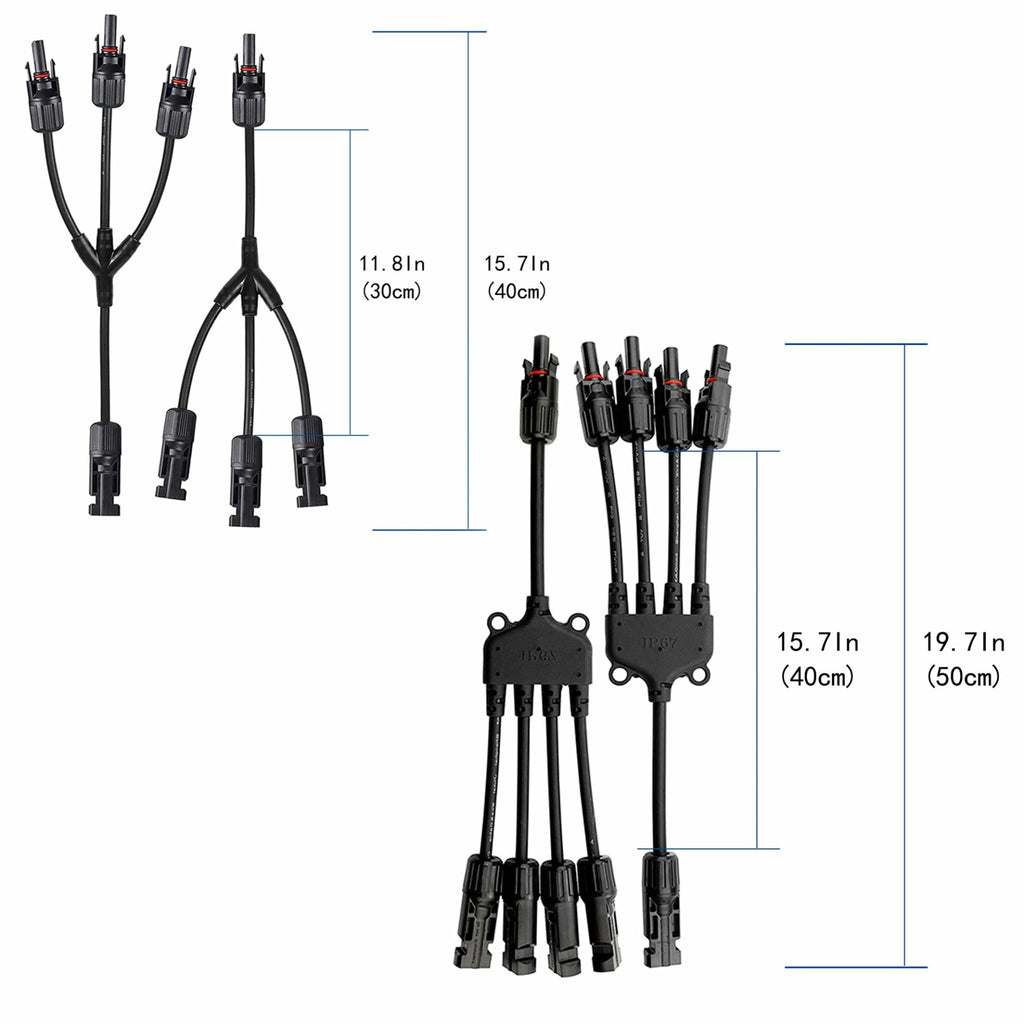

1 Pair x Y3 Branch Connector

1 Pair x Y4 Branch Connector
