Acopower 110w flex 200Ah/1.5kW(2x100Ah) Li200Ah F660w
The Acopower 110w flex is a cutting-edge, high-performance solar panel designed to provide efficient and reliable power generation.
With a power output of 110 watts, this flexible solar panel is built with the latest technology to ensure optimal performance even in challenging weather conditions. The integrated Li200Ah F440w battery is a powerful addition to this system, offering a massive 200Ah capacity. This allows for extended use and reliable power storage, making it perfect for off-grid applications or situations where a stable power supply is essential.
With a power rating of 1.5kW and two 100Ah batteries, the Acopower 110w flex is capable of delivering a substantial amount of power for various applications. Whether you need to charge your electronics, run small appliances, or power your essential equipment, this solar panel provides you with the energy you need. The flexibility of this solar panel allows for easy installation on various surfaces, including curved or uneven ones. The lightweight and durable design makes it ideal for traveling or outdoor activities, ensuring that you can harness the power of the sun wherever you go. The intelligent power management system prevents overcharging, over-discharging, and short circuits, ensuring the longevity and reliability of the solar panel and batteries.
The Acopower 110w flex with the Li200Ah F440w battery is an excellent choice for anyone seeking a robust and reliable solar panel system on or off the grid!
- Wide application
- 440W Flexible Solar RV kit
- Two 100Ah batteries
- Off-grid 12 volt Lithium battery 12V Flexible Solar Panel system
- 1500 Watt Pure Sine Wave Inverter provides plenty of AC power 120VAV
- Designed for RVs, cabins, homes, boats, fences, security cameras, greenhouse, camper, lawnmower, motorcycle, jet ski, trailer, camper, back-up and remote power use
- Flexible solar panel
- Solar charging 440W will provide about 2112Wh (Watt-hour} or 176Ah (Ampere-Hour) of charge per day (Depends on sunlight availability)
- 2560Wh of 2pcs 100Ah Lithium batteries
- 40A MPPT solar charge controller
- Double protection against power surge
- Easy-to-read LCD display
- Built-in BMS(battery management system)
- DIY Kit
SPECIFICATIONS:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

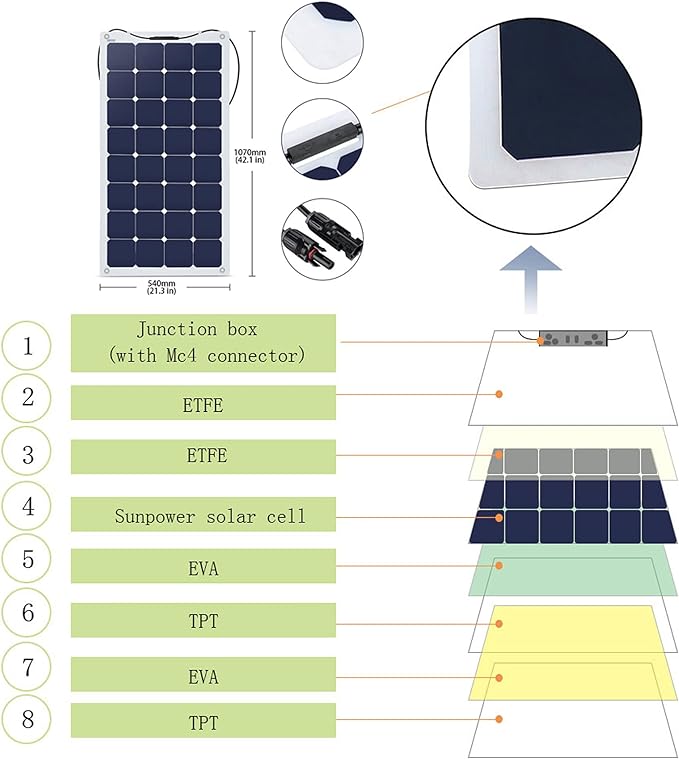

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage (Voc):20.8V
Max Power Voltage (Vmp):17.6V
Short Circuit Current (ISC):6.87A
Max Power Current (Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

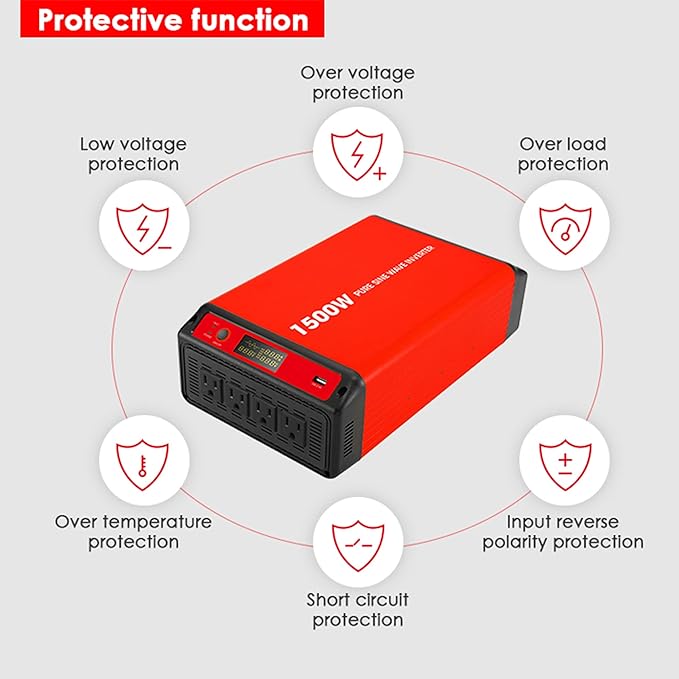

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

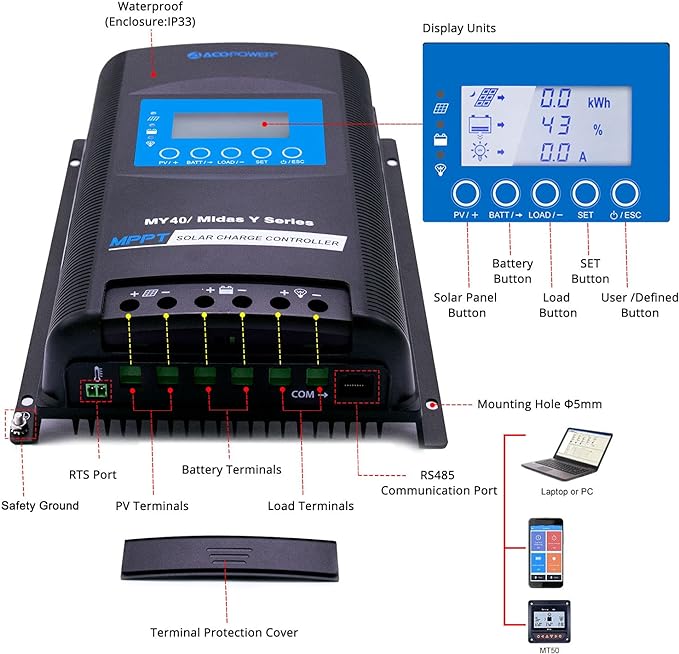

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W, 24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. LiFePO4 Multiple Load Control Method.

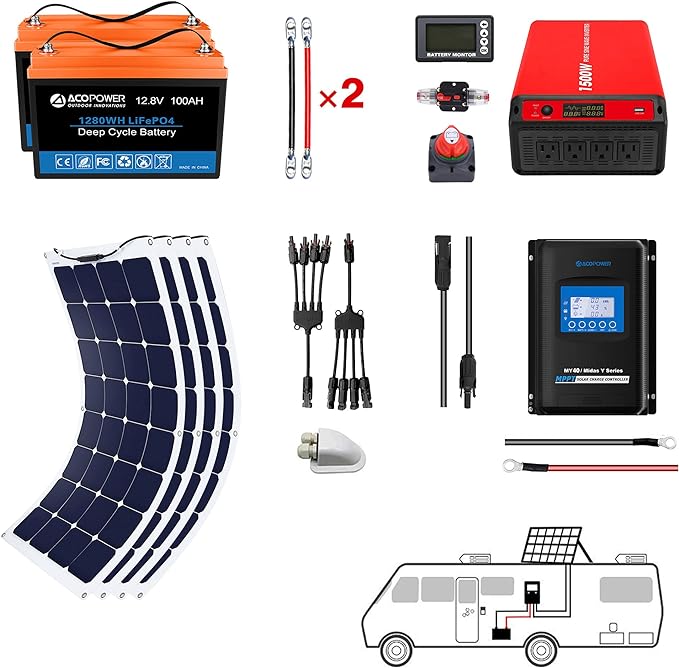

WHAT’S IN THE BOX:
2 x 100Ah LiFePO4 Battery
4 x 110W Solar Panel
1 x 1500W Inverter
1 x 40A MPPT Charge Controller

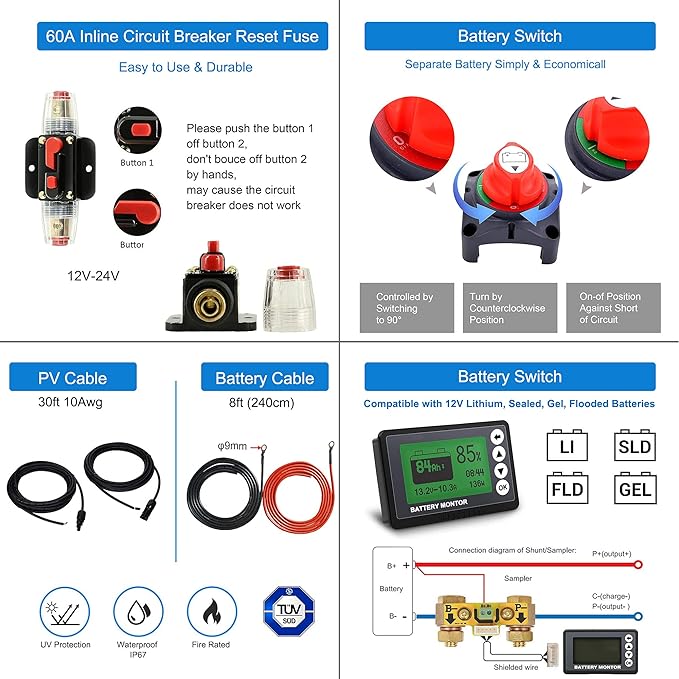

1 x Battery Monitor
1 x Battery Switch
1 x 60A Fuse
1 Pair x 30ft 10AWG PV Cable
2 Pair x 1Ft 4AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1PC x Cable Entry Housing
1 Pair x Y Branch Solar Panel Connectors
