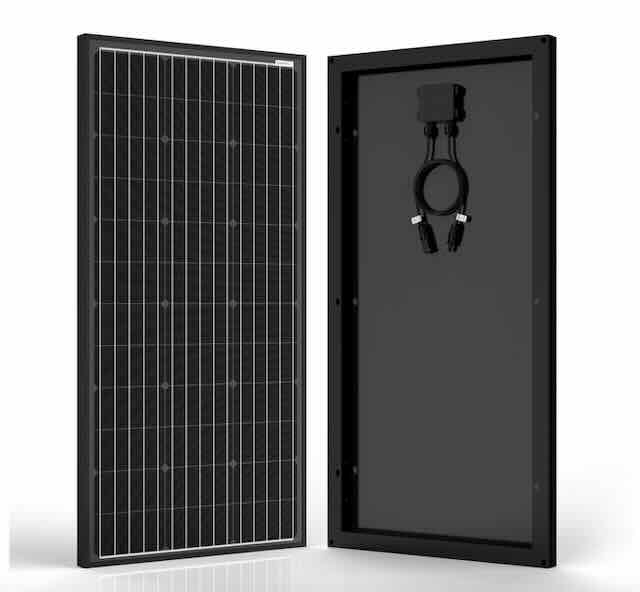

ACOPOWER 200 Watts Mono Solar Panel, HY200-12MB

Name: ACOPOWER 200 Watts Mono Solar Panel, HY200-12MB
Brand: Wellbots
SKU: HY200-12MB-1
Price: 210.99 USD
Availability: InStock

The 200W 12V Monocrystalline Solar Panel (HY200-12MB) is designed to deliver reliable and efficient power generation for off-grid and mobile energy systems. Built with high-efficiency monocrystalline solar cells, it provides strong performance even in low-light conditions, making it a dependable solution for a wide range of applications.

Its durable aluminum frame and weather-resistant construction ensure long-term outdoor use. This panel is ideal for RVs, boats, cabins, remote installations, and backup power systems where stable solar energy is required.

Technical Specifications

Feature	Specification
Maximum Power (Pmax)	200W
Nominal Voltage	12V
Cell Type	Monocrystalline (high efficiency)
Open-Circuit Voltage (Voc)	≈ 22.1V
Optimum Operating Voltage (Vmp)	≈ 18.7V
Short-Circuit Current (Isc)	≈ 11.3A
Operating Current at Max Power (Imp)	≈ 10.7A
Cell Efficiency	~23%
Maximum System Voltage	600V DC
Junction Box Rating	IP65 (weather-resistant)
Operating Temperature Range	-40°C to +85°C

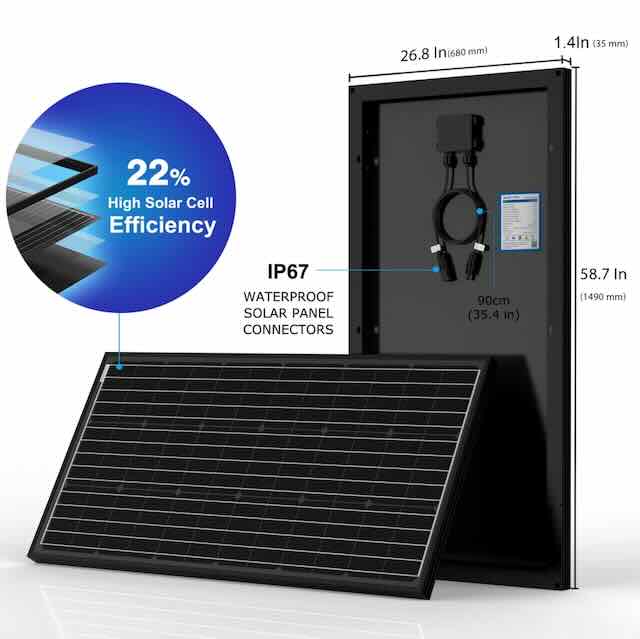

Dimensions	≈ 1496 × 705 × 35 mm
Weight	≈ 11.2 kg
Output Cable	Pre-installed 12 AWG cable

What’s in the Box

1 × 200W 12V Monocrystalline Solar Panel (HY200-12MB)
Pre-installed output cables
Integrated weatherproof junction box
(Depending on supplier) basic mounting accessories or connectors

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

What is the maximum power output of the HY200-12MB panel?

The ACOPOWER HY200-12MB delivers 200W maximum power (Pmax) at 12V nominal voltage, making it suitable for 12V DC energy systems in RVs, boats, and remote installations.

Can the HY200-12MB operate efficiently in low-light conditions?

Yes, the monocrystalline cells in the HY200-12MB are engineered for strong performance even in low-light environments, providing reliable energy generation on cloudy days and during non-peak sunlight hours.

Is the HY200-12MB durable for outdoor use?

The panel features a durable aluminum frame and weather-resistant construction designed for long-term outdoor exposure, making it reliable for permanent mounting on RVs, boats, and cabins.

What is the open-circuit voltage of the HY200-12MB?

The open-circuit voltage (Voc) is approximately 22.1V, which is the maximum voltage the panel can produce with no load connected.
