Acopower 200w kit mono 200w 20A PWM
The Acopower 200W Kit mono 200W 20A PWM is a green power explorer for all your power needs. This exceptional kit is meticulously designed to harness the abundant energy from the sun and convert it into clean, sustainable electricity for your everyday appliances.
Equipped with a powerful 2 x 100W monocrystalline solar panel, this kit boasts impressive efficiency and durability. The monocrystalline cells are meticulously arranged to maximize sunlight absorption, ensuring optimal energy conversion even in less-than-ideal weather conditions. The 20A PWM (Pulse Width Modulation) charge controller incorporates intelligent technology to regulate the charging process effectively. It prevents overcharging, over-discharging, and short circuits, ensuring your battery's longevity while providing an efficient and reliable power supply to your devices.
Setting up the Acopower 200W Kit mono 200W 20A PWM is a breeze. With the included mounting brackets and pre-drilled holes, you can effortlessly install the solar panel on your rooftop, boat, or RV. The kit also includes a 16-feet cable for easy connection, allowing you to place your charge controller wherever it is most convenient for you.
Take control of your energy consumption with this exceptional solar kit today!
- Solar starter kit
- 2 x 100W Solar panel
- 20A PWM charge controller
- Compatible with Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium
- Solar controller supports 12V/ 24v auto continuous charging capacity
- 5 stages of charging
- Designed for RV, cabin, rooftop, caravan, shed, greenhouse, boat, back-up and remote power use
- 20A PWM of 200 Watts RV kit allows expansion to 720W in series and 360W
- 25-year transferable power output warranty on solar panels
- 1-Year warranty on kit components
SPECIFICATIONS:

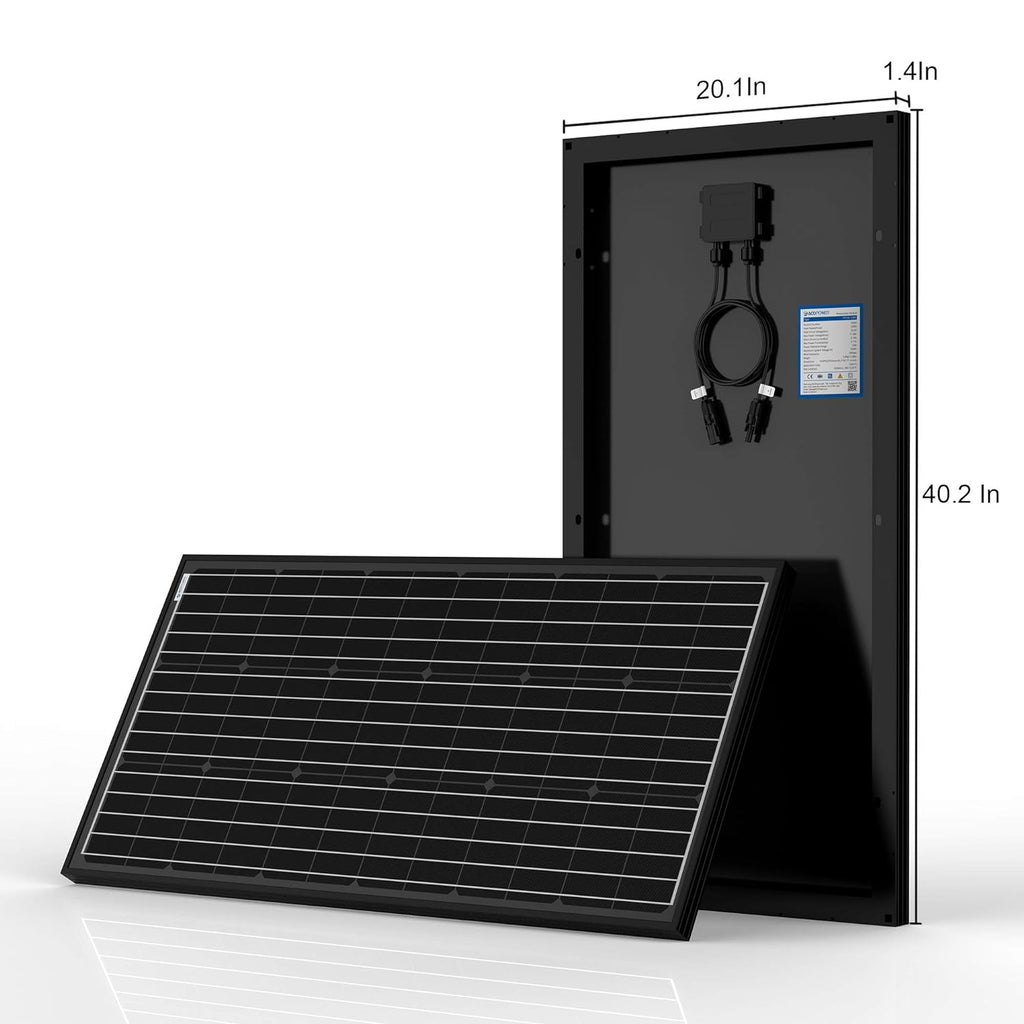

100W Mono Solar Panel
Peak Power (Pmax):100W
Peak Circuit Voltage (Voc):22V
Max Power Voltage (Vmp):17.48V
Short Circuit Current (Isc):6.14A
Max Power Current (Imp):5.71A
Wind resistance: 2400pa
Weight: 12.8 lb
Dimension: 40.2*20.1*1.4 Inch
Application Class:Class A
20A PWM Solar Panel
Nominal Voltage: 12 V/ 24V DC
Rated Charge Current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Temperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°F
Storage Temperature: -40°F to 185°F
IP Enclosure Grade: IP65
Dimensions: 5.59x 3.7x 1.06 inches
Limited 18-Month Manufacturer Warranty (on Panels)
Limited 1-Year Manufacturer Warranty (on Accessories)
Limited 25-Year Manufacturer Warranty (85% Output)

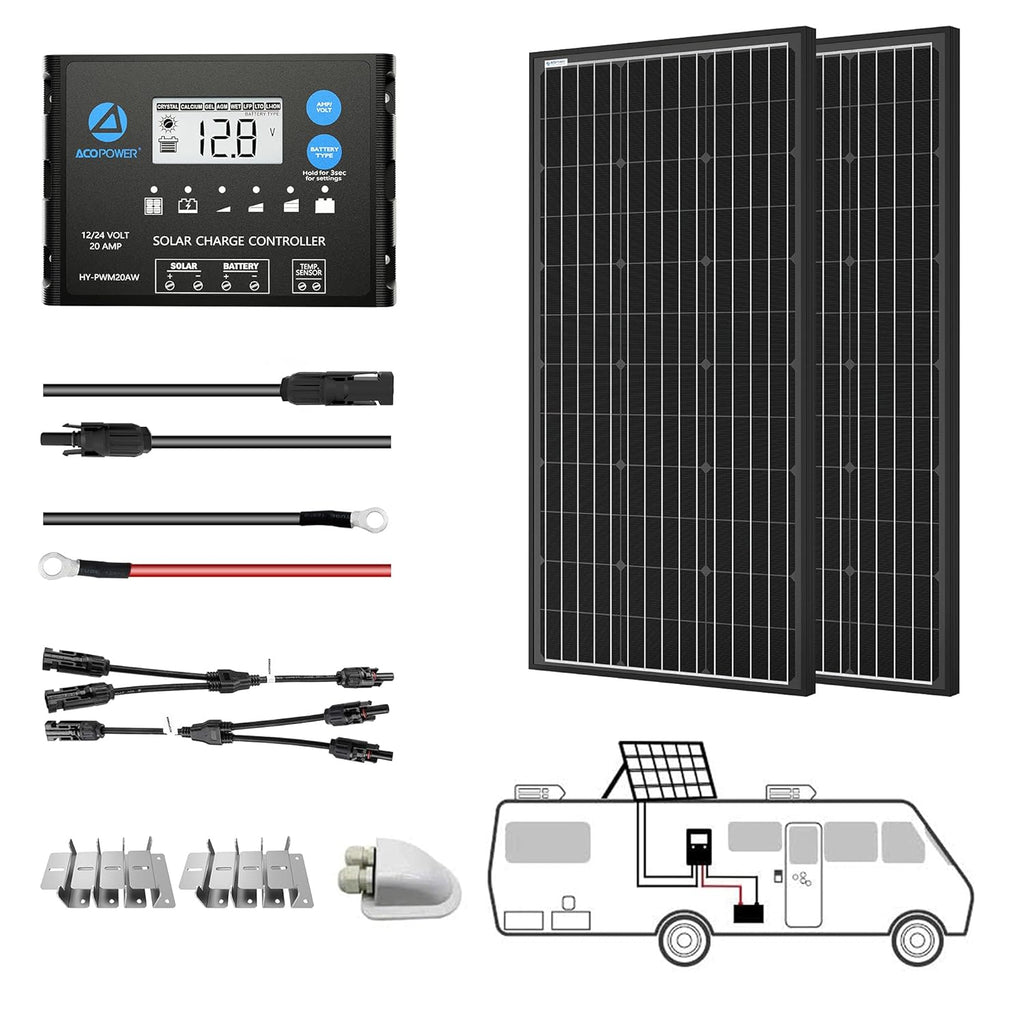

WHAT’S IN THE BOX:
2 x 100W 12V Acopower Solar Panel

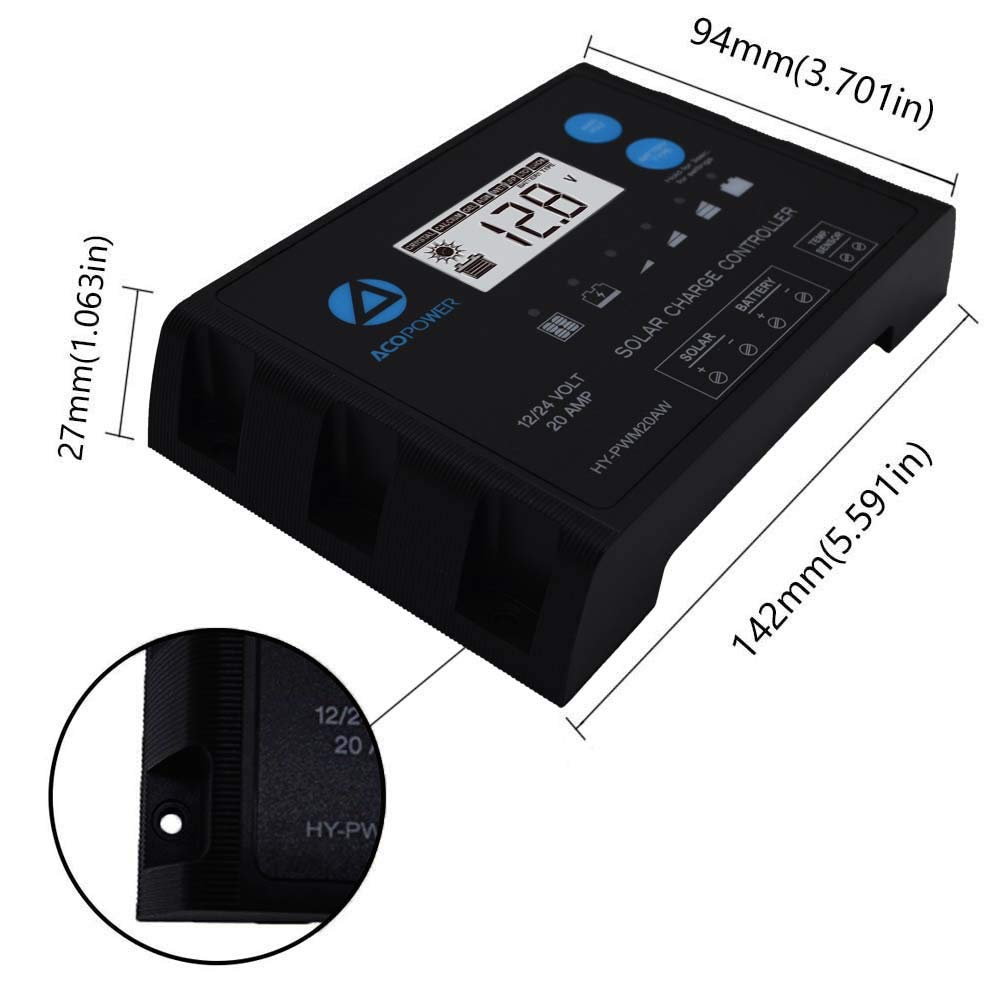

1 x 20A PWM Waterproof Charge Controller

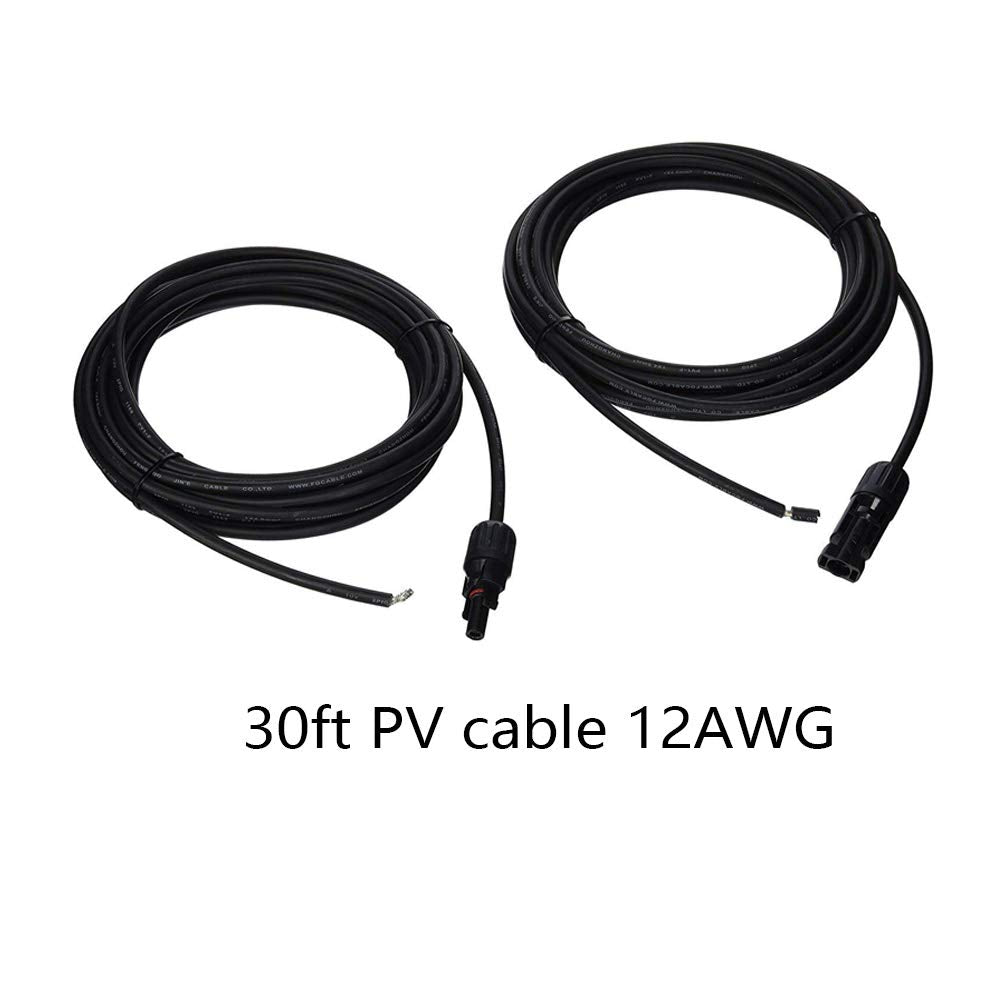

1 x 30ft 10AWG Solar Adaptor Kit

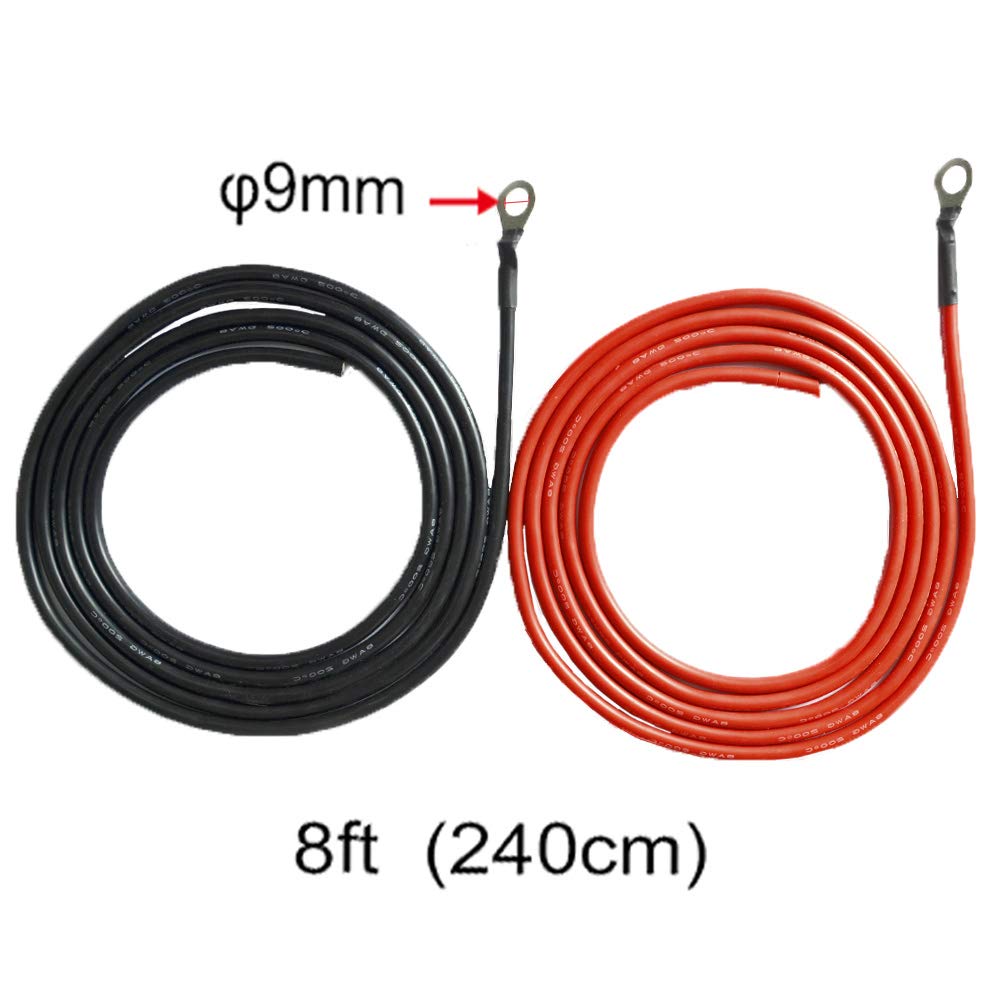

1 x 8ft 10AWG Tray Cable
1 x Cable Entry Housing

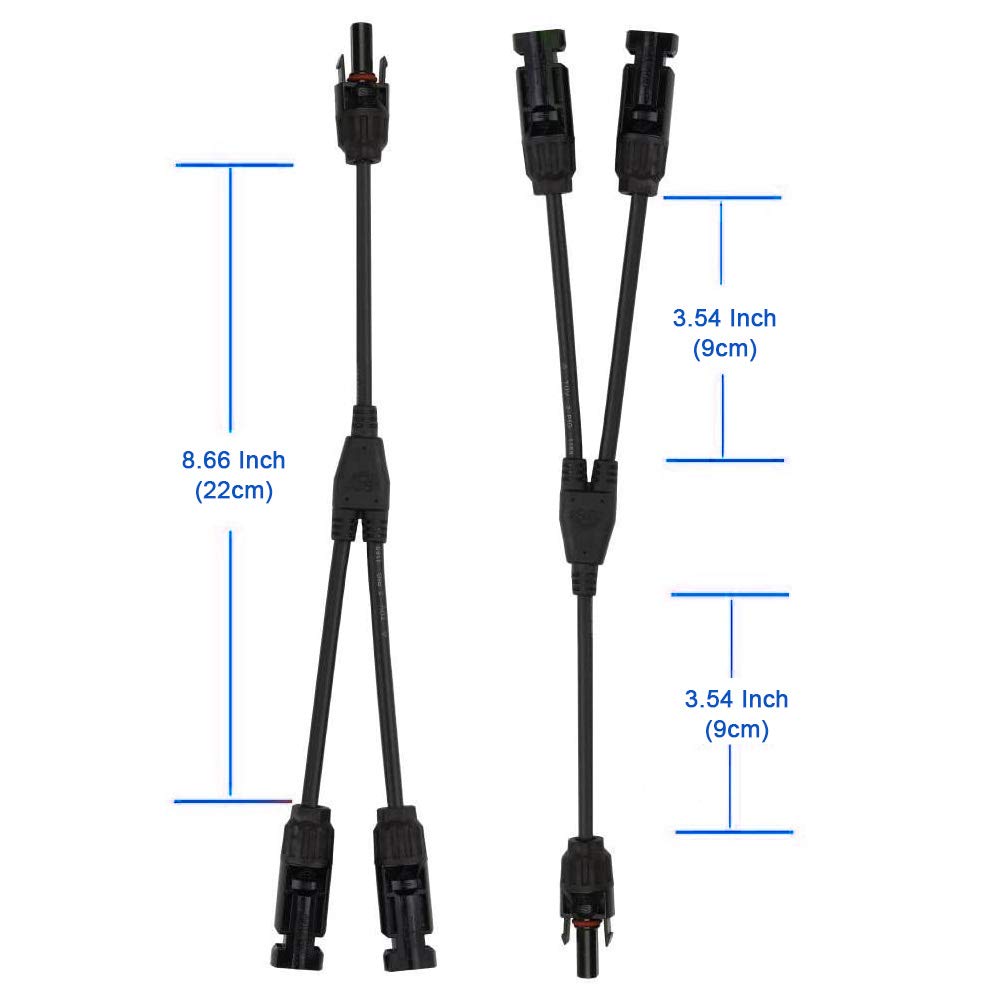

1 Pair x T/Y Branch Connectors

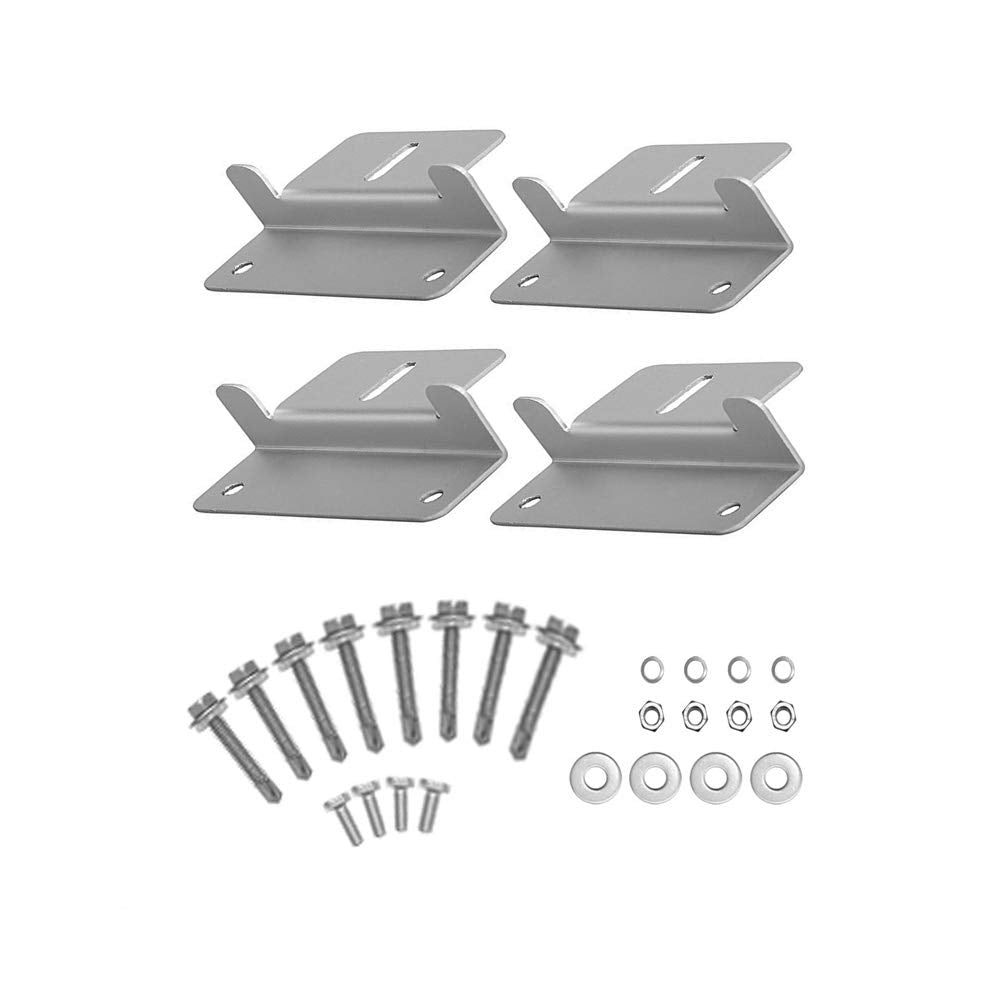

2 x Sets Mounting Z Brackets
