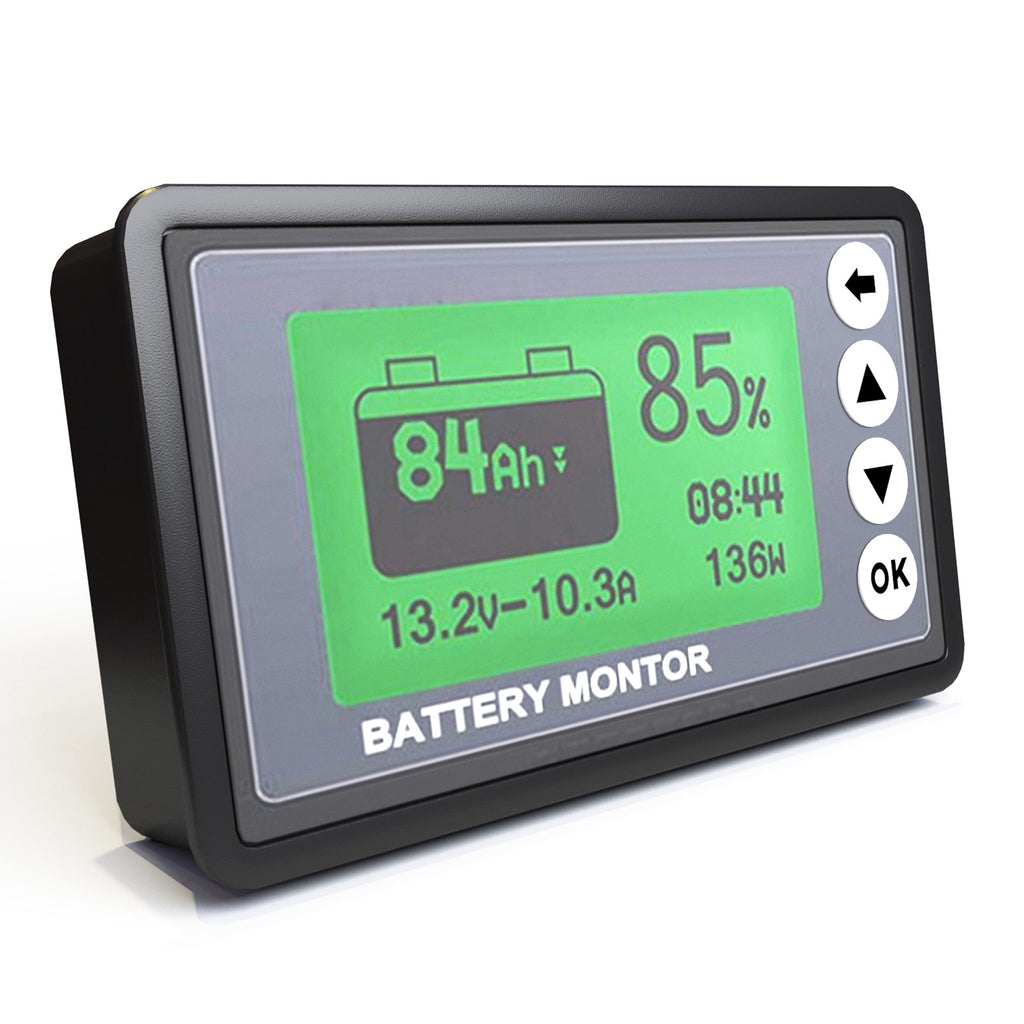

Acopower For Inverter  500A Koulo MeterBattery Monitor

The Battery Monitor is meticulously crafted to oversee the performance of a variety of battery systems, accommodating capacities of up to 9999 Amp hours.

Imagine having the ability to read your battery bank like a fuel gauge, offering an instantaneous overview of your battery status. This monitor seamlessly integrates multiple functions into one, providing crucial information that fosters more efficient battery usage. This, in turn, promotes extended battery life and minimizes the risk of failure.

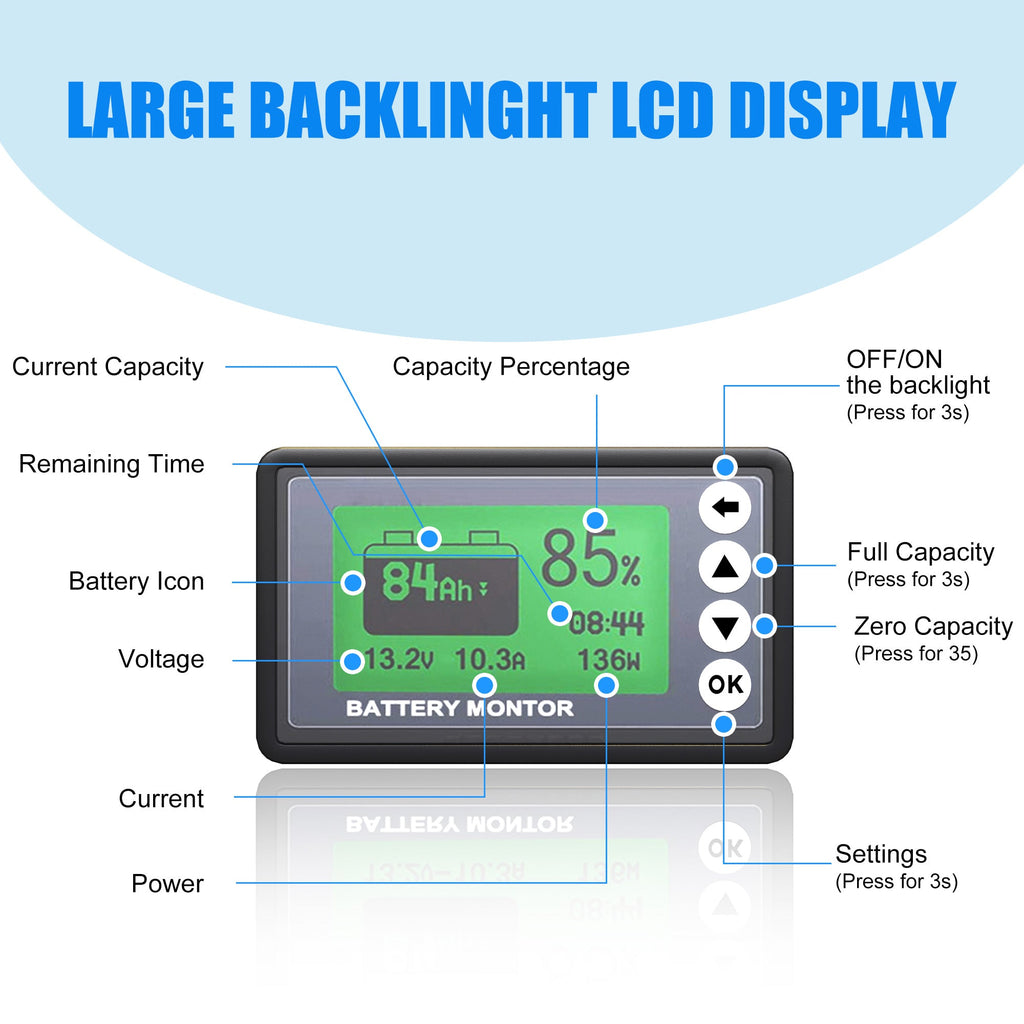

The monitor selectively presents essential data, including voltage, charge and discharge current, power consumption in watts, remaining battery capacity in Ah and percentage, and the estimated time left for your battery bank. To enhance usability, it is equipped with an internal programmable alarm for high/low voltage and low capacity.

This Universal Battery Monitor is adaptable to various battery systems, capable of measuring battery (bank) voltage within the range of 10V-120V, currents up to 500 Amps, and a capacity of up to 9999 Ah. This comprehensive monitoring tool ensures that you stay well-informed about your battery's performance and health.

Specifications:

• Working voltage: 10.0-120.0 V
• Current range: -500~+500 amps
• Capacity range: 0-9999 ampere-hour
• Working consumption: 10.0-15.0 mA
• Standby consumption: 1-2 mA
• Voltage accuracy: ± 1.0 %
• Current accuracy: ± 1.0 %
• Capacity accuracy: ± 1.0 %

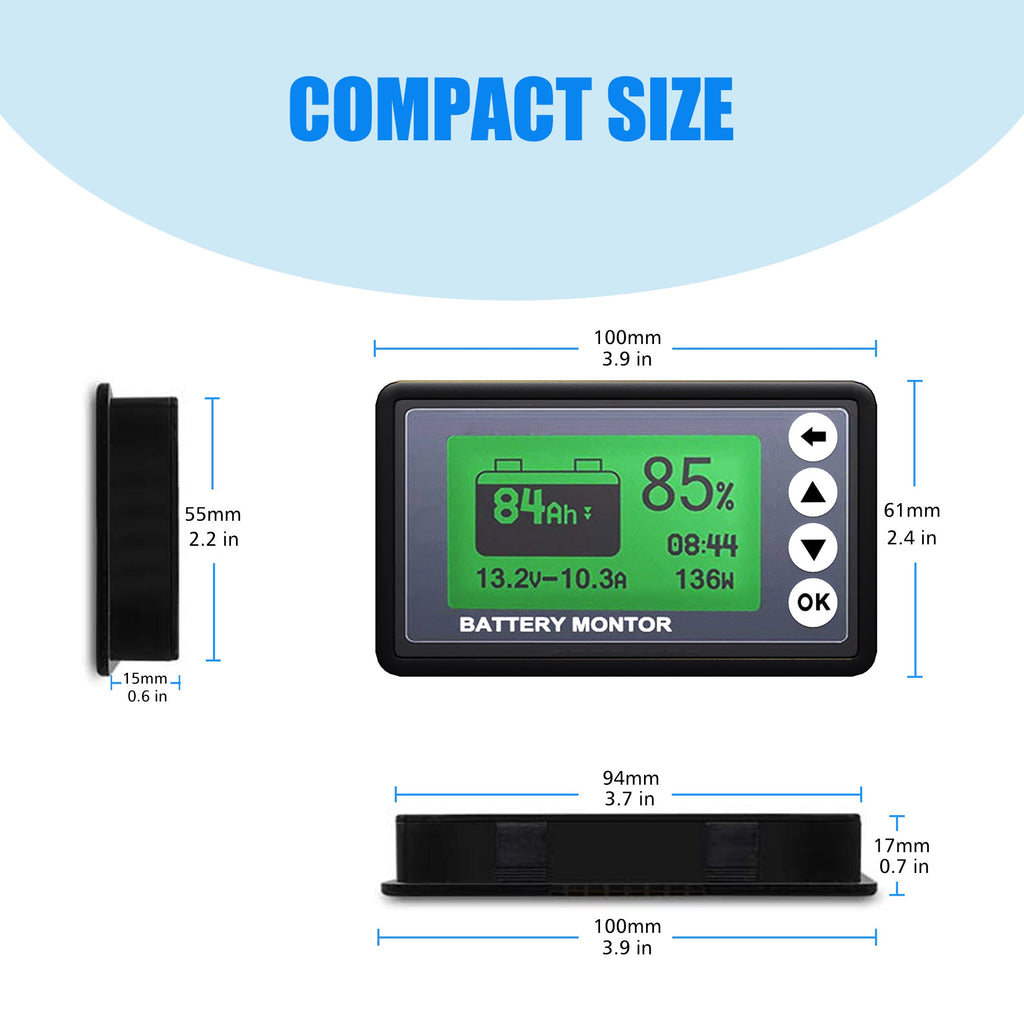

• Size: 100mm*61mm*17mm
• Panel cut-out: 94mm*57mm

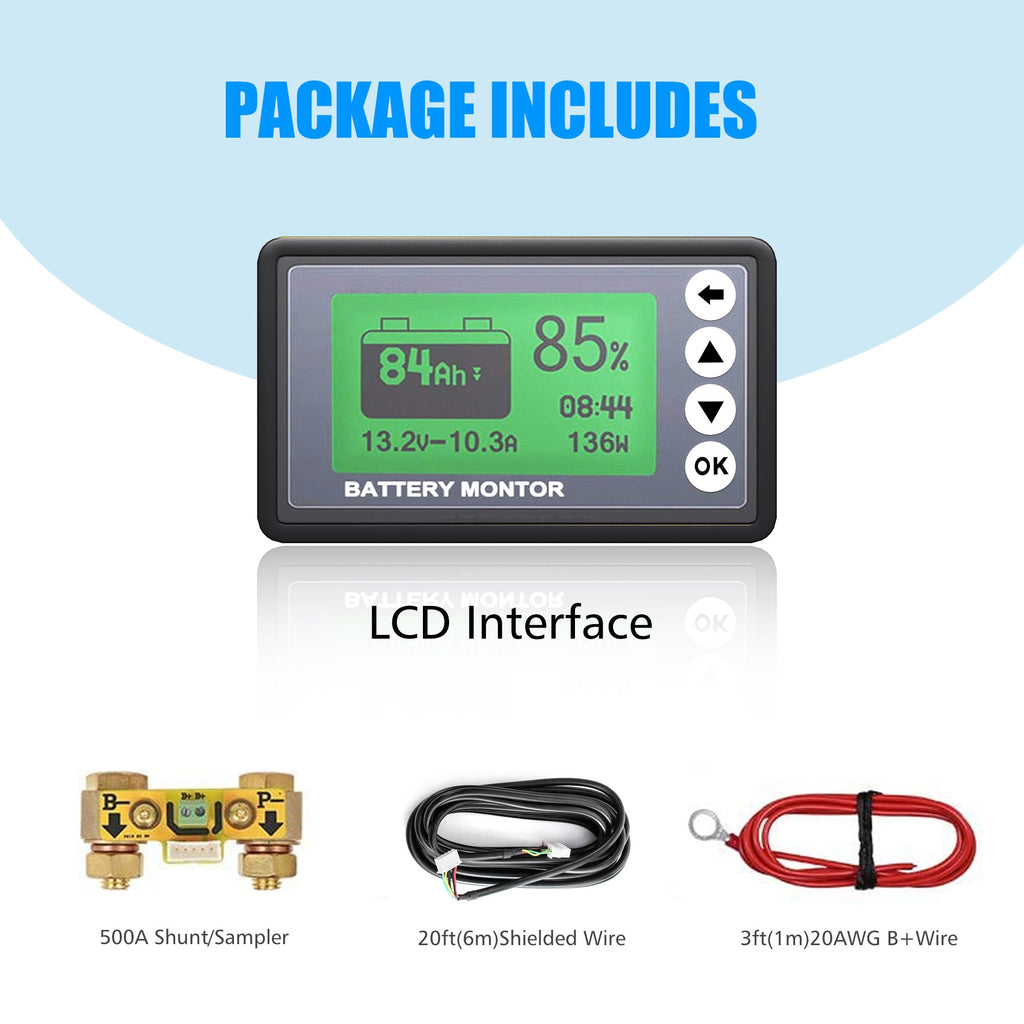

What's in the Box:

1 x Battery monitor
1 x Shunt 500A
1 x 20 feet cable
1 x 3 feet B.cable
1 x English operation manual
