BougeRV 15A Solar Fuse Holder

Boost up your solar power with the 15A Solar Fuse Holder from BougeRV, the ultimate protection to your solar system against unforeseen solar surges. The solar surge protector quickly trips the circuit once maximum amperage is reached that keeps the sensitive photovoltaic appliances from excessive power damages.

Features

• The 15A Solar Fuse Holder gives added protection to your Photovoltaic appliances, including solar panels and solar controller whenever there is a solar power surge

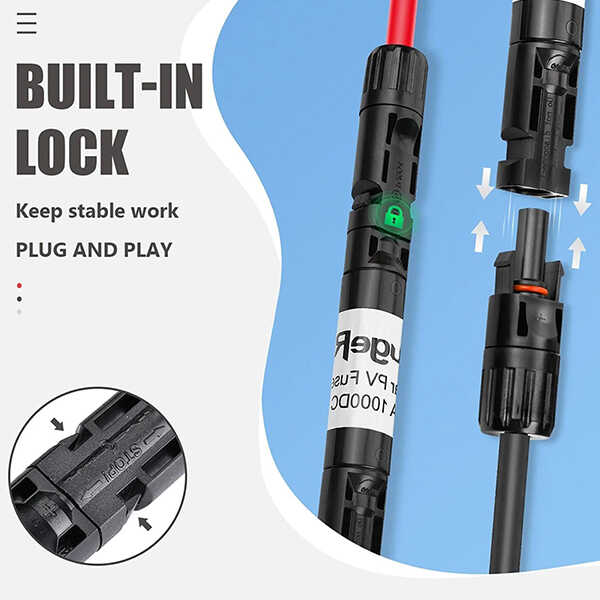

• The plug and play device is easy to install and use

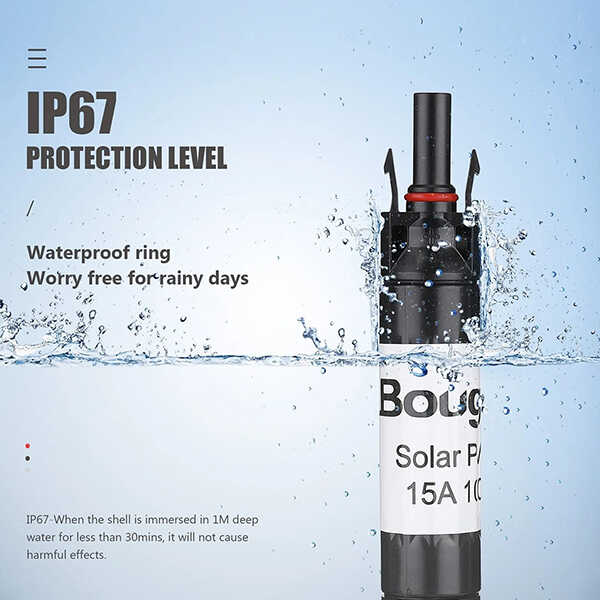

• An IP67 rated waterproof ring keeps you worry free even on rainy days
• The dedicated PV fuse is TUV certified and is the perfect choice against power surge

Specifications:

Dimension: 5.1 × 0.71 × 0.71 inch

Weight: 45g/1.59oz

Ambient temperature range: -40℉ to 194 ℉(IEC)

Degree of protection: IP67

Contact material: Copper tin-plated

Insulation material: PPO

Locking system plug connectors: Snap-in

Flame class: UL94-HB / UL94-V0

Rated Voltage: 1000V DC (IEC) / 800V DC (UL)

Rated Current: 15A

Resistance: 0.5 ohm

Cable Size: 2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)

What's in the Box:

1 x 15A Solar Fuse Holder
