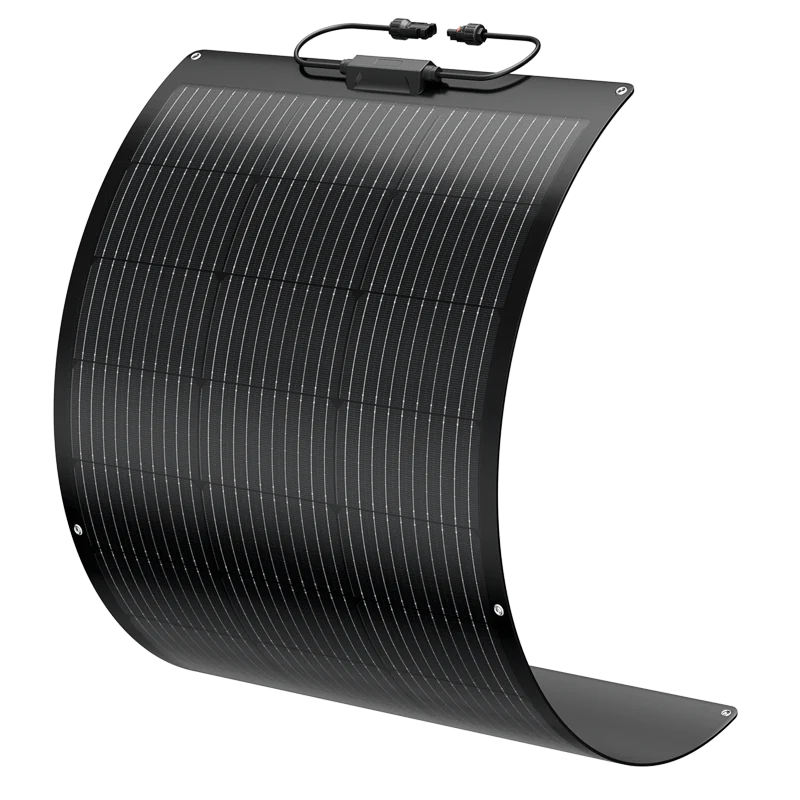

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel

Arch 100W fiberglass curved solar panel from BougeRV with 270° flex is one of a kind energy source to harness the supreme power of sun. Its 10BB mono cell achieves 23% more efficiency and the panel drapes along surfaces which rigid panels can never cover.

MULTIPURPOSE USE

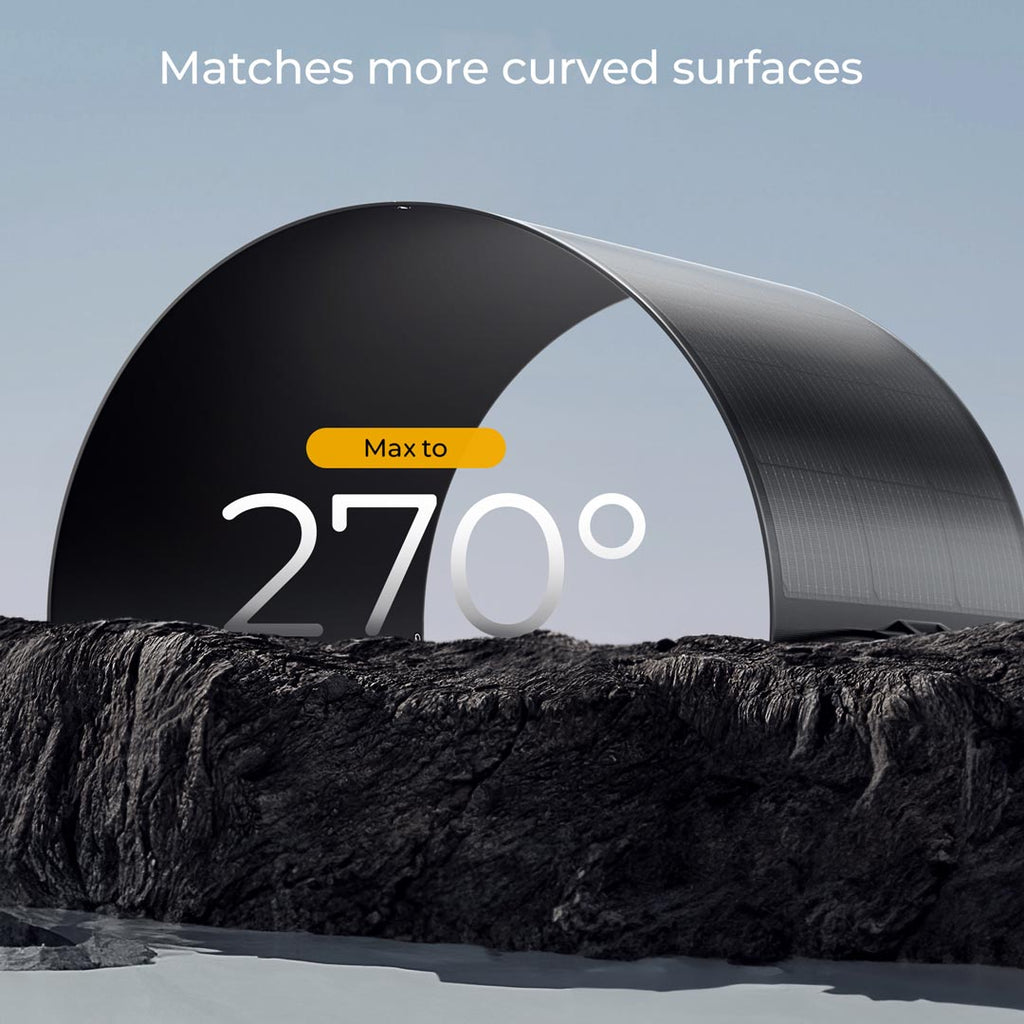

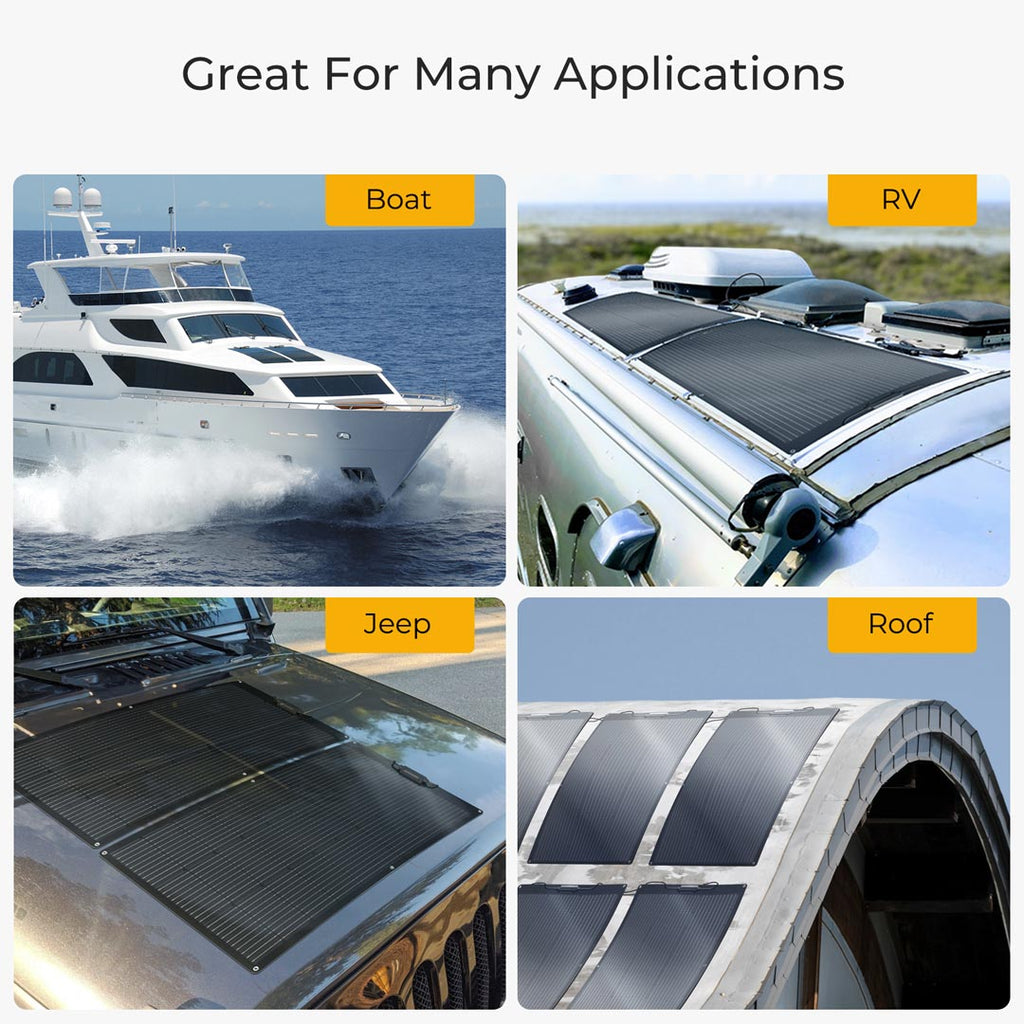

Optimally designed to outshine traditional monocrystalline silicone panels, Bouge RV's innovative solar panel is crafted from flexible fiberglass material and can bend 270-degrees right enough to integrate on your boats, RVs, jeeps and roofs. Rethink the potential of solar energy application with Arch's enhanced adaptability and diverse mounting options.

ULTRA LIGHT AT 4LBS

At just 4lbs, the Arch is exactly like your laptop, easy to tote around and easier to install. A handy replacement for conventional options, its exceptional portability with increased efficiency makes Arch 100W the top pick this season.

TWO PENNIES THICK 2.1MM

You read it right! As slim as 2 pennies, the curved solar panel is a 2.1mm ultra-slim, space-saving design perfected for smaller living spaces and vehicles.

IP68 WATERPROOF

Slim, lightweight yet sturdy, the durable Arch 100W is IP68 certified waterproof solar panel that delivers consistence performance even when fully submerged or in extreme weather conditions.

DURABLE & LONG LASTING

A 2400Pa wind resistance, 5400Pa snow resistance and corrosion resistant aluminum fabrication guarantees extended lifespan of your panels.

10BB CELL DESIGN

Arch 100W features an efficient 10BB cell design to achieve 23% higher conversion than regular panels. The clever engineering minimizes shading on cells and enhances light absorption resulting in panels' overall longevity.

Specifications:

Max Power (Pmax): 100±5%W

Operating Temperature Limits: -40℉ ~ +185℉

Solar Cells Efficiency: 23%

Series Fuse Rating: 10A

Max. Power Voltage Vmp (V): 17.1±5%V

Temperature Coefficient Pmax: -0.39%/℃

Max. Power Current Imp (A): 5.85±5%A

Temperature Coefficient Voc: -0.33%/℃

Open Circuit Voltage Voc (V): 19.8±5%V

Temperature Coefficient Isc: 0.06%/℃

Short Circuit Current (Isc): 6.16±5%A

Dimensions: 39.6 x 23.7 x 0.08 in

Warranty: 25 years

Weight: 3.81 lbs

Warranty Description: 10 Years

What's in the Box:

1 x Arch 100W Fiberglass Curved Solar Panel

1 x User Manual
