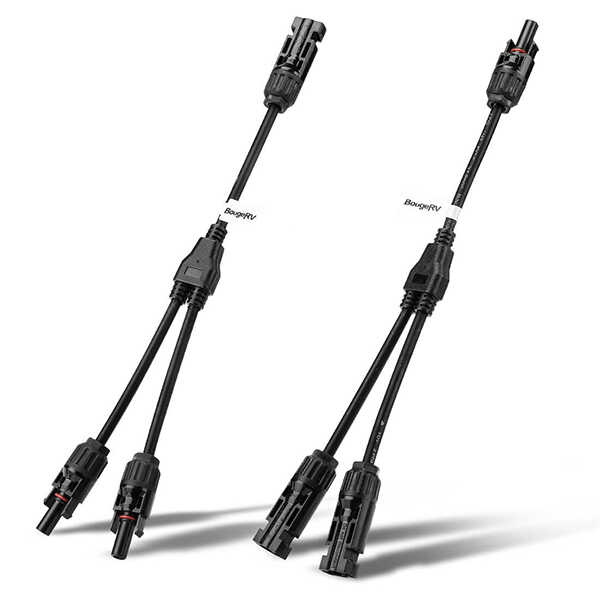

BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire

BougeRV Parallel Adapter Cable Wire for Solar Connectors Y Branch is made of highest quality PPO material with a IP67 water proofing to keep the connectors tightly secured and protected against rain and dust. Long enough to satisfy your set up but not so long to get in your way, they are compatible with 10/11/12/13/14 AWG.

Specifications:

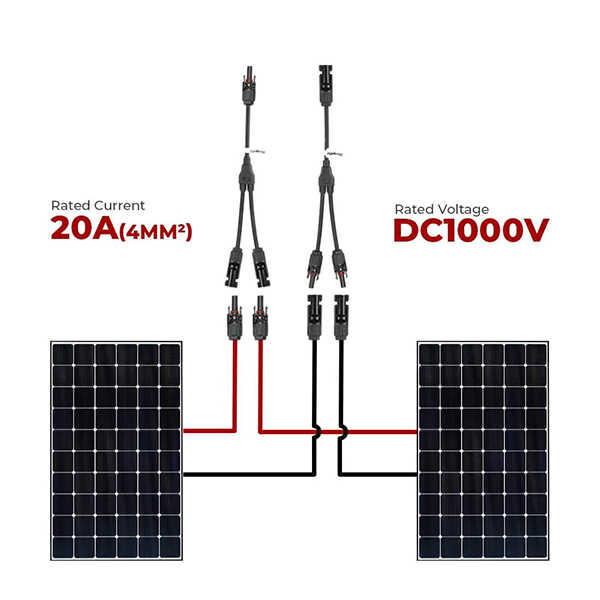

Rated Current: 20A (4mm²）

Rated Voltage: DC1000V

Contact Resistance: ≤5mΩ

Insulation Resistance: >500mΩ

Operating Temperature range: -40℃ until+90℃

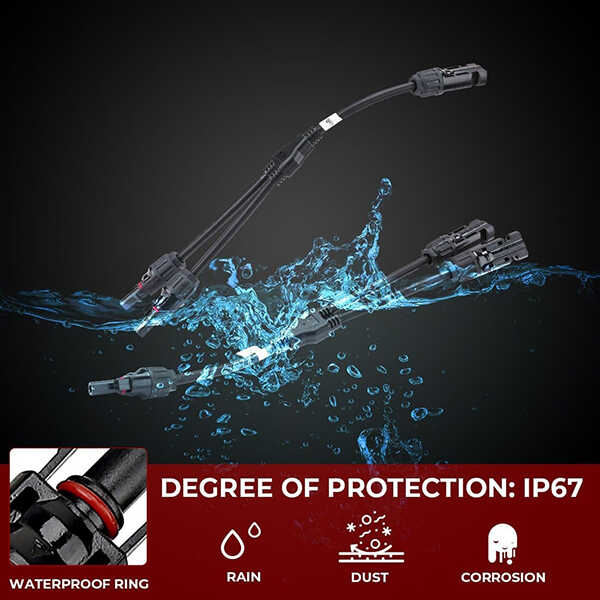

Degree of Protection: IP67

Flame Class: UL94-V0

Safety Degree: Ⅱ

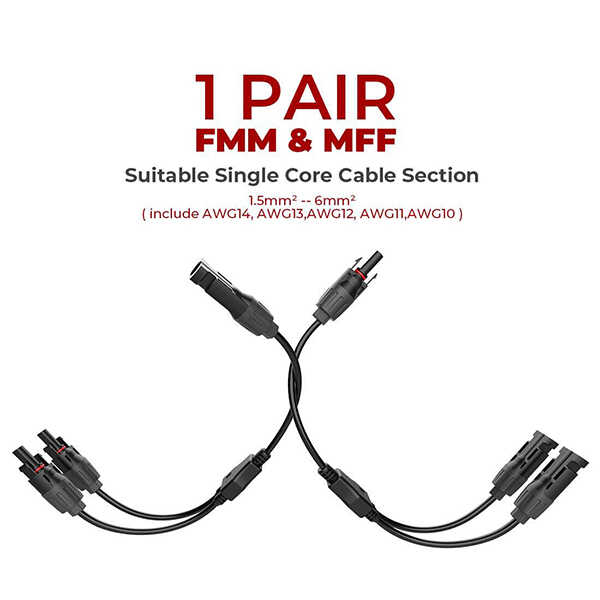

Suitable Single Core Cable

Section: 1.5mm² -- 6mm²

What's in the Box:

1 x Pair of Y Branch Solar Panel Cable Connectors

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire
Brand: BougeRV
SKU: ISE002-B021
Price: 11.99 USD
Availability: InStock

What is the maximum rated current for the BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire?

The maximum rated current is 20A.

What is the degree of protection against dust and water for these connectors?

These connectors have an IP67 degree of protection.

What cable gauges are compatible with this adapter cable?

This adapter cable is compatible with 10/11/12/13/14 AWG cables.

What is the operating temperature range for the BougeRV Solar Connectors?

The operating temperature range is from -40? to +90?.
