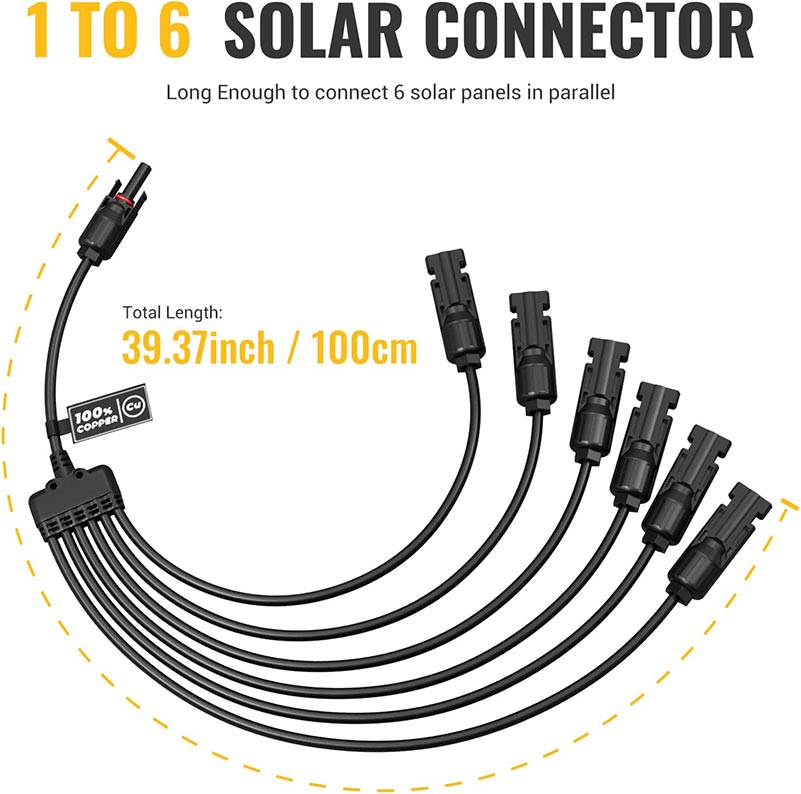

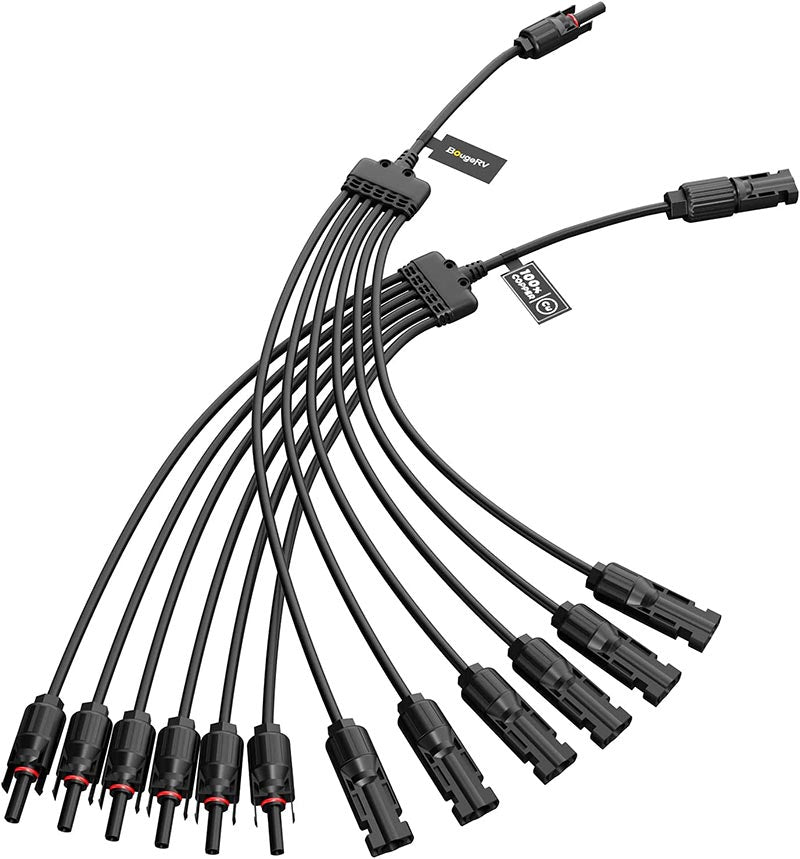

BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable

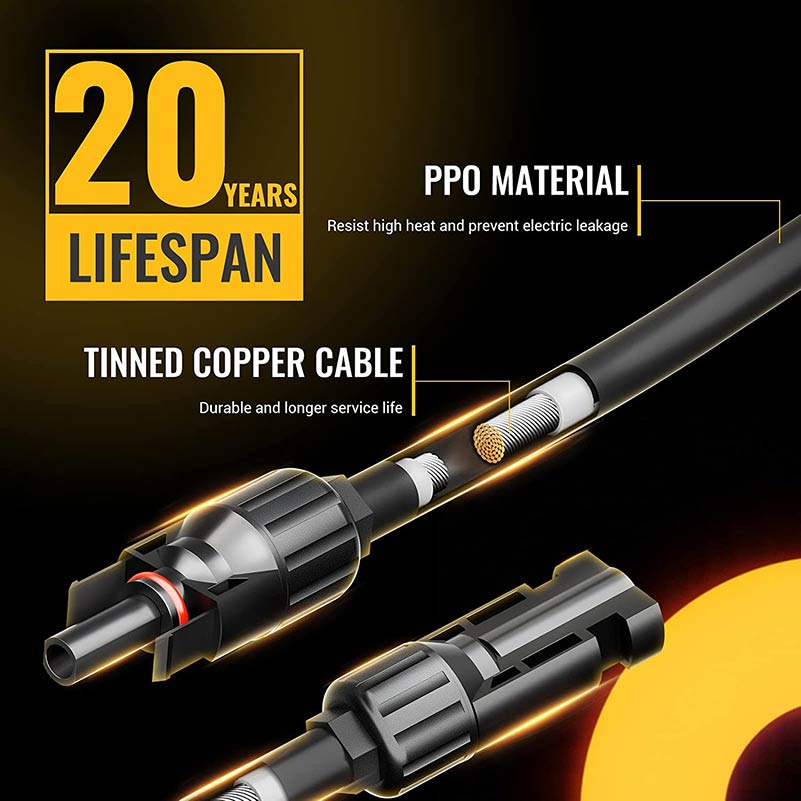

BougeRV Solar Y is a plug and play 6 to 1 parallel connector for your solar panels. The ports r sealed with a waterproof ring that protects the power supply even on rainy days. Secure your power supply from dust and corrosion with the IP67 protection. With tinned copper wire cased in an efficient PPO housing, this one step installation of Y connector ends all your power owes in one go.

Specifications:

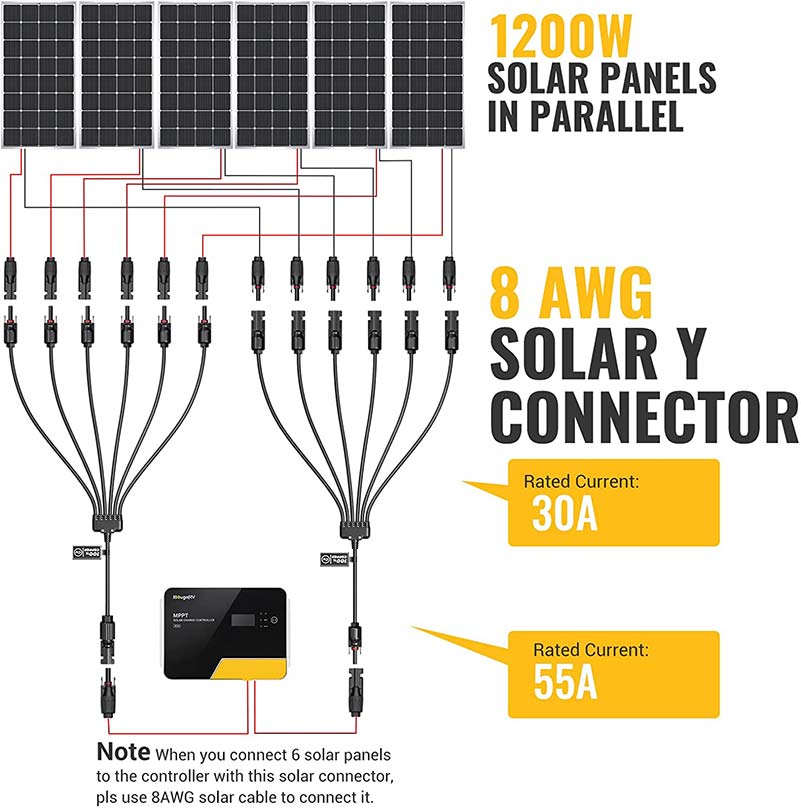

Rated Current: Main Line: 55A / Branch Line: 30A

Rated Voltage: Main Line: DC 1500V / Branch Line: DC1000V

Contact Resistance: <=5ohm

Insulation Resistance: >500 ohm

Operating Temperature Range: -40℉ until+221℉

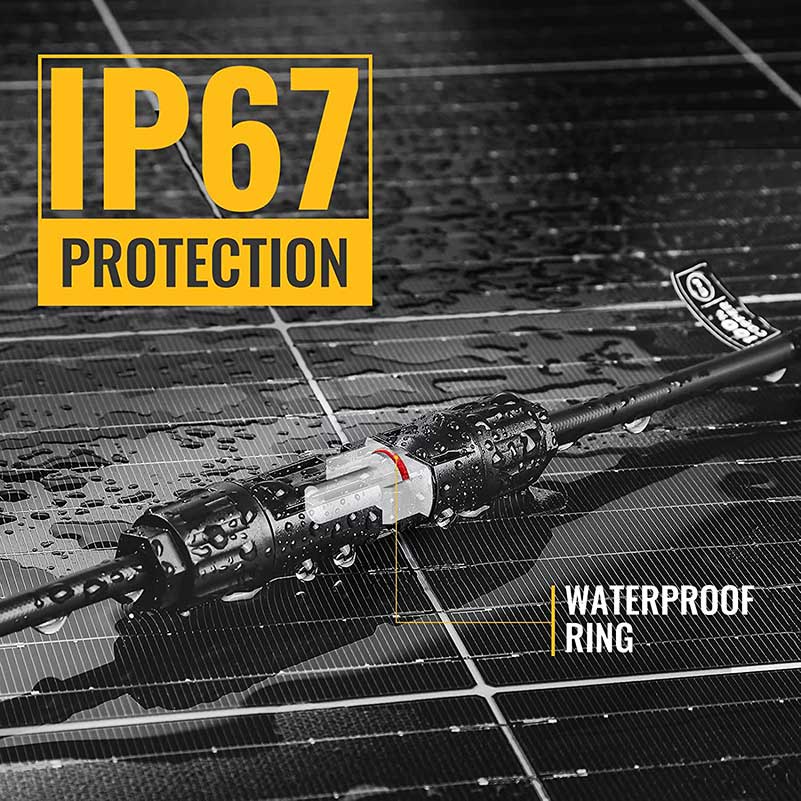

Degree of Protection: IP67

Flame Class: UL94-V0

Suitable Single Core Cable Section: 1.5mm² -- 6mm²

What's in the Box:

1 x Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable
Brand: BougeRV
SKU: ISE156
Price: 39.99 USD
Availability: InStock

What is the maximum voltage the main line of the BougeRV Solar Y Connector can handle?

The main line of the BougeRV Solar Y Connector can handle a rated voltage of DC 1500V.

What is the degree of protection for the BougeRV Solar Y Connector?

The BougeRV Solar Y Connector has a degree of protection of IP67, making it resistant to dust and water.

What cable sizes are compatible with the BougeRV Solar Y Connector?

The BougeRV Solar Y Connector is suitable for single core cables with a section ranging from 1.5mm² to 6mm².

What is the operating temperature range for this solar Y connector?

The BougeRV Solar Y Connector can operate in temperatures ranging from -40? to +221?.
