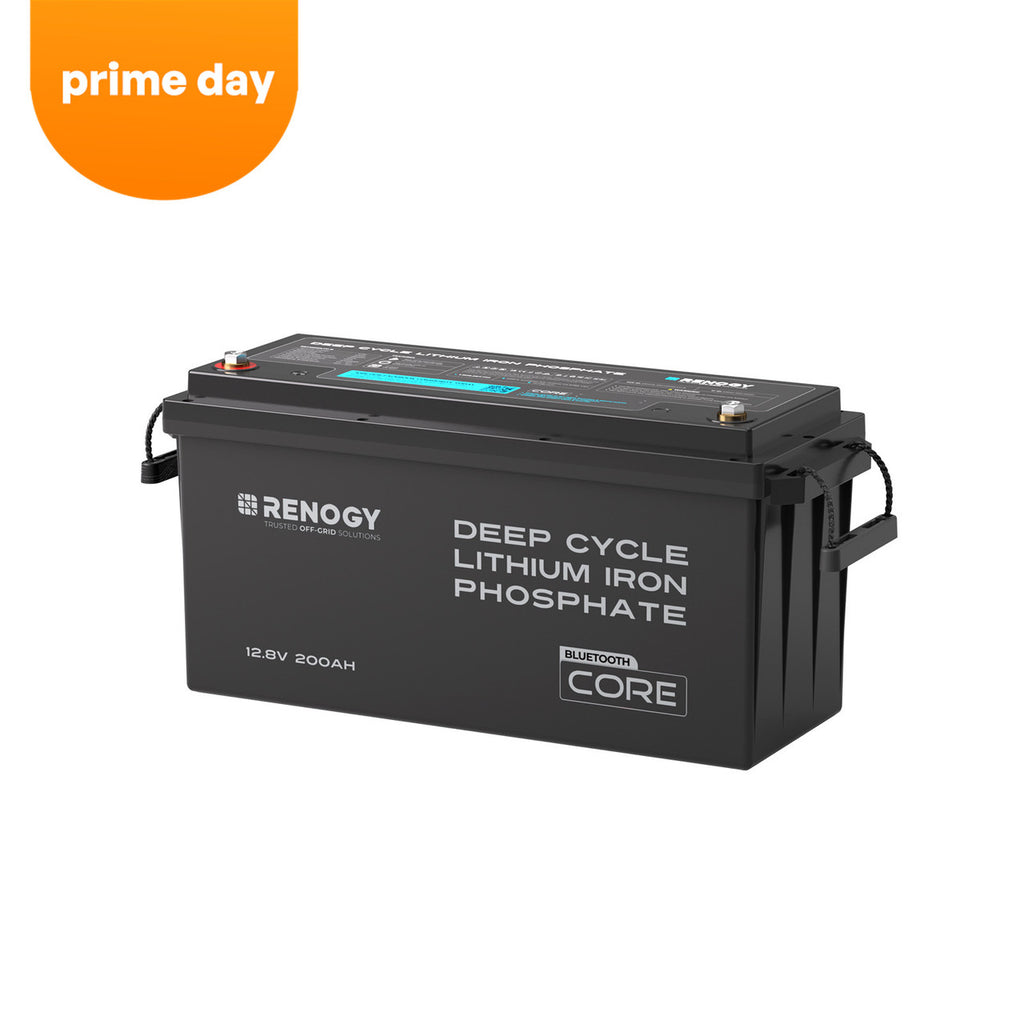

Core - 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
Unleash intelligent energy with the Renogy Core 12V 200Ah Lithium Iron Phosphate Battery, built for serious power users who demand more than just capacity!
Engineered to deliver up to 6% more power than its rated capacity, this battery gives you an edge in performance, whether you're powering an RV, off-grid system, or backup power station. With integrated Bluetooth connectivity, real-time monitoring is right at your fingertips, track performance, temperature, and charge status straight from your phone. Under the hood, a true 200A BMS ensures safety and stability, complete with low-temperature cut-off to protect the battery in harsh climates.
The Core delivers a 400A peak output for 10 seconds, giving your large appliances or inverters a smooth start every time. Flexible enough for any setup, it supports series, parallel, or series-parallel connections, so you can easily scale your power system to fit your needs.
Whether you're living off the grid or just demand the best in energy storage, the Renogy Core 200Ah LiFePO4 Battery is smart, scalable, and built to power life without limits.
Highlights:
• Get max. 6% more power than rated capacity

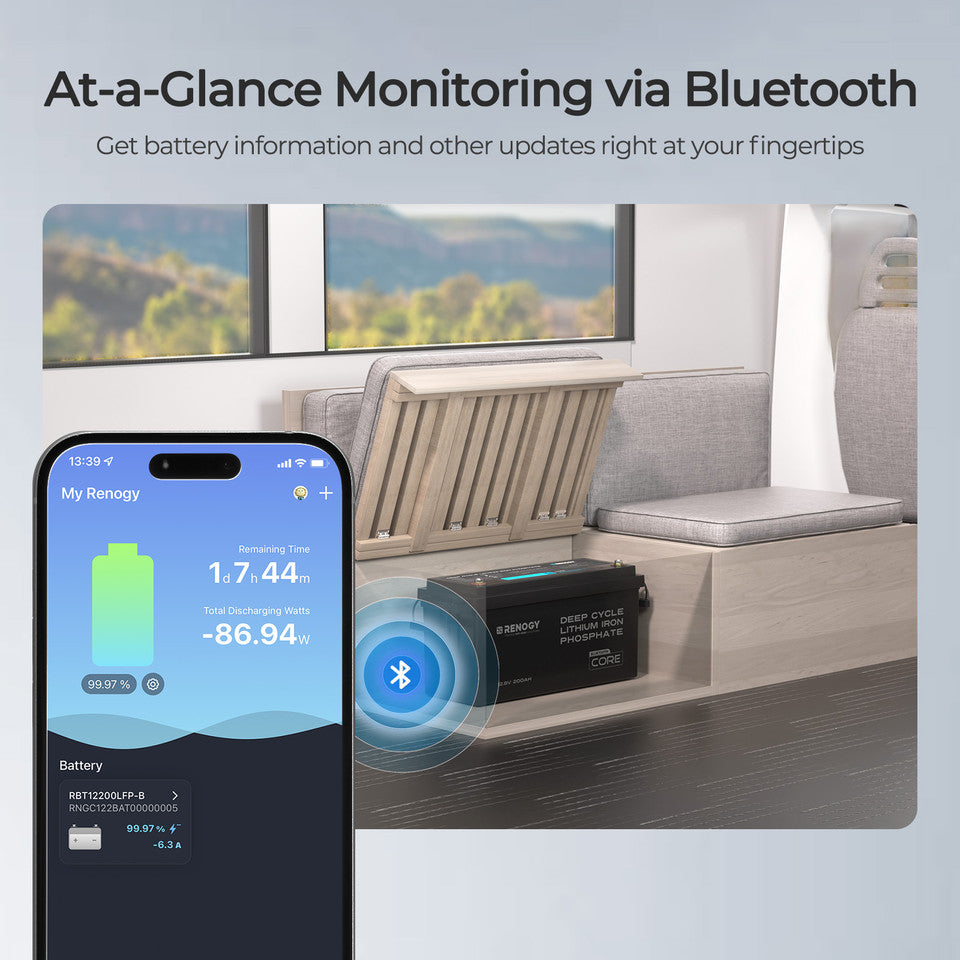

• Integrates Bluetooth for smart monitoring at the fingertips
• Delivers 400A peak output for 10s to start heavy loads smoothly
• Support series, parallel, or series-parallel connections

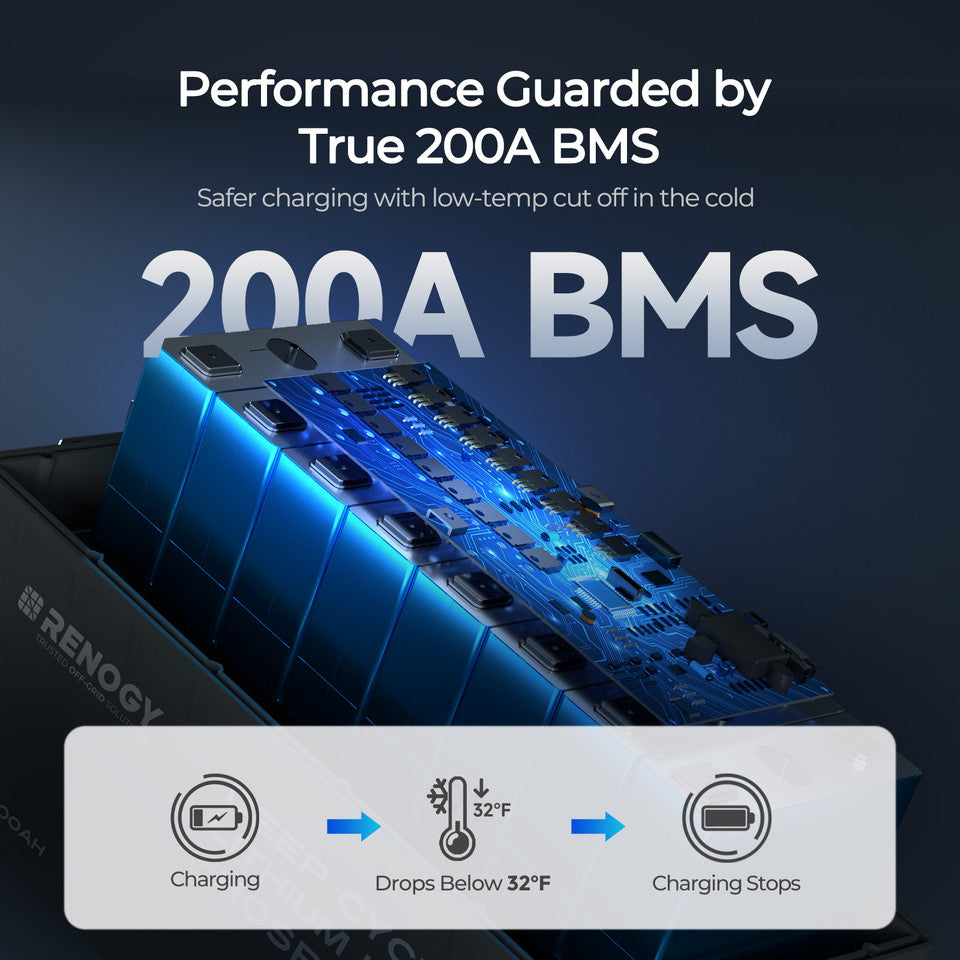

• A true 200A BMS with low-temperature cut-off
SPECIFICATIONS:
Electrical Specifications
Rated Capacity: 200Ah (0.5C, 25℃)
Voltage: 12V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Voltage Range: 10V to 14.8V
Charging Parameters
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 200A
Discharging Parameters
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 400A@10s
Temperature Parameters
Operation Temperature Range: Charge: 32°F to 122°F / 0°C to 50°C; Discharge: -4°F to 131°F / -20°C to 55°C
Storage Temperature Range: -4°F to 149°F / -20°C to 65°C
Operation Relative Humidity: 10% to 95%
Mechanical Specifications
Dimension (L x W x H): 19.76 x 7.36 x 9.53 in / 502 x 187 x 242 mm
Weight: 44.53 lbs. / 20.2 kg
Terminal Bolt Size: M8 x 1.25 x 15 mm
Protection Rating: IP65
Warranty
5-year material warranty: Yes
Certifications
MSDS, UN38.3, FCC, PSE, IC, RCM, RoHS, CE, and UKCA: Yes
WHAT’S IN THE BOX:
1 x Core - 12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth
2 x Long Terminal Bolts
2 x Insulation Sleeves
1 x User Manual
