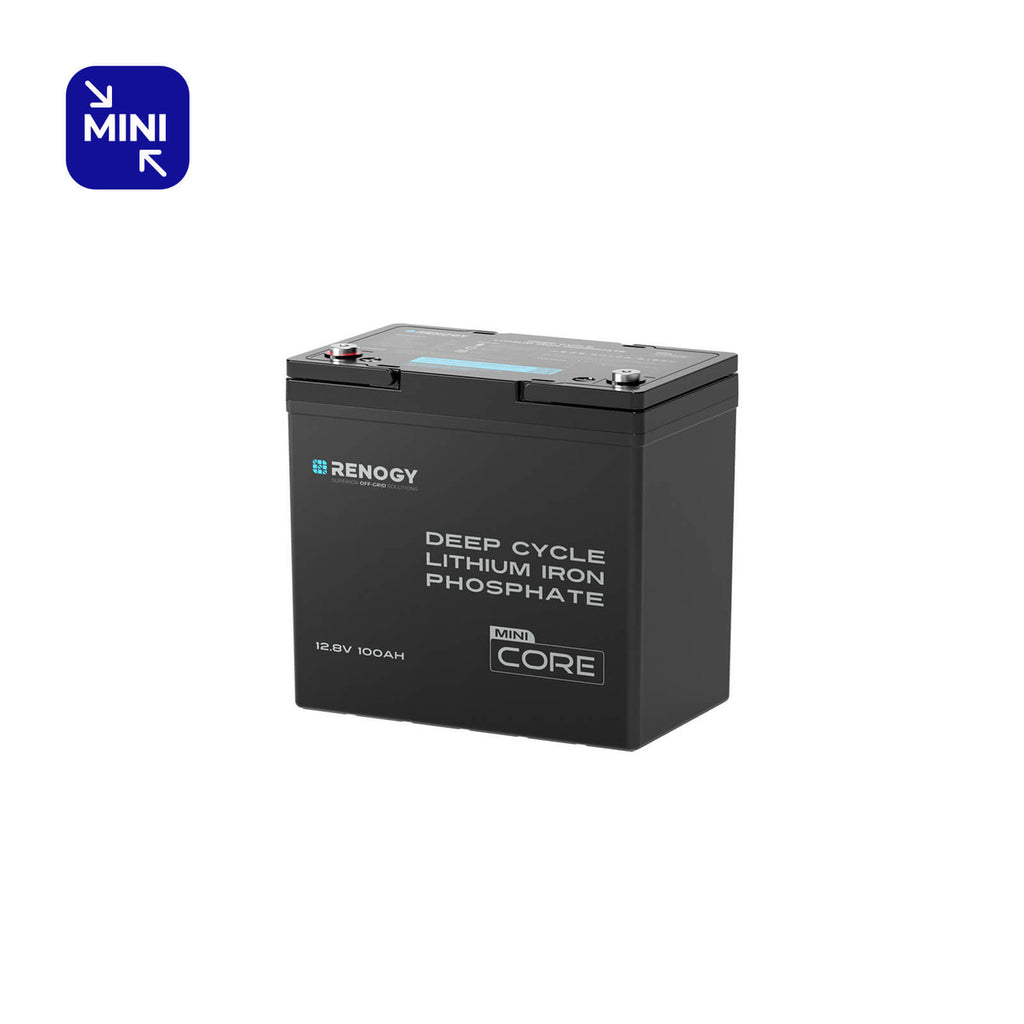

Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

Meet the smallest 12.8V 100Ah battery in Renogy’s lineup, the Core Mini, designed to deliver reliable power in the most space-conscious applications. Built in the Group 22NF form factor, this ultra-compact LiFePO4 battery is perfect for RVs, marine setups, off-grid systems, and tight enclosures where every inch matters.

Equipped with a built-in low-temperature charging cut-off, it ensures safe and stable operation even in cold weather, making it ideal for year-round use. Its multi-orientation mounting lets you install it flat, upright, or on its side, maximizing space in custom setups.

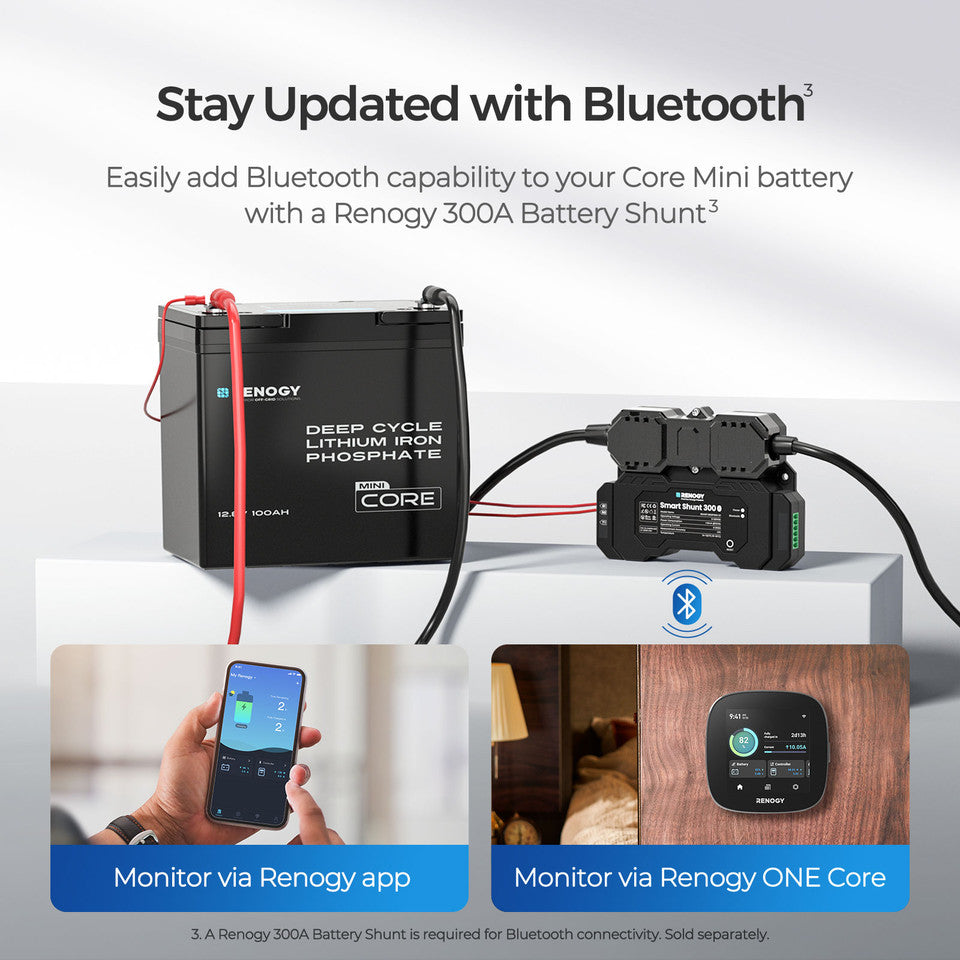

Pair it with the Renogy 300A Battery Shunt for seamless remote monitoring of real-time performance and status. With an IP65-rated, vibration-resistant construction, the Core Mini stands strong against dust, water, and rough roads.
Compact, durable, and winter-ready, the Core Mini 12.8V 100Ah battery proves that great power can come in small, smart packages.

Highlights:

•    The smallest 12.8V 100Ah LFP Battery (Group 22NF) in Renogy's lineup

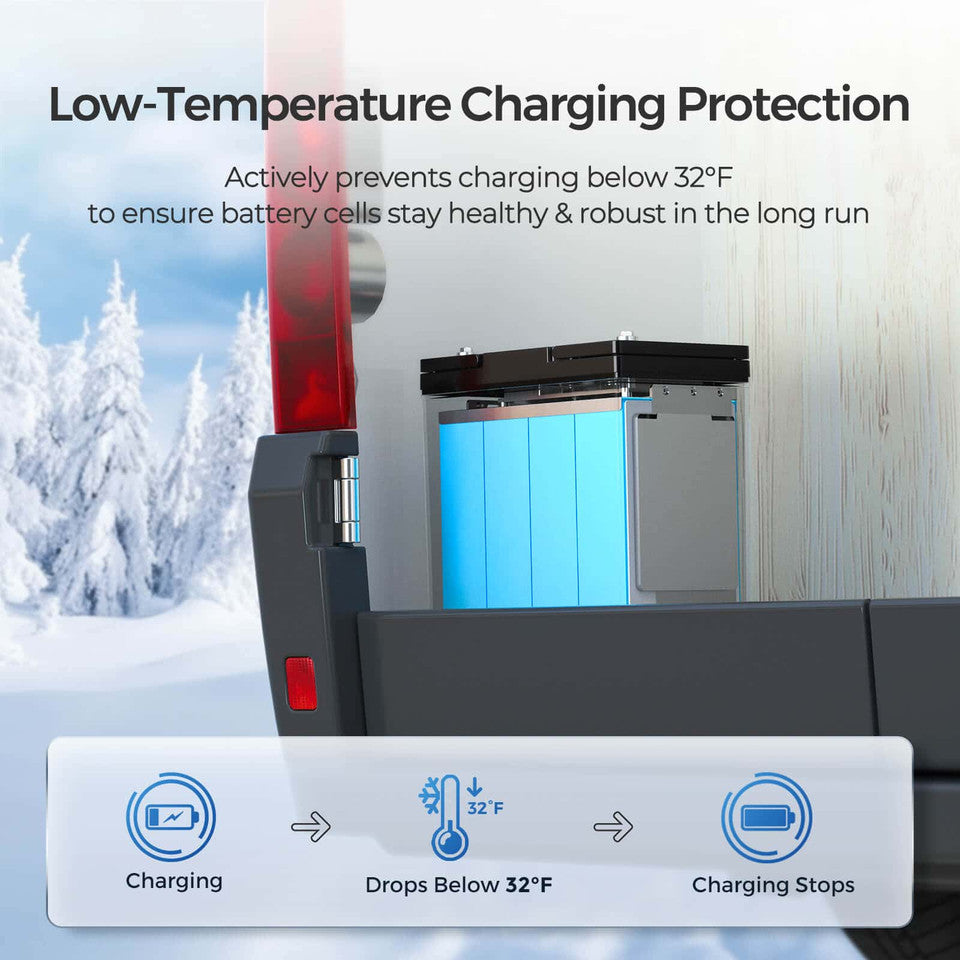

•    Built-in low-temperature charging cut-off ensures safe winter operation
•    Compatible with Renogy 300A Battery Shunt for remote monitoring

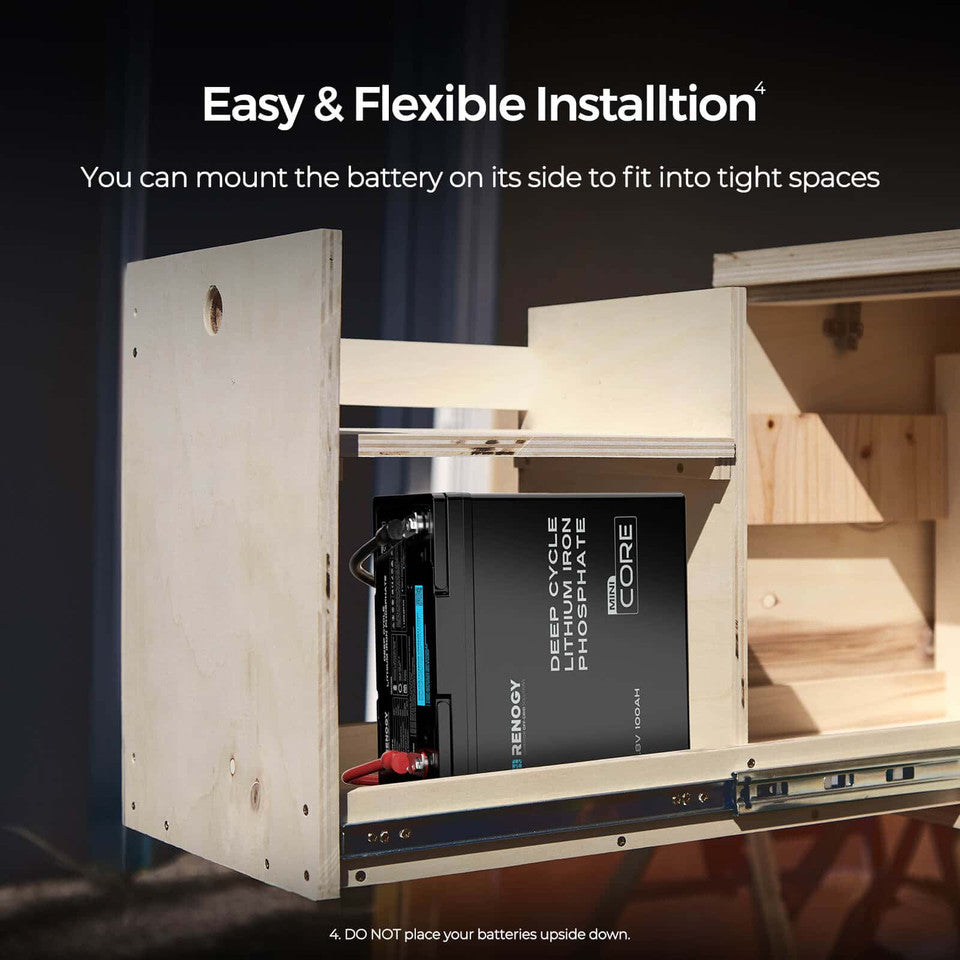

•    Multi-orientation mounting for max space efficiency in tight spaces

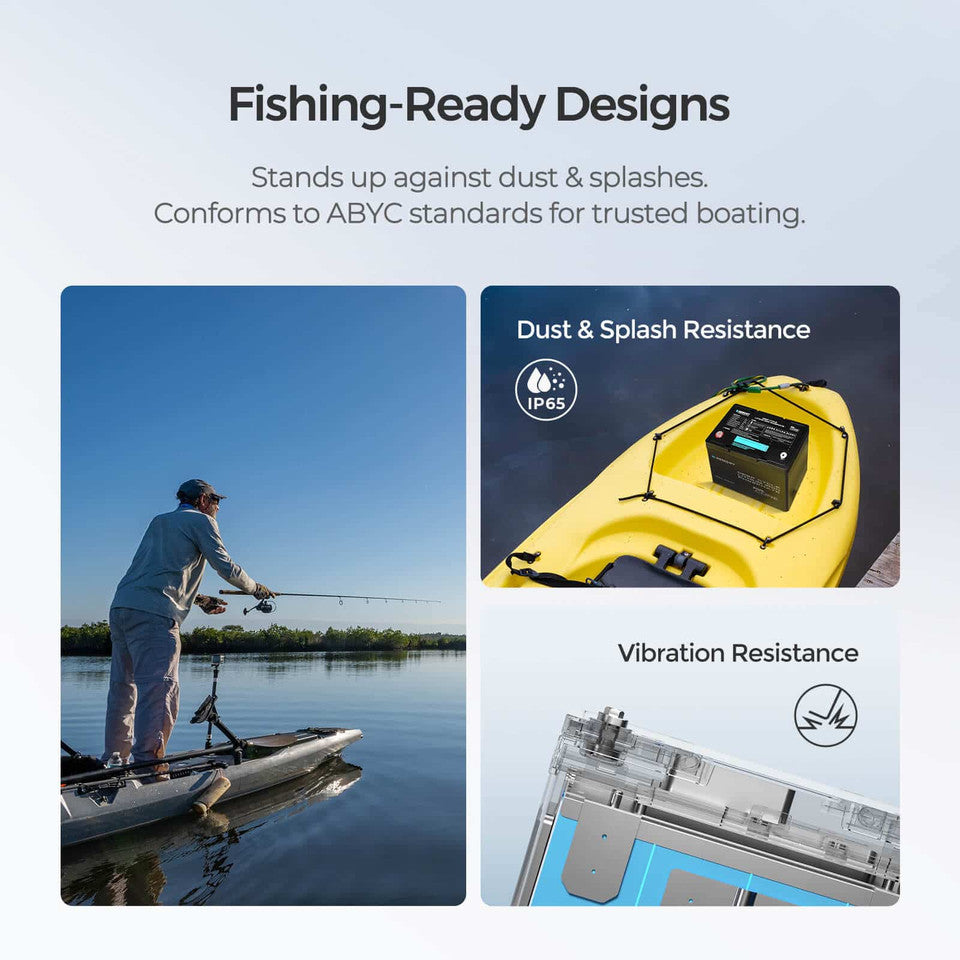

•    IP65-rated construction and vibration-resistant design for all-weather durability

SPECIFICATIONS:

Battery Type: Lithium Iron Phosphate

Voltage: 12.8V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 10V to 14.8V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Peak Discharge Current: 300A@5s

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range: 32°F to 122°F (0°C to 50°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series & Parallel (4S4P)

Terminal Bolt Size: M8 x 1.25 x 12 mm

Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

Protection Rating: IP65

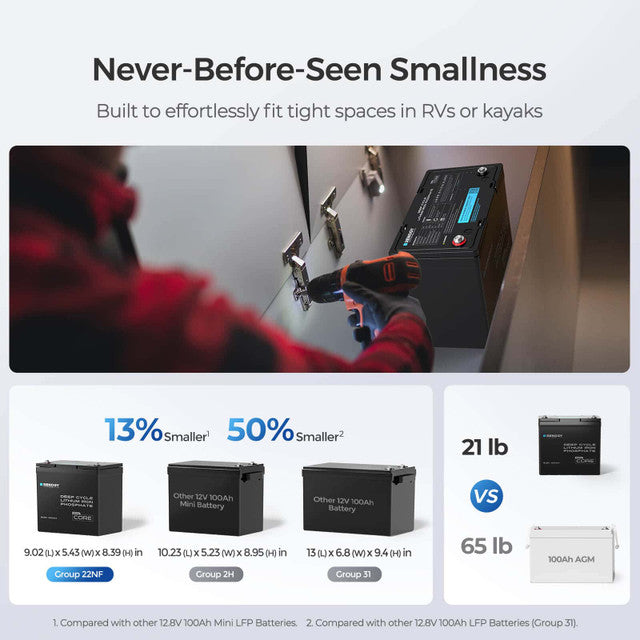

Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)

Weight: 21.8 lbs / 9.9 kg

Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm

Material and Workmanship Warranty: 5 Years

Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA

WHAT’S IN THE BOX:

1 x Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

2 x Long Terminal Bolts (M8 x 1.25 x 15 mm)

1 x User Manual
