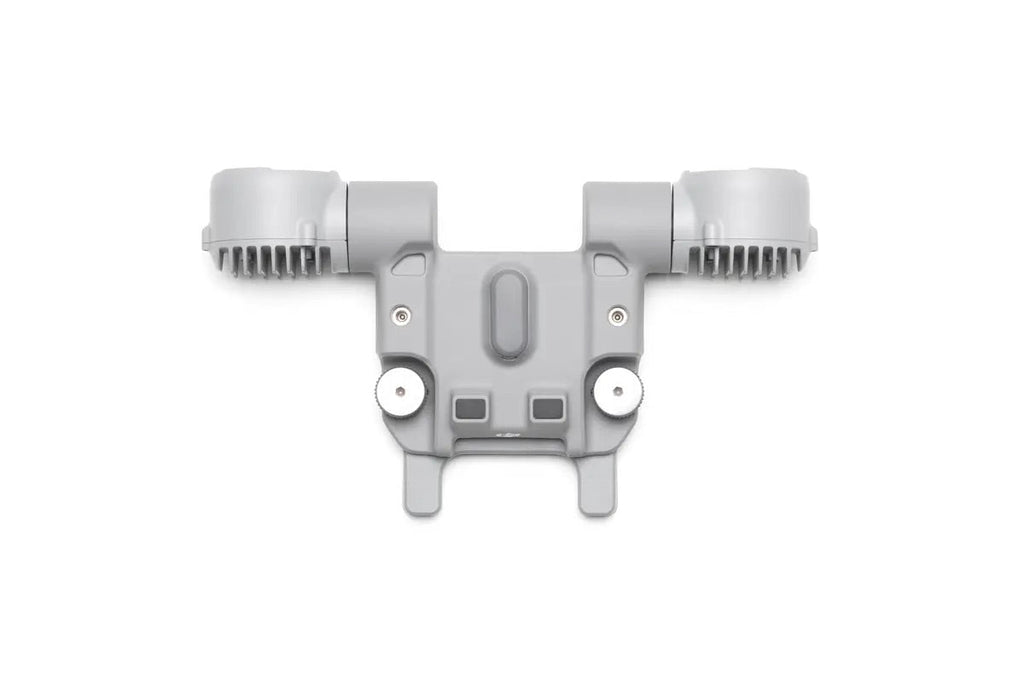

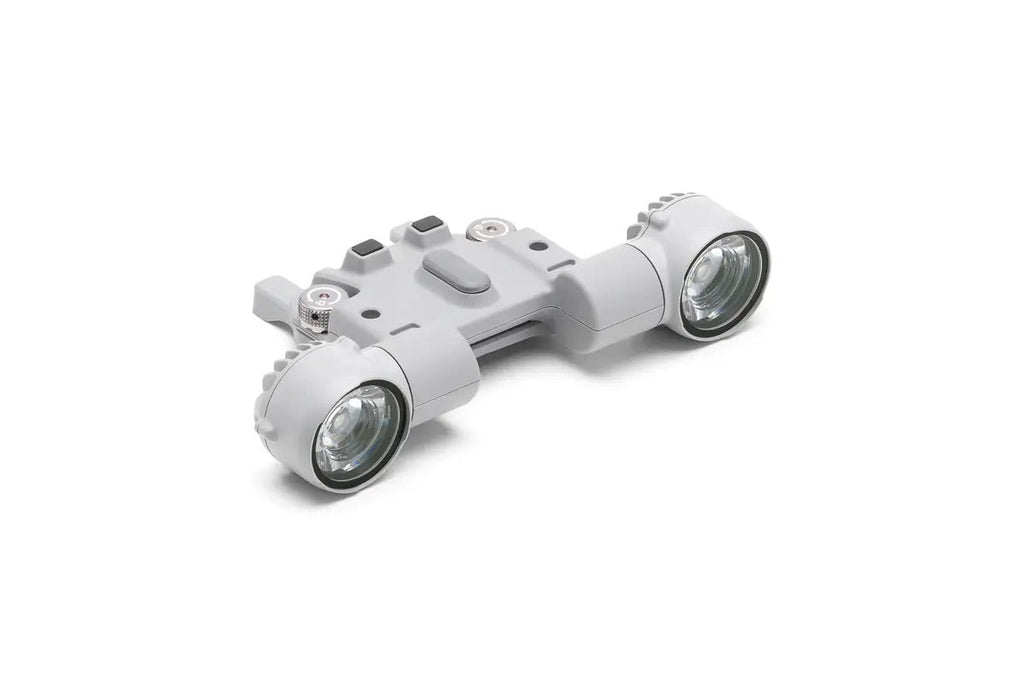

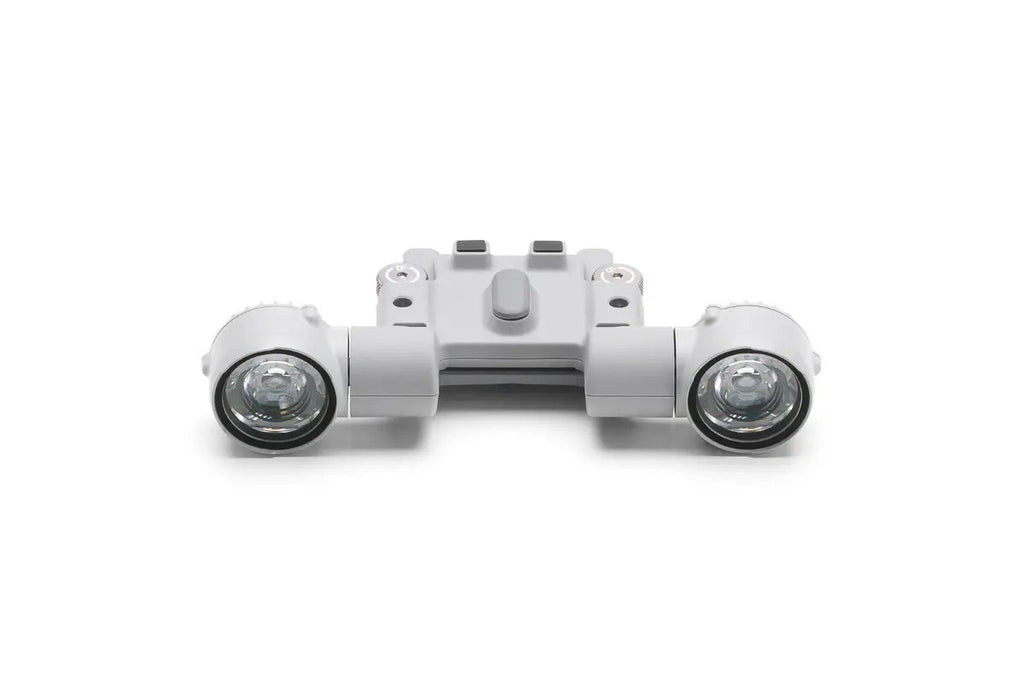

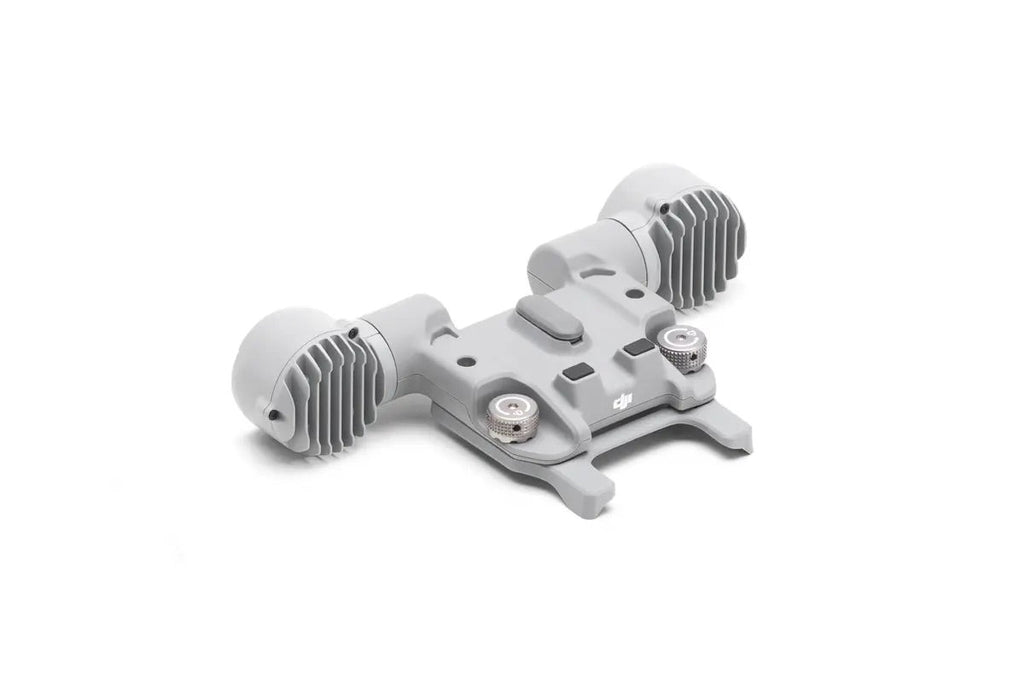

DJI Matrice 4 Series AL1 Spotlight

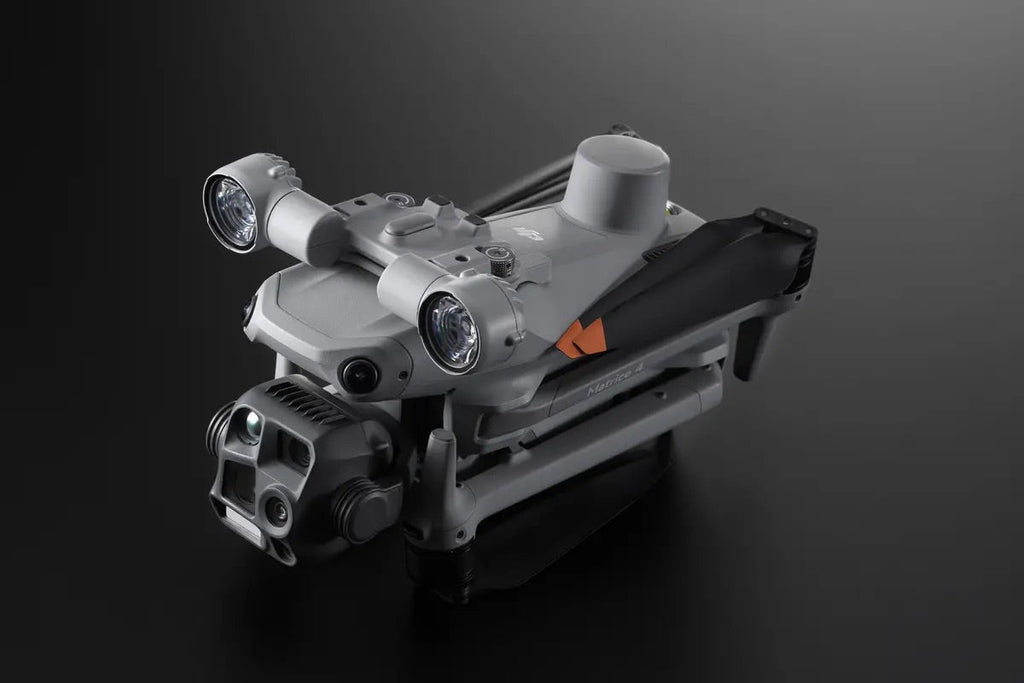

The DJI AL1 Spotlight offers two modes: always-on and strobe, providing clear illumination even from up to 100 meters away. It can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area aligns with the camera's view.

Additionally, the spotlight features a wide FOV lighting mode, allowing for broader area coverage when in wide-angle mode. The spotlight and speaker can be used separately or together, offering flexibility to meet the demands of various operational scenarios.

Specifications:

Optical Performance

Max central illuminance: up to ~40 lux @ 100 m

Effective illumination distance: up to ~100 m

Beam type: Narrow, high-intensity spotlight

Light source: High-power LED module

Color temperature: approx. 6500 K (cool white)

Power

Power supply: Powered by aircraft payload port

Max power consumption: approx. ≤ 30 W

Operating voltage: Via drone payload interface (no external battery)

Gimbal / Adjustment

Stabilization: Linked with aircraft gimbal system

Angle control: Remote adjustable with camera linkage

Modes:

Always-on mode

Strobe mode

Brightness adjustment

Physical

Weight: approx. ~200 g (±)

Dimensions: Compact payload form factor

Housing: Aluminum alloy + high-strength plastic

Color: Black

Environmental

Operating temperature: approx. -10°C to 40°C

Protection rating: Designed for outdoor aerial use

Cooling: Passive heat dissipation

What's in the Box:

1 x DJI AL1 Spotlight

2 x Spare Screw

1 x Hex Key
