DJI Matrice 4TD with RC Plus 2 Enhanced Controller (Standalone Unit)
The DJI Matrice 4TD is an enterprise-grade aerial platform designed for operations that demand visibility, endurance, and reliability in challenging environments. Built for public safety, infrastructure inspection, and remote monitoring, the Matrice 4TD integrates high-resolution visual imaging, thermal sensing, and advanced obstacle awareness into a single IP55-rated aircraft.
This standalone configuration includes the RC Plus 2 Enhanced Controller, delivering a rugged control solution for field deployment where weather, terrain, and signal continuity cannot be compromised.
Integrated multi-sensor imaging for low-visibility operations
The Matrice 4TD integrates three 48 MP visual cameras with an infrared thermal camera to support observation across multiple distances and lighting conditions. The thermal system outputs 640 × 512 video at 30 fps under normal operation, with support for 1280 × 1024 video at 30 fps when the Ultra-High Resolution Infrared Image function is enabled and Night Scene mode is disabled.
For still photography, the thermal camera supports both Normal Mode and UHR Infrared Image Mode, allowing operators to capture single or timed thermal images based on mission requirements.
Endurance, safety, and mission reliability in harsh environments
With up to 47 minutes of maximum flight time, the Matrice 4TD supports extended missions without frequent battery changes. Its obstacle sensing system is designed to detect wires as small as 12 mm while flying at speeds up to 15 m/s, supporting safer operation near utilities and infrastructure.
The 80° upward gimbal tilt enables direct inspection of bridge undersides and overhead structures, while IP55 protection allows continued operation in rain, fog, and dusty conditions common in real-world deployments.
Applications:
- Public safety response: thermal and visual assessment during emergencies.
- Infrastructure inspection: powerlines, bridges, towers, and industrial assets.
- Search and rescue: heat detection and long-duration overwatch missions.
- Night operations: visual and thermal coverage after dark.
- Remote monitoring: reliable operation in weather-affected environments.
- Utility inspection: obstacle-aware flight near wires and structures.
- Disaster assessment: post-event damage evaluation in hazardous conditions.
- Perimeter security: long-endurance patrol and observation missions.
- Powerline and substation inspections with advanced LiDAR support
Designed for enterprise reliability
The Matrice 4TD is engineered to deliver consistent performance in environments where visibility, weather resistance, and flight safety are critical. Its integrated sensor suite reduces payload complexity while expanding mission capability.
Combined with the RC Plus 2 Enhanced Controller and DJI’s enterprise transmission systems, the platform supports dependable deployment across demanding operational scenarios.
The DJI Matrice 4TD with RC Plus 2 Enhanced Controller provides a mission-ready aerial solution for teams requiring thermal insight, telephoto reach, and all-weather reliability. DSLRPros delivers expert configuration and long-term enterprise support.
Key Features:

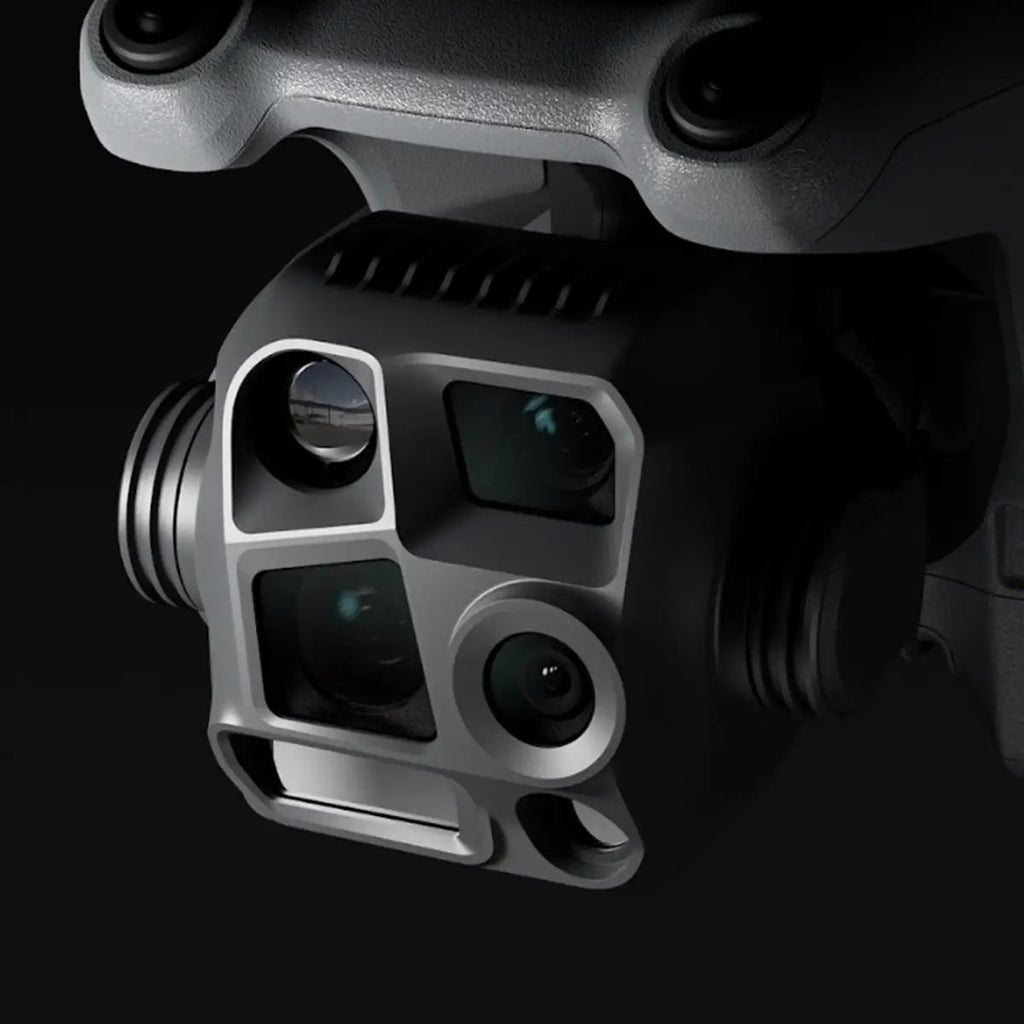

- Triple 48 MP visual cameras support wide, medium, and telephoto inspection views
- 640 × 512 thermal sensor enables infrared detection in low-visibility environments
- Thermal video up to 1280 × 1024 at 30 fps with UHR enabled
- Thermal still photos support Normal and UHR Infrared Image modes
- Night Scene mode improves situational awareness during nighttime operations
- Near-infrared auxiliary lighting supports visual clarity in dark conditions
- Up to 47 minutes of maximum flight time supports extended missions
- Wire detection identifies 12 mm obstacles at speeds up to 15 m/s
- 80° upward gimbal tilt enables under-bridge and overhead structure inspection
- IP55-rated airframe supports operation in rain, fog, and dust
Specifications:
Number of Rotors: 4
Configuration: Drone with Camera
Edition: Standard
FAA Registration: Required for Non-Commercial Use
Features: Camera Included
Kit Style: Base
Skill Level: Enterprise
Color: White
Maximum Flight Time: 54 minutes
Takeoff Weight: Up to 4.6 lbs (2.0 kg)
Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
Max Horizontal Speed:
Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways
Max Wind Resistance: 12 m/s
Max Takeoff Altitude: 21325 ft (6500 m)
Max Hover Time: 47 minutes
Max Pitch Angle: 25° (Normal), 30° (Sport)
Max Flight Distance: 43 km
Max Angular Velocity: 200°/s
GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
Hovering Accuracy:
Vertical: ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Ingress Protection Rating: IP55
Recommended microSD Cards:
U3/Class 10/V30 or above (exFAT format)
Lexar 1066x: 64GB to 512GB
Kingston Canvas Go! Plus: 64GB to 512GB
Remote Controller: RC Plus 2 Enterprise
RC Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Camera Still Resolution:
Wide-Angle: 20 MP
Medium Tele: 12/48 MP
Tele: 12/48 MP
Video Resolution: 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
Image Sensor:
Wide: 1/1.3" CMOS, 48 MP
Medium Tele: 1/1.3" CMOS, 48 MP
Tele: 1/1.5" CMOS, 48 MP
Lens:
Wide: 82° FOV, 24 mm, f/1.7, Focus: 1 m-∞
Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m-∞
Tele: 15° FOV, 168 mm, f/2.8, Focus: 3 m-∞
Digital Zoom: Tele Camera: 16x (112x hybrid)
ISO Range: Up to 409600 (Tele: 819200)
Shutter Speed: 2 - 1/8000 s
Still Photo Modes: Single, Timed, Smart Capture, Panorama
Photo Format: JPEG
Video Format: MP4 (H.264)
Max Video Bitrate: H.264: 60 Mbps, H.265: 40 Mbps
File System: exFAT
Gimbal:
3-axis mechanical (tilt, roll, pan)
Controllable Tilt: -90° to +90°
Angular Vibration: ±0.005°
Sensing System: Omnidirectional binocular vision + 3D infrared
Obstacle Detection:
Forward/Backward: 0.5-20 m
Lateral: 0.5-16 m
Upward: 0.5-20 m
Downward: 0.5-16 m
Video Transmission: DJI O4+ Enterprise
Live View: 720p/30fps or 1080p/30fps
Frequencies: 2.4GHz / 5.1GHz / 5.8GHz
Max Transmission Distance:
FCC: 25 km
CE/SRRC/MIC: 12 km
With interference: 1.5-25 km
Latency: 100 ms (aircraft to dock, dependent on network)
Battery:
Capacity: 6768 mAh
Voltage: 22.14 V
Type: LiNiMnCoO2
Energy: 149.9 Wh
Quantity: 1
Dimensions: 37.77 × 41.62 × 21.25 cm (no propellers)
Weight: Approx. 1.85 kg (4.07 lbs)
What's in the Box:
1x DJI Matrice 4TD Aircraft
1x DJI RC Plus 2 Enterprise Controller
1x DJI Matrice 4 Series 240W Charging Hub
1x DJI 240W USB-C Power Adapter
1x set DJI Matrice 4TD Propellers
1x USB-C to USB-C Cable
1x USB-A to USB-C Cable
1x Gimbal Cover
Screwdriver & Screws
1x microSD Card 64GB
1x DJI Matrice 4TD Hard Case
