DSLRPros Freefly Astro Max Mapping Bundle (NDAA/Blue)
Freefly Astro Max Mapping Bundle (NDAA/Blue) delivers unmatched precision, compliance, and reliability for government and enterprise mapping operations. Every component—aircraft, payload, controller, and radio link—is NDAA and DIU Blue approved, meeting the highest standards for secure U.S. operations. Designed for demanding field missions, this bundle combines the Astro Max aircraft with the Sony ILX-LR1 61 MP camera, Sigma 24 mm f/3.5 mapping lens, Doodle Labs 2.4 GHz Blue-certified radio, and a complete SL8 power suite for sustained, survey-grade performance.
Secure and Compliant by Design
The Astro Max NDAA/Blue is built for organizations requiring dependable U.S.-made components and certified systems. Its aircraft, Pilot Pro Controller, and radio link are all NDAA and DIU Blue compliant. The system ships with Standard Remote ID preconfigured for FAA compliance and can be disabled upon submission of proper exemption documentation. With open interface specifications and RTK readiness, it ensures accurate, consistent data capture while meeting strict procurement and operational security requirements.
Reliable Field Performance and Workflow Efficiency
This bundle is configured for continuous mission cycles, with six SL8-Air batteries, four SL8 Fast Chargers, and a durable travel case for organized transport. The Pilot Pro Controller includes a preinstalled Samsung Active Tab 3 and a Doodle Labs 2.4 GHz Blue radio, offering secure and robust control links. The vibration-isolated Freefly Gimbal ensures sharp imaging, while the Sony ILX-LR1 delivers 61 MP geotagged photos ready for professional mapping software. Standard Remote ID and BVLOS compliance expand operational flexibility for qualified teams.
Key Features and Benefits
- Fully NDAA and DIU Blue approved aircraft, controller, and radio link
- Sony ILX-LR1 61 MP full-frame camera with Sigma 24 mm f/3.5 lens
- Freefly Astro Max: compact industrial platform with open interface specs
- Quick-detach, vibration-isolated Freefly Gimbal for sharp imagery
- Pilot Pro Controller with preinstalled Samsung Active Tab 3 tablet
- Doodle Labs 2.4 GHz Blue radio ensures secure, compliant communications
- Six SL8-Air batteries and four SL8 Fast Chargers for sustained missions
- RTK ready via user-supplied ground-station computer
- Standard Remote ID preinstalled for FAA compliance (override available)
- 2270 high-efficiency propellers extend flight time by roughly 10 percent
- Spare Parts Kit and SL8 Travel Case included for field logistics
- Manual Mode proficiency recommended for emergency procedures
Compatibility and Integration
- Works with Freefly Pilot Pro Controller and Doodle Labs Blue radio link
- Supports RTK GPS Ground Station through user-supplied computer
- Outputs standard geotagged imagery compatible with major mapping software
- LTE modem functionality available in the U.S. only
- Uses Freefly SL8-Air batteries and SL8 Fast Chargers
Applications and Use Cases
- Government and enterprise mapping: secure, NDAA/Blue-compliant operations
- Survey and topographic mapping: centimeter-level terrain accuracy
- Construction monitoring: document progress and volumetric data
- Infrastructure and utility inspection: compliant data collection workflows
- Urban planning and GIS modeling: generate orthomosaics and 3D maps
- Mining and resource surveying: precise 3D volume analysis
- Environmental assessment: track vegetation or erosion trends
- Disaster response: perform fast, secure aerial documentation
- Research and defense projects: collect data with U.S.-compliant hardware
Specifications:

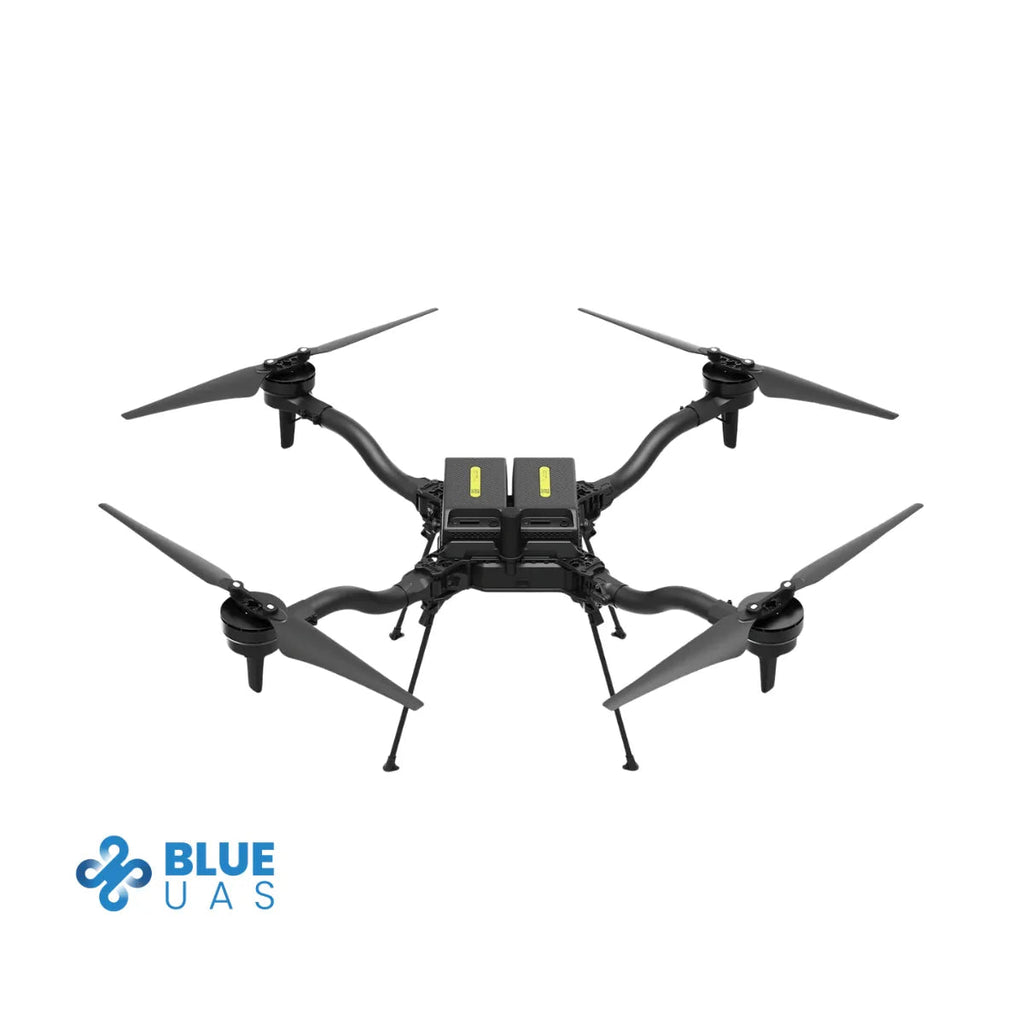

Astro Max (NDAA/Blue)
- Up to 39 minutes max flight time
- 28 minutes flight time with LR1 Payload
- 18 minutes flight time with 3 kg max payload
- 3 kg maximum payload capacity
- Booms fold to half the aircraft's diameter
- Standard Remote ID enabled; can be disabled with FAA waiver or exemption
- Optional LTE connectivity (North America only)
- Alternate payload attachments sold separately:
Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount)
- Designed and assembled in the USA
- NDAA and DIU Blue approved
Pilot Pro Controller
- Freefly Pilot Pro controller with high-resolution rockers for gimbal precision
- Modular design accepts a variety of radio transmitters
- Ships with Doodle Labs RF, 2.4 GHz NDAA & DIU Blue radio
- Internal battery supports external power input and hot-swapping
- Emergency kill-switch included
- Discrete physical buttons for all key user actions
- Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
- Realtime drone and gimbal speed limit controls
- Includes custom padded neck strap
LR1 Payload
- Freefly Mapping Gimbal with Sony ILX-LR1 camera (61 MP)
- Sigma 24mm f/3.5 mapping lens (p/n 404965)
- Full camera and gimbal control via Pilot Pro
- Ships in dedicated travel case with space for extra lenses
Astro Compact Travel Case
- Holds full Astro Max (NDAA/Blue) system for mapping or inspection
- Includes Astro with 2 SL8 batteries (legs folded)
- Fits Pilot Pro, LR1 Payload, 2 SL8 chargers, props, tools
- Custom-cut foam tested for 1-meter drop protection
- Submersible and dust-tight (MIL-STD 810G)
- Airline checkable SKB Rolling Case (3i-2217-10)
- Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
- Weight (no SL8s): 38.30 lbs / 17.37 kg
- Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg
SL8-Air Batteries
- Two SL8-Air batteries required per flight
- Voltage: 21.6 V (6S)
- Capacity: 7.3 Ah / 157 Wh
- Weight: 2.25 lbs each
- Battery chemistry: Lithium-Ion
- Auxiliary output: USB-C Power Delivery
SL8 Fast Charger
- Charges one SL8-Air battery at a time
- Charge time from 0% to 100%: ~90 minutes
- Input: 100–240 VAC
- Output: 200 Watts
- Includes NEMA 1-15 (Type A) North America power cable
- Power cable replaceable via IEC320 connector
SL8 Travel Case
- Holds 8 SL8 batteries and 2 chargers
- Can hold up to 14 SL8 batteries without chargers
- Features lockable casters and stowaway handle
- Waterproof and dust tight (MIL-STD 810H)
- SKB case model: 3i-1914-8B-E
What's in the Box:
1 x Astro Max NDAA/Blue drone (with pre-installed landing gear, props, and Astro Isolator)
1 x Astro compact travel case
1 x LR1 payload
1 x Freefly gimbal
1 x Sony ILX-LR1 61MP camera body
1 x Sigma 24mm f3.5 mapping lens (p/n 404965)
1 x USB-C thumb drive
1 x Foam insert set for Astro travel case
1 x each hex driver (1.5 mm, 2 mm, 2.5 mm)
4 x Proptectors
1 x Extra Proptector
4 x Spare isolators
2 x Rubber hole grommet
1 x Pilot Pro controller
1 x Samsung Active Tab 3 (pre-configured and installed into controller)
1 x Doodle Labs RF, NDAA and DIU Blue 2.4 GHz radio (pre-configured and installed into controller)
1 x Custom padded neck strap
6 x SL8-Air batteries (3 pairs)
4 x SL8 fast chargers
1 x SL8 travel case
1 x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
1 x Astro spare parts kit
