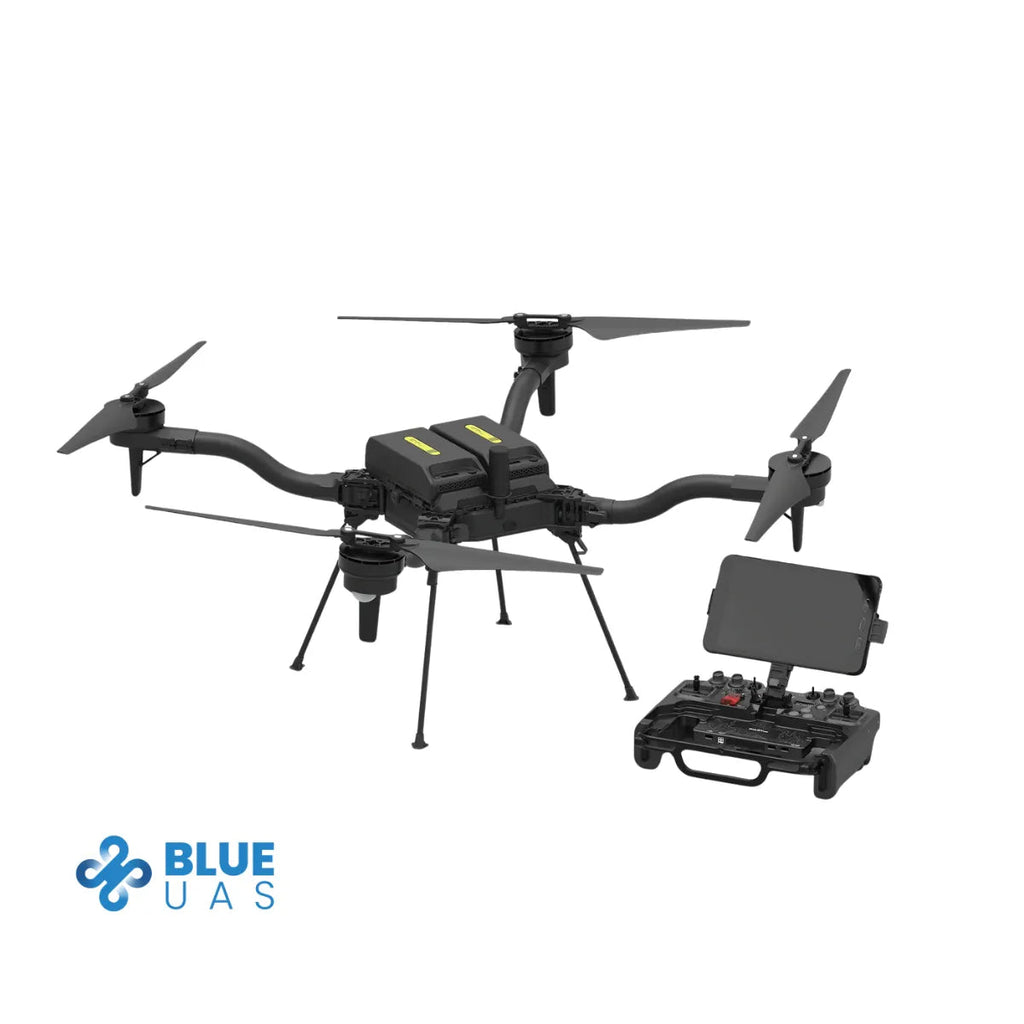

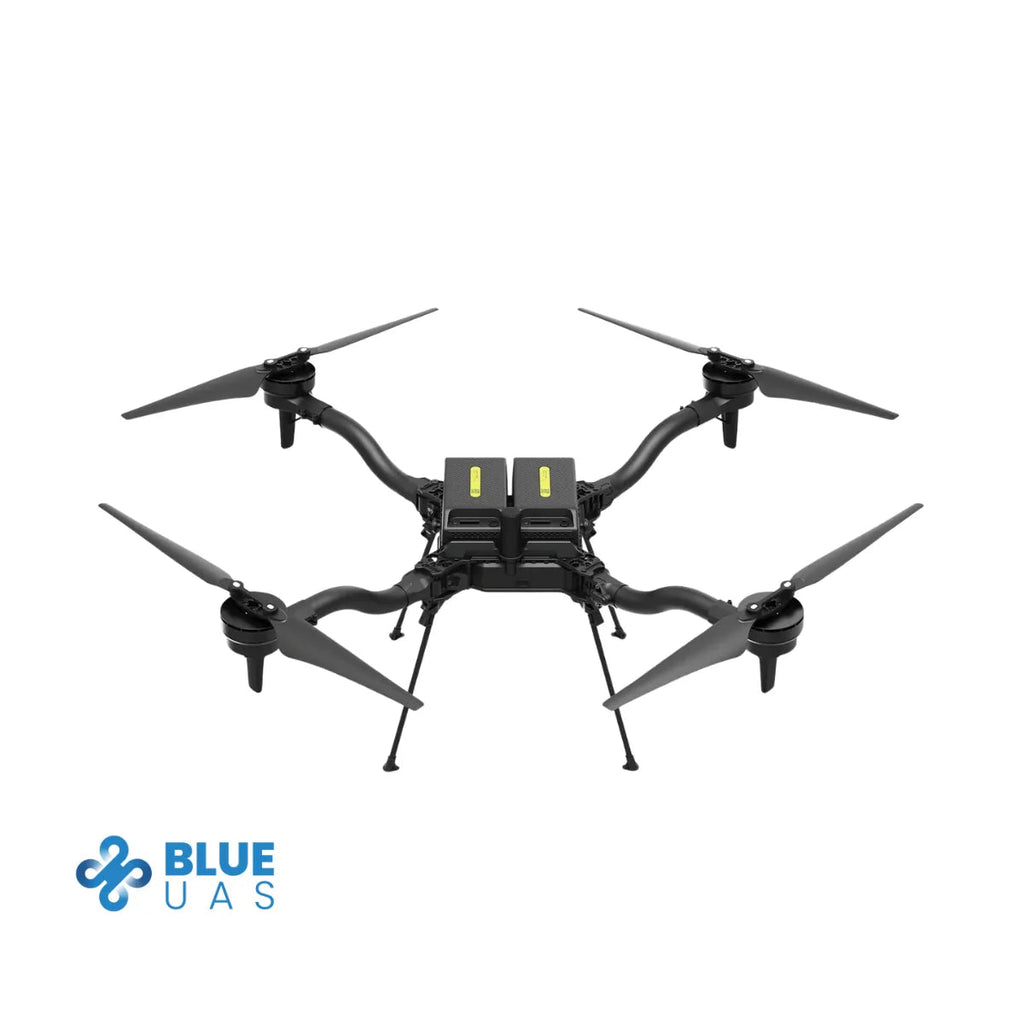

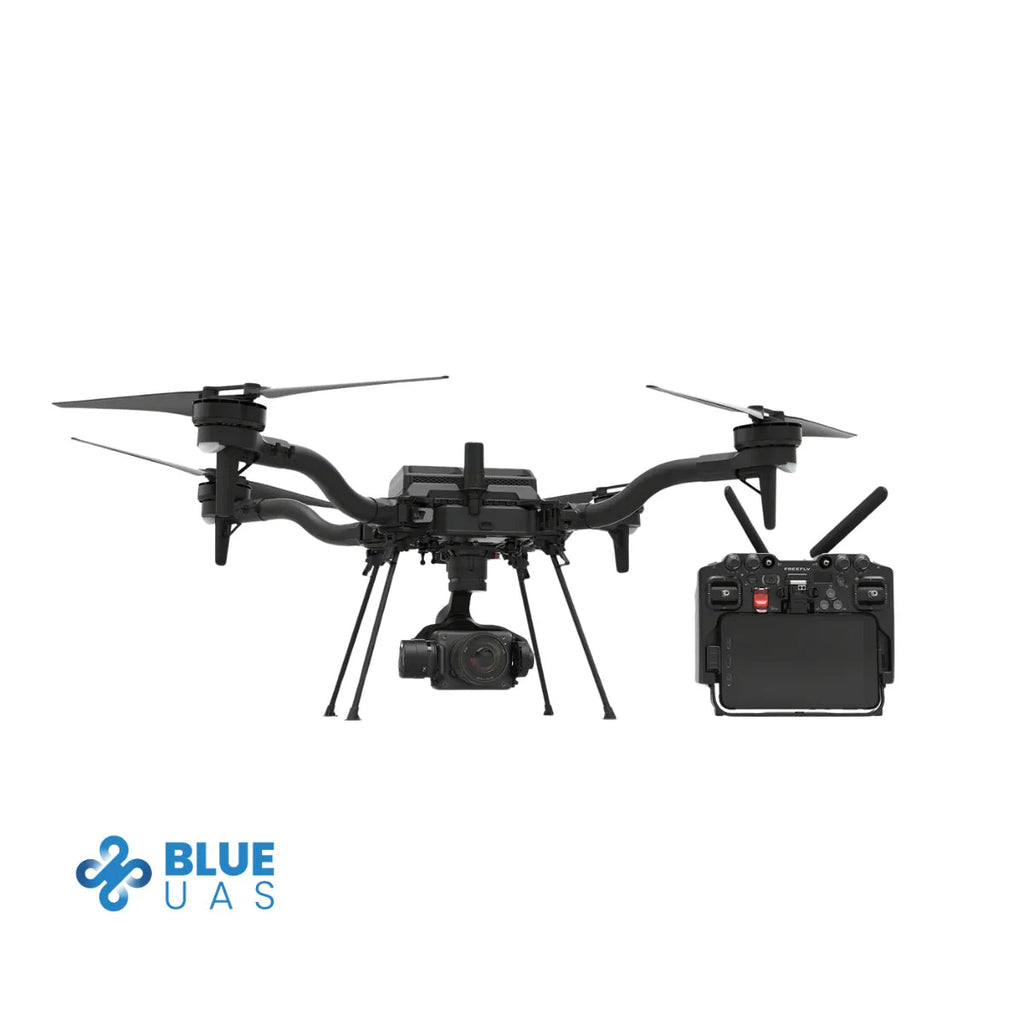

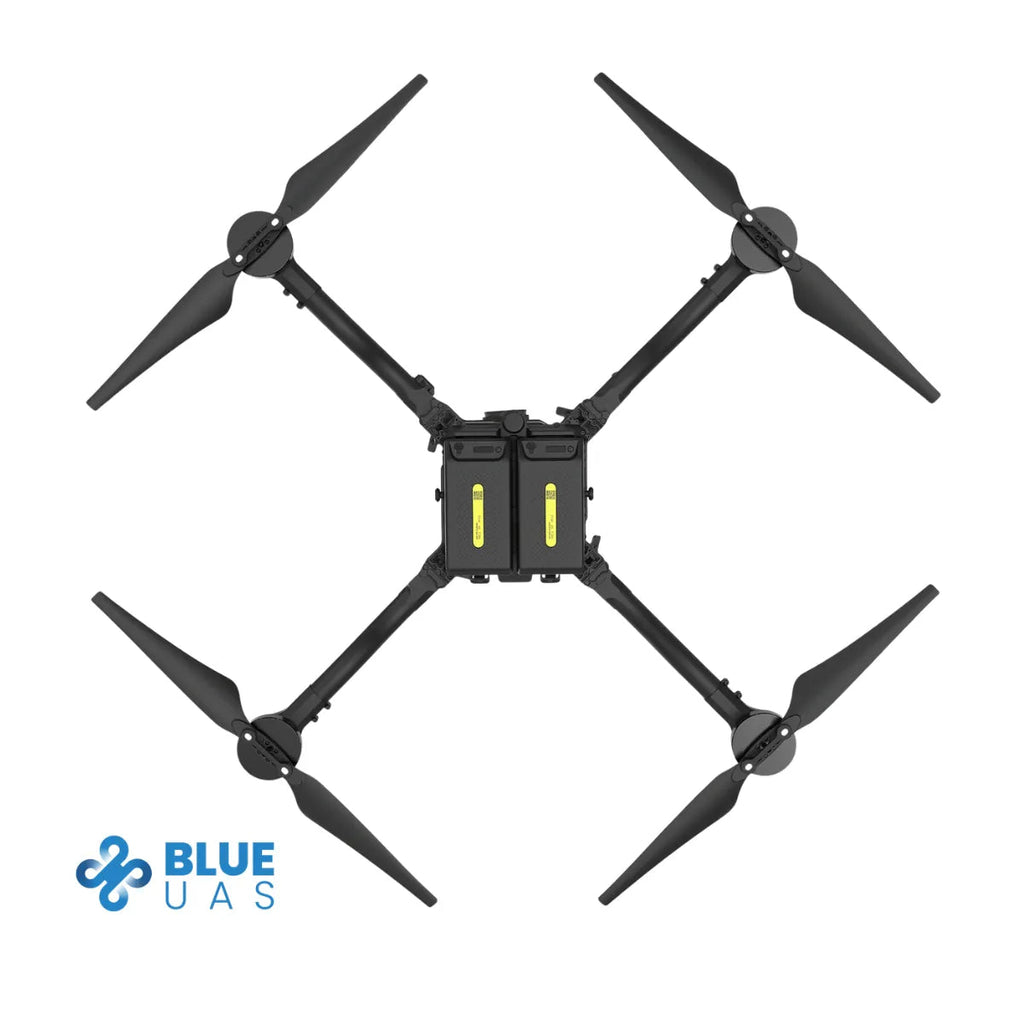

Freefly Astro Max Aircraft (NDAA/Blue)

The Freefly Astro Max (NDAA/Blue) is an industrial-grade drone platform designed and assembled in the United States using NDAA-compliant components. Built under the Department of Defense Blue UAS framework, it provides government and enterprise users with a secure, proven, and compliant aircraft for critical operations.

With a 3 kg maximum payload and up to 43 minutes of flight time, the Astro Max (NDAA/Blue) delivers the performance and reliability expected from a U.S.-vetted aerial platform.

Built for compliance and mission confidence

The Astro Max (NDAA/Blue) integrates secure flight control electronics, NDAA-compliant components, and open firmware validated under the Blue UAS program. Equipped with 7010 motors and 21-inch propellers, it delivers high thrust and stability under heavy loads. Its carbon-fiber foldable design, Smart Dovetail payload interface, and dual SL8 Air battery system make it an adaptable and durable solution for teams conducting secure field operations or government-grade missions.

Advanced precision and professional versatility

Supporting professional payloads such as LiDAR, thermal, and mapping sensors, the Astro Max (NDAA/Blue) provides centimeter-level accuracy through RTK-ready positioning. The Pilot Pro controller delivers secure telemetry, precise control, and real-time mission data. With its open payload architecture and secure communication design, the Astro Max (NDAA/Blue) ensures mission flexibility and full compliance for operations that demand both capability and security.

Key Features and Benefits

• NDAA/Blue UAS compliant: Meets DoD-approved sourcing and security standards
• Designed and assembled in the USA: Built with NDAA-compliant components
• 7010 motors with 21-inch propellers: Delivers powerful, stable lift
• 3 kg maximum payload: Supports professional-grade sensors
• Up to 43 minutes flight time: Long endurance without payload
• Carbon-fiber foldable frame: Compact and durable for transport
• Smart Dovetail quick-mount: Enables tool-free sensor changes
• Dual SL8 Air battery system: Extends flight time and redundancy
• RTK-ready GPS: Provides centimeter-level positioning accuracy
• Pilot Pro controller: Secure operation with real-time telemetry

Applications and Use Cases

• Government and defense operations: NDAA-compliant aerial data collection
• Infrastructure inspection: Secure visual or thermal assessments
• Public safety response: Rapid-deploy platform for mission awareness
• LiDAR and mapping: Precision geospatial capture and 3D modeling
• Utility and energy inspection: Safe monitoring of power assets and pipelines
• Construction and site documentation: Regular aerial progress updates
• Research and environmental monitoring: Reliable, secure data gathering
• Industrial inspection: Repeatable, high-resolution aerial imaging

Specifications:

Astro Max

• Up to 43 minutes flight time
• 31 minutes with LR1 Payload
• 20 minutes with max payload (3kg)
• 3kg max payload
• Booms fold up to ½ the diameter
• Pre-installed Astro Isolator for quick-release powered payload attachment
• Alternate payload attachments sold separately:
  Integrator Vibration Isolator (non-electronic)
  Freefly Smart Dovetail Kit (hard mount)
  Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs)


Pilot Pro Controller

• High resolution rockers for precise camera / gimbal control
• Configured with robust long-range radio hardware:
  Herelink 1.1 Radio (2.4 GHz)

• Internal battery with external power inputs to support hot-swapping for maximum uptime
• Emergency kill-switch
• Discreet physical buttons for all key user actions
• Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet
• Realtime drone and gimbal speed limits
• Custom padded neck strap

Astro Compact Travel Case

• Holds everything needed to fly Astro
• Astro with 2 SL8 batteries* installed and legs folded
• Pilot Pro radio controller
• LR1 Payload (sold separately)
• Pair of SL8 Chargers
• Set of spare props (1 each CW & CCW)
• Basic tools
• Custom cut foam, tested to protect against drops from 1 meter
• Submersible and dust tight (MIL-STD 810G)
• Airline checkable
• SKB Rolling Case - 3i-2217-10

Case Dimensions

• 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm

Weight of Astro in Case

• As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg
• Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

• SL8-Air Batteries*
• Astro uses two SL8-Air batteries per flight
• Voltage: 21.6 V (6S)
• Capacity: 7.3 Ah, 157 Wh
• Weight: 2.25 lbs
• Chemistry: Lithium-Ion
• Auxiliary output: USB-C Power Delivery

Chargers

• SL8 Fast Charger*
• One charger charges one Freefly SL8-Air battery at a time
• Approximate charge time for one SL8-Air battery, from 0%: 90 mins
• Input: 100 / 240 VAC
• Output: 200 Watts
• Supplied with North America power cable (NEMA 1-15 ungrounded, Type A)
• Power cable is replaceable (IEC320 connector)
• Designed and Assembled in USA

What's in the Box:

1 x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*

1 x Astro compact travel case

1 x each hex driver (1.5 mm, 2 mm, 2.5 mm)

4 x Proptectors

Spare parts:

1 x Extra Proptector

4 x Spare isolator balls

2 x Rubber hole grommet

1 x Pilot Pro controller

1 x Samsung Active Tab (pre-configured and installed into controller)

1 x Herelink 1.1 RF (2.4 GHz)

1 x Custom padded neck strap
