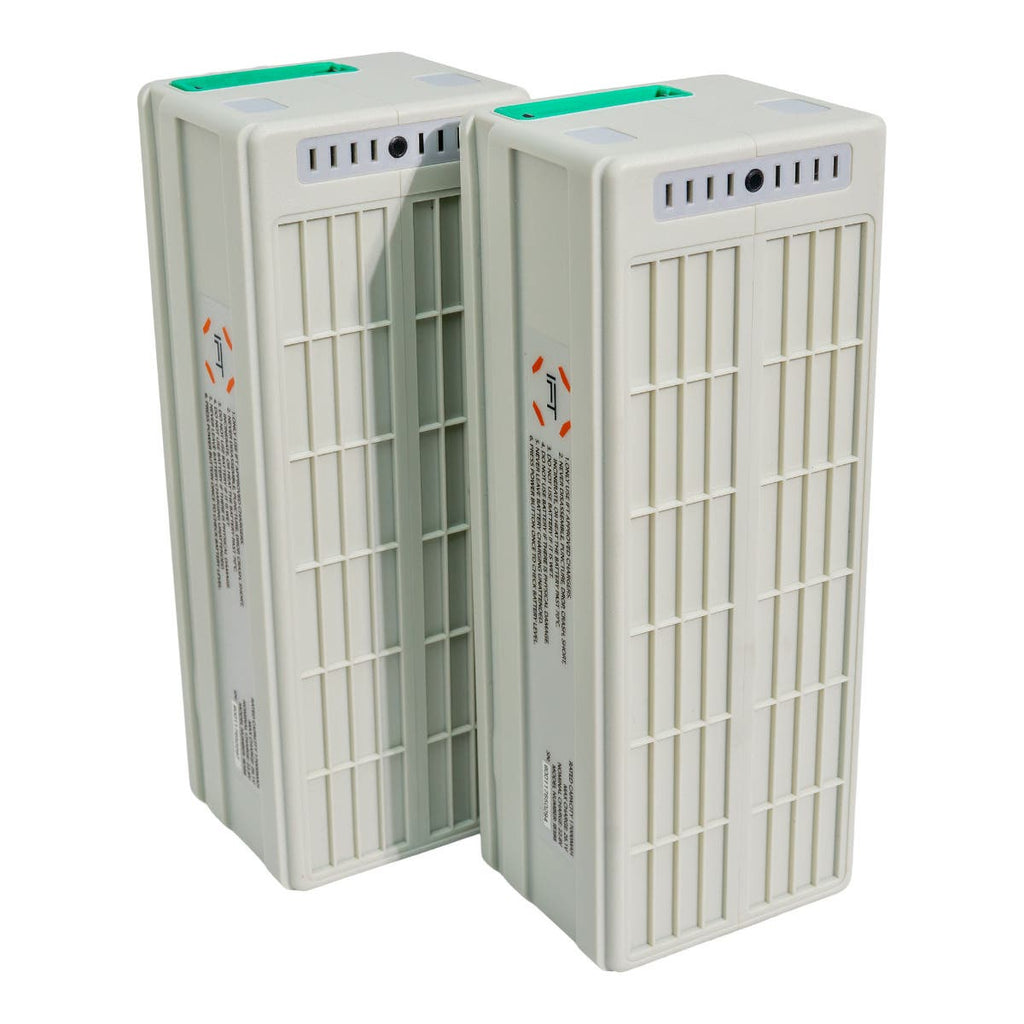

Inspired Flight IF800 Battery Set (2 x Batteries)

Roll over image to zoom in Click on image to zoom

$10 OFF with code NEW10

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

Inspired Flight IF800 Battery Set (2 x Batteries)

Ensure maximum operational efficiency for your IF800 TOMCAT with the IF800 Battery Set. These IB388 intelligent batteries are designed to provide superior power management, incorporating an internal brain for intelligent health maintenance. Standard safety features include storage discharge and over-discharge prevention, while the hot-swappable design allows for seamless battery changes without interrupting flight.

The built-in NFC chip enables quick checks of voltage, discharge times, and overall health without needing to connect to the drone. Tailored for the IF800 TOMCAT, the IB388 batteries offer engineered internal cell balancing, health monitoring, and cycle tracking, directly communicating with the drone for detailed status reporting.

Key Features:

Essential power management for IF800 TOMCAT
Intelligent batteries with internal brain for health maintenance
Safety features include storage discharge and over-discharge prevention
Hot-swappable with NFC chip for quick health checks
Engineered for internal cell balancing and cycle tracking
Direct communication with the drone for comprehensive status updates
American-made IB388 batteries

Specifications:

Battery type: Lithium Polymer High-Voltage (LiHV)

Configuration: 6S1P with internal BMS

Electrical

Nominal capacity: 17,000 mAh

Nominal energy: 387.6 Wh

Nominal voltage: 22.8 V

Max voltage (full): 26.1 V

Normal minimum voltage: 21.0 V

Minimum safe voltage: 19.8 V

Charge & Discharge

Max continuous discharge: 40 A

Max burst discharge: 55 A

Max charge current: 17 A (1C)

Max charge voltage: 26.1 V (4.35 V/cell)

Cell balancing: BMS-controlled (<0.01 V delta)

Self-discharge: to 3.8 V/cell after 48 hrs

Smart Features

Internal BMS with health monitoring

Cycle tracking

NFC status connectivity

Hot-swappable design

Environmental

Operating temperature: −10°C to 45°C

Max internal temp: 70°C

Storage temperature: 10°C to 40°C

Physical

Weight (each): 2.08 kg

Dimensions: 74 × 89 × 228 mm

Lifecycle

Life expectancy: ~150 cycles (up to ~300 depending usage)

Maintenance: cycle every 3 months for storage

What's in the Box:

4 × IB388 smart batteries

2 × IF800 chargers

2 × AC power cords

2 × charging cables

Rugged transport case

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: Inspired Flight IF800 Battery Set (2 x Batteries)
Brand: DSLRPros
SKU: S-IF-IF800-BATT
Price: 1500.0 USD
Availability: InStock

What is the primary function of the IB388 batteries in the IF800 TOMCAT?

The IB388 intelligent batteries are designed for superior power management, featuring an internal brain for intelligent health maintenance and direct communication with the drone for detailed status reporting.

Can the batteries be swapped during flight?

Yes, the IF800 Battery Set features a hot-swappable design, allowing for seamless battery changes without interrupting flight.

How can I check the battery's health without connecting it to the drone?

Each IB388 battery has a built-in NFC chip that enables quick checks of voltage, discharge times, and overall health without needing to connect to the drone.

What safety features are included with these batteries?

Standard safety features include storage discharge and over-discharge prevention.
