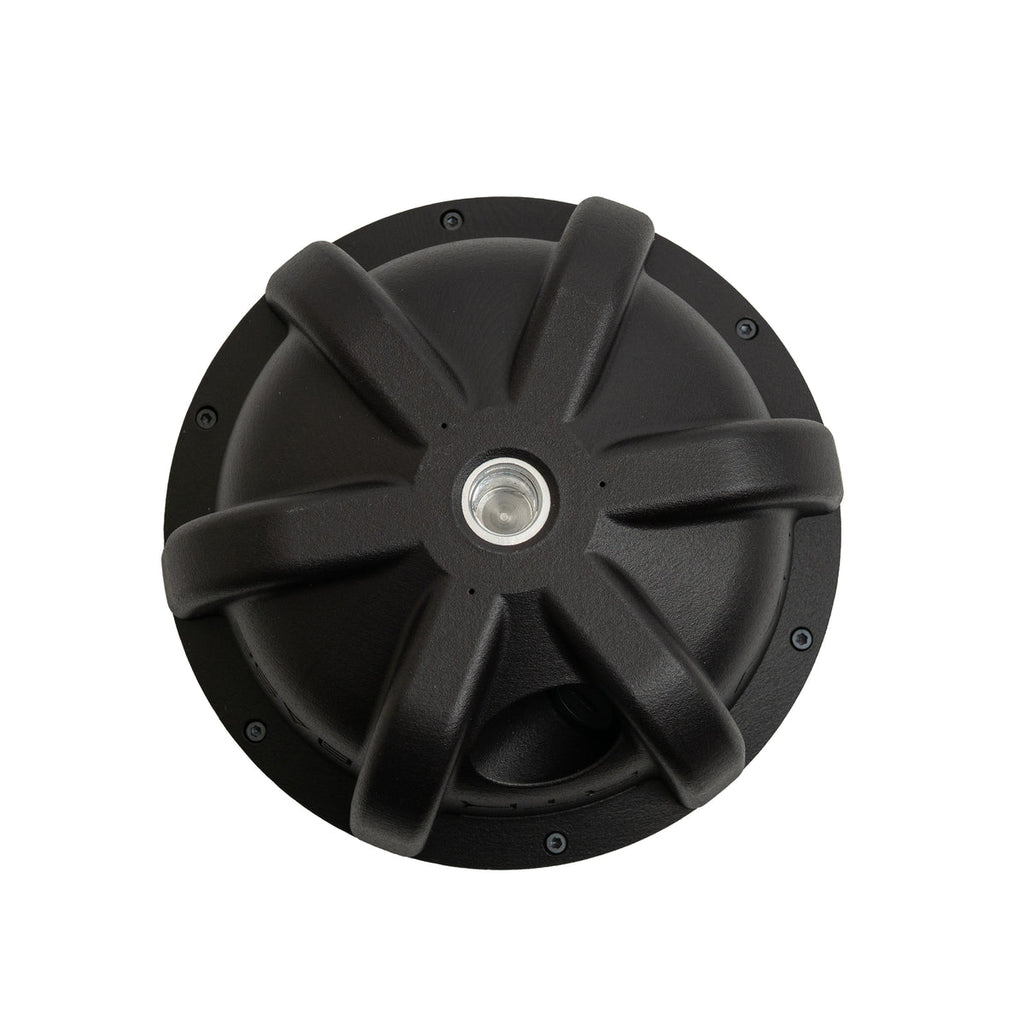

Inspired Flight IF800 NAV RTK Base Station

Inspired Flight NAV RTK Base Station is the critical upgrade for professionals who demand centimeter-level accuracy from every mission. Designed specifically for the IF800 TOMCAT and IF1200 drone platforms, this high-performance RTK solution transforms your workflow by delivering real-time correction data to onboard Dual GPS modules. When the job requires precise geospatial intelligence, this is the tool that makes it possible.

Purpose-Built for Mission-Critical Work

Engineered for mapping, inspection, and surveying professionals, the NAV RTK Base Station offers a rock-solid GNSS reference point, allowing your drone to fly with consistent, highly accurate positioning even in variable field conditions. Whether you're covering urban infrastructure or remote terrain, the station's rugged build and tripod-mount design ensure dependable setup and operation.

Key Features:

• RTK correction for centimeter-level positioning accuracy
• Seamless integration with Inspired Flight IF800 TOMCAT and IF1200 drones
• Consistent GNSS signal reference throughout every mission
• Lightweight, durable build designed for field use
• Quick tripod-mount setup for rapid deployment
• Stable, uninterrupted data feed to drone's GPS modules

Ideal Applications:

• Large-area 3D mapping and photogrammetry
• Precision surveying and volume calculations
• Infrastructure and utility inspections
• Construction planning and progress tracking
• Any mission where positional accuracy is mission-critical

Specifications:

• GNSS:
  • Constellations: GPS, BeiDou, Galileo
  • Bands: GPS (L1, L5), BeiDou (B1, B2), Galileo (E1, E5a)
  • Module: U-Blox F9P
  • Receiver Type: Multi-band GNSS High Precision Receiver
  • Time Pulse Signal Frequency: 0.25 Hz to 19 MHz (configurable)
  • Velocity Accuracy: 0.05 m/s
  • Dynamic Heading Accuracy: 0.3°
  • Horizontal Position Accuracy: 0.01 m + 1 ppm CEP
  • Vertical Position Accuracy: 0.01 m + 1 ppm R50
  • Phase Center Accuracy: ±2 mm
• Electrical:
  • Connection Type: USB-C (10ft USB-A to USB-C Cable Included)
  • Supply Voltage: 5V
• Mechanical:
  • Size: 170 mm x 170 mm x 90 mm
  • Weight: 618 grams
  • Tripod Mounting: ⅝”-11 UNC (⅜”-16 / ¼”-20 Adapters Included)
• Operating Conditions:
  • Temperature Range: -40°C to 70°C
  • IP Rating: IP43

What's in the Box:

1 x NAV RTK BASE Unit

1 x 10 ft USB-A to USB-C Cable

1 x 5/8"-11 to 3/8"-16 Adapter

1 x 5/8"-11 to 1/4"-20 Adapter
