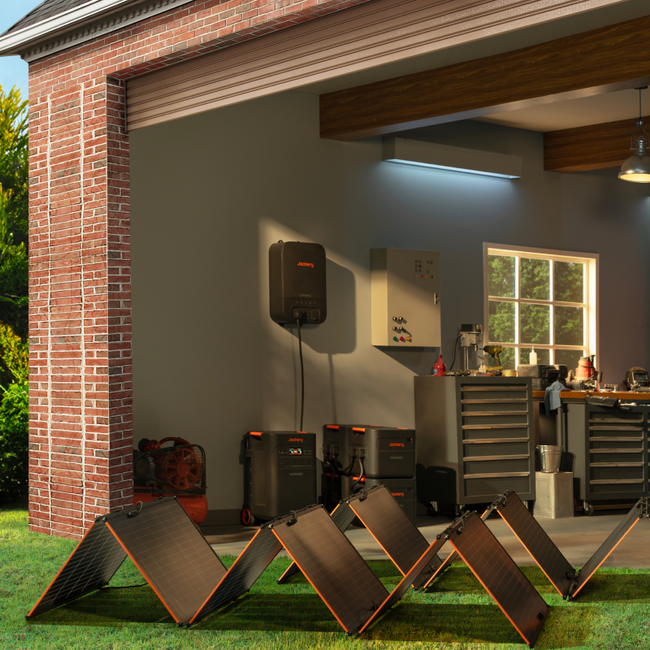

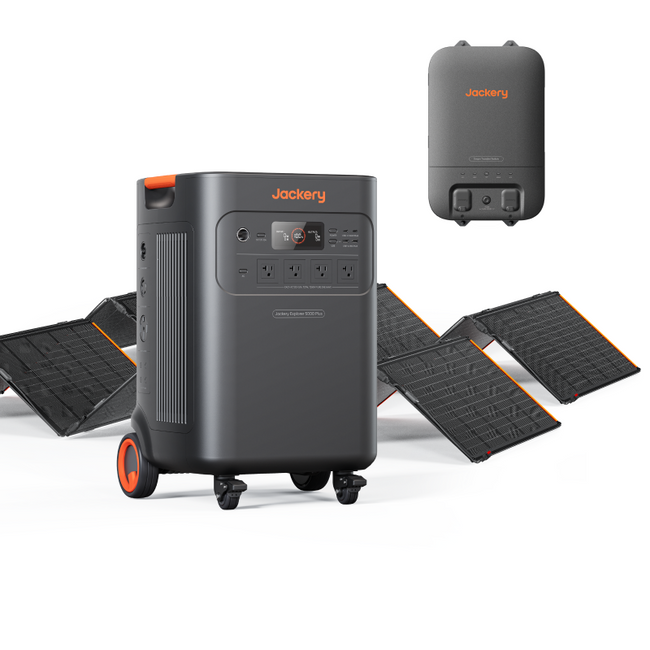

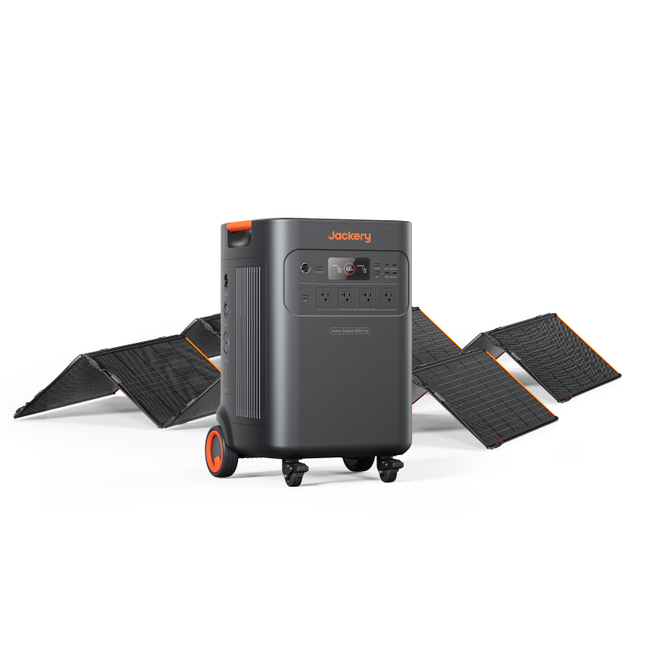

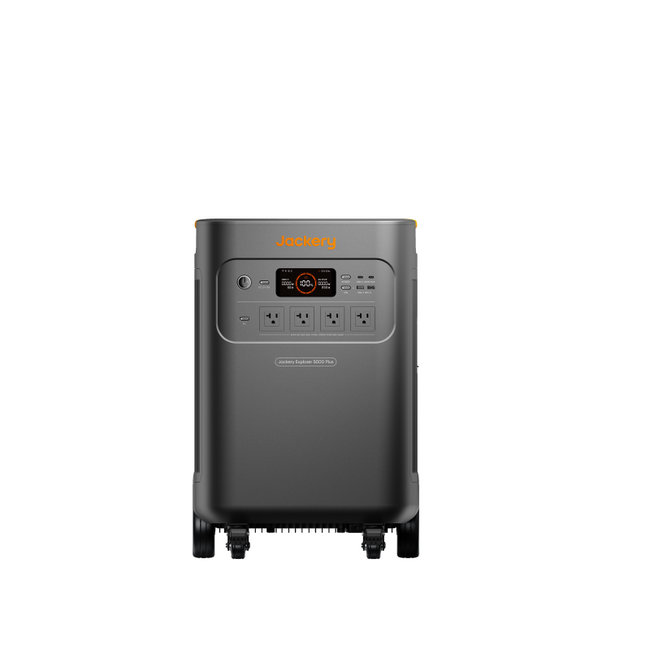

Jackery Solar Generator 5000 Plus Home Kit (5kwh): 1*E5000Plus+ 2*SolarSaga 500 X + 1*Smart Transfer Switch
Gift your home the colossal power of 5-60kWh with Jackery Explorer a dual voltage output Solar Generator 5000 plus Home kit that keeps all your emergency and essential appliances powered up and running even in the worst of hurricanes, thunderstorms or blackouts.
LARGE CAPACITY
From freezers to dryers to every essential devices, this 5-60kWh capacity Solar Generator can power multiple devices up to 30 days and with a 7200-14400W output can handle even your heavy machinery and power devices with ease.
0MS SEAMLESS TRANSITION
While our 0ms Online Mode offers zero downtime for sensitive devices that keeps your zoom calls connected even without the slightest flicker and runs desktop PC, Wi-Fi router, NAS and others uninterrupted, the 20ms Backup Mode for home essentials powers your fridges, lights and fans running with nearly unnoticeable transition.
SMART TRANSFER SWITCH
This solar generator from Jackery ensures your home is optimally powered and uses Smart Transfer Switch that supplies uninterrupted power to your essential rooms. From kitchen to home office to living room, customize your power needs with the ultimate power of sun.
DUAL VOLTAGE OUTPUT
From the dependable home back up to off-grid living with RV, Jackery's 120V/240V dual output voltage serves it all.
PATENTED ZERO DRAIN
A storm-ready design, this Solar Generator from Jackery has in all 96.8% power after 3 months of usage and even after a year, you can still tap into the 92.5% of power left thanks to Jackery's Patented ZeroDrain engineering that guarantees 365 days of readiness for emergencies.
MULTIPLE CHARGING
With a 4000W solar input always ready to serve you, it takes less than a movie runtime to power up with power horse. With 5 ways to energize your backup power solution you will never run out of power.
- AC Charging: 1800W, 3.5 hours
- Charging via Smart Transfer Switch: 4000W, 1.7 hours
- Solar Charging (500X x 2): 1000W, 6.5 hours
- Hybrid Charging (AC, Solar Panels, Smart Transfer Switch): Max 4000W, 1.7 hours
- High-Voltage PV Charging: 4000W, 1.7 hours
Highlights:
- Prioritized Solar and Off-peak charging
- ChargeShield 2.0 tech & LFP battery deliver zero-carbon emission for an odor-free experience
- 62 Protective mechanisms to ensure safe charging even in 113-degree F extreme temperatures
- Adjusts charging speed to optimize battery health and efficiency

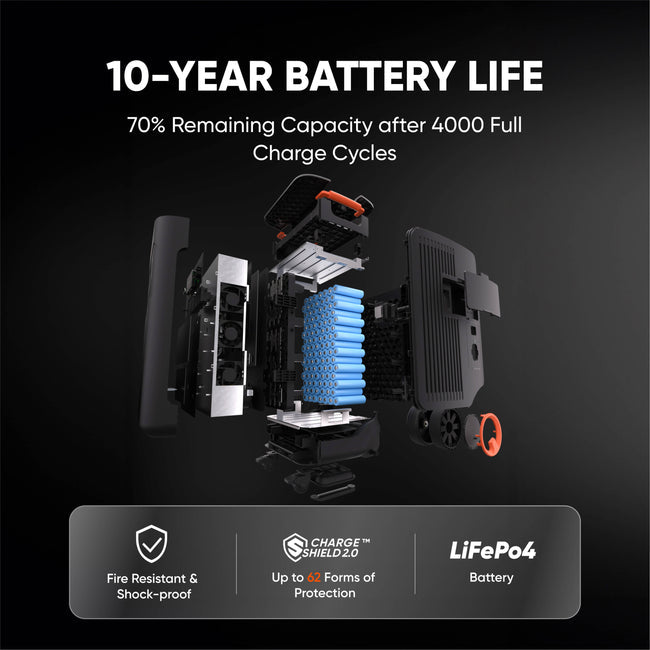

- 4000 Cycles retaining 70% capacity for long years of reliable use
- Safe for indoor and outdoor use
- No installation needed for standalone usage
- Seamless 20ms power switching
- 12 Output ports to hook and power up multiple devices simultaneously

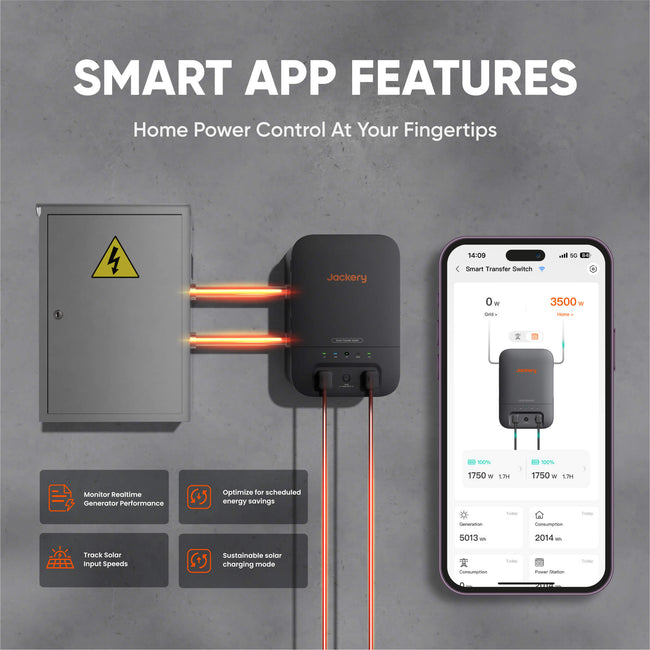

- Smart app control
Specifications:
POWER STATION
Weight: About 134.5 lbs (61 kg)
Dimensions: 16.5×15.5×25 in/41.8×39.5×63.5 cm
Charge Temperature: 32~113 °F (0~45°C)
Discharge Temperature: 5~113°F (-15~45°C)
Warranty: 5 Years
Battery Capacity: 45Ah/112V DC (5040 Wh)
Cell Chemistry: LiFePO4
Cycle life: 4000 cycles to 70%+ capacity
Output Ports AC Output: (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50：120V/240V~60Hz, 30A, 7200W Max

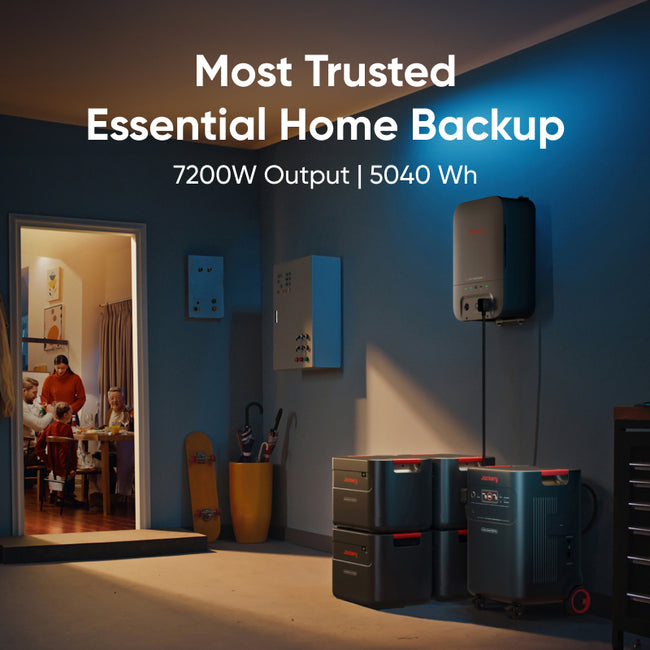

AC Total Output: 7200W Max, 14400W Surge
USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port: 12V⎓10A
AC Expansion Port: 240V~60Hz, 30A, 7200W
DC Expansion Port: 80.5V-126V⎓41A Max
Charge Mode AC Input: 120V~60Hz, 15A Max
Bypass Mode AC Input/Output: 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
AC Expansion Port (Input): 240V~60Hz, 16.7A Max
DC Input: DC Expansion Port (Input)：80.5V-126V⎓98A Max
High-PV: 135V-450V⎓15A Max
Low-PV: 2 x DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max ；11V-16V(Working Voltage)⎓8A Max, Double to 8A Max
Charging Time AC Adapter: 3.5 Hours
Car Adapter (12V): NO
Solar Charging: 6.5-8.5 Hours
Backup UPS: ＜20ms, Onine UPS: 0ms
Inverter Topology: Non-isolated
Power Factor: ≥0.98
Entire Unit: Type 1
SOLAR SAGA
Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
Protection Class Against Electric Shock: Class II
Waterproof: IP68
Operating Temperature Range: -40~185℉（-40~85℃）
Warranty: 5 Years
Solar Maximum System Voltage: 600V DC
Maximum Reverse Current: 15A
Bifaciality Coefficient (back/front): Pmax>80%，Voc>97%，Isc>80%
Voltage Temperature Coefficient: -0.26%/℃
Power Temperature Coefficient: -0.32%/℃
STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax): 500W±5%
Open Circuit Voltage (VOC): 48.5V±5%
Short Circuit Current (Isc): 13.02A±5%
Power Voltage (Vmp): 41.7V±5%
Power Current (Imp): 12.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax): 545W±5%
Open Circuit Voltage (Voc): 49.2V±5%
Short Circuit Current (Isc): 13.86A±5%
Power Voltage (Vmp): 42.5V±5%
Power Current (Imp): 12.84A±5%
What's in the Box:
1 x E5000 Plus
1 x AC Charging Cable
1 x MC4 Wrench
2 x SolarSaga 500X
6 x SolarSaga 85
1 x Solar Charging Cable
1 x Storage Bag
10 x Hinge
8 x Ground Stakes
1 x Hex Key
40 x Screw
2 x Anderson Rubber Plug
2 x Compass Carabiner
1 x Smart Transfer Switch
1 x Marking-Off Template
1 x Power Input/Output Cable
2 x Wall Bracket
4 x M4 Philips Flat Head Screw
1 x User Manual
