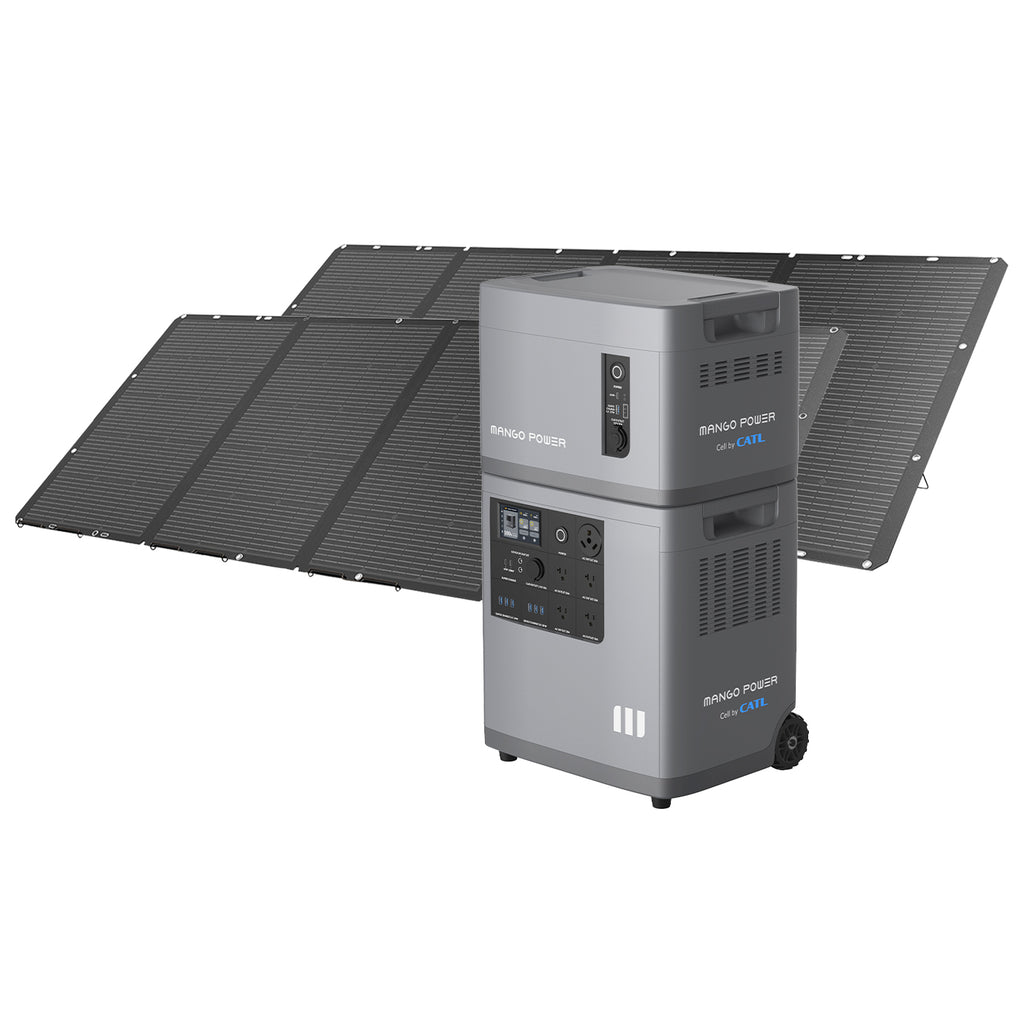

Mango Power Big Battery Solar Generator Kit
Mango Power Big Battery Solar Generator Kit is a high-capacity portable power system designed to deliver reliable backup power for homes, RVs, outdoor adventures, and off-grid living. The kit combines the Mango Power E Portable Power Station, an Extra Battery, and two 400W portable solar panels, providing an expanded 7kWh battery capacity and 3,000W continuous AC output to power essential appliances and electronics for several days.
Featuring premium CATL LiFePO₄ (LFP) battery cells, the system offers up to 6,000 charge cycles, a 10-year warranty, and an expected lifespan of over 20 years. It supports up to 2,000W solar input, fast AC charging in as little as 1.5 hours (with the optional fast-charging cable), and includes multiple AC, USB, DC, and RV outputs for versatile power delivery.
With Wi-Fi and Bluetooth app control, expandable capacity, and optional 240V split-phase capability using the mSocket Pro accessory, the Mango Power Big Battery Solar Generator Kit provides a dependable and eco-friendly energy solution for emergency backup and portable power needs.
Highlights:
- 7kWh Capacity, Providing 2-4 Days of Essential Backup Power
- 3kW AC Output, 2kW Solar input

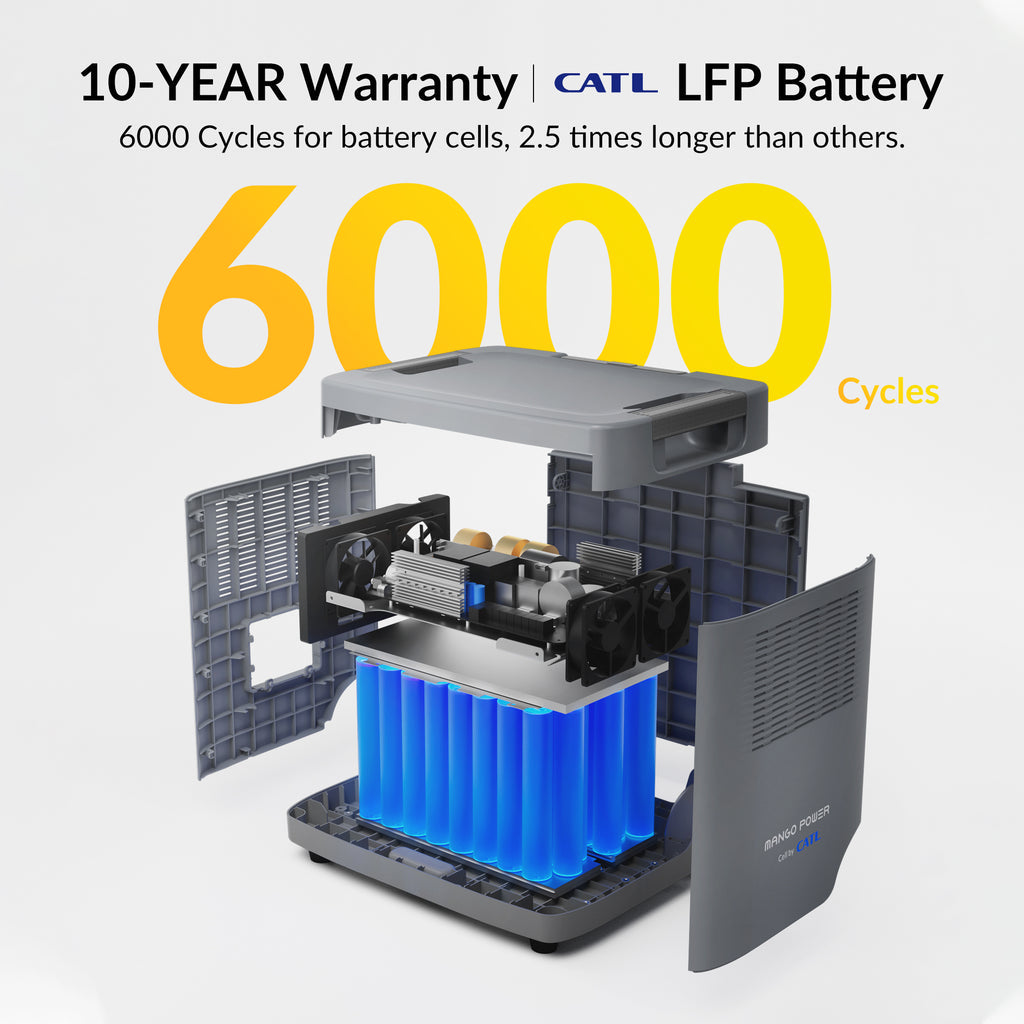

- CATL LFP Battery with a 10-Year Warranty
- 6,000 Cycles and Over 20 Years of Lifespan

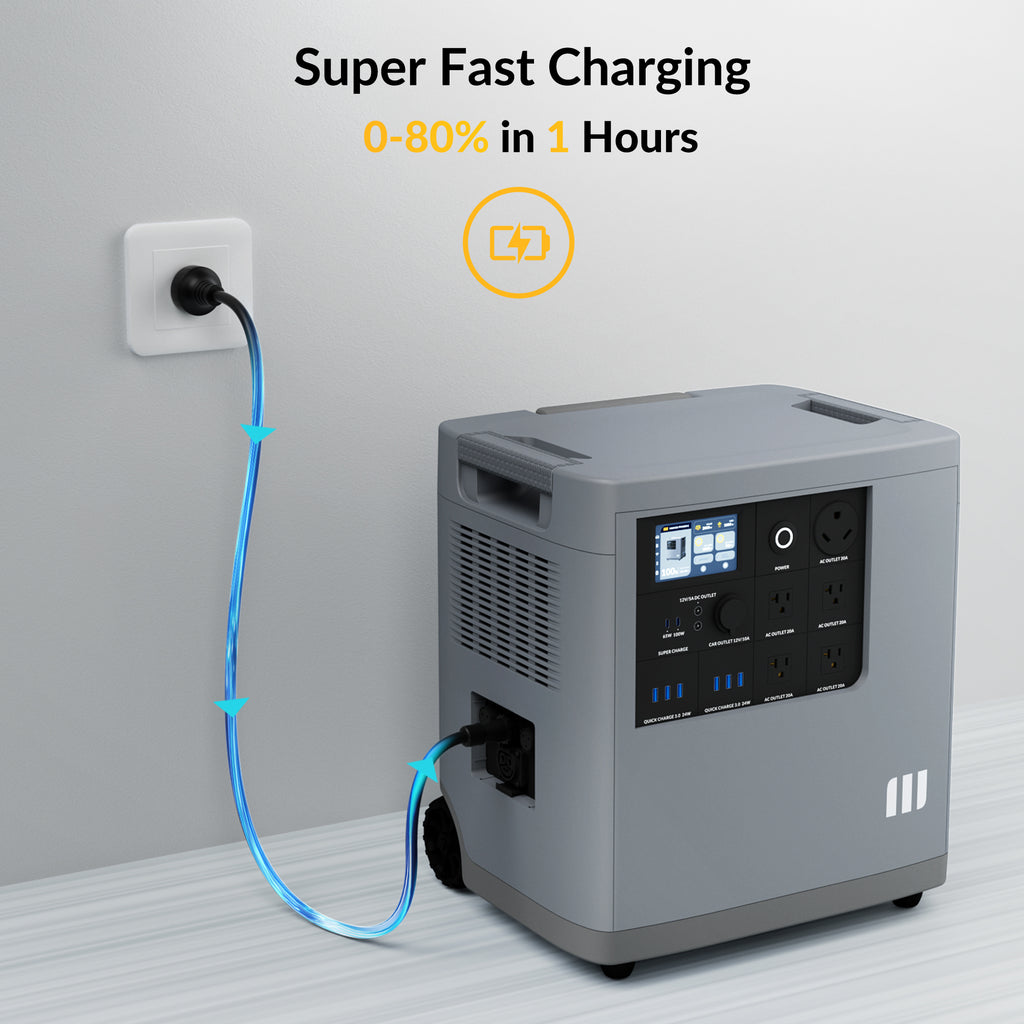

- Fast Charge: 1.5 Hours to Full Charge
Specifications:
MANGO POWER E
Capacity: 3533Wh
Solar Charging Input: Max 2000W (60V-150V)
AC Output: 4 x 20A, 3000W total
EV Charging Spot: Adapter needed
USB-A Output: 6 x QC 3.0 24W
Generator: Support
USB-C Output: 1 x PD 65W + 1 x PD 100W
Battery Chemistry: LFP
Car Power Output: 12V / 10A
Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)
DC5521 Output: 2x 12V / 5A
Connection: Wi-Fi. Bluetooth
AC RV Port: 30A
Net Weight: 100.1 lbs / 45.4kg
AC Charging Input: Max 3000W
Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm
E Expansion Battery
Battery Capacity: 3,533Wh (3.53kWh)
Battery Chemistry: CATL LiFePO₄ (LFP)
Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)

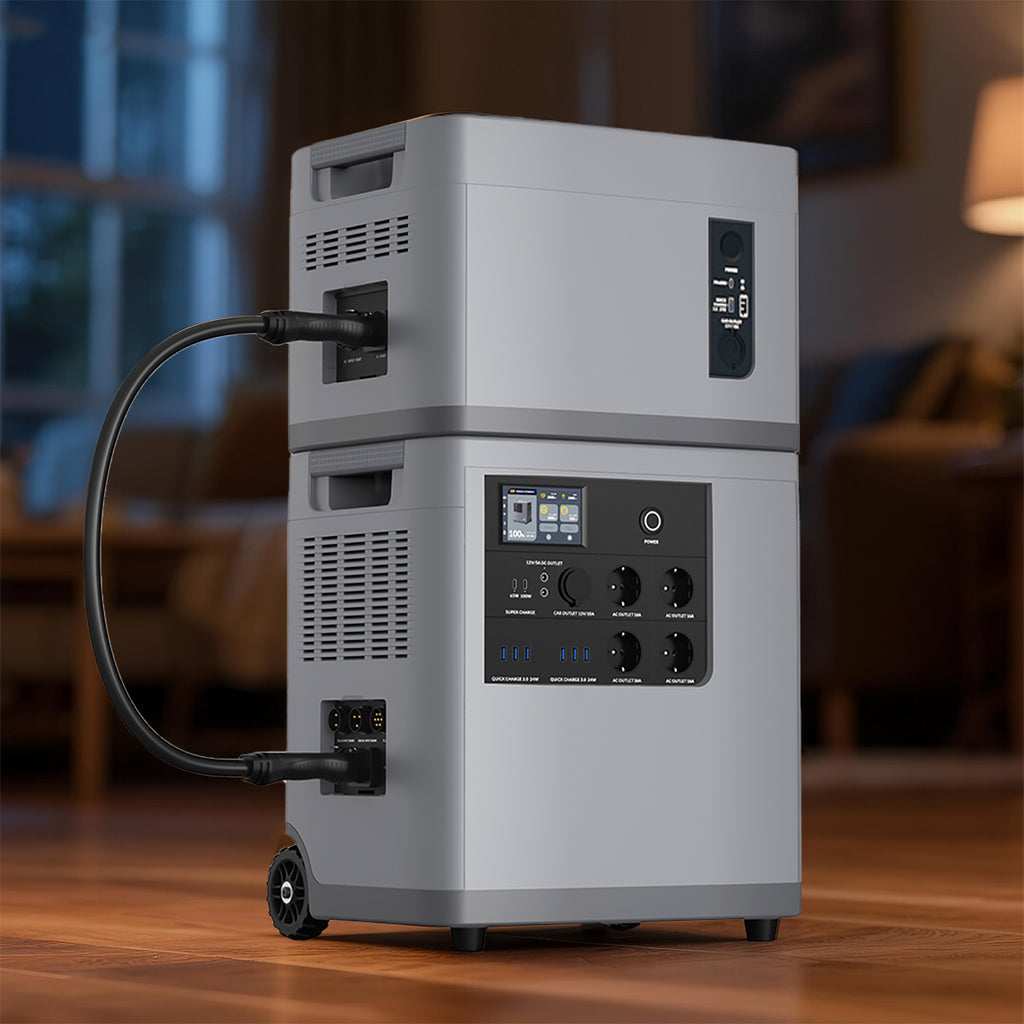

Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh
Compatibility: Mango Power E Portable Power Station
Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection
Connection Method: Direct plug-and-play connection using the included E+ Connection Cable
Installation: Stackable design that attaches directly beneath the Mango Power E
Operating Temperature: Designed for the same operating environment as the Mango Power E system
Warranty: 10-year CATL battery cell warranty
400W SOLAR PANEL
Model: Solar Move
Max Power (Pmax): 400W
Open-Circuit Voltage (Voc): 40.8V
Short-Circuit Current (Isc): 12.36A
Max Load Voltage (Vmp): 32.4V
Max Load Current (Imp): 11.7A
Conversion efficiency: 23%
Cell Type: Monocrystalline silicon cell
Output Interface: MC4
Operating Temperature: -20°C～60°C(-4°F～140°F)
Net Weight: 7.8kg(17.2lbs)/±5 %
Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %
Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %
Warranty: 18 Months
What's in the Box:
1 × Mango Power E
1 × E Expansion Battery
2 × Mango Power Ultra-Light Portable Solar Panel 400W
Connection cables
AC charging cables
User manuals
Warranty cards
