Mango Power S Pro 5000W Set

Whether you're protecting your family from the next outage, powering a 40-foot RV deep into the desert, building an off-grid cabin that actually works, or running a mobile worksite without a generator's fuel costs and noise the Mango Power S Pro 5kW solar system delivers the kind of reliable, intelligent power generation that makes every other option feel like a step backward.

This System Squeezes More Power Out of Every Panel

The Single-Stage Cyclo microinverter skips the usual two-step conversion process. That means less energy wasted, more power delivered. You get more out of your panels every single day even in low light conditions.

Almost Zero Energy Is Lost During Solar Conversion

With 97.0% CEC efficiency and 99.9% MPPT tracking, nearly every watt your panels produce becomes usable power. Your system constantly adjusts to changing sunlight so you never miss a generation opportunity.

Rain, Heat, and Storms Cannot Stop This System

The NEMA Type 6P sealed enclosure is dustproof, waterproof, and fanless. It runs reliably from -40°F to 149°F. No moving parts means fewer things that can break perfect for rooftops, RVs, and harsh outdoor environments.

Your Investment Is Protected for a Full 25 Years

Every microinverter comes with a 25-year warranty and a 219,000-hour design life. That matches the lifespan of your solar panels exactly. Install it once and trust it to keep working no costly early replacements needed.

Your Whole Array Talks to Each Other Through Wi-Fi

The built-in Wi-Fi MESH network connects all 10 microinverters into one smart system. If one unit loses signal, the network reroutes automatically. Monitor real-time energy production panel by panel through the Mango Power app.

Installing This System Is Simpler Than You Think

The touch-safe polymer housing uses Class II double insulation, so no grounding wires are needed. The units are 20% lighter than metal alternatives. Less wiring, less weight, and faster setup even for first-time installers.

Each Panel Works Independently So Nothing Slows You Down

Unlike string inverters where one shaded panel hurts the whole array, each microinverter operates on its own. A cloud over one panel does not affect the other nine. You get full output from every panel, always.

What's In The Box

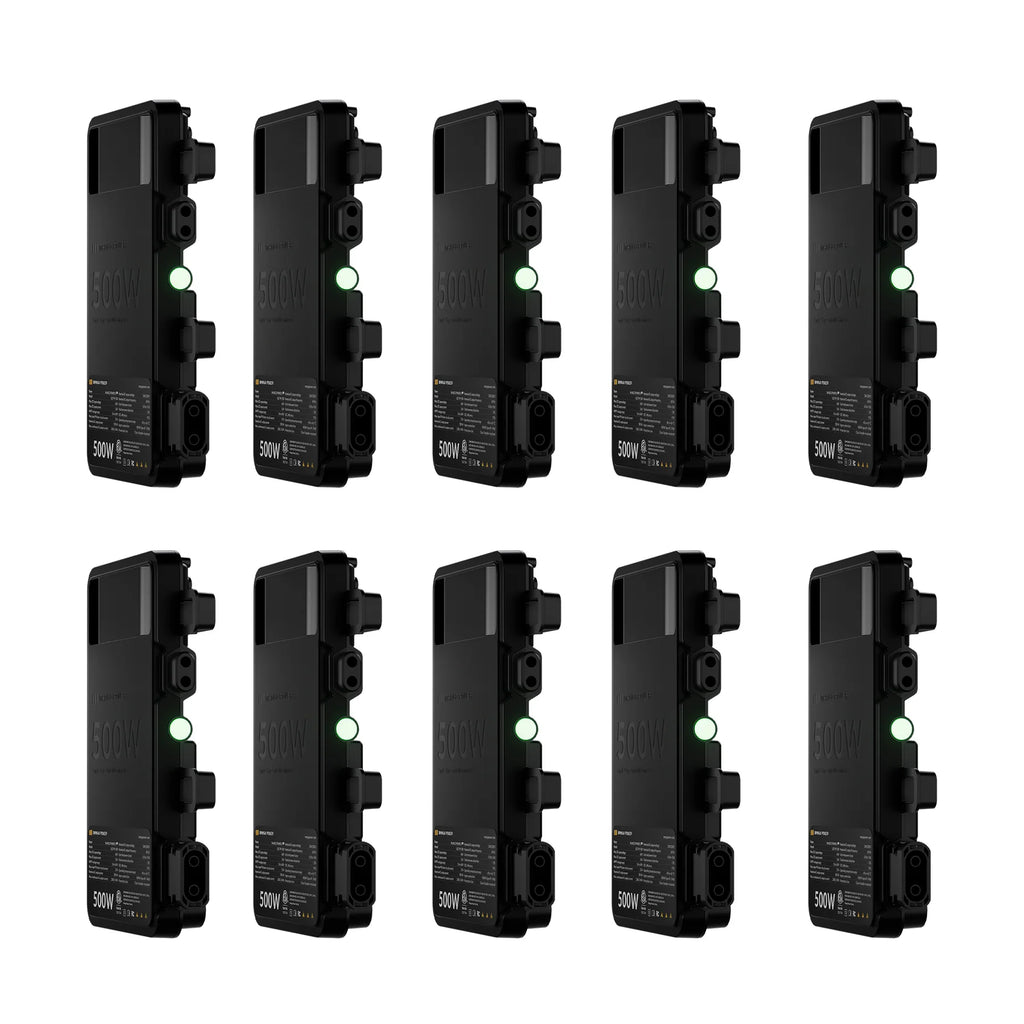

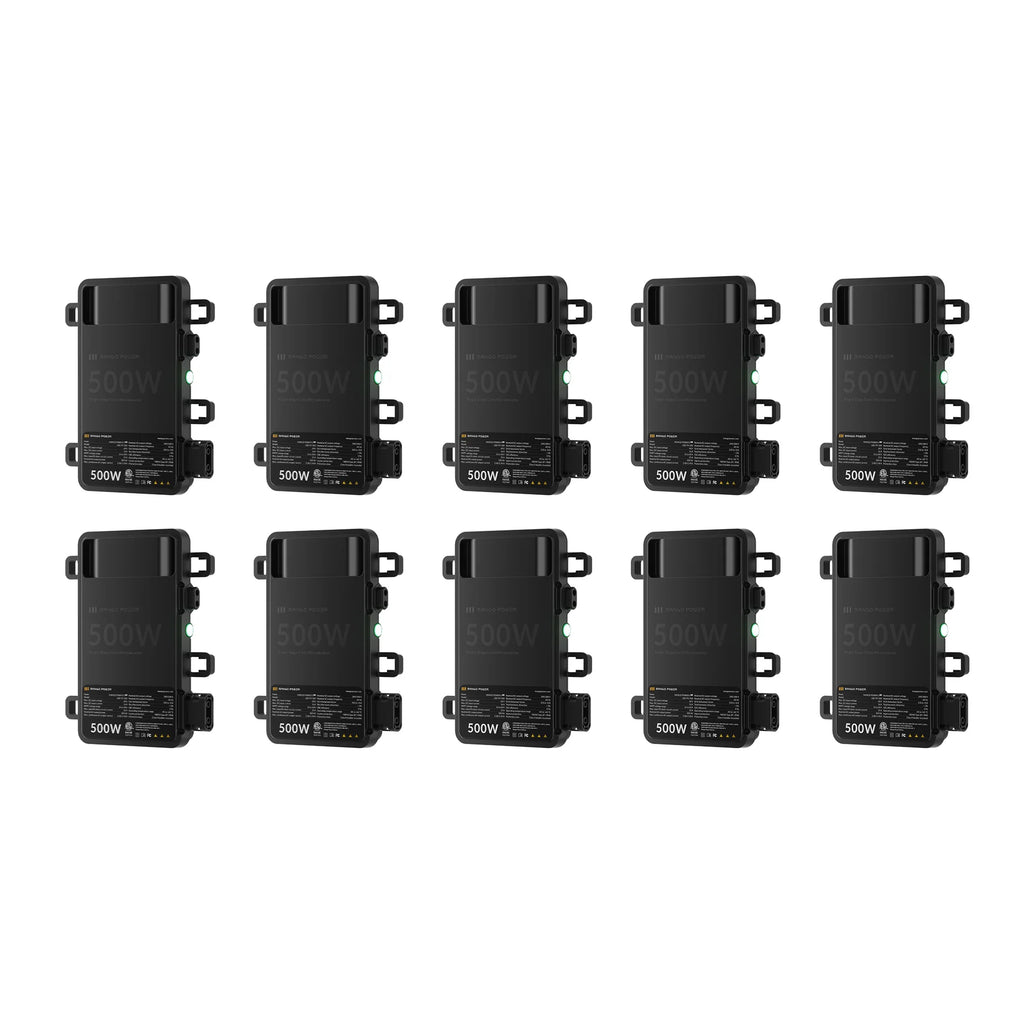

• 1 x Mango Power S Pro 5000W Solar System Set

Specifications

• Nominal output power (VA)

  500W

• Power factor setting

  0.99

• Power factor (adjustable）

  0.8 leading – 0.8 lagging

• Total harmonic distortion

  ＜ 3%

• CEC efficiency

  97%

• Night power consumption (mW)

  <50

• Operating temperature range

  -40℃ to +65℃

• Storage temperature range

  -40℃ to +85℃

• Enclosure rating

  NEMA Type 6P/IP68

• Weight (kg)

  1.2

• Dimensions（mm）

  221.5 × 129.0 × 32.5

• Cooling

  Natural convection

• Pollution degree

  III

• Altitude

  4000 (< 13123 ft))


• Warranty

  25 years

• Communication

  Wi-Fi
