Mango Power Solar Generator Kit Ultra
Mango Power Solar Generator Kit Ultra is a powerful all-in-one energy solution built for whole-home backup, off-grid living, RV travel, and emergency preparedness. Centered around the Mango Power E portable power station, the kit includes two Extra Batteries and multiple 400W portable solar panels, delivering an expanded battery capacity of up to 10.5kWh and 3,000W continuous AC output to run essential appliances, power tools, electronics, and household devices for extended periods.

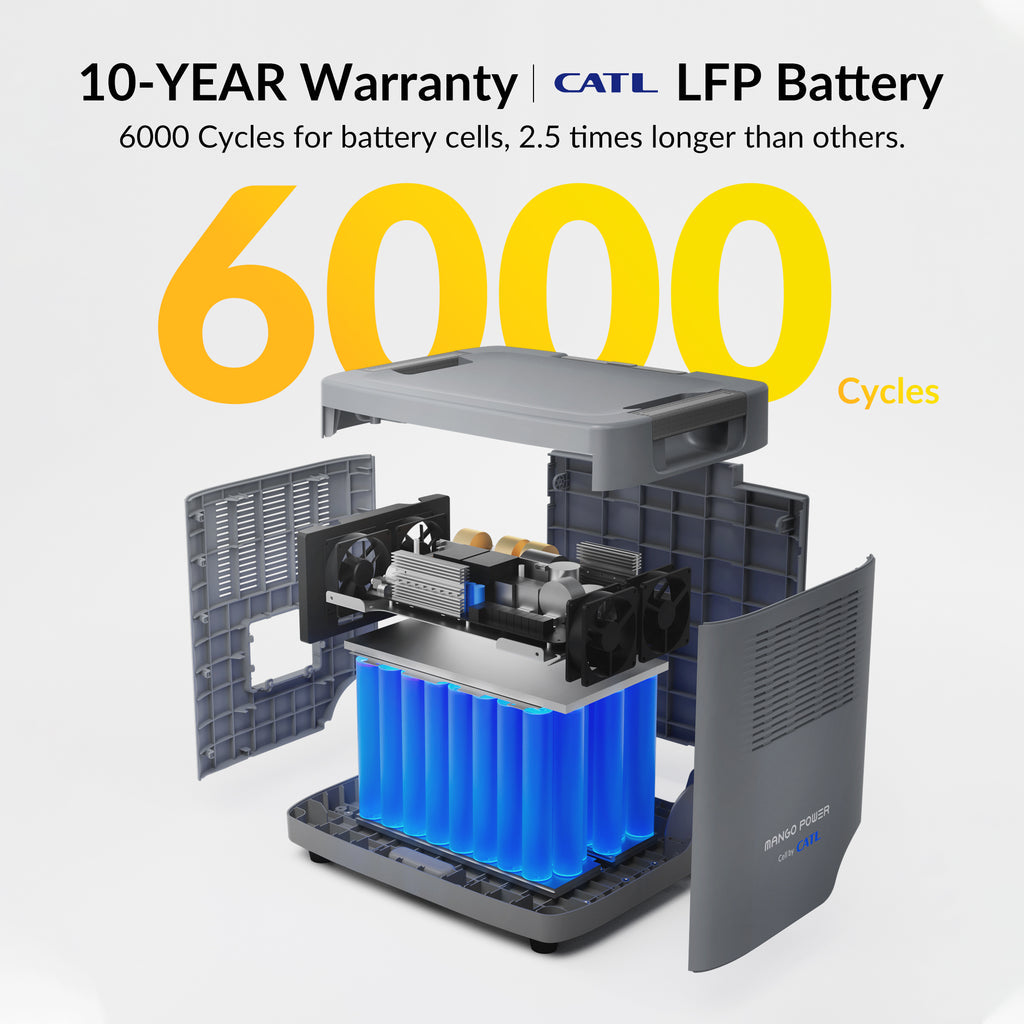

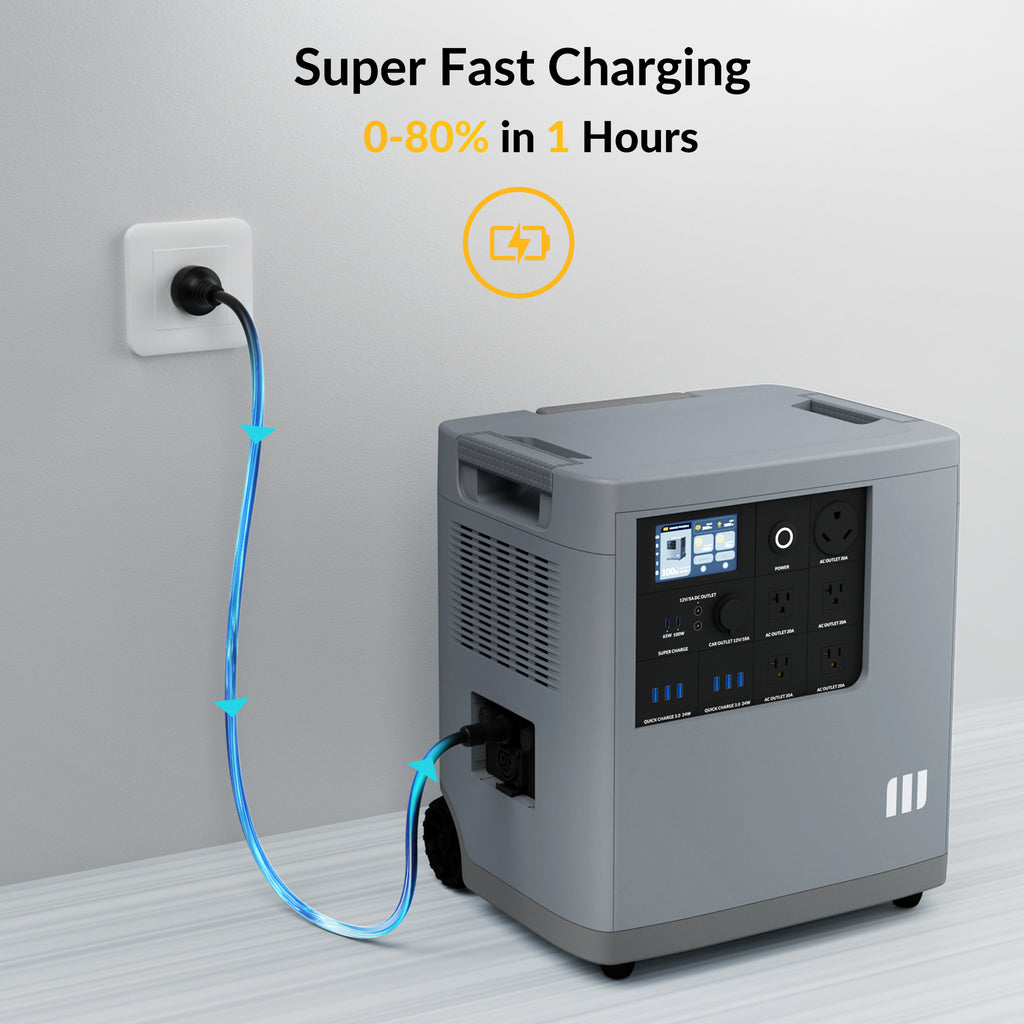

Powered by premium CATL LiFePO₄ (LFP) battery cells with up to 6,000 charge cycles and a 10-year warranty, the system offers exceptional durability and long-term reliability. It supports up to 2,000W of solar input, fast AC charging in as little as 1.5 hours (with the optional fast-charging cable), and features multiple AC, USB, DC, and RV outlets for versatile power distribution.
With smart Wi-Fi and Bluetooth app control, expandable storage, and optional 240V split-phase output using the mSocket Pro accessory, the Mango Power Solar Generator Kit Ultra provides clean, dependable, and scalable power for virtually any situation.
240V Split-Phase for Heavy-Duty Appliances
With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.
Up to 6kW AC Output Expandable to 14kWh
Keep essential appliances running when the grid goes down. From central air conditioning and electric dryers to refrigerators and kitchen appliances, Mango Power E delivers reliable 240V whole-home backup power when your family needs it most.
Take Power Anywhere
Enjoy true energy freedom on RV trips and outdoor adventures. Solar charging keeps your system running, powering essentials and bringing home-like comfort anywhere you go.
Build Your Off-Grid System
No complex installation—just set up and start using. Combine solar panels with a portable power station for reliable off-grid energy anywhere, anytime.
Specifications:

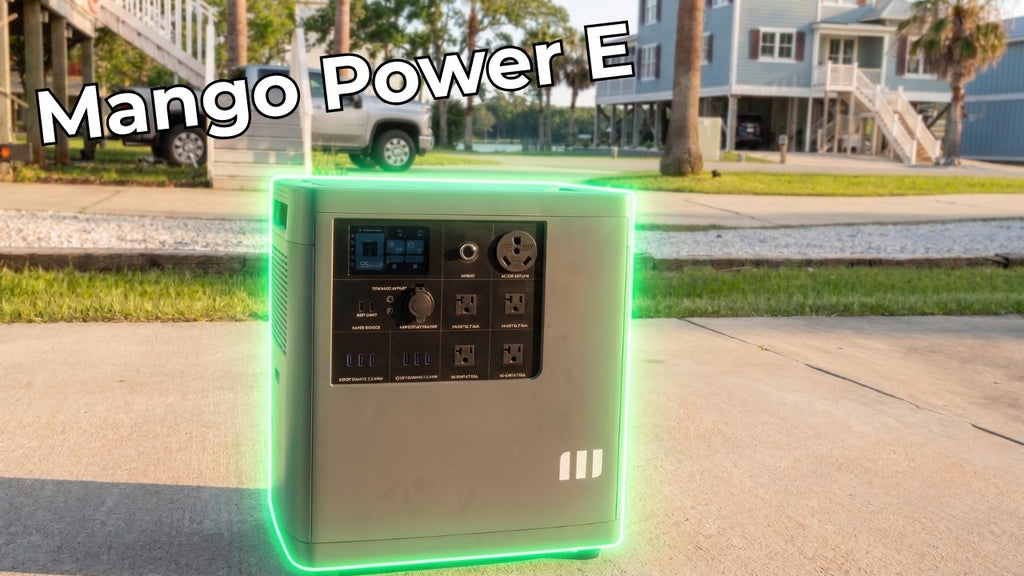

MANGO POWER E
Capacity: 3533Wh
Solar Charging Input: Max 2000W (60V-150V)
AC Output: 4 x 20A, 3000W total
EV Charging Spot: Adapter needed
USB-A Output: 6 x QC 3.0 24W
Generator: Support
USB-C Output: 1 x PD 65W + 1 x PD 100W
Battery Chemistry: LFP
Car Power Output: 12V / 10A
Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)
DC5521 Output: 2x 12V / 5A
Connection: Wi-Fi. Bluetooth
AC RV Port: 30A
Net Weight: 100.1 lbs / 45.4kg
AC Charging Input: Max 3000W
Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm
E Expansion Battery
Battery Capacity: 3,533Wh (3.53kWh)
Battery Chemistry: CATL LiFePO₄ (LFP)
Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)
Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh
Compatibility: Mango Power E Portable Power Station
Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection
Connection Method: Direct plug-and-play connection using the included E+ Connection Cable
Installation: Stackable design that attaches directly beneath the Mango Power E
Operating Temperature: Designed for the same operating environment as the Mango Power E system
Warranty: 10-year CATL battery cell warranty
400W SOLAR PANEL
Model: Solar Move
Max Power (Pmax): 400W
Open-Circuit Voltage (Voc): 40.8V
Short-Circuit Current (Isc): 12.36A
Max Load Voltage (Vmp): 32.4V
Max Load Current (Imp): 11.7A
Conversion efficiency: 23%
Cell Type: Monocrystalline silicon cell
Output Interface: MC4
Operating Temperature: -20°C～60°C(-4°F～140°F)
Net Weight: 7.8kg(17.2lbs)/±5 %
Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %
Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %
Warranty: 18 Months
PARALLEL CONNECTION CABLE
Connector Type: MC4 Male × 2 / MC4 Female × 2 (Parallel Configuration)
Cable Configuration: 2-to-1 Parallel Connection
Maximum System Voltage: 1,000V DC
Rated Current: Up to 30A
Conductor Material: Tinned Copper
Cable Insulation: UV-resistant, weather-resistant PVC/XLPO
Waterproof Rating: IP67
Operating Temperature: -40°C to 90°C (-40°F to 194°F)

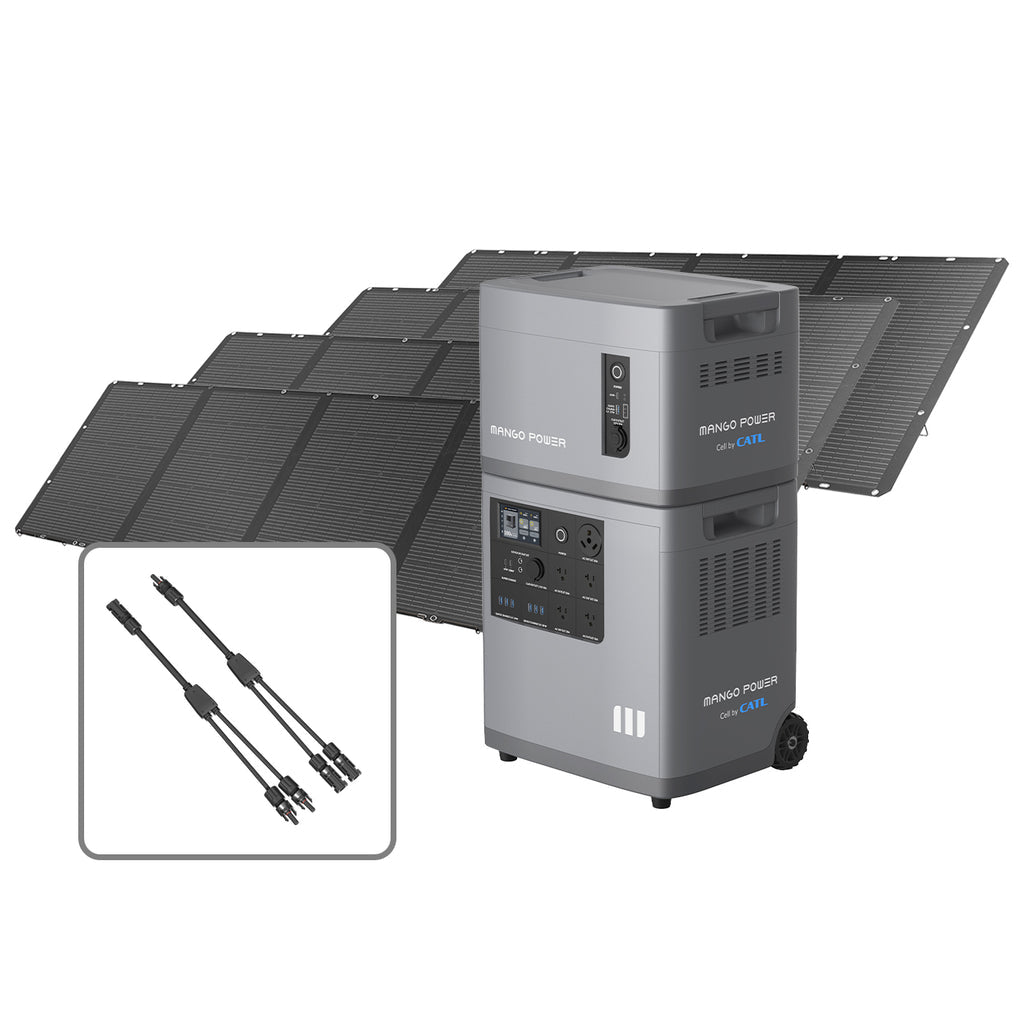

What's in the Box:
1 × Mango Power E
1 × E Expansion Battery
4 × Mango Power Ultra-Light Portable Solar Panel 400W
1 x Solar Parallel Cable
1 × Quick Start Guide
Connection cables
AC charging cables
User manuals
Warranty cards
