Description
-
QYSEA U-QPS
Qysea Underwater Quick Positioning System assists the pilot with the real-time underwater location of the ROV. The engineers at Qysea have used the latest technology to develop this amazing solution based on their very own users' application scenarios! Compatible with: Pro V6 Plus, V6 Expert and V6S, V6, PRO W6
Compatible with: Qysea Fifish Pro V6 Plus - Underwater Drone
Especially designed for the new Fifish Pro V6 Plus underwater drone, the U-QPS comes with three pieces of hardware: the Master-D1 positioning computer board that runs the web GUI and API, also known as the "Topside" comes in an hardshell industrial case; the transmitter that is fixed atop the underwater drone, the "Locator"; and the baseline Antenna that, when submerged in water, receives the acoustic signals emanating from the Locator.
Tons of Features to Improve your Aquatic Exploration and Observation
With the your remote controller in coordination with the U-QPS, users will be able to display the position, azimuth, depth, altitude and distance of the drone in real time. The drone's direction and movement track and be displayed. Users can set a POI at any time on their map as well as record the ROV's path.
-

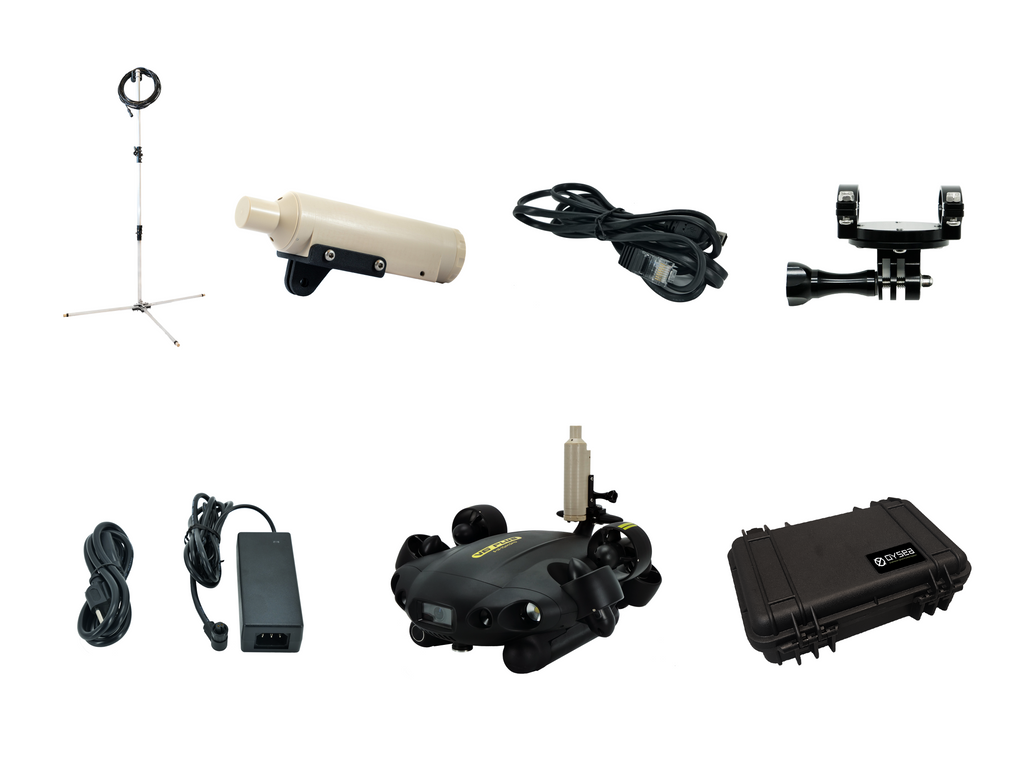

- 1 x "Topside" Master-D1 Positioning Computer Board & Pelican Case
- 1 x Antenna
- 1 x Locator
- 1 x V6 Series Mounting Bracket
- 1 x Mini USB to Ethernet Cable
- 1 x 15V/3A Power Adaptor
-

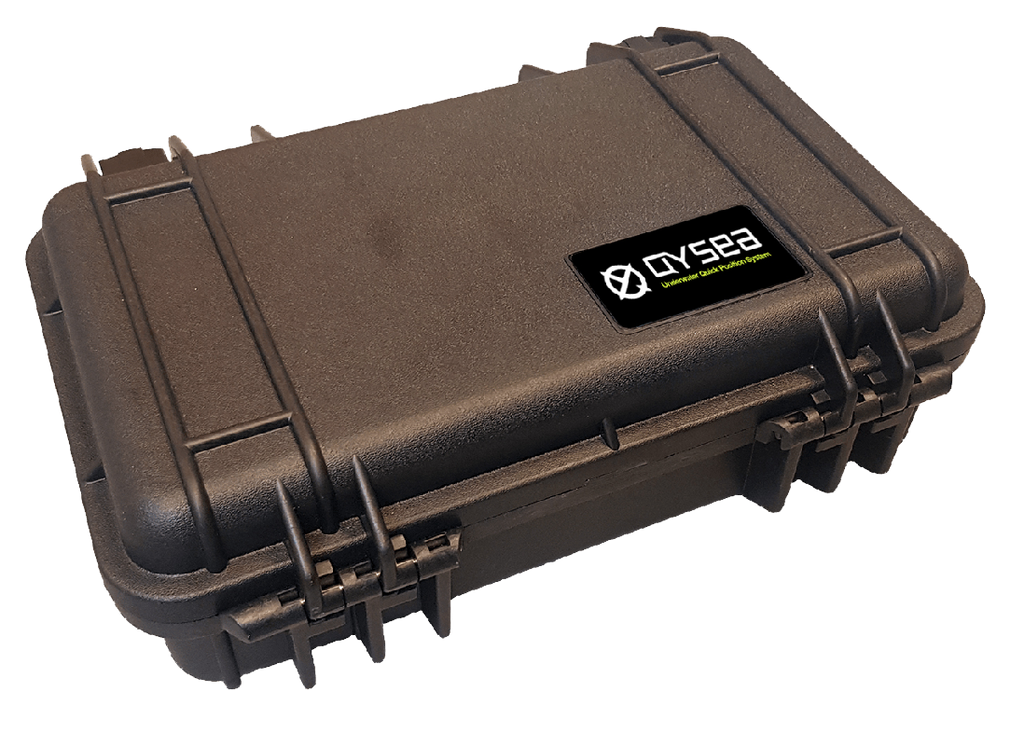

Topside
Weight:
4.4lbs (2kg)
Pelican Case Dimensions (L x W x H in inches):
11.7 x 8.3 x 3.8 (in cm: 29.6 x 21.2 x 9.6)
Material:
Polypropylene Copolymer
IP Rating of Pelican Case:
IP67
Input Voltage:
10-30 V DC
Power Consumption:
0.25A at 12V
Power-On Current Surge:
2.30A at 12V
Communication:
WiFi (802.11ac/a/b/g/n)
Ethernet (100 Mbps)
Range:
656ft (200m)
Ping Rate:
2-4 hz
Accuracy:
1% of Range
Long Term Drift:
Locator A1/D1: None
Locator U1/P1: ~1 meter per 6 hours
Frequency:
31.25 - 250 kHz (200 kHz typically)
Directivity:
Omnidirectional, 360°
Antenna
Weight:
4.2lbs (1900g)
Dimensions Folded (L x W x H in inches):
21.25 x 4.9 x 5.7 (in cm: 54 x 12.5 x 14.5)
Dimensions Expanded (L x W x H in inches):
59.4 x 38.6 x 21.1 (in cm: 151 x 98 x 53.5)
Materials:
Aluminum 6060-T6 (Tubes)
PEEK (Transducers)
POM (Joint Spacer)
Operating Temperature (in °F):
14° to 140° (-10° to 60°C)
Transducers:
4
Baseline:
Triangle 38.6 x 19.3 inches (in cm: 98 x 49)
Directivity:
Omnidirectional, 360°
Max Range:
656ft (200m)
Cable Length (to ROV):
32.8ft (10m)

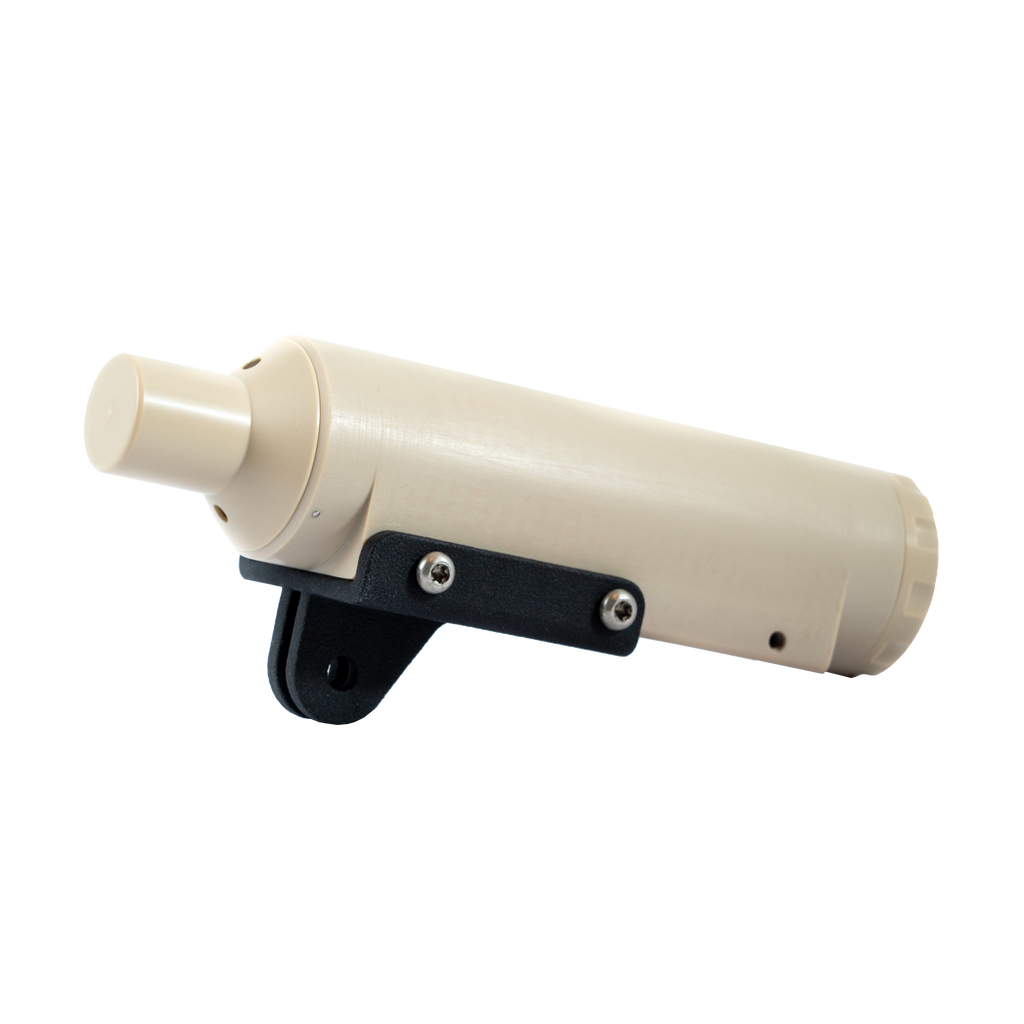

Locator:
Diameter:
32mm
Length:
121mm
Weight (in air):
175g
Weight (submerged)
75g
Depth Rating:
328ft (100m)
Material:
PEEK
Operating Temperature in °F:
14° to 140° (-10° to 60°C)
Battery Size:
3.7 Volt, 3300mah
Battery Lifetime:
10 Hours
Charging Type:
USB-C
Charging Time:
~6 Hours
Indicator:
Status LED (Displays: Searching, Locking, No Signal)
Acoustic Range:
656ft (200m)
Directivity:
Omnidirectional
SKU:
QYSEA-V6P-UQPS
Return Policy:
Products that have been used in the water cannot be returned, except if they are deemed defective upon inspection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The QYSEA U-QPS 100M is compatible with Fifish Pro V6 Plus, Fifish V6 Expert, Fifish V6S, Fifish V6, and Fifish Pro W6 underwater drones.
The U-QPS 100M provides real-time acoustic positioning up to 100 meters depth for accurate underwater location tracking.
The system includes three core hardware components: the Master-D1 positioning computer board (topside unit with web GUI and API control), the Locator transmitter (mounted on the underwater drone), and the baseline antenna (submerged receiver for acoustic signals).
Yes, the Master-D1 topside positioning computer board comes housed in an industrial-grade hardshell case for field deployment and protection.
