Renogy 1000W Pure sinusoidal inverter, 120Vac
The Renogy 1000W Pure Sine Wave Inverter (120Vac) is designed to convert 12V DC power from your batteries into 120V AC power, allowing you to run standard household appliances off-grid or in your vehicle. This compact and powerful inverter ensures efficient power conversion with minimal interference or energy loss.
Pure Sine Wave Output
Provides clean and stable 120V AC power, which is crucial for running sensitive electronics, medical equipment, and appliances without the risk of damage or performance issues.
Powerful Output
With 1000W continuous power output and a peak surge capacity of 2000W, this inverter can handle various devices such as refrigerators, power tools, and other small to medium-sized appliances.
Safety and Protection
Built-in features like overload, over-temperature, under-voltage, and short-circuit protection ensure your devices and batteries stay safe from potential damage.
Compact and Lightweight Design
Weighing only about 6.6 lbs, the inverter is portable and easy to install in vehicles, RVs, or boats, making it ideal for mobile and off-grid applications.
Hassle-Free Setup
Perfect for use in off-grid solar systems, emergency power backup, or in vehicles like RVs and boats. It allows you to power everyday electronics while on the go.
Specifications:
Inverter Output Specifications
-
Continuous Output Power: 1000W
-
Peak Power Rating: 2000W
-
Output Voltage: 120V
-
Output Frequency: 60 Hz ± 0.1%
-
AC Output Sockets: 2
-
AC Terminal Block: 1
-
USB Power Port: 5V/2.1A
-

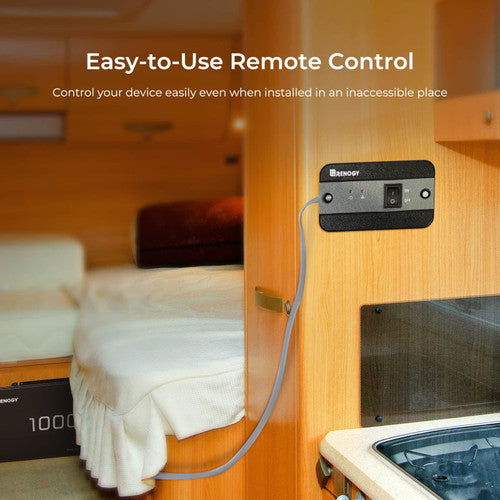

Power Output Control: AC On/Off Switch, and Remote Control
-
Output Waveform: Pure Sine Wave
-
Nominal Efficiency: > 90%
-
Total Harmonic Distortion: < 3% Linear Load < 5% Non-linear Load
Mechanical Specifications
-
Dimensions: 12.9 x 6.8 x 3.3 in
-
Weight: 6.0 lb
-
Cooling Fan: Thermally controlled
-
Operating Temperature Range: -4°F - 104°F
Input Specifications
-
Nominal Input Battery Voltage: 12V
-
Battery Terminal Size: M8
-
Low Battery Alarm: 10.5V ± 0.5V DC
-
High Voltage Alarm: 16V
-
Battery Low Shutdown: 10.0V ± 0.5V DC
-
Over Voltage Shutdown: 16.5V ± 0.5V DC
-
No Load Current Draw: < 1A
Accessories
-
Cable: 4AWG 3ft
-
Inverter Remote Control: 16.4 Ft
Certifications
-
ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES
-
FCC Part 15 class B: YES
Warranty
-
Material and workmanship warranty: 1 Year

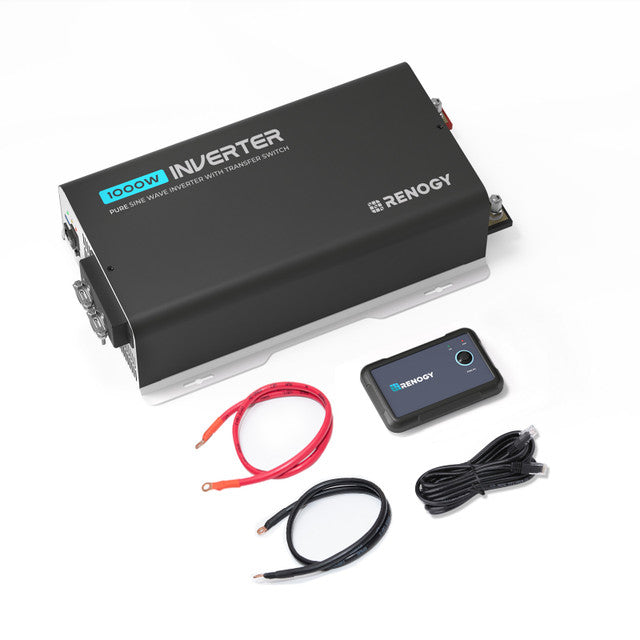

What's in the Box:
1 x 1000W 12V Pure Sine Wave Inverter
1 x 4AWG 3ft Inverter Cables(Pair)
1 x 19.8 ft Inverter Remote Control
1 x User Manual
