Renogy 100W Flexible Solar Panel
The Renogy 100W Flexible Solar Panel is designed for off-grid systems, providing high-efficiency solar energy in a lightweight, flexible format. Ideal for curved surfaces like RVs, boats, or other installations where rigid panels are not suitable.

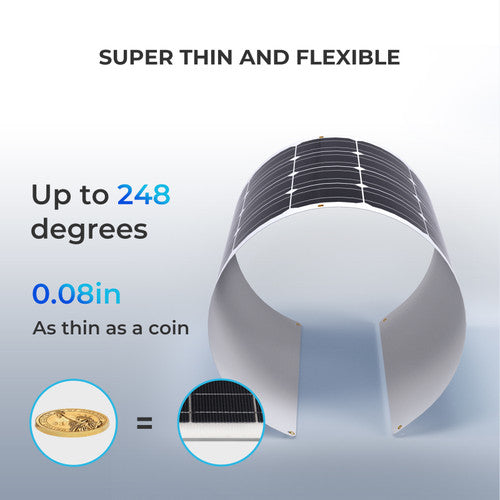

Ultra Lightweight and Flexible Design
With a weight of just 4.2 lbs, this panel is up to 70% lighter than traditional solar panels, making it easier to transport and install. It can bend up to 248 degrees, allowing for versatile installation on curved surfaces like rooftops, boats, or tents.

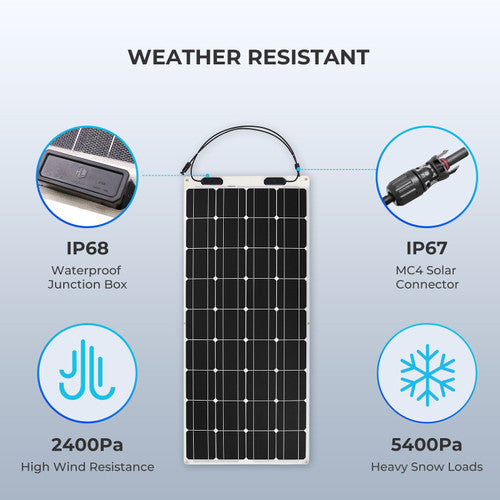

Durable and Weather-Resistant
The panel is built using advanced polymer materials, providing excellent durability even in harsh environments. It is designed to withstand extreme winds (up to 2400 Pa) and snow loads (up to 5400 Pa), ensuring long-term performance in outdoor settings.

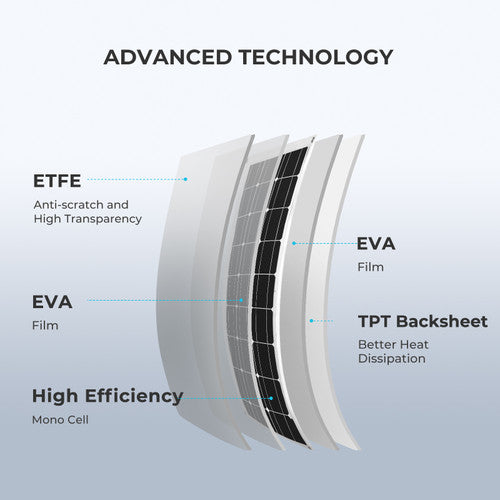

High Efficiency Monocrystalline Cells
This panel features highly efficient monocrystalline solar cells that offer better performance even in low-light conditions. With a higher energy conversion rate, it maximizes the solar energy captured in a limited surface area.
Easy to Install
With pre-drilled holes and the option for adhesive mounting, this panel is easy to set up and attach to various surfaces without requiring a complex mounting system.
Multiple Application Options
This versatile panel can be used in a wide range of off-grid applications, including marine, RV, camping, and rooftop setups. Its flexibility and lightweight nature make it suitable for both permanent and portable installations.
Specifications:
- Maximum Power at STC: 100W
- Module Efficiency: 14.9%
- Optimum Operating Voltage (Vmp): 18.9V
- Open-Circuit Voltage (Voc): 22.5V
- Optimum Operating Current (Imp) : 5.29 A
- Short-Circuit Current (Isc) : 5.75 A
- Operating Temperature : -40°F to 185°F (-40ºC to +85ºC)
- Maximum Series Fuse Rating : 15A
- Maximum System Voltage : 600V DC (UL)
- Certifications : CE, ISO
- Weight : 4.2 lbs (1.9 kg)
- Dimensions : 43.0 x 21.6 x 0.08 in (1092 x 546 x2 mm)

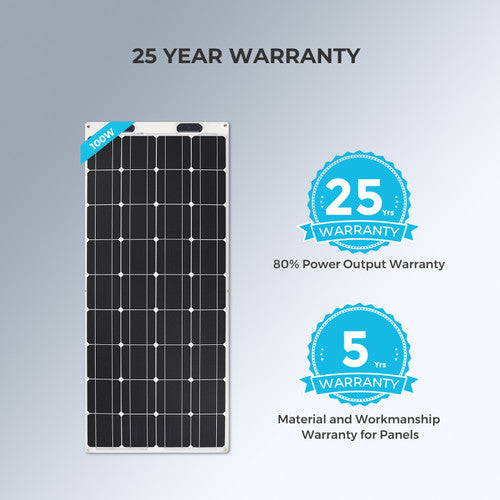

Warranty Information
- Material and workmanship warranty: 5 Years
- Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
What's in the Box:
1 x Renogy 100W Flexible solar panel
1 x User Manual
