100 Watt Eclipse Monocrystalline Solar Suitcase w/ Controller

The Renogy 100 Watt Eclipse Monocrystalline Solar Suitcase with Controller is a portable and efficient solar power solution, ideal for off-grid adventures and emergency backup. This compact system combines high-efficiency solar technology with user-friendly features to ensure reliable energy wherever you go. This folds into a smaller size compared to most 100W solar suitcases on the market. Its lightweight, portable design allows for effortless carrying and setup, even in tight spaces like an RV or a tent, without sacrificing performance.

Reliable System Safety

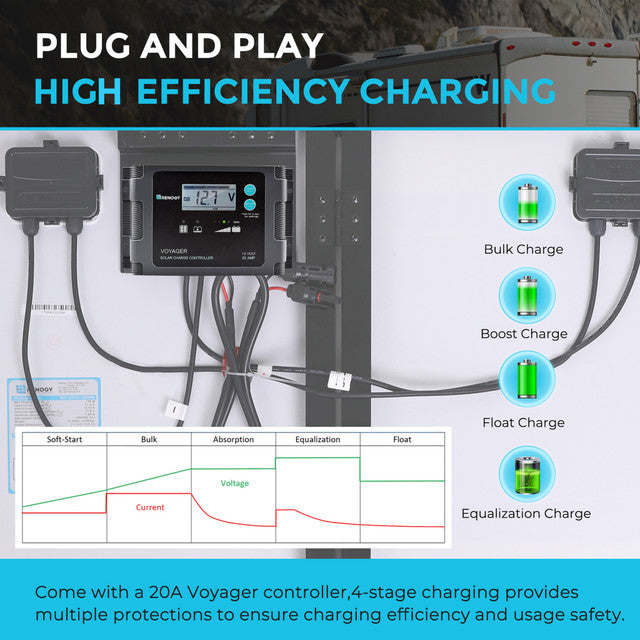

The included Voyager 20A waterproof charge controller uses advanced PWM technology to ensure efficient and stable charging. Built-in multi-layer protection guards your system and battery from overcharging, reverse polarity, and other potential risks, giving you peace of mind.

Seamless Integration with Existing Systems

The IP65-rated Voyager charge controller is compatible with multiple 12V battery types, making it easy to integrate into existing setups. Its waterproof design expands its usability to a wide range of scenarios, including marine, yacht, and fishing applications.

Exceptional Solar Conversion Efficiency

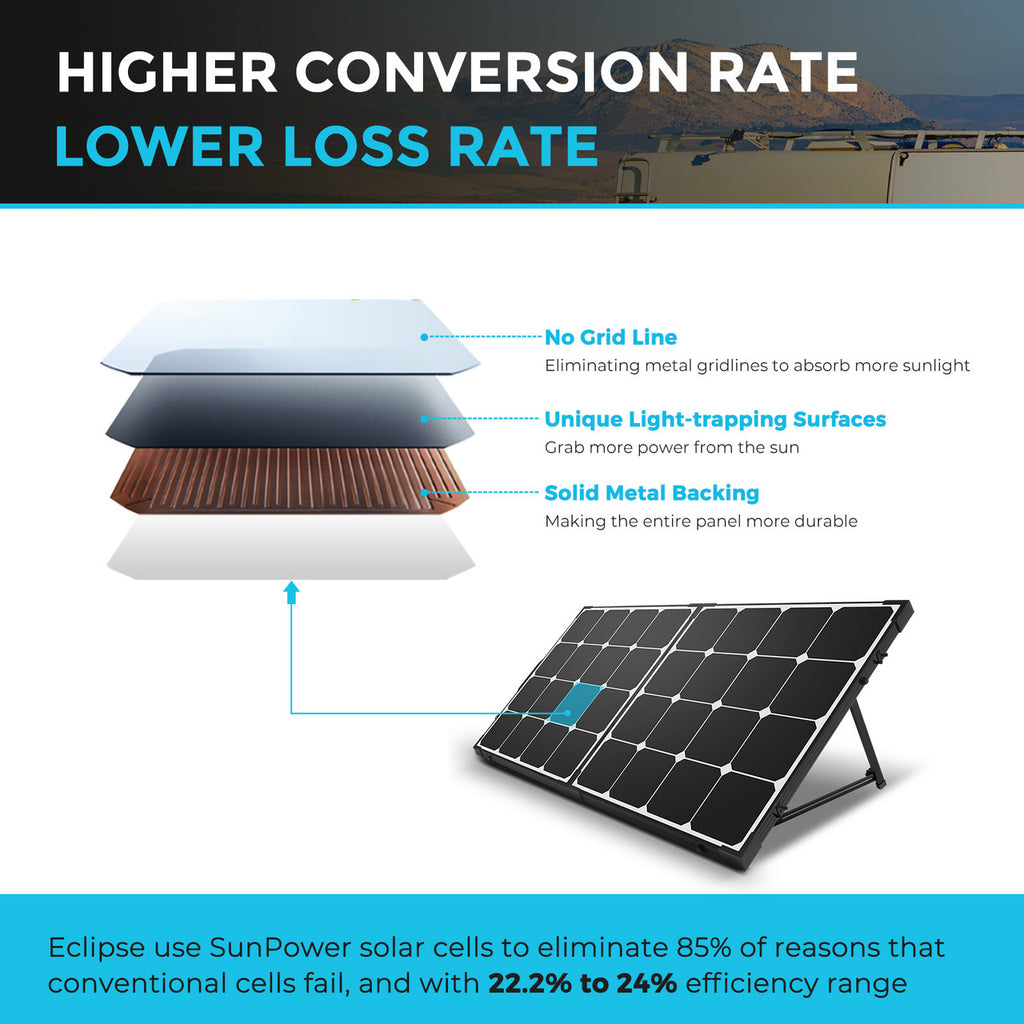

Featuring SunPower solar cells, the Eclipse Solar Suitcase achieves a remarkable efficiency range of 22.2% to 24%, outperforming standard monocrystalline and polycrystalline panels. This ensures maximum energy generation, even in space-limited setups.

Enhanced Flexibility and Energy Capture

Adjustable kickstands allow you to position the suitcase at optimal angles for sunlight exposure. This flexibility ensures efficient energy capture, no matter the environment, empowering your outdoor adventures with consistent power supply.

Reliable Performance in Low-Light Conditions

Bypass diodes installed within the junction box minimize power loss caused by shading and hot spots, guaranteeing excellent performance even in low-light or partially shaded conditions.

Specifications

Solar Suitcase

• Maximum Power at STC: 100W

• Cell Efficiency: 22.8%

• Optimum Operating Voltage (Vmp): 17.6V

• Open-Circuit Voltage (Voc): 21.6V

• Optimum Operating Current (Imp): 5.68A

• Short-Circuit Current (Isc): 6.10A

• Operating Temperature: 45 ± 2 °C

• Maximum Series Fuse Rating: 20A

• Maximum System Voltage: 600V DC (UL)

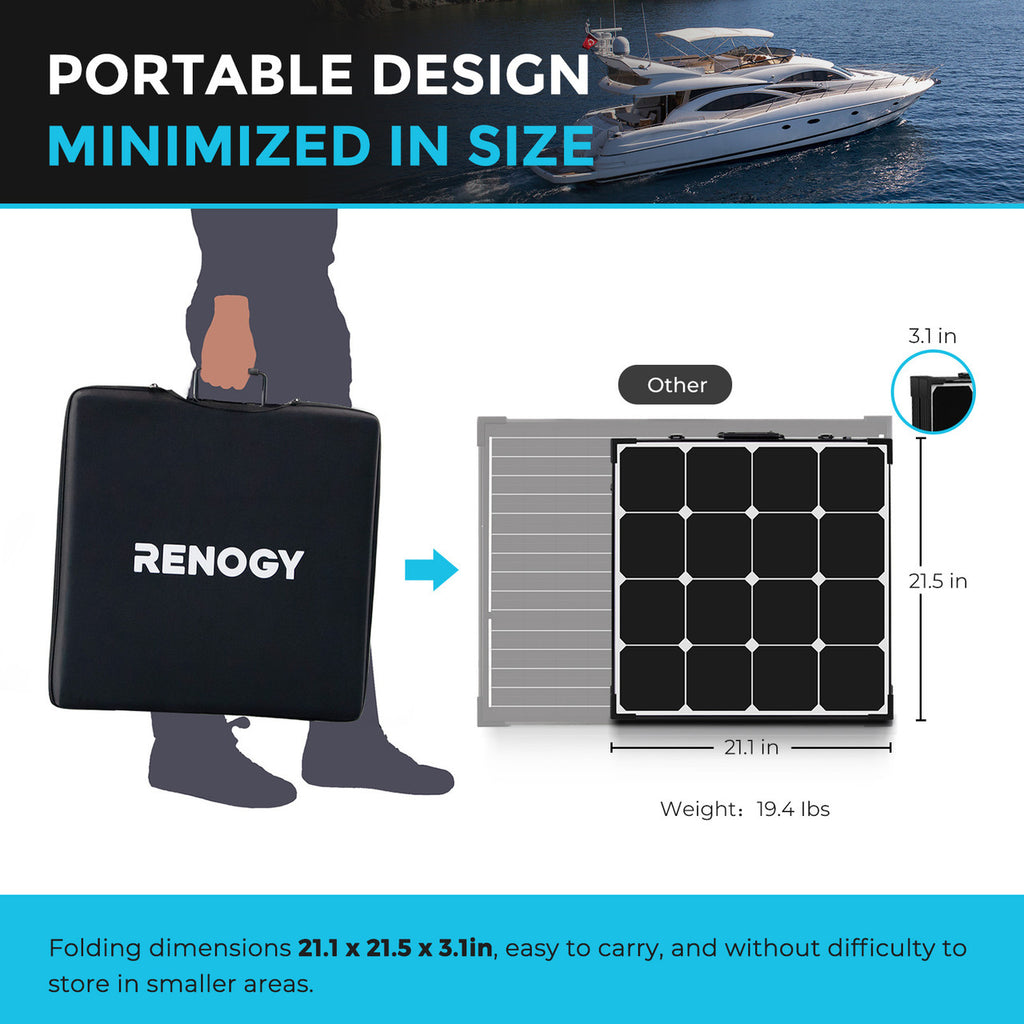

• Dimensions (Folded): 21.1 x 21.5 x 3.1 in

• Weight: 19.4 lbs

• Material and Workmanship Warranty: 3 years

• Performance Warranty:

• 5 years: 95% output warranty

• 10 years: 90% output warranty

• 25 years: 80% output warranty

Renogy 20A Voyager Charge Controller

• Nominal Voltage: 12 VDC

• Self-Consumption: ≤8mA

• Rated Charge Current: 20A

• Operating Temperature: -40°F to 140°F

• Maximum PV Input Voltage: 26 VDC

• Grounding: Common Negative

• Dimensions: 6.38 x 3.82 x 1.34 in

• Weight: 0.88 lbs

What’s Included

• 1 x Renogy 100 Watt Eclipse Solar Suitcase

• 1 x 20A Voyager PWM Charge Controller

• 1 x Solar Connectors to Alligator Clips with Fuse
