The Renogy 12V 1KW 120V Pure Sine Wave Battery Inverter with Transfer Switch is the ultimate solution for reliable power  conversion in off-grid or backup scenarios. Designed with seamless automatic transfer functionality and advanced built-in Bluetooth, this inverter ensures uninterrupted power delivery for essential appliances and electronics while offering robust remote monitoring capabilities.

Pure Sine Wave Power for Reliable Performance

Delivers 1000W continuous power with a 2000W surge capacity, ensuring safe and smooth operation of sensitive electronics, including laptops, TVs, and home appliances. The pure sine wave output mimics grid power for maximum efficiency and compatibility.

Integrated UPS Transfer Switch

The built-in UPS (Uninterruptible Power Supply) transfer switch automatically switches between shore power and battery power within 10 milliseconds, ensuring uninterrupted energy for critical devices during outages.

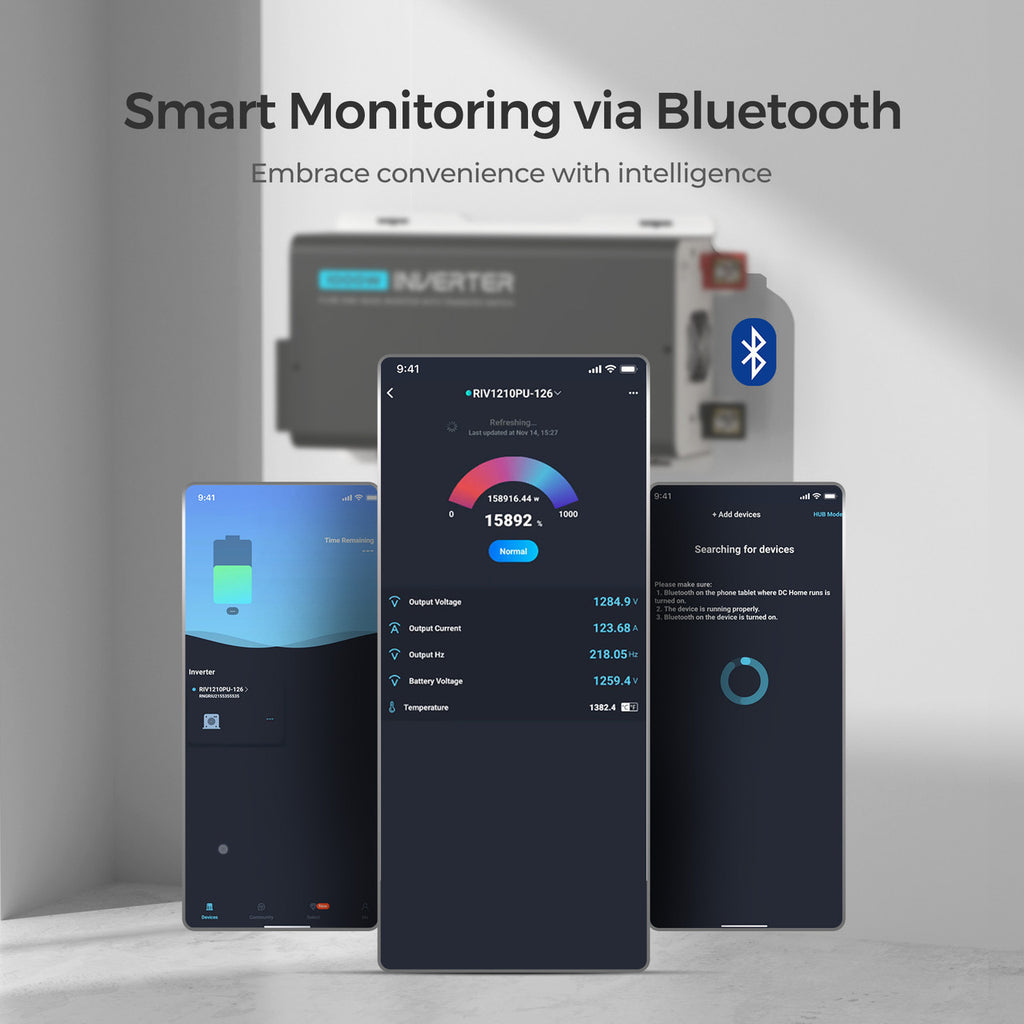

Built-in Bluetooth for Smart Monitoring

Comes with integrated Bluetooth and pairs with the Renogy DC Home app, providing real-time system performance data and remote control over settings from your smartphone.

Compact and User-Friendly Design

Lightweight and portable, this inverter is designed for easy installation and operation in off-grid solar systems, RVs, and backup setups. The LED indicators provide quick status updates, and the intuitive design supports both DIY and professional setups.

Comprehensive Safety Features

Equipped with multiple layers of protection, including overload, short-circuit, over-temperature, and low-voltage protection. The advanced cooling system and durable housing ensure reliable operation under challenging conditions.

Specifications

General Information:

• Model: RIV1210PU-126

• Output Waveform: Pure Sine Wave

• AC Terminals: 2 x AC Sockets + Terminal Block

• DC Terminals: M8-25

• Operating Temperature: -4°F ~ 113°F (-20°C ~ 45°C)

• Cooling: Thermally Controlled Fans

• Enclosure Rating: IP20

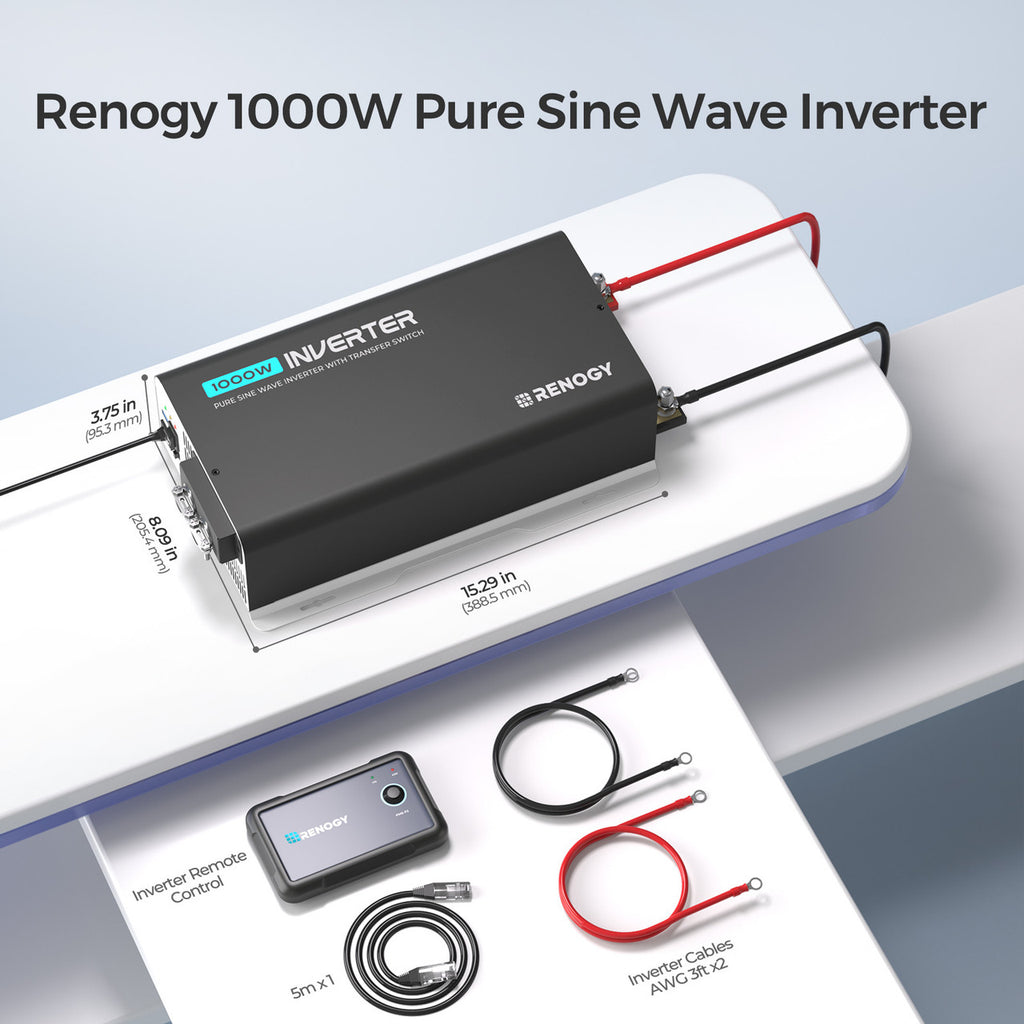

• Dimensions: 15.3 × 8.1 × 3.8 in (388.5 × 205.4 × 95.3 mm)

• Weight: 7.5 lbs (3.4 kg)

Electrical Information:

• Continuous Output Power: 1000W

• Surge Power: 2000W (2 seconds)

• Output Voltage: 120V AC ± 3%

• Output Frequency: 50/60Hz

• Battery Input Voltage Range: 11-15.5V DC

• Transfer Switch Rating: 10A

• Efficiency: >92%

Wired Remote Control:

• Front Plate Dimensions: 4.3 x 2.6 x 1.3 in (108 x 67 x 32 mm)

• Wired Length: 16.4 ft

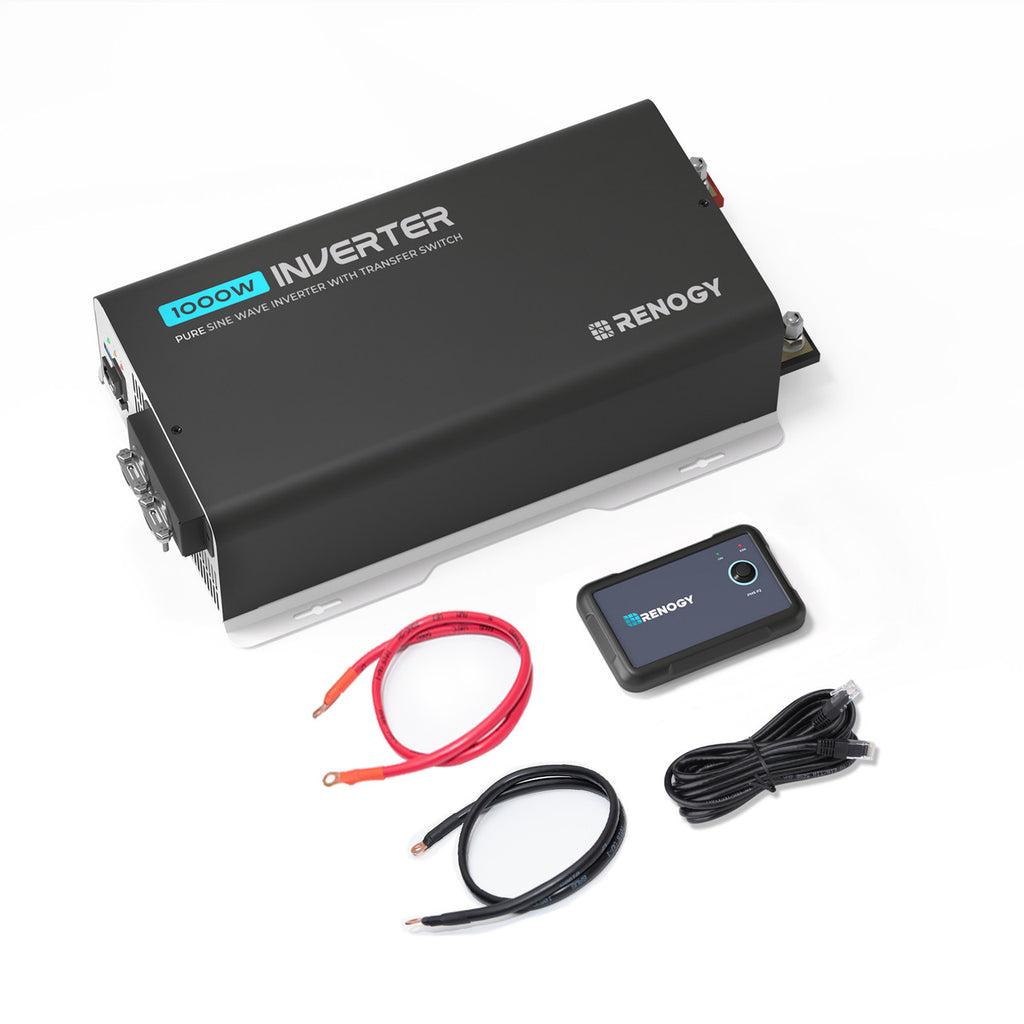

What’s In The Box

1 x 1000W 12V Pure Sine Wave Inverter

1 x 4AWG 3ft Inverter Cables(Pair)

1 x Wired Remote Control

1 x 5m RJ12 Ethernet Cable

1 x User Manual
