Renogy 12V 2KW 120V Pure Sine Wave Battery Inverter With Transfer Switch

The Renogy 12V 2KW 120V Pure Sine Wave Battery Inverter with Transfer Switch is a powerful and versatile solution for off-grid or backup power systems. With 2000W continuous output, seamless automatic transfer functionality, and advanced Bluetooth monitoring, this inverter ensures reliable and efficient power delivery for even the most demanding applications. Perfect for RVs, cabins, or home backup systems, it delivers clean, stable power to protect sensitive electronics and appliances.

High-Capacity Pure Sine Wave Power

Delivers 2000W of continuous power and 4000W surge capacity, making it ideal for larger appliances like refrigerators, power tools, or multiple devices at once. Pure sine wave output ensures compatibility with sensitive electronics, such as laptops, TVs, and medical devices.

Integrated UPS Transfer Switch

Automatically switches between battery and AC power within 10 milliseconds, ensuring uninterrupted power for critical appliances during outages or changes in power supply.

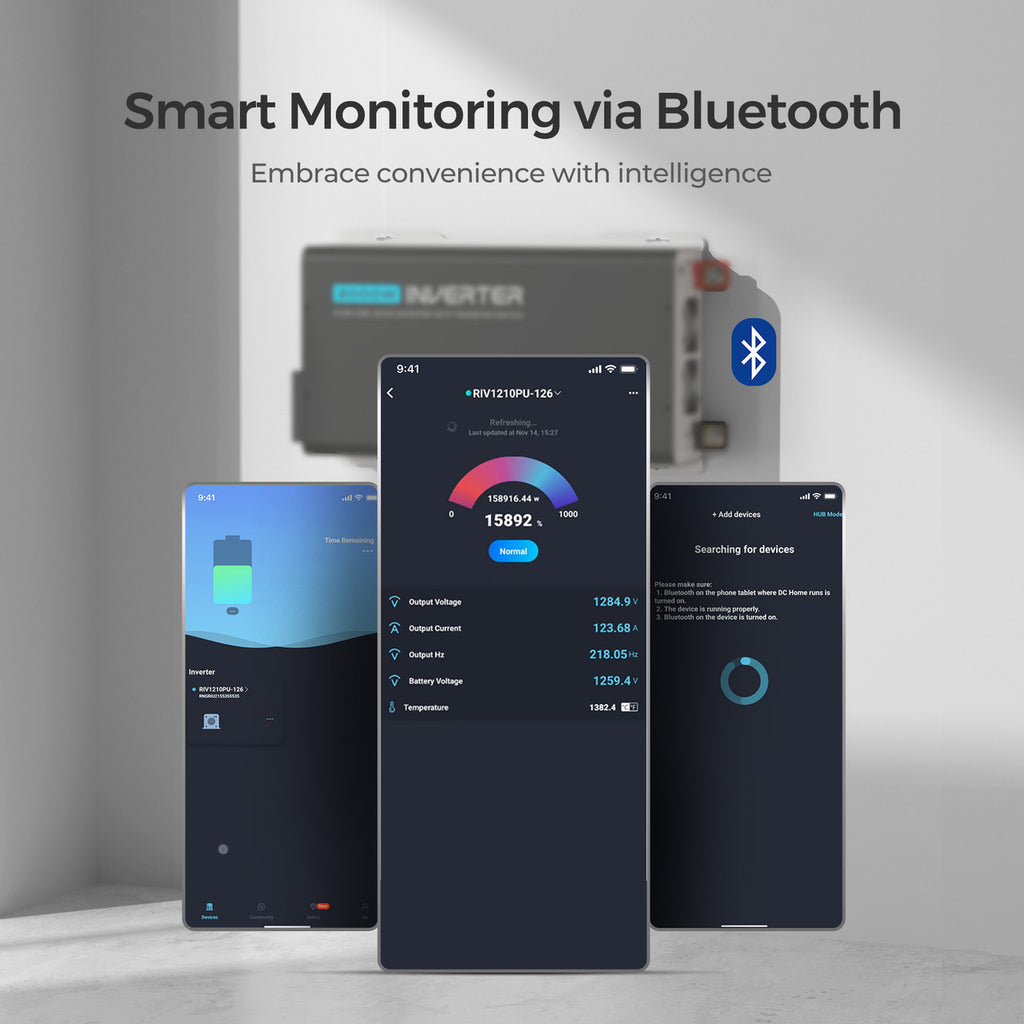

Built-in Bluetooth for Smart Monitoring

Equipped with integrated Bluetooth, this inverter pairs with the Renogy DC Home app, allowing real-time monitoring and remote control of system performance directly from your smartphone.

Compact, Durable Design

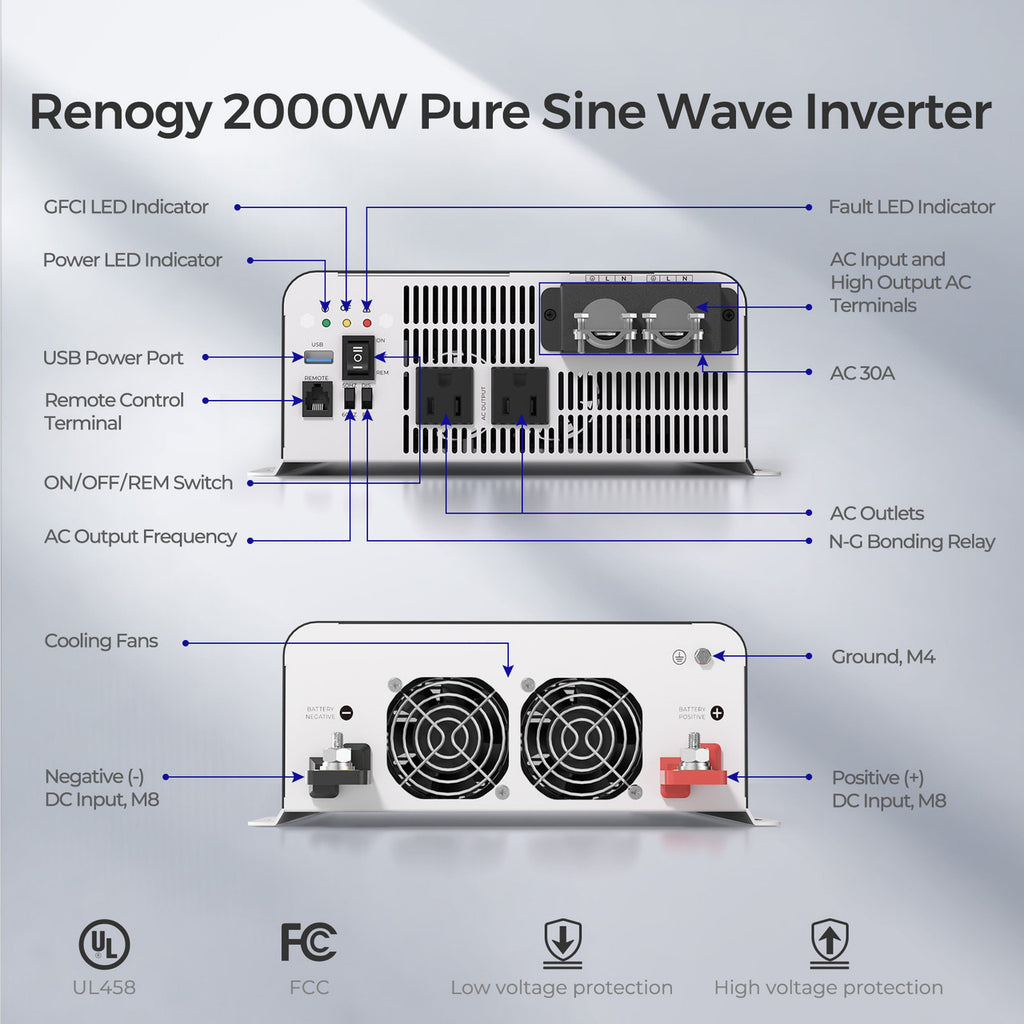

Features two AC sockets and a terminal block for flexible power distribution. Thermally controlled cooling fans keep the inverter operating efficiently, while the durable housing is designed to withstand tough conditions.

Advanced Safety Features

Includes multiple layers of protection, such as overload, short-circuit, over-temperature, and low-voltage safeguards. These features ensure the safety of your appliances and battery system in all conditions.

Specifications

General Information:

• Output Waveform: Pure Sine Wave

• AC Terminals: 2 x AC Sockets + Terminal Block

• DC Terminals: M8-25

• Operating Temperature: -4°F ~ 113°F (-20°C ~ 45°C)

• Cooling: Thermally Controlled Fans

• Enclosure Rating: IP20

• Dimensions: 17.6 x 9.4 x 4.4 in (446 x 238 x 112 mm)

• Weight: 11 lbs (5 kg)

Electrical Information:

• Continuous Output Power: 2000W

• Surge Power: 4000W (2 seconds)

• Output Voltage: 120V AC ± 3%

• Output Frequency: 50/60Hz

• Battery Input Voltage Range: 11-15.5V DC

• Transfer Switch Rating: 30A

• Efficiency: >92%

What’s In The Box

• 1 x 1000W 12V Pure Sine Wave Inverter

• 1 x 4AWG 3ft Inverter Cables(Pair)

• 1 x Wired Remote Control

• 1 x 5m RJ12 Ethernet Cable

• 1 x User Manual
