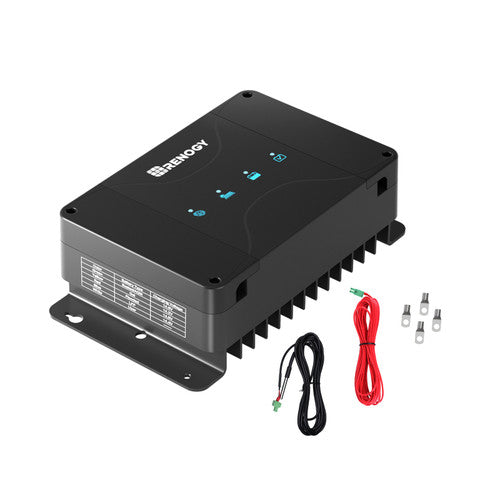

Renogy 12V 30A Dual Battery Charger with Core
The Renogy 12V 30A Dual Battery Charger with Core is an advanced charging solution for vehicles with multiple batteries, offering compatibility with alternators and solar charging setups. This device features integrated MPPT (Maximum Power Point Tracking) technology, ensuring optimal charging efficiency for various battery types.

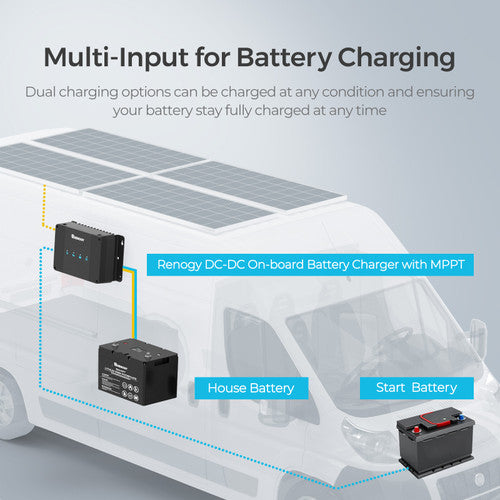

Dual Input for Alternator and Solar
This charger can simultaneously charge batteries from your vehicle’s alternator and solar panels, providing flexibility for charging while driving or parked.
Advanced MPPT Technology
The built-in MPPT solar charge controller optimizes solar charging, improving efficiency by up to 30%, making it ideal for off-grid setups or RVs.
Smart Alternator Protection
It’s compatible with modern smart alternators, ensuring your dual-battery system charges safely without overloading the system, especially in newer vehicles.
Temperature-Compensated Charging
This feature adjusts the charging voltage according to the ambient temperature, ensuring your batteries receive the correct charge and prolonging their lifespan.
Multi-Stage Charging

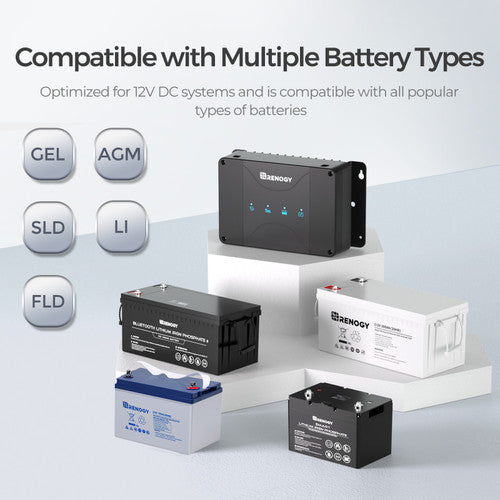

Renogy’s intelligent multi-stage charging system supports various battery chemistries, including AGM, Gel, Flooded, and Lithium, delivering optimal charging at every stage.
Specifications:
Electrical Parameters
-
System Voltage: 12VDC
-
Battery voltage Range: 9-16VDC
-
Maximum Charging Current: 30A
-
Battery Types: SLD/AGM, GEL, FLD, LISER
-
Service Battery Charging Mode: MPPT
-
Charging Efficiency: Up to 97%
-
Max. Solar Input Voltage: 30V
-
Max. Solar Input Power: 400W
-
Alternator Input Voltage: Traditional Alternator: 13.2-16VDC Smart Alternator (Euro 6): 12-16VDC
-
Max. Alternator Input Power: 400W
-
Self-consumption: 60mA

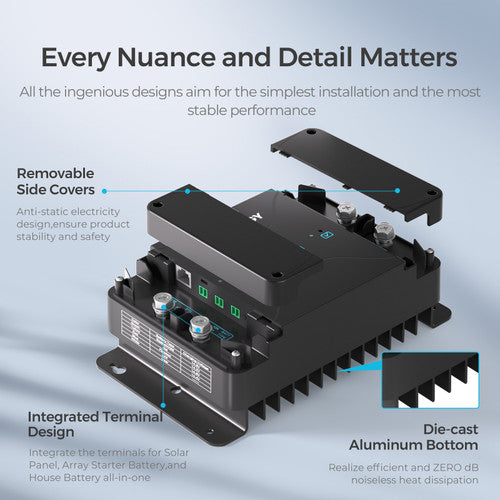

Mechanical Specifications
-
Ground Type: Negative
-
Terminal Size: M8*1.25 - 10mm
-
Temperature Compensation: -3mV/C/2V
-
Operating Temperature Range: -31°F - 149°F
-
Storage Temperature Range: -40°F - 176°F
-
Operating / Storage Humidity: 0%-95%, No Condensation
-
Dimensions: 9.6*5.7*3.0in
-
Weight: 3.13Ibs
-
Communication Protocol: RS485
WARRANTY INFORMATION
-
Material and workmanship warranty: 2 Year
-
Charge Controllers: DCCS Dual Input
-
Battery Chargers: DCCS Dual Input
Certifications
-
CE: YES
-
ROHS: YES
-
FCC Part 15 class B: YES
What's in the Box:
1 x Battery Charger
1 x Bluetooth Module
1 x Renogy One Core
1 x Battery Temperature Sensor
1 x IGN Signal Wire
4 x RS485 Communication Cable
