Renogy 12V 50A Dual Battery Charger with Renogy ONE Core

The Renogy 12V 50A Dual Battery Charger with Renogy ONE Core is a premium solution for fully integrated off-grid power systems. Designed to charge service batteries from alternators and solar panels, it combines advanced MPPT technology with seamless integration into the Renogy ONE Core energy management platform. This allows centralized monitoring and control of your energy system, ideal for users seeking smart, connected energy solutions.

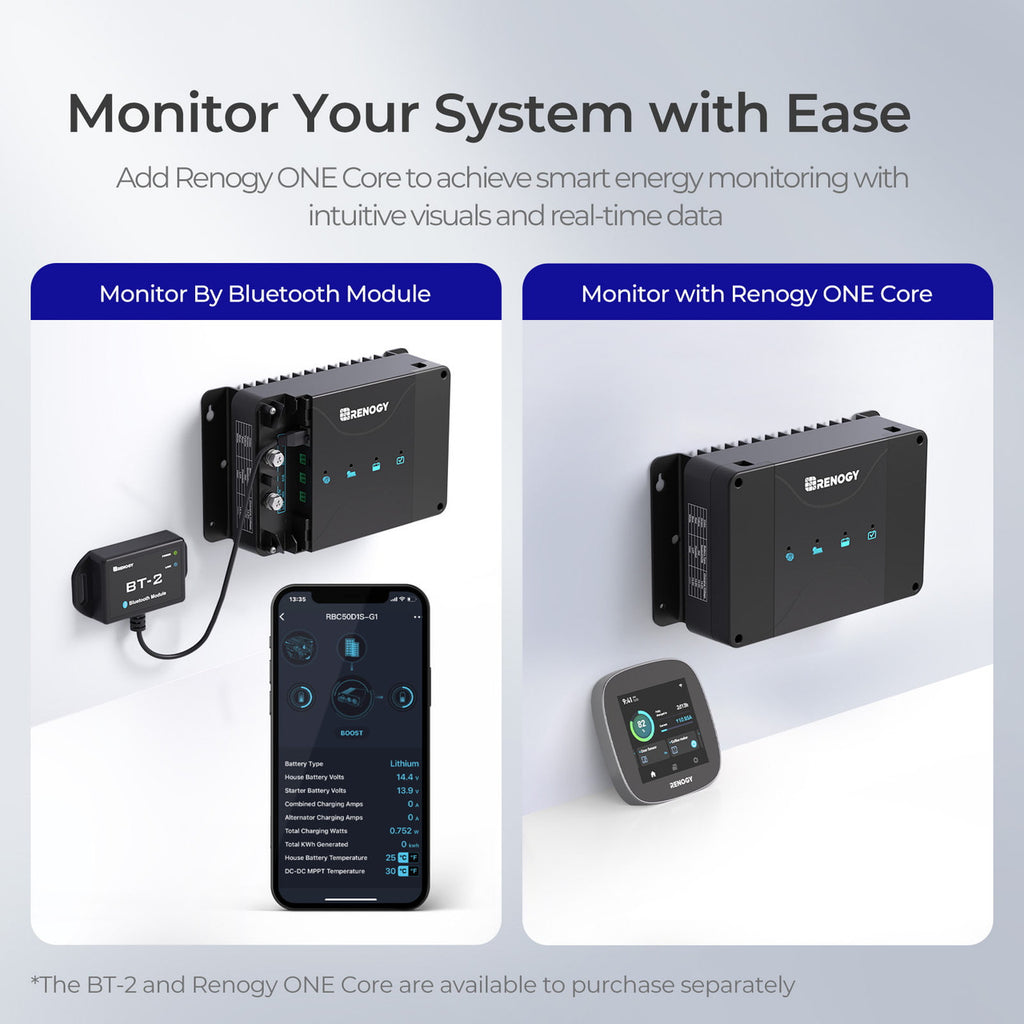

Seamless Integration with Renogy ONE Core

This model works seamlessly with the Renogy ONE Core system, providing a single interface for managing your entire energy system. Monitor, adjust, and optimize power generation, storage, and consumption with ease, ensuring efficient operation across all connected components.

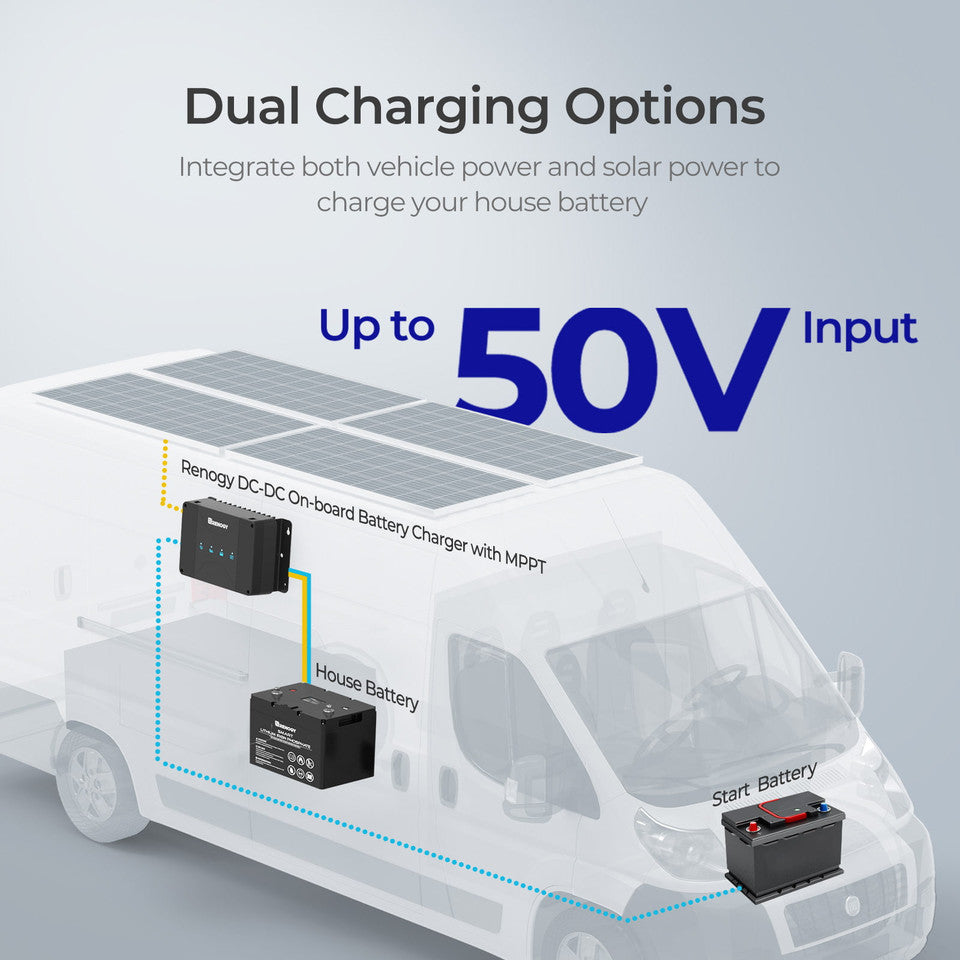

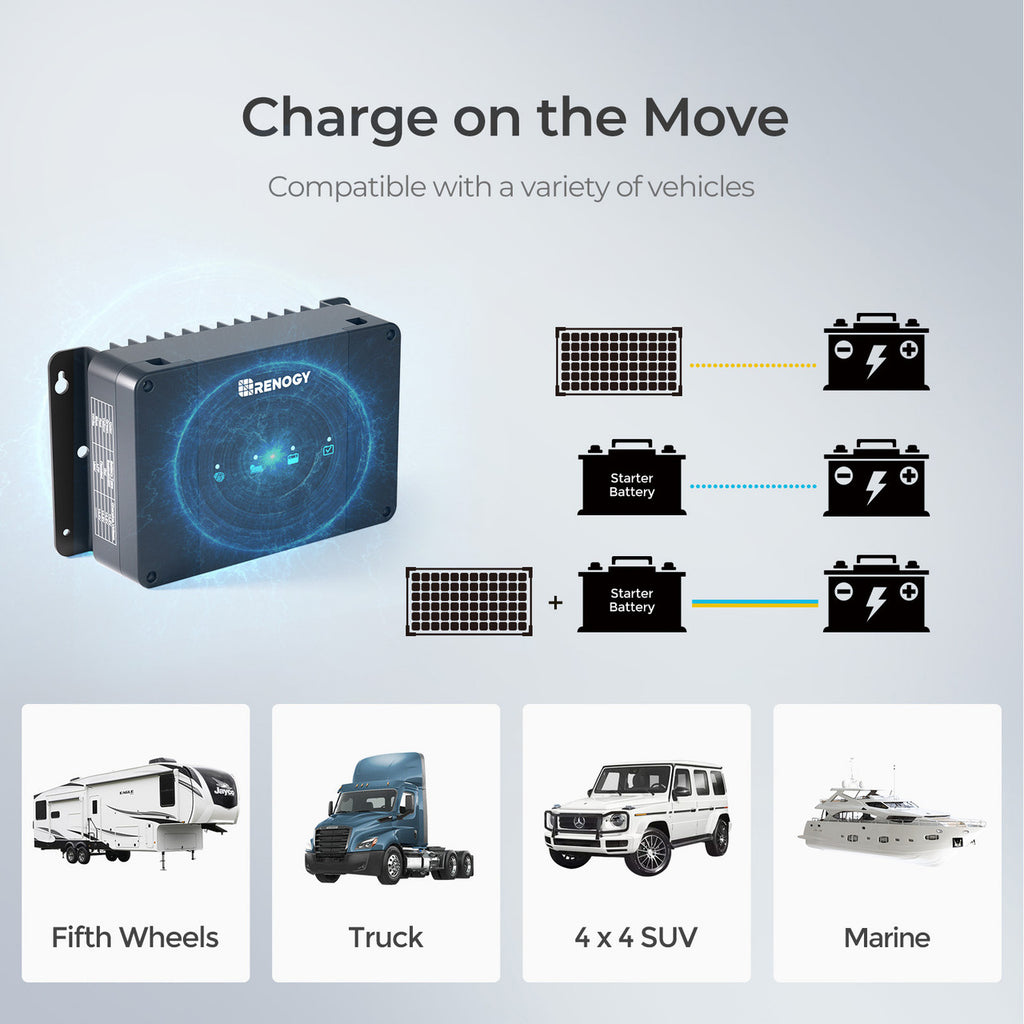

Dual Input Charging for Consistent Power

Supports charging from solar panels and vehicle alternators simultaneously, ensuring your batteries remain charged regardless of travel conditions or sunlight availability. This dual input capability reduces downtime and increases system efficiency.

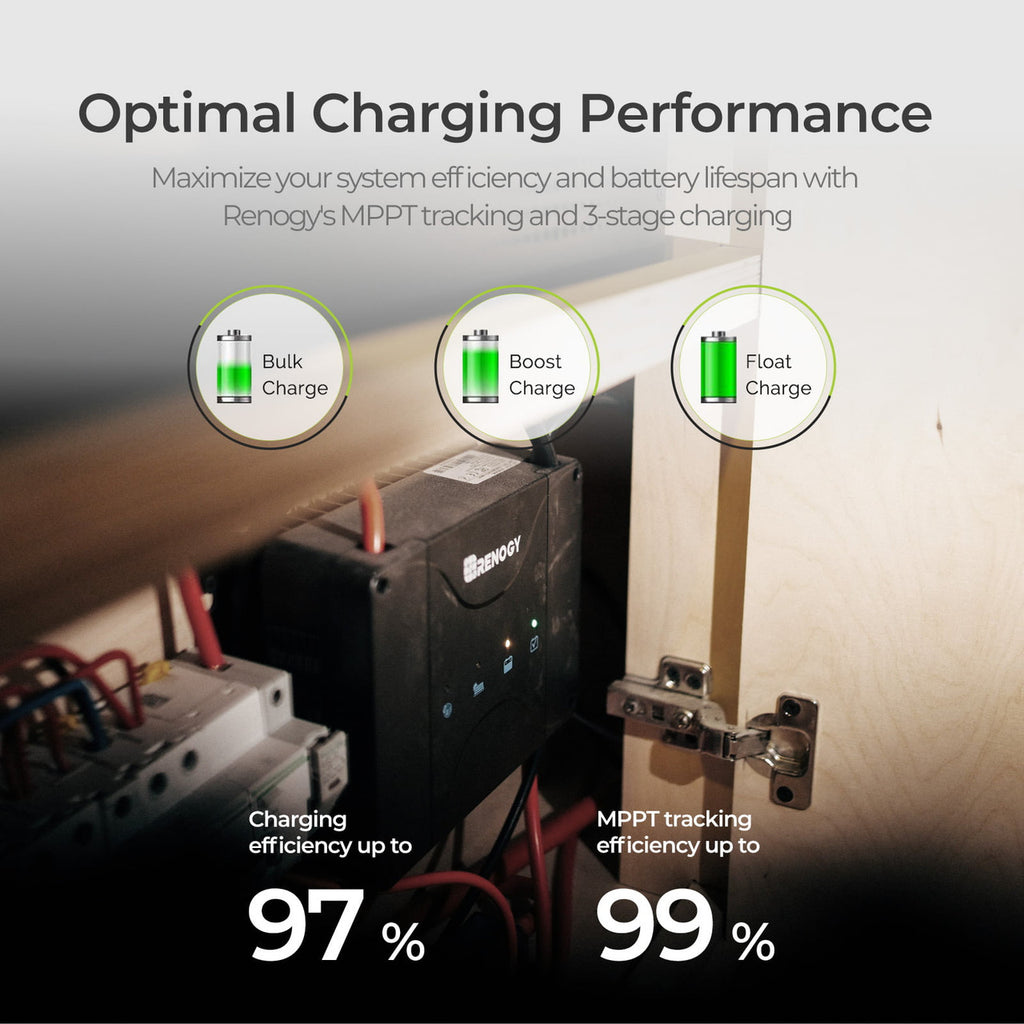

MPPT Technology for Solar Optimization

Integrated Maximum Power Point Tracking (MPPT) technology delivers up to 99% tracking efficiency, maximizing solar panel output even in challenging conditions. This ensures you harvest the most energy possible, minimizing waste and extending off-grid capabilities.

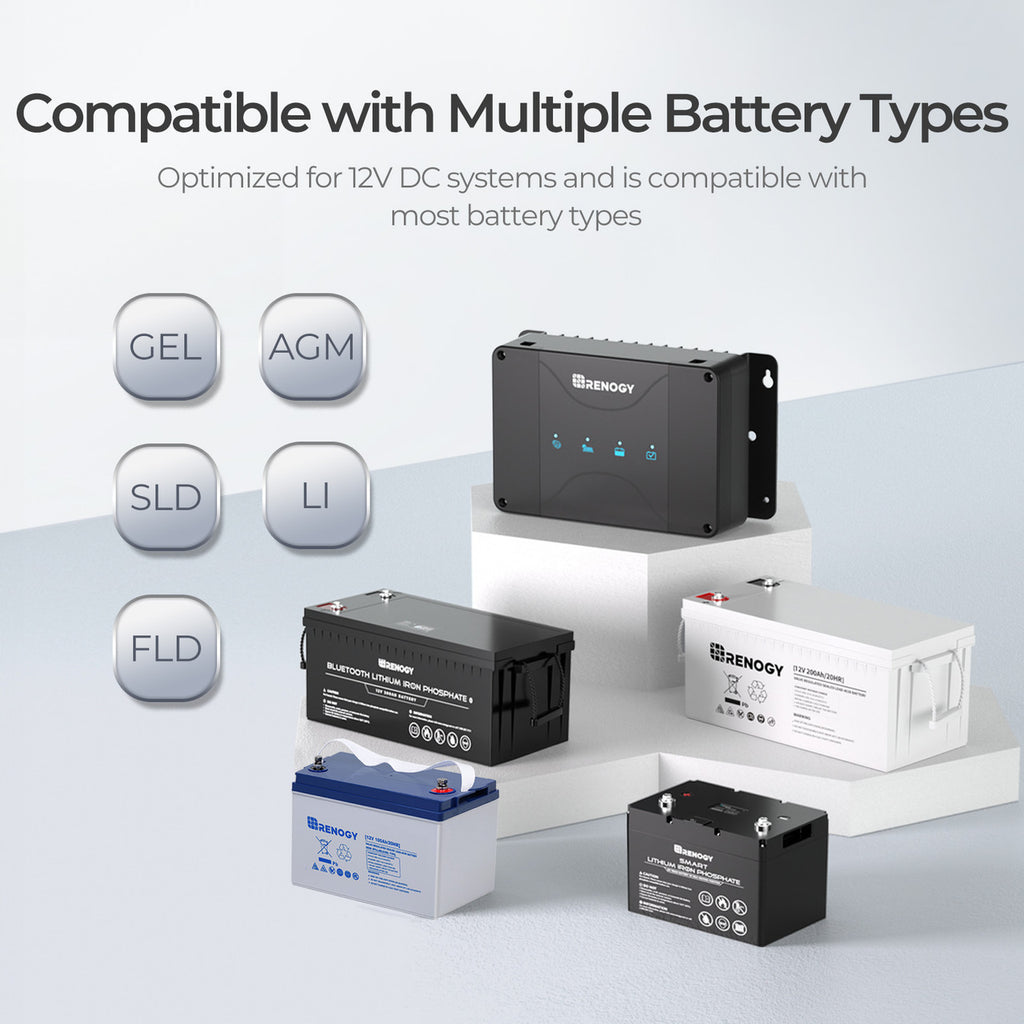

Multi-Battery Compatibility with Smart Algorithms

Compatible with AGM, Gel, Flooded, and Lithium batteries, the charger intelligently adjusts its charging process based on the battery type. This ensures optimal charging rates and prolongs battery lifespan, providing peace of mind for long-term use.

Comprehensive System Protection for Safety

Advanced protections against over-voltage, under-voltage, overheating, reverse polarity, and short circuits ensure your system runs smoothly and safely. These features guard against damage, increasing the reliability and lifespan of the charger and connected components.

User-Friendly Design and Centralized Control

With the Renogy ONE Core integration, you gain centralized control over your system through a sleek and easy-to-use interface. From monitoring energy flow to adjusting parameters, this platform simplifies the management of even the most complex systems.

Specifications

Electrical Parameters

• System Voltage: 12V DC

• Battery Voltage Range: 9-16V DC

• Maximum Charging Current: 50A

• Supported Battery Types: AGM/SLD, GEL, FLD, Li, USER

• Charging Efficiency: 94%

• Maximum Solar Input Voltage: 50V

• Maximum Solar Input Power: 660W @ 50A

• Alternator Input Voltage:

• Traditional Alternator: 13.2-16V DC

• Smart Alternator (Euro 6): 12-16V DC

• Maximum Alternator Input Power: 660W @ 50A

• Self-Consumption: 60mA

• Input Fuse Rating: 75A-100A

• Output Fuse Rating: 75A-100A

• Temperature Compensation:

• Non-Lithium Batteries: -3mV/°C/2V

• Lithium Batteries: 0mV/°C/2V

• Idle Power Consumption: <30mA

General Data

• Terminal Size: M8 x 1.25 - 10mm

• Terminal Range: 8AWG-4AWG

• Ground Type: Negative

• Grounding: Common Ground

• Communication Protocol: RS485

• Operating Temperature Range: -31°F to 149°F (-35°C to 65°C)

• Storage Temperature Range: -40°F to 176°F (-40°C to 80°C)

• Operating/Storage Humidity: 0%-95%, No Condensation

• Dimensions: 9.61 x 5.75 x 3.78 in (244 x 146 x 96mm)

• Weight: 4.10 lbs (1.86 kg)

What’s In The Box

1 x Bluetooth Module

1 x Battery Temperature Sensor

1 x Renogy ONE Core

1 x IGN Signal Wire

4 x Ring Terminals

1 x Battery Voltage Sensor

1 x 60A ANL Fuse

1 x Solar Adapter Cable
