Renogy 12V 50Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
The Renogy 12V 50Ah Core Series Deep Cycle Lithium Iron Phosphate Battery is a powerful, compact solution designed for energy storage in solar, RV, and off-grid applications. Key features include:
Long Battery Life
With over 4,000 cycles at 80% depth of discharge, this battery offers long-lasting reliability compared to traditional lead-acid batteries, which typically provide fewer cycles.
Enhanced Safety
The Lithium Iron Phosphate chemistry offers improved thermal and chemical stability, reducing the risk of overheating, fire, or explosion. It's a safer alternative for both indoor and outdoor use.
Lightweight and Compact
The battery's lightweight design makes it easy to install and handle, especially in mobile or space-constrained environments such as RVs and boats. It weighs much less than traditional lead-acid batteries, helping reduce the overall weight load.

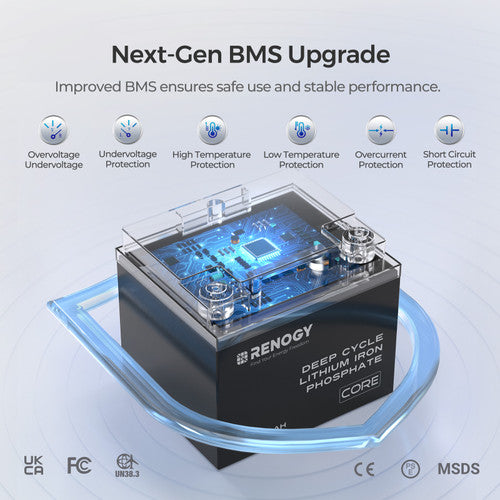

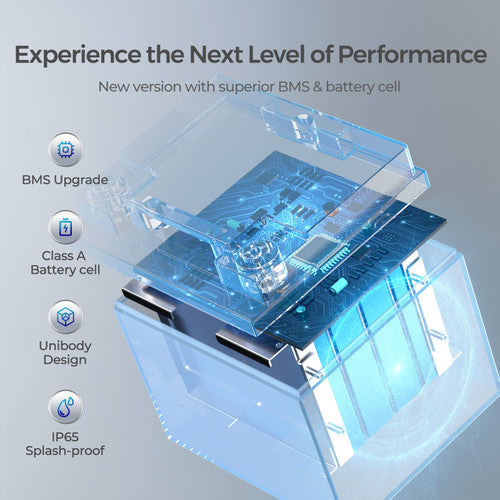

Smart Battery Management System (BMS)
The integrated BMS protects the battery from overcharging, over-discharging, overheating, and short circuits, ensuring a long operational life and optimal performance.
Efficient Charging and Discharging
The battery allows for faster charging and discharging, which is particularly useful in solar energy systems and backup power applications where quick energy replenishment is needed.
Specifications:
Electrical Specifications
-
Rated Capacity: 50Ah
-
Nominal Voltage: 12.8V
-
Voltage Range: 10-14.8V
-
Energy: 640WH
-
Cycle Life(0.5C/25℃): 3500 Cycles (80% DOD, 80% EOL)
-

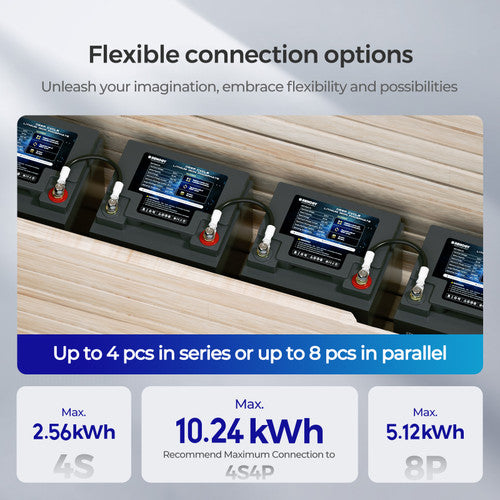

Connection Method: Series （Up to 4）& Parallel (Up to 8)
-
Automatically Self-heating Function: No
Mechanical Specifications
-
Dimensions(L x W x H): 7.8*6.5*6.7in/198*165*169mm
-
Weight: 11.77lbs./5.35Kg
-
Protection Rate: IP65
-
Housing Material: ABS+PC
Charging Parameters
-
Charge Voltage: 14.4V
-
Maximum Continuous Charge Current: 50A
-
Charge Cut-off Voltage: 14.6V
Discharging Parameters
-
Maximum Continuous Discharging Current: 50A
-
Peak discharge current: 100A
-
Discharge Cut-off Voltage: 10V
Temperature Parameters
-
Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
-
Storage Temperature: -25°C-65°C/ -13℉~149℉
-
Charge Temperature: 0°C-55°C/32℉~131℉
-
Discharge Temperature: -20°C-60°C/ -4℉~140℉
Communication
-
Built-in Bluetooth: No
-
Communication Port: No
Accessories
-
M8 Bolts: M8 ×2
-
Activation Switch: No
Warranty
-
Material and workmanship warranty: 5-year
Certifications
-
Certifications: MSDS、UN38.3、FCC、CE, UKCA, PSE
-
AH: 50 AH
-
Voltage: 12V
What's in the Box:
1 x Renogy 12V 50Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
