Renogy 16BB N-Type 175 Watt 12V Solar Panel

The Renogy 175W 12V Solar Panel with advanced N-Type 16BB cells delivers high-output performance in a smaller, lighter frame—ideal for tight rooftop installations like Class B vans and mobile setups. With enhanced efficiency, all-weather durability, and a rugged build that handles road vibrations, this panel is engineered for dependable energy generation no matter where you park. It’s the perfect balance of compact design and serious solar power for travel-ready systems.

Compact and Van-Ready

This updated design is 3.9% smaller and 4% lighter than Renogy’s previous 175W models, making it a perfect fit for van roofs, trailers, and narrow off-grid spaces. Its size and weight allow for easier installation and better space management in mobile environments.

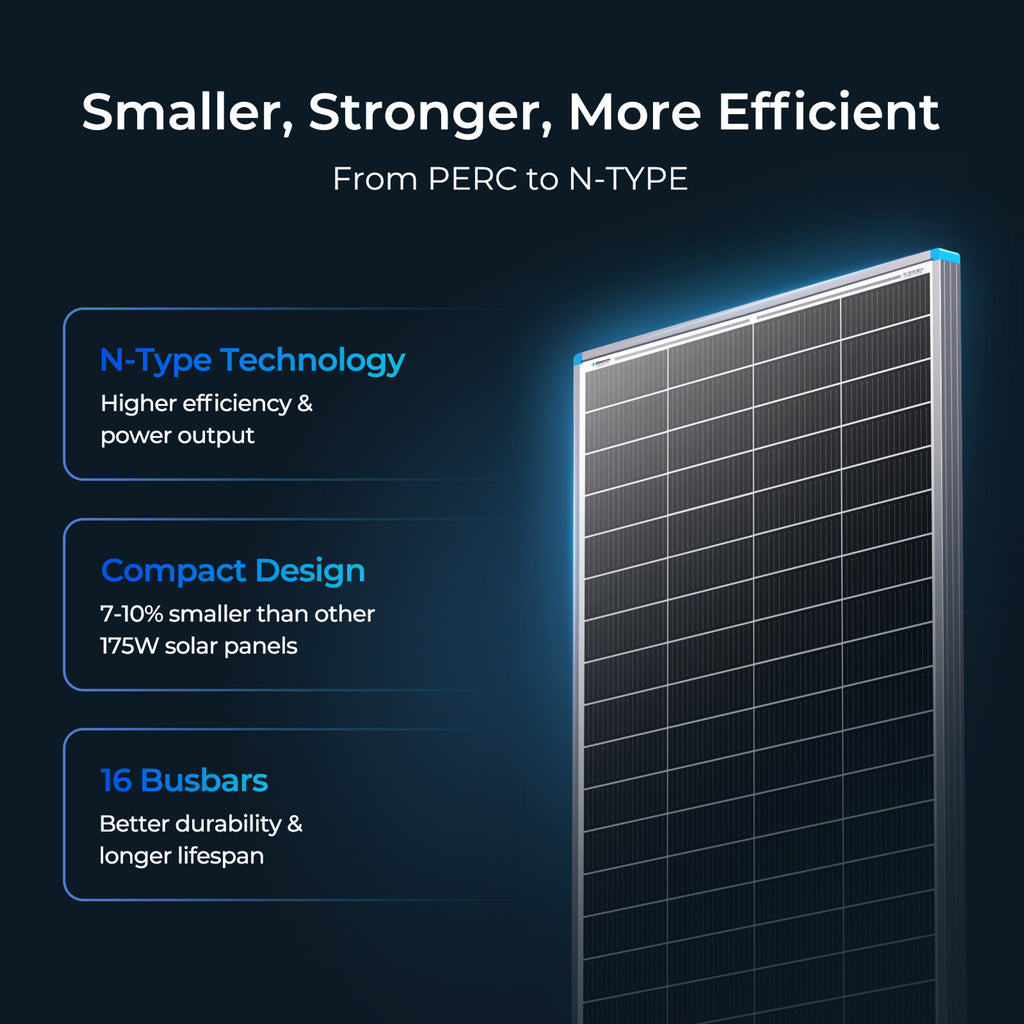

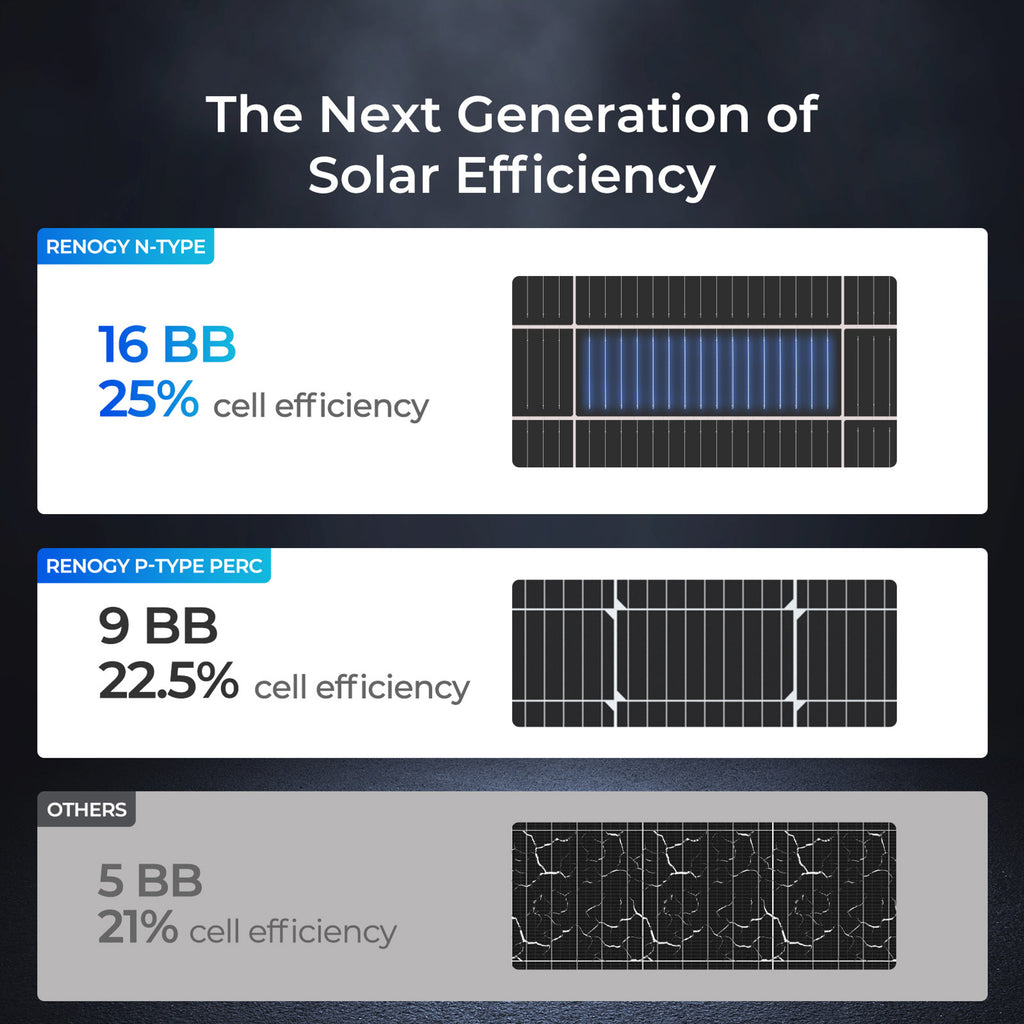

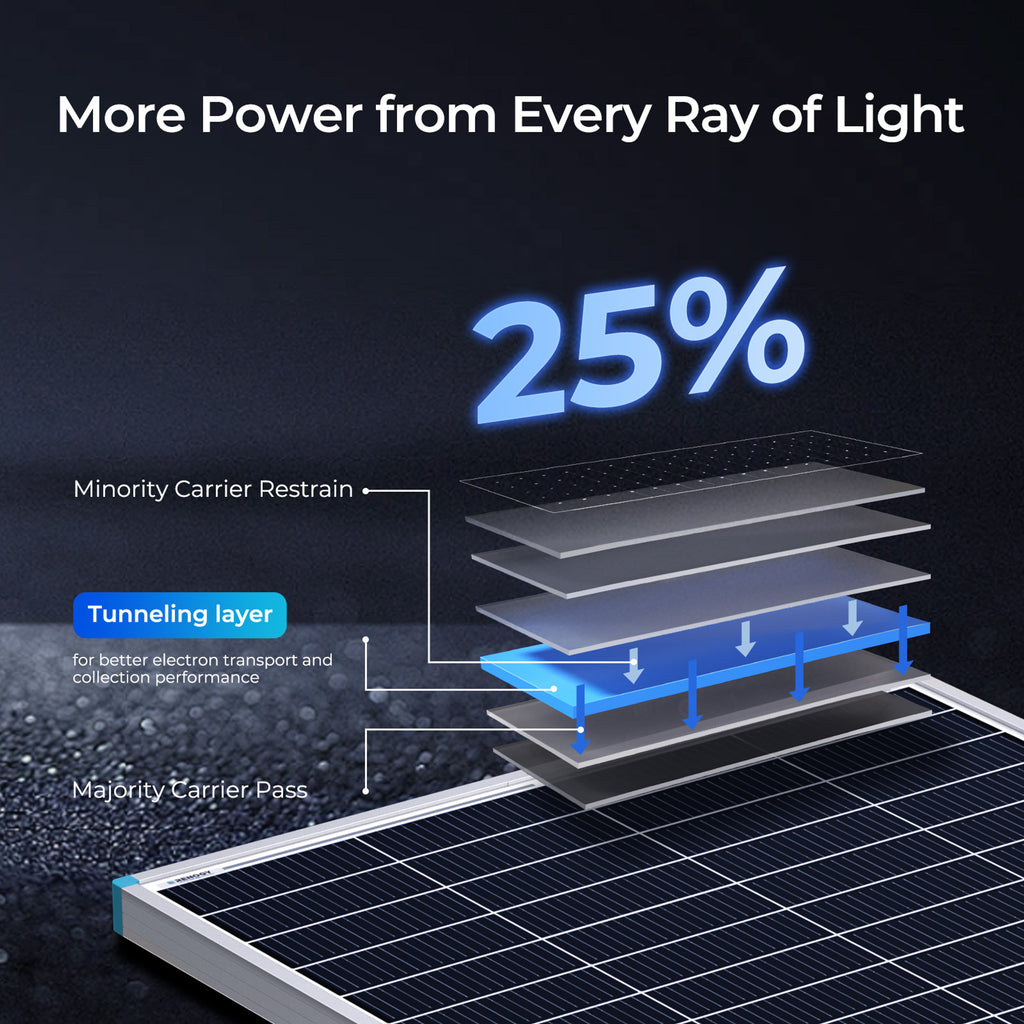

Advanced N-Type Cell Efficiency

Built with N-Type monocrystalline cells, this panel reaches up to 25% cell efficiency, ensuring more energy output per square inch. It delivers up to 875Wh daily under full sun—ideal for powering devices in mobile or remote settings.

Durable for Every Mile

Constructed with reinforced PA66 corner guards, a corrosion-resistant aluminum frame, and rugged EVA film, this panel withstands road bumps, strong winds, and long-term exposure. It’s designed for mobile lifestyles that demand reliability and resilience.

Weather-Resistant and Worry-Free

With IP65-rated junction box and IP67 solar connectors, this panel resists rain, dust, and debris. It endures 2400Pa of wind and 5400Pa of snow load, ensuring year-round performance whether you're parked by the beach or camped in the mountains.

Efficient Install, Long-Term Confidence

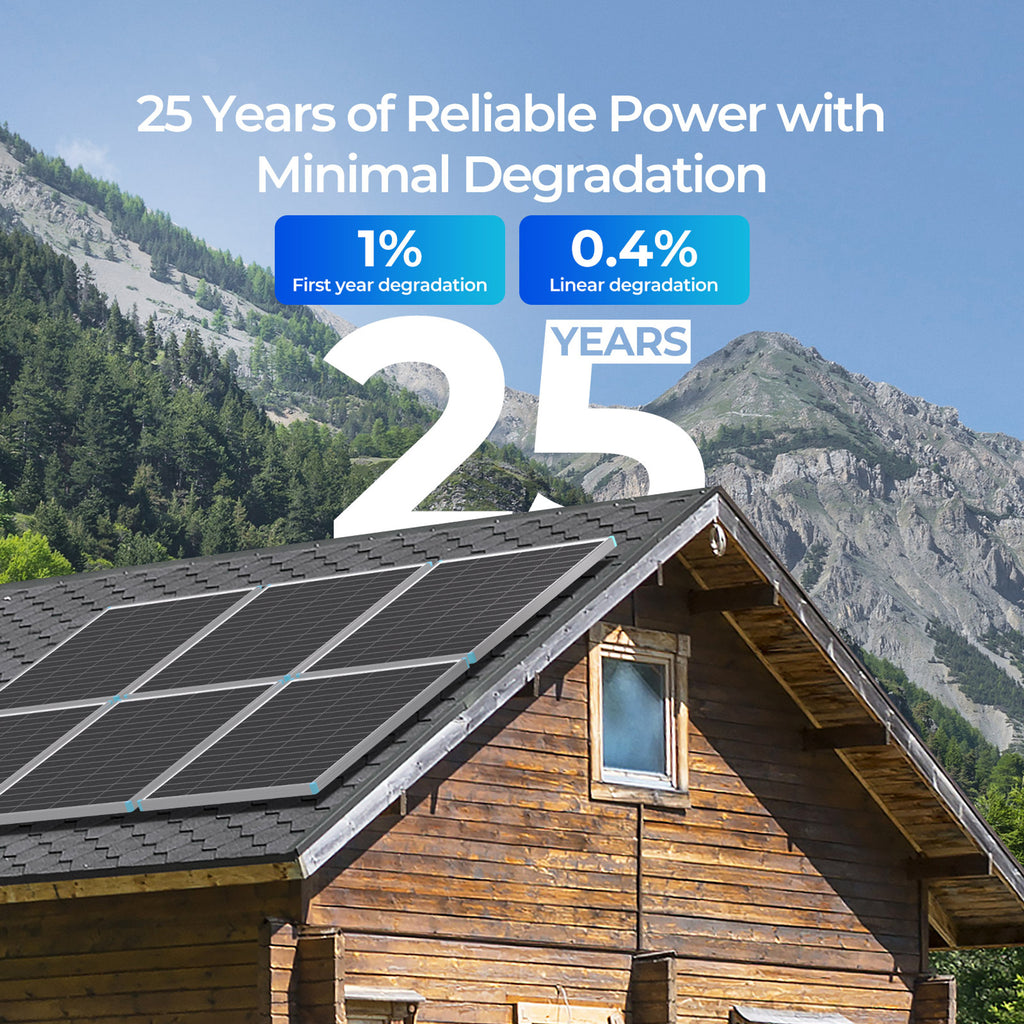

Pre-drilled mounting holes make installation quick and flexible on a variety of surfaces. Backed by a 10-year material warranty and 25-year performance warranty (guaranteed 80% output after 25 years), this panel delivers reliable power for the long haul.

Specifications

• Max Power at STC: 175W

• Open Circuit Voltage: 24.48V

• Short Circuit Current: 8.88A

• Optimum Operating Voltage: 20.88V

• Optimum Operating Current: 8.38A

• Maximum System Voltage: 600VDC

• Maximum Series Fuse Rating: 15A

• Module Efficiency: 20.6%

• Operating Temperature: -40°F to 185°F (-40℃ to 85℃)

• Dimensions: 43.7 x 30.1 x 1.2 in (1110 x 764 x 30 mm)

• Weight: 21.2 lbs (9.6 kg)

• Certifications: CE, ISO 9001 Certified Facility

What’s in the Box

1 x 16BB N-Type 175 Watt 12V Solar Panel
