Renogy 200W Rigid Solar Panel (2 pcs)
The Renogy 200W Rigid Solar Panel (2 pcs) offers a reliable and efficient solution for small to medium off-grid energy systems. This package includes two 200W monocrystalline panels, delivering a combined output of 400W, ideal for powering RVs, boats, cabins, and other remote applications. Designed with advanced technology and durable materials, these panels ensure consistent performance and longevity.

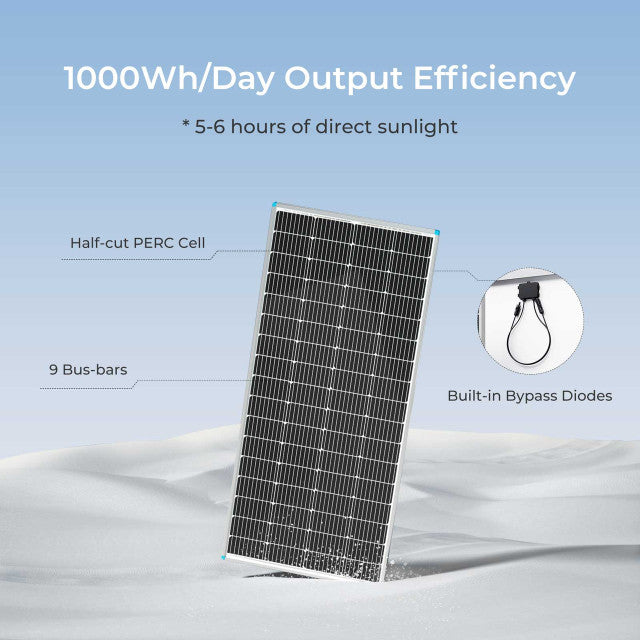

High-Efficiency Monocrystalline Cells
Each panel utilizes 9 bus-bars and PERC (Passivated Emitter and Rear Contact) cell technology, enhancing overall efficiency and performance. This design optimizes sunlight capture, resulting in higher energy output even in low-light conditions.

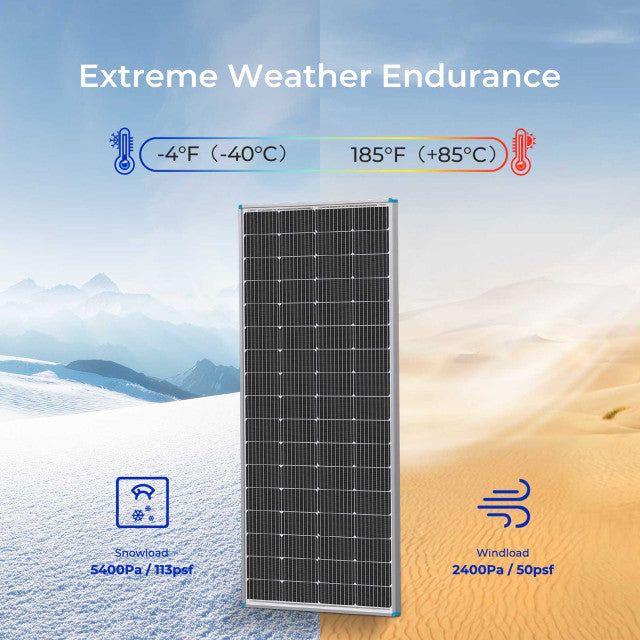

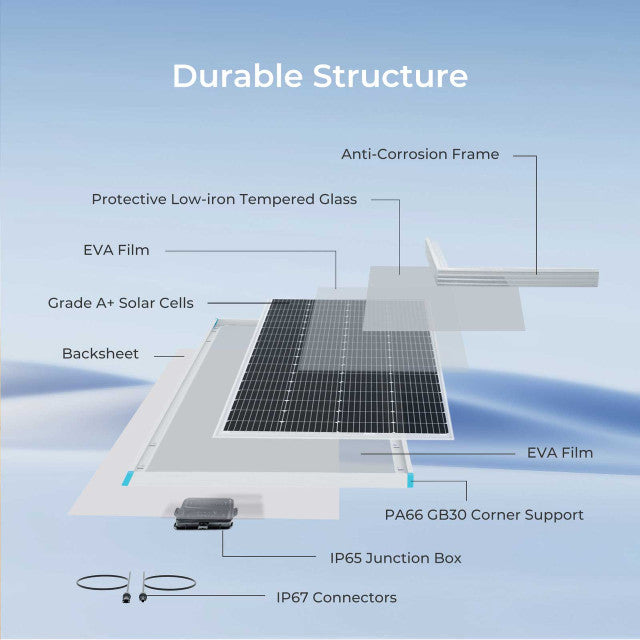

Durable Construction for Longevity
Built with a corrosion-resistant aluminum frame and tempered glass, these panels are engineered to withstand harsh weather conditions, including high winds and snow loads. The robust design ensures reliable power generation over the long term.
Easy Installation with Pre-Drilled Holes
Pre-drilled holes on the back of the panels allow for quick and secure mounting, compatible with various mounting systems such as Z-brackets, pole mounts, and tilt mounts. This feature simplifies the installation process, saving time and effort.

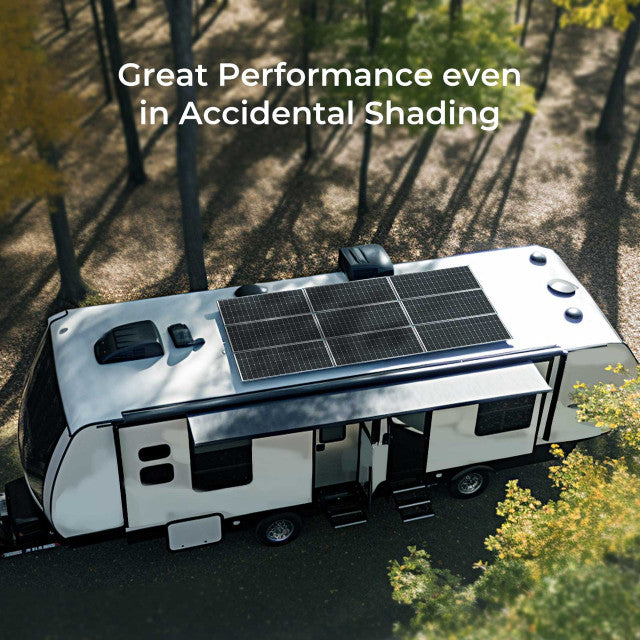

Versatile Off-Grid Applications
With a total output of 400W, this panel set is suitable for a range of off-grid applications, including charging 12V batteries, powering small appliances, and serving as a backup power source. Its versatility makes it an excellent choice for those seeking dependable energy solutions in remote locations.
Warranty and Certifications
Renogy provides a 10-year workmanship warranty and a 25-year 80% output warranty, reflecting the company's commitment to quality and customer satisfaction. The panels are also certified to meet international standards, ensuring safety and reliability.
Specifications
-
Maximum Power (STC): 200W
-
Open Circuit Voltage (Voc): 23V
-
Short Circuit Current (Isc): 11.05A
-
Optimum Operating Voltage (Vmp): 19.2V
-
Optimum Operating Current (Imp): 10.42A
-
Operating Temperature Range: -40°F to 194°F (-40°C to 90°C)
-
Maximum System Voltage: 600 VDC (UL)
-
Maximum Series Fuse Rating: 20A
-
Output Cable: 13 AWG, 2.6 ft (0.8m) long
-

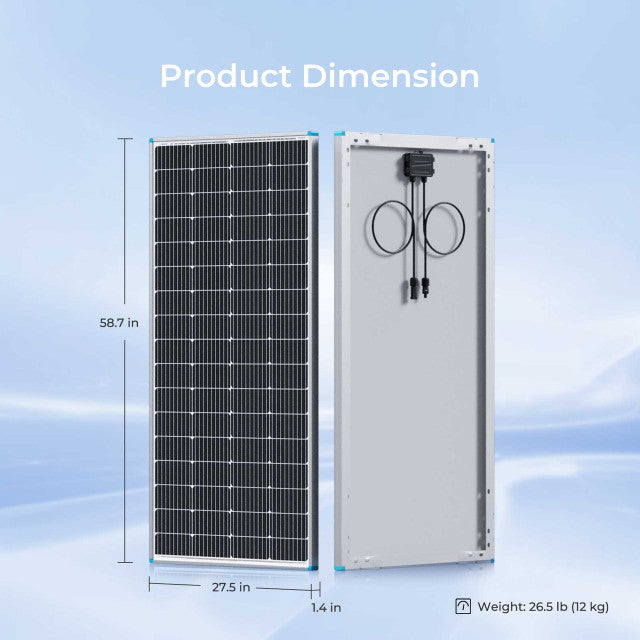

Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35mm)
-
Weight: 26.46 lbs (12 kg)
-
Solar Cells: 68 Cells ((2+2)*17)
-
Junction Box: IP65-rated
-
Connectors: Solar Connectors
-
Module Efficiency: 19.2%
-
Cell Dimensions: 158.75 x 158.75 mm (6.25 x 6.25 in) x 40 cells
Warranty
What’s Included
2 x 200W 12V Monocrystalline Solar Panels
