Renogy 2500W Solar Kit

The Renogy 2.5kW Essential Plus Kit is designed for homeowners and off-grid enthusiasts who seek a powerful and reliable solar energy system. This kit provides everything you need to efficiently capture and store solar energy, making it ideal for cabins, homes, and small off-grid installations. Whether you're looking to reduce your reliance on the grid or enjoy clean energy in remote locations, this kit delivers consistent and dependable power.

2.5kW Solar Power Output

The included high-efficiency monocrystalline solar panels ensure maximum power generation even in low-light conditions, providing clean energy for various applications.

Advanced Battery Storage

Equipped with a reliable lithium battery bank, the kit stores excess energy for use during nighttime or cloudy days, ensuring continuous power availability.

Pure Sine Wave Inverter

Convert the stored DC energy into stable AC power with a high-quality inverter that supports sensitive electronics and household appliances.

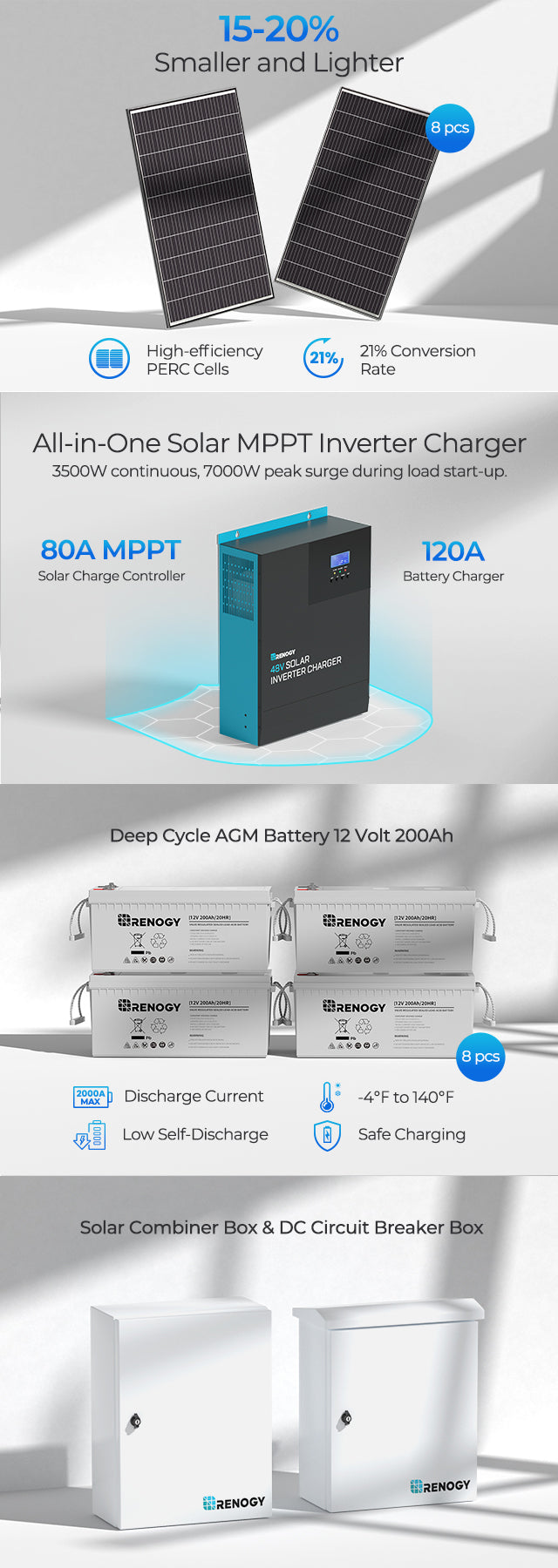

Comprehensive Kit

Includes solar panels, inverter, charge controller, cables, and mounting hardware, offering a complete solution to jumpstart your solar energy system without the need for additional components.

Built-In Safety Features

The charge controller and battery management system (BMS) protect your setup from overcharging, over-discharging, and short-circuits, ensuring safe and long-lasting operation.

Harness the power of the sun and reduce your dependence on traditional energy sources with the Renogy 2.5kW Essential Plus Kit. It’s a simple yet robust solution for eco-friendly, reliable energy in both residential and off-grid setups.

Specifications:

• Maximum Power at STC: 320W
• Optimum Operating Voltage (Vmp): 32.7V
• Open-Circuit Voltage (Voc): 40.1V
• Optimum Operating Current (Imp): 9.79A
• Short-Circuit Current (Isc): 10.36A
• Operating Temperature: -40°F to 185°F
• Cell Efficiency: 21%
• Maximum System Voltage: 1000V DC (UL)
• Maximum Series Fuse Rating: 15A
• Weight: 39.7lbs
• Dimensions: 65.6 x 39.4 x 1.4 in
• Certifications: CE, ISO, UL
•
  RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT
• Output Waveform: Pure Sine Wave
• Continuous Output Power: 3500W
• Peak Power Rating: 7000W
• Output Voltage: 120VAC±5%
• Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%
• Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
• Charge Controller Type: MPPT
• Maximum Input Power: 4800W
• Maximum Input Current: 50A
• Dimensions: 16.8*12.7*4.9 in / 426*322*124 mm
• Weight: 23.8 lbs /10.8kg

• Battery Type: AGM
• Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
• Nominal Voltage: 12V
• Internal Resistance: Approx. 3.5mΩ
• Connection Method: In Series, and In Parallel (up to 4)
• Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm
• Weight: 127.9 lbs / 58 kg
• Standard Operation Temperature: 77°F±9°F（25°C±5°C）

• Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
• Accessories: 1-year material and workmanship warranty

What's in the Box:

2 x 4 Pieces of 320 Watt Monocrystalline Solar Panel
4 x 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
1 x 5 Strings Solar Combiner Box
4 x 16A 1P DC Miniature Circuit Breaker
1 x DC Circuit Breaker Box
1 x 50A 1P DC Miniature Circuit Breaker
1 x 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)
2 x 8Ft 8AWG Solar Stranded Copper PV Wire
1 x 160A 2P DC Molded Case Circuit Breaker
1 x 48V 3500W Solar Inverter Charger
8 x 12V 200Ah AGM Battery
8 x 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs
2 x 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
1 x BT-2 Bluetooth Module
